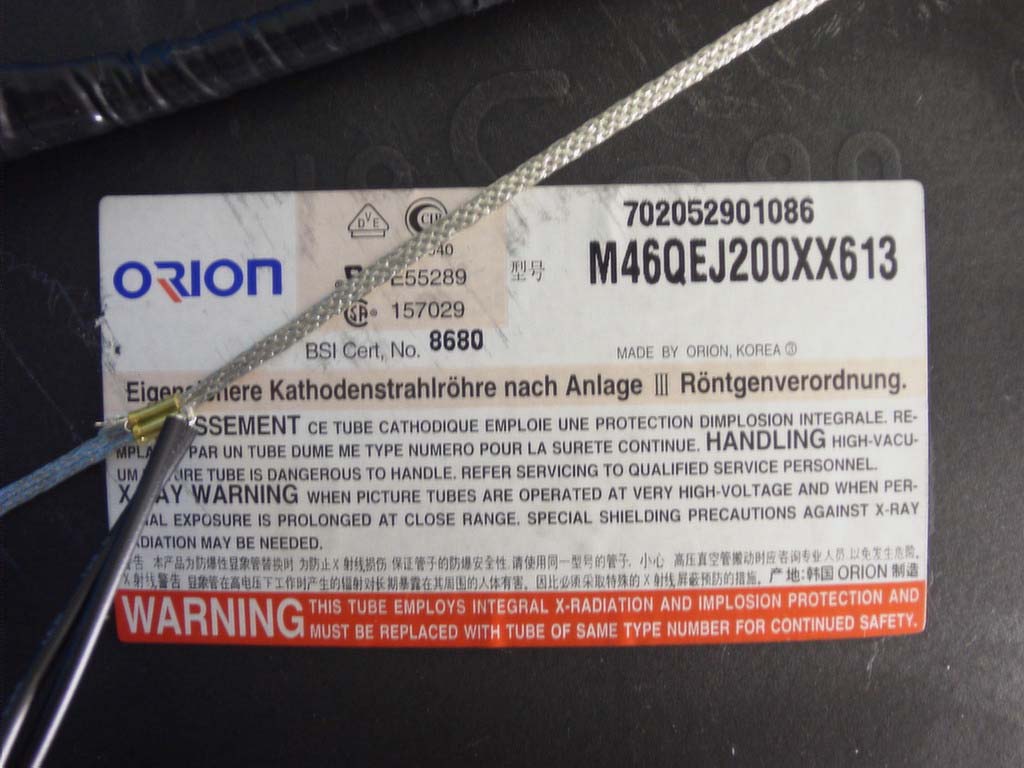

EWBF9S95619" Color Monitor

MODEL No. : F9S956 1 INSTRUCTION MANUAL CONTENTS SAFETY INSTRUCTION2 CAUTIONS4 FCC RF INTERFERENCE STATEMENT5 INSTALLATION6 RESOLUTION7 CONTROLS AND FUNCTIONS8 REAR VIEW13 POWER MANAGEMENT14 SPECIFICATIONS15 TROUBLE SHOOTING GUIDE16 WICHTIGE HINWEISE (GERMAN)17 This Monitor was Manufactured by ISO 9001 Certified Factory INSTRUCTION MANUAL2 SAFETY INSTRUCTION 1. Read all of these instructions. 2. Save these instructions for later use. 3. Follow all warnings and instructions marked on the product. 4. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. 5. Do not use this product near water. 6. Do not place this product on an unstable cart, stand or table. The product may fall, causing serious damage to the product. 7. Slots and openings in the cabinet and the back or bottom are provided for ventilation: to ensure reliable operation of the product and to protect it from overheating these openings must not be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. 8. This product should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available consult your dealer or local power company. 9. This product is equipped with a 3 wire grounding type plug having a third(grounding) pin. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug. 10. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord. 11. If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 10 amperes. 12. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill any kind of liquid on the product. 3 INSTRUCTION MANUAL SAFETY INSTRUCTION 13. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to service personnel. 14. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. A. When the power cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the Product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore normal operation. E. If the product has been dropped or the cabinet has been damaged. F. If the product exhibits a distinct change in performance, indicating a need for service. CC CC AA AA UU UU TT TT II II OO OO NN NN The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. AA AA TT TT TT TT EE EE NN NN TT TT II II OO OO NN NN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à proximité du matériel et être facile d`accès CAUTION TO SERVICE PERSONNEL POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING EMISSION CHARACTERISTICS TESTED BY SEMKO THIS PRODUCT HAS BEEN TESTED AND HAS SHOWN COMPLIANCE WITH THE NATIONAL SPECIFICATIONS SUCH AS SWEDISH MPR 1990.10.(MPR) INSTRUCTION MANUAL 4 CAUTIONS NEVER REMOVE THE BACK COVER NEVER REMOVE THE BACK COVER Removal of the back cover should be carried out only by qualified personnel. This display monitor contains high voltage inside. DO NOT USE IN HOSTILE ENVIRONMENTS DO NOT USE IN HOSTILE ENVIRONMENTS To prevent shock or fire hazard. Do not expose the unit to rain or moisture. This unit is designed to be used in the office or home. Do not subject the unit to vibrations, dust of corrosive gases. KEEP IN A WELL VENTILATED PLACE KEEP IN A WELL VENTILATED PLACE Ventilation holes are provided on the cabinet to prevent the temperature from rising. Do not cover the unit or place anything on the top of unit. Ventilation holes are provided also on the bottom of the cabinet. AVOID HEAT AVOID HEAT Avoid placing the unit in direct sunshine or near a heating appliance. BE CAREFUL OF MAGNETIC FIELDS BE CAREFUL OF MAGNETIC FIELDS Do not place a magnet, speaker system, floppy disc drive or anything which will generate magnetism near the unit, A magnetic field may cause blurred colors or distortion of the displayed pattern. TO ELIMINATE EYE FATIGUE TO ELIMINATE EYE FATIGUE Do not use the unit against a bright back ground and where sunlight or other light sources will shine directly on the monitor. BE CAREFUL OF HEAVY OBJECT BE CAREFUL OF HEAVY OBJECT Neither the monitor itself nor any other heavy object should rest on the power cord. Damage to a power cord can cause fire or electrical shock. 5 INSTRUCTION MANUAL FCC RF INTERFERENCE STATEMENT NN NN OO OO TT TT EE EE :: :: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio…

Text truncated - open the document above for the full version.

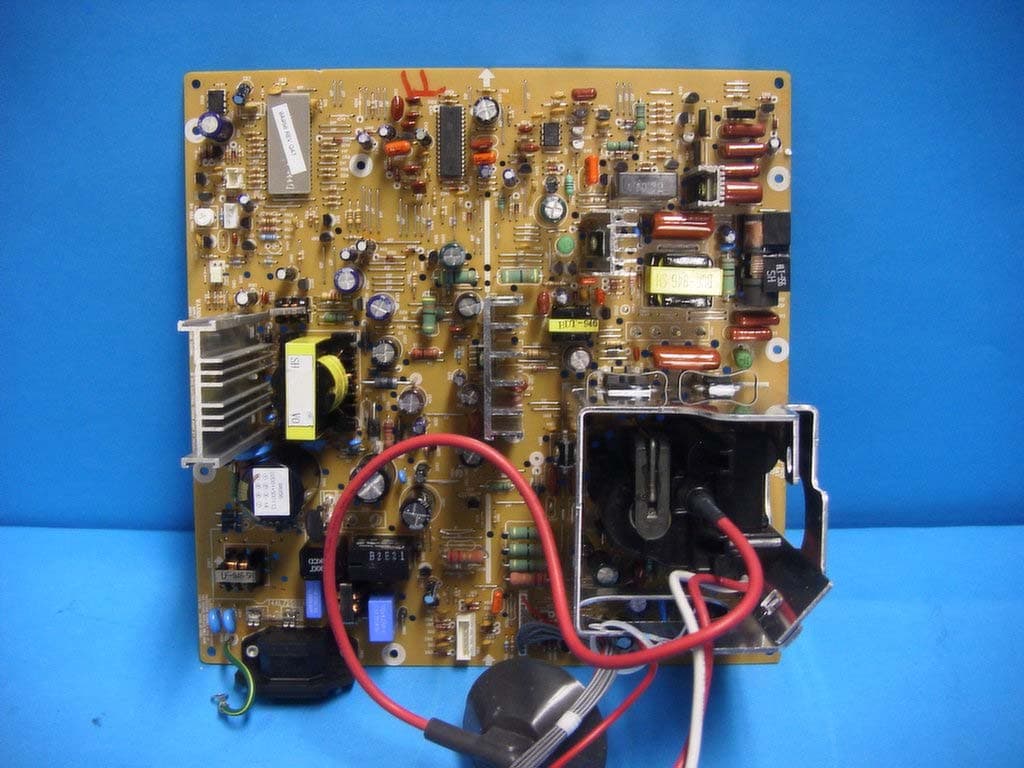

F9S956 BLOCK DIAGRAM VIDEO PRE-AMP LM1267 IC201 SIGNAL IN VIDEO OUT & BIAS LM2465 + LM2480 IC202, IC203 R.G.B R.G.B BRT/BIAS EEPROM 24LC08 MCU NT6865 IC101 12MHZ Hs-IN Vs-IN SDA SCL OSD GEN. NT6827 IC204 H/V OSC & G/D CHOPPERCONTROL TDA9116 IC401 D-COIL POWER IN SMPS KA3843B T801,IC801, Q802 +190V+80V+30V+14V+6.3(HT) G1 CONTROL ABL CONTROL V-OUT TDA8172 IC301 H-OUT TT2062 Q405 DF CONTROL T902,Q970 HIGH VOLTAGE 2SK2545 Q904 FBT T901 50-160Hz 30-96KHz -130V G1 SCREEN F OCU S HIGH VOLTAGE SCL1 SDA1 R.G.BOSD F-BLK CLAMP BCL H-FBPH-DRV B-DRV & H.V F/B SCL1 SDA1 DEGAUSS V-BLK 30-96KHz 30-96KHz 50-160Hz

ID Label Sample & Location Information

File No. 03-IST-008/FB IST EMC LAB. Page 1 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. IST EMC LAB. EMISSION TEST REPORT Test report file No. : 03-IST-008/FB Date of issue : Jan. 15, 2003 Model / Type No. : F9S956 ■ Basic □ Alternate Kind of product Brand name Applicant Manufacturer License holder Address : 19 “ Monitor : Orion : Orion Electric Co., Ltd. : Orion Electric Co., Ltd. : Orion Electric Co., Ltd. : 165 Gongdan-Dong, Gumi-City, Kyongbuk, Korea Test result according to the regulation(s) „ Positive † Negative at page 3. This test report with appendix consists of 16 pages. The test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the Test Laboratory. This equipment is complied with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992. File No. 03-IST-008/FB IST EMC LAB. Page 2 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. DIRECTORY A) Documentation. Page Directory Test regulations Information of Test Laboratory Test Conditions Equipment under Test Test Result Test-setup Summary 2 3 3 4 ~ 5 6 7 8 ~ 10 16 B) Test Data. Conducted emissions (Mains) Radiated emissions : 450 kHz - 30 MHz : 30 MHz – 1 GHz 11 ~ 13 14 ~ 15 C) Appendix File No. 03-IST-008/FB IST EMC LAB. Page 3 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST REGULATIONS The tests were performed according to the following regulations ; ■ - FCC Part 15, Subpart B (Unintentional Radiators, Class B) Information of Test Laboratory IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, Korea International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. File No. 03-IST-008/FB IST EMC LAB. Page 4 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. TEST CONDITIONS The measurement of the conducted emissions (Interference voltage) was performed in a shielded room. Test location : Shielded room. No.1 Compact chamber 2 Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESH 3 Test Receiver Rohde & Schwarz Jul. 25, 2002 892108/018 3725/2 LISN EMCO Aug. 22, 2002 9101-2068 KNW-407 LISN Hyup-Rip Aug. 21, 2002 8-883-10 ESH 3-Z2 Pulse Limiter Rohde & Schwarz Jul. 25, 2002 357.8810.52 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement Procedures : Conducted emissions measurments were made in accordance with ANSI C-63.4-1992, “Method of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurement were performed over the frequency range of 0.45MHz to 30MHz using a 50 Ω /50uH LISN as the input transducer to an EMI/Field Intensity Meter. The measurements were made with the detector set for “Peak” amplitude within an IF bandwidth of 10kHz or for “quasi-peak” within a bandwidth of 9kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 03-IST-008/FB IST EMC LAB. Page 5 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. The measurement of the radiated emissions (Electric field) in the frequency range from 30 MHz to 1GHz was performed in horizontal and vertical antenna polarization at a open-site which meet the site attenuation requirement of ANSI C63.4-1992 and a test distance of : Location : Open Site No. 1 Open Site No. 2 Open Site No. 3 Distance : 3 meters 10 meters Used testing instruments : Name Type Manufacturer Calibration. Date Serial Number ESVP Test Receiver Rohde & Schwarz Jun. 10, 2002 892111/027 VULB 9160 Antenna Schwarzbeck Jun. 07, 2002 3047 Test - accessories : Type Manufacturer Aneroid Barometer Sato Hygrometer Sato Measurement procedures Radiated measurements were in accordance with ANSI C63.4-1992 “Method of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”. The measurements were performed over the frequency range of 30MHz to 1GHz using antenna as the input transducer to a EMI/Field Intensity Meter. The measurements were made with the detector set for “quasi-peak” within a bandwidth of 120kHz. All used test-instruments as well as the test-accessories are calibrated regularly. File No. 03-IST-008/FB IST EMC LAB. Page 6 of 16 IST EMC Lab. San 21-8 Goan-Ri, Baekam-Myun, Yongin-Si, Kyunggi-Do, KOREA International - Tel : 82-31 - 333 - 4093. Fax : 82-31 - 333 - 4094. Domestic - Tel : 031 - 333 - 4093. Fax : 031 - 333 - 4094. EQUIPMENT UNDER TEST Equipment Description : CDT type : 19”(18” Viewable) Dot Type 0.25mm Pitch Black Matrix Screen Orion CDT - M46QEJ200XX613(702052901086) Resolution(H x V) : 1600 dots x1200 lines (Max.) Sweep Frequency : Horizontal 30 - 96 KHz, Vertical 50 - 160 Hz Input Signal : D-SUB INPUT Video(Analog 0.7Vp-p/75 Ω ) Sync.(TTL Level) Active Display Area(WxH) : Preset – 346mm x 225mm Full – 366mm x 275mm Dimensions (WxDxH) : 625mm x 570mm x 573mm Weight : Net Weight 23.5Kg, Gross Weight 26.5Kg Power Supply : AC 100-240V, 50/60Hz, 1.8-0.9A(Free Voltage) EUT Type : Table-Top. Floor-Standing. Table-Top and Floor-Standing(Com…

Text truncated - open the document above for the full version.
