F2ONWK-LISTIRE PRESSURE MONITORING SYSTEM

Tire Pressure Monitoring System USER MANUAL Congratulations to your purchase of TPMS, which will be a valuable addition to your vehicle for helping you to drive safety. TPMS keep watching pressure and temperature of your vehicle tires in real time, and immediately warn you when pressure and/or temperature are found in abnormal condition, providing you enough time to take actions. In addition, as TPMS show out the data through a digital display unit, no longer need you to manually check the tires with a pressure gauge every now and then, thus help you keeping all tires in optimal condition. More benefits from TPMS system for you are: less wearing out by uneven tire, less tire failures by air loss, and less severe tire damages, while longer tire life, more fuel efficiency, and easier to control your vehicle when braking and handling on vehicle. Best of all, TPMS help you to enjoy driving with more safety on the road, less trouble of flat tires and blowouts. PARKING LIST Qty. DESCRIPTION & PART NUMBER 1 DISPLAY UNIT（TPM 6 SENSOR（TPM-P3 1 VELCRO TAPE（ 1 CIGAR LIGHTER POWER CORD (TPM-HPC) 1 POWER CORD（ 1 DUSPLAY BRACKET （TPM-J2） 1 ANTENNA（TPM- 1 REPEATER（TPM OPTIONAL 1 REPEATER POWER CORD （TPM-TRC） OPTIONAL DESCRIPTION & PART NUMBER IMAGE TPM-HM2） P3） （TPM-AS） CIGAR LIGHTER POWER HPC) （TPM-HPC1） DUSPLAY BRACKET -L） TPM-UT） REPEATER POWER CORD INSTALLATION OF SYSTEM INSTALL THE DISPLAY UNIT IN CAB. INSTALL THE REPEATER UNDER THE VEHICLE. INSTALL THE SENSORS ON THE TIRE. INSTALLATION OF THE DISPLAY 1.Set the Display unit on the bracket (TPM-J2), and fix the antenna (TPM-L ) on the antenna connector. （1） （2） 2. Use Velcro (TPM-AS) to fix the bracket (TPM-J2) at the proper position of the cab’s dashboard, where users can easily watch it. 3. The Power Cord (TPM-HPC1) has three wires. Connect the red wire and the yellow wire to the vehicle (+24 V) power, the black wire is connected to vehicle ground. 4. Plug the power cord pin in the mini USB socket of the display unit. 5. The user could use the cigar lighter power cord (TPM-HPC) to connect the display unit power also and charge the battery inside display temporarily. 1. When using Velcro, be sure to clean the target’s surface. 2. Do not set the display under the sunshine, since high temperature will damage the rechargeable battery in the display unit. INSTALLATION OF REPEATER (Optional) Sometimes, we use repeater (TPM-UT) to guarantee the reliability and stability of the display. The repeater installation procedure as following: 1. Fix the repeater (TPM-UT) on the bottom of the truck/trailer with the binding belt (TPM-B).； 2. Fix the Repeater Power Cord (TPM-TRC) with the binding belt (TPM-B). 3. Connect the power cord to the vehicle power supply, the black line to Ground and the red line to +24V. 4. Plug the power cord pin to the repeater, and tighten the screw. INSTALLATION OF THE SENSOR 1. Clean the tire’s valve. 2. Remove the original cap of the valve. 3. Directly screw the sensor into the valve and lock the sensor if possible. Since there is lots of heat exposure near the brake drum when the driver brake frequently on the urban road in some case, please use the extender pipes to keep the sensors out of the radiating heat area. OPERATION 1． Display Illustration 2． After the system installation, press the CONTROL button (S2) and hold for 5 seconds and power on the display unit. The display will show the current pressure and temperature of each tire one by one for 4 seconds (from the No.1 tire to the last tire two times in cycle). Then the display turns off and only the status LED will remain on (monitoring mode). Truck Mode Trailer Mode 3． Reading Mode 1） In monitoring mode, press CONTROL button (S2) or SETUP button (S1) to enter into reading mode. Press S2 the display unit will show the pressure and temperature of each tire one by one for 4 seconds (from the first tire to the last tire with two times in cycle), then back to monitoring mode automatically. Press S1 the display unit will show one tires’ data for 8 seconds, then back to monitoring mode automatically. 2） In reading mode, press S1 one time the tire icon will skip to next location. The user could select the tire and watch the readings. 3） In reading mode, press SELECT button (S3) the display unit will switch between the truck and trailer. 4） In reading mode, press S2 and hold for 5 seconds , to turn on/off the display unit. 4． Upon detection of abnormal tire pressure and/or temperature, the display unit will enter into warning mode. The display unit will show the data readings of the abnormal tire and the warning icon, the status light will change to red from green. And after 8 seconds the display unit will show data reading for all tires with 2 times in cycle, then turn off and the screen remain in red status light. 5． The display unit equipped with rechargeable battery, could be used as handheld tool without vehicle power, the status light of display unit will flash green in normal mode and flash red in warning mode. 6． The battery icon is flashing on the display, when battery is being charged. SYSTEM WARNING Upon detection of abnormal tire pressure and/or temperature, the system will display one of the following warnings. In the case of more than one warnings happened, the highest priority warning icon will show first and the display will continue until all the conditions are normal again (priority order is given below, while has warning of high temperature and low air pressure simultaneous, TPMS show out warning of low air pressure). Press the CONTROL Button (S2) and hold for 3 seconds to clear all warning icons. If an abnormal situation continued, the warning icon will immediately display again. Low Pressure The first priority warning with red status light and 8 seconds alert sound. High Pressure With a red status light. High Temperature With a red status light. No Sensor Signal The lowest warning with a red status light. WARNING THRESHOLD & UNITS SET UP The user may adjus…

Text truncated - open the document above for the full version.

433.92 MHz

Nae Woi Korea.,ltd W-CITY 9-22, 255Pankyoro Bundanggu, Seongnam si, Gyunggido, South Korea Date: April 26, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize KT Kang of KES Co., Ltd. and hereafter referred to as KES Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by KT Kang of KES Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing KES Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; Nae Woi Korea.,ltd W-CITY 9-22, 255Pankyoro Bundanggu, Seongnam si, Gyunggido, South Korea h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Cheol Ho Yang / CEO Nae Woi Korea.,ltd REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Nae Woi Korea.,ltd W-CITY 9-22, 255Pankyoro Bundanggu, Seongnam si, Gyunggido, South Korea Date: April 26, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: F2ONWK-LIS Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Part List CONF APPENDIX_NWK-LIS_Part List.PDF Schematics Diagram(s) CONF APPENDIX_ NWK-LIS_Schemetics.PDF Block diagram CONF APPENDIX_ NWK-LIS_Block diagram.PDF Operation description CONF APPENDIX_ NWK-LIS_Operation description.PDF The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Cheol Ho Yang / CEO Nae Woi Korea.,ltd

Nae Woi Korea.,ltd W-CITY 9-22, 255Pankyoro Bundanggu, Seongnam si, Gyunggido, South Korea Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: May 2, 2013 SUBJECT: Receiver DoC letter(Model: NWK-LIM) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, Cheol Ho Yang / CEO Nae Woi Korea.,ltd

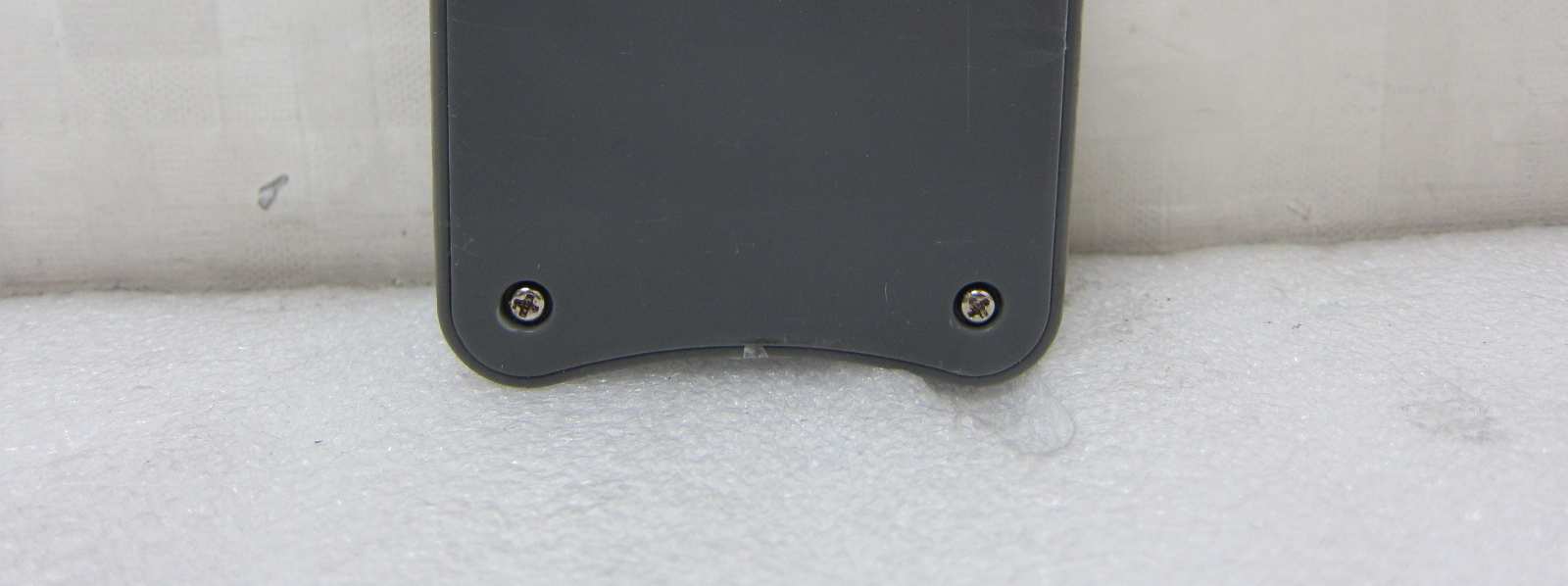

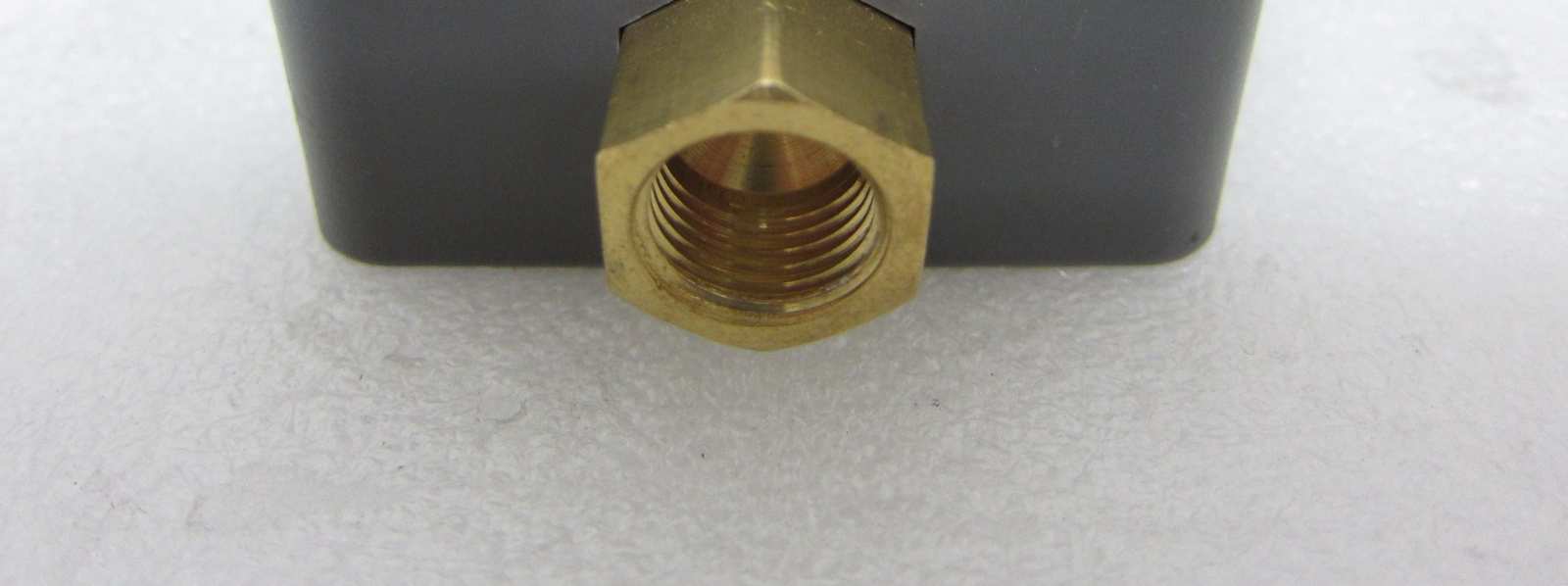

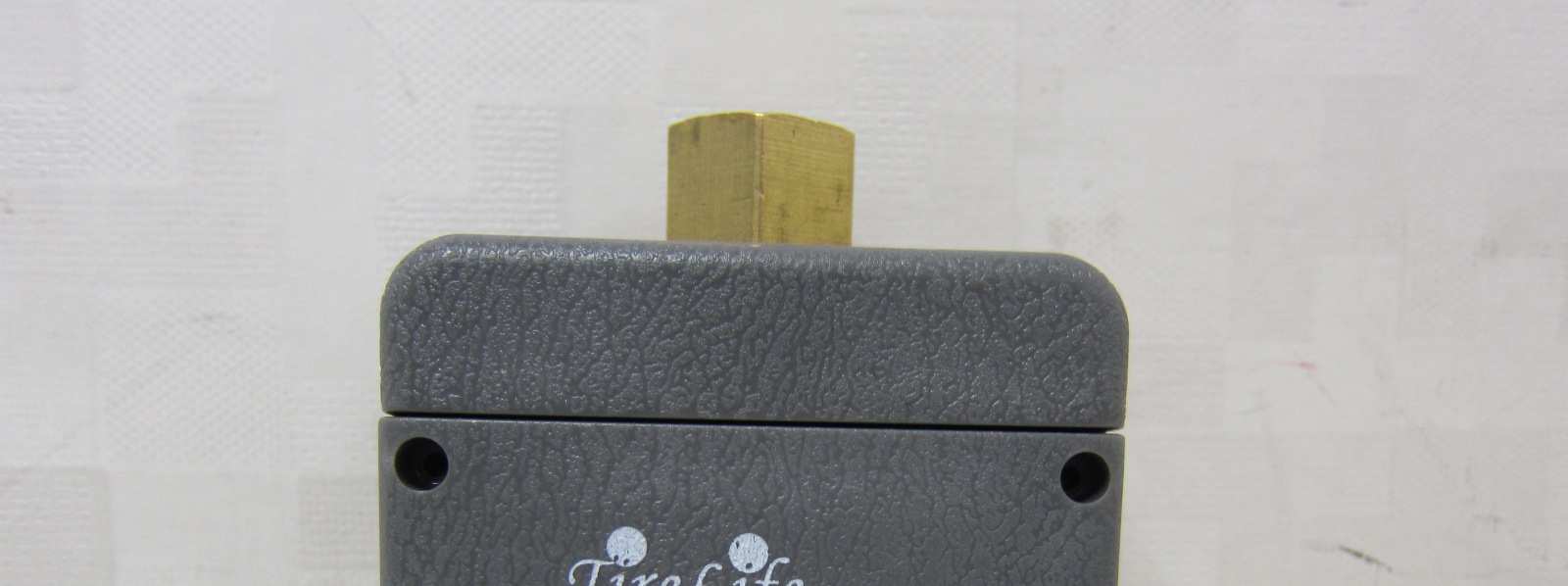

External photos Model No.: NWK-LIS Page 1 of 3 External photos Model No.: NWK-LIS Page 2 of 3 External photos Model No.: NWK-LIS Page 3 of 3

Label and Location Model No.: NWK-LIS Page 1 of 1 Nae Woi Korea., ltd. FCC ID: F2ONWK-LIS Model: NWK-LIS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photos Model No.: NWK-LIS Page 1 of 1 Antenna

MICRF112 QwikRadio ® UHF ASK/FSK Transmitter QwikRadio is a registered trademark of Micrel, Inc. Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 • http://www.micrel.com March 2008 M9999-031008 (408) 944-0800 General Description The MICRF112 is a high performance, easy to use, single chip ASK / FSK Transmitter IC for remote wireless applications in the 300 to 450MHz frequency band. This transmitter IC is a true “data-in, antenna-out” monolithic device. MICRF112 is high performance in three areas: power delivery, operating voltage, and operating temperature. In terms of power, the MICRF112 is capable of delivering +10 dBm into a 50Ω load. This power level enables a small form factor transmitter (lossy antenna) such as a key fob transmitter to operate near the maximum limit of transmission regulations. In terms of operating voltage, the MICRF112 operates from 3.6V to 1.8V. Many transmitter ICs in the same frequency band stop operating below 2.0V. The MICRF112 will work with most batteries to the end of their useful limits. In terms of operating temperature, the MICRF112 operates from -40°C to +125°C. This wide operating temperature range makes MICRF112 an ideal candidate for the demanding applications such as a tire pressure monitoring system. The MICRF112 is easy to use. One only needs a reference frequency (RF carrier frequency divided by 32 times) generated from a crystal with a few additional external parts to create a complete versatile transmitter. The MICRF112 operates with ASK/OOK (Amplitude Shift Keying/On-Off Keyed) UHF receiver types from wide-band super-regenerative radios to narrow-band, high performance super-heterodyne receivers. The MICRF112’s maximum ASK data rate is 50kbps (Manchester Encoding). It operates with FSK receivers as well. The chip is designed to support narrow band FSK (Frequency Shift Modulation) by switching an external capacitor in parallel with the reference crystal. The MICRF112’s maximum FSK data rate is 10kbps. Features • Complete UHF transmitter • Frequency range 300MHz to 450MHz • Data rates up to 50kbps ASK, 10kbps FSK • Output Power to 10dBm • Low external part count • Low standby current <1μA • Low voltage operation (down to 1.8V) • Operate with crystals or ceramic resonators Applications • Remote Keyless Entry Systems (RKE) • Remote Control (STB, HVAC and Appliances) • Garage Door Opener Transmitters • Remote Sensor Data Links • Infrared Transmitter Replacement • Tire Pressure Monitor System (TPMS) Ordering Information Part Number Temp. Range Package MICRF112YMM –40°C to +125°C 10-Pin MSOP Micrel, Inc. MICRF112 March 2008 2 M9999-031008 (408) 944-0800 Typical Application Figure 1. MICRF112 ASK Key Fob Design Note: Values in parenthesis are for 315MHz Micrel, Inc. MICRF112 March 2008 3 M9999-031008 (408) 944-0800 Pin Configuration XTAL_MODFSK65 1ASK XTLIN XTLOUT VSS 10VDD PAOUT VSSPA EN 9 8 7 2 3 4 10-Pin MSOP (M) Pin Description Pin Number MSOP-10 Pin Name Pin Function 1 ASK ASK DATA Input 2 XLIN Reference oscillator input connection. 3 XTLOUT Reference oscillator output connection. 4 VSS Ground 5 XTAL_MOD Reference oscillation modulation port for FSK operation. 6 FSK FSK Data Input 7 EN Chip enable, active high 8 VSSPA PA Ground 9 PA_OUT PA output 10 VDD Positive Power Supply Micrel, Inc. MICRF112 March 2008 4 M9999-031008 (408) 944-0800 Absolute Maximum Ratings (Note 1) Supply Voltage VDD ...................................................+5.0V Voltage on PAOUT......................................................+7.2V Voltage on I/O Pins ............................ VSS–0.3 to VDD+0.3 Storage Temperature Range ....................-65°C to + 150°C Lead Temperature (soldering, 10 seconds) ............ + 300°C ESD Rating.................................................................Note 3 Operating Ratings (Note 2) Supply Voltage VDD........................................ 1.8V to 3.6V Ambient Operating Temperature (TA) ...... –40°C to +125°C Programmable Transmitter Frequency Range: ....................................................... 300MHz to 450MHz Electrical Characteristics (Note 4) Specifications apply for VDD = 3.0V, TA = 25°C, Freq REFOSC = 13.560MHz, EN = VDD. Bold values indicate –40°C to 125°C unless otherwise noted. 1kbps data rate 50% duty cycle. RL 50ohm load (matched) Parameter Condition Min Typ Max Units Power Supply Standby supply current, Iq EN = VSS .05 1μA μA @ 315MHz, POUT = +10dBm 12.3 mA Mark Supply Current I ON @ 433.92MHz, P OUT = +10dBm 12.5 mA @ 315MHz 2 mA SPACE supply current, IOFF @ 433.92 MHz 2 mA RF Output Section and Modulation Limits: @315MHz, Note 4 10 dBm Output power level, POUT FSK or ASK "mark" @433.92MHz, Note 4 10 dBm @ 630MHz, Note 4 2nd harm. -39 dBc Harmonics output for 315 MHz @945MHz, Note 4 3rd harm. -53 dBc @ 867.84MHz, Note 4 2nd harm. -55 dBc Harmonics output for 433.92 MHz @1301.76MHz, Note 4 3rd harm. -55 dBc Extinction ratio for ASK 70 dBc FSK Modulation Frequency Deviation load capacitor = 10pF, crystal type = HC49/U 22 kHz Data Rate 10 kbps ASK Modulation Data Rate 50 kbps @315MHz, Note 6 <700 kHz Occupied Bandwidth @433.92MHz, Note 6 <1000 kHz VCO Section @ 100kHz from Carrier -76 dBc/Hz 315 MHz Single Side Band Phase Noise @ 1000kHz from Carrier -79 dBc/Hz @ 100kHz from Carrier -72 dBc/Hz 433.92 MHz Single Side Band Phase Noise @ 1000kHz from Carrier -81 dBc/Hz Reference Oscillator Section XTLIN, XTLOUT, XTLMOD Pin capacitance 2 pF External Capacitance See Schematic C17 & C18 18 pF Oscillator Startup Time Note 5 Crystal: HC49S 300 μs Digital / Control Section Output Blanking STDBY transition from LOW to HIGH 500 μs Micrel, Inc. MICRF112 March 2008 5 M9999-031008 (408) 944-0800 Electrical Characteristics (cont.) Parameter Condition Min Typ Max Units High (V IH ) 0.8×V DD V Digital Input (EN, ASK and FSK) Low (V IL ) 0.2×V DD V High (V IH ) 0.05 μA Digital Input Leakage Current (EN, ASK and FSK Pins) Low (V IL ) 0.05 μA Under Vo…

Text truncated - open the document above for the full version.

NWK-LI SENSOR Bill Of Materials SD_WEIGH_684_B.DSN Revision: A Item QuantityReference Part ______________________________________________ 1 3 HO1,A1,HO2 CON1 2 1 C* 1p5 3 1 C1 100P 4 1 C2 330P 5 2 C3,C4 0.1 6 1 C5 10uF 7 2 C6,C7 27P 8 2 D1,D2 M721 9 1 D3 1N4148 10 1 J1 4.5V AAA BATERY 11 1 J2 CON4 12 1 J3 ISCP 13 1 J5 Sensor I/O 14 1 L1 680nH 15 1 L2 27nH 16 1 R1 1M 17 1 R2 10K 18 1 U1 MICRF112 19 1 U3 LM95071 20 1 U5 PIC16F684-I/ST 21 1 Y1 13.56MHz

AA BB CC DD EE 4 4 3 3 2 2 1 1 TitleSize Document Number Rev Date: Sheet of SD_WEIGH_684_B.DSN A NWK-LI SENSOR B 11 Tuesday, December 18, 2012 TitleSize Document Number Rev Date: Sheet of SD_WEIGH_684_B.DSN A NWK-LI SENSOR B 11 Tuesday, December 18, 2012 TitleSize Document Number Rev Date: Sheet of SD_WEIGH_684_B.DSN A NWK-LI SENSOR B 11 Tuesday, December 18, 2012 433.92MHz USE MICRF112 FOR ASK RF RF =433.92 MHz GNDVcc S Input DGND+3.6VC C2330PC2330P D2M721D2M721 - 3 + 1 NC 2 HO1HO11 C40.1C40.1 A1A1 1 U3LM95071U3LM95071 -CS 1 GND 2 SI/O 3 VDD 5 SC 4 J5 Sensor I/O J5 Sensor I/O 123 C30.1C30.1 J14.5V AAA BATERYJ14.5V AAA BATERY 123456 C6 27P C6 27P R11MR11M D3 1N4148 D3 1N4148 - 3 + 1 NC 2 J3ISCPJ3ISCP 1 2 3 4 5 U5 PIC16F684-I/ST U5 PIC16F684-I/ST Vdd 1 RA5 2 RA4 3 MCLR 4 RC3 7 RC4 6 RC5 5 Vss 14 RA0 13 RA1 12 RA2 11 RC0 10 RC1 9 RC2 8 D1M721D1M721 - 3 + 1 NC 2 + C510uF + C510uF Y1Y1(13.560 MHz) 1234 C*1p5C*1p5 C727PC727P L1 680nH L1 680nH HO2HO21 L2 27nH L2 27nH R210KR210K U1 MICRF112 U1 MICRF112 ASK 1 XTIN 2 XTOUT 3 VSS 4 VSS 8 EN 7 FSK 6 XMOD 5 POUT 9 VDD 10 J2J2 1234 C1 100P C1 100P

KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-13T0007 Page: (1) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 TEST REPORT Part 15 Subpart C 15.231 Equipment under test Tire Pressure Monitoring System Model name NWK-LIS FCC ID F2ONWK-LIS Applicant Nae Woi Korea.,ltd Manufacturer Nae Woi Korea.,ltd Date of test(s) 2013.04.22 ~ 2013.04.24 Date of issue 2013.04.26 Issued to Nae Woi Korea.,ltd W-CITY 9-22, 255Pankyoro Bundanggu, Seongnam si, Gyunggido, South Korea Issued by KES Co., Ltd. C3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469-803, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 Test and report completed by : Report approval by : Byeong-Geol Chu Test engineer Jeff Do Technical manager KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-13T0007 Page: (2) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 Revision history Revision Date of issue Test report No. Description - 2013.04.26 KES-RF-13T0007 Initial KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-13T0007 Page: (3) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 TABLE OF CONTENTS 1. General information ................................................................................................................................................... 4 1.1. EUT description ........................................................................................................................................ 4 1.2. Test frequency ........................................................................................................................................... 4 1.3. Information about variant model ............................................................................................................... 4 1.4. Device modifications ................................................................................................................................. 4 1.5. Test facility ................................................................................................................................................ 5 1.6. Laboratory accreditations and listings ....................................................................................................... 5 2. Summary of tests ........................................................................................................................................................ 6 3. Test results .................................................................................................................................................................. 7 3.1. The field strength of fundamental and the field strength of spurious emission ......................................... 7 3.2. 20 ㏈ bandwidth .................................................................................................................................... 12 3.3. Transmission plot .................................................................................................................................... 13 Appendix A. Measurement equipment ......................................................................................................................... 15 Appendix B. Test setup photos ..................................................................................................................................... 16 KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-13T0007 Page: (4) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 1. General information 1.1. EUT description Equipment under test Tire Pressure Monitoring System Model name NWK-LIS Serial number N/A Frequency Range 433.92 ㎒ Modulation technique ASK Number of channels 1 Antenna type Fixed type(Helix antenna) Power source DC 4.5 V(Battery) 1.2. Test frequency Low channel Middle channel High channel Frequency (㎒ ㎒㎒ ㎒) 433.92 N/A N/A 1.3. Information about variant model N/A 1.4. Device modifications N/A KES Co., Ltd. C-3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea Tel: +82-31-425-6200 / Fax: +82-31-424-0450 www.kes.co.kr Test report No.: KES-RF-13T0007 Page: (5) of (16) This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. The test results in the report only apply to the tested sample. KES-P-5101-09 Rev.1 KES A4 1.5. Test facility C3701 Dongil Techno Town, 889-1, Gwanyang 2-dong, Dongan-gu, Anyang-si, Gyeonggi-do, 431-716, Korea 477-6, Hageo-ri, Yeoju-eup, Yeoju-gun, Gyeonggi-do, 469-803, Korea The open area test site is constructed in conformance with the requirements ANSI C63.4-2003. 1.6. Laboratory accreditations and listings Country Agency Scope of accreditation Certificate No. USA FCC 3 & 10 meter Open Area Test Sites and one conducted …
