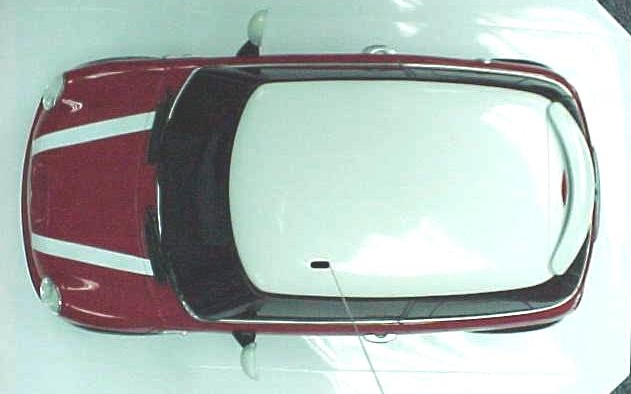

F5J71154949 MHz WIRELESS R/C CAR- RX

(Diagram 7) (Diagram 1) Battery compartment latch (Diagram 2) (Diagram 5)(Diagram 4) ON/OFF (Diagram 6) Backward Stop Forward Left Straight Right R R F L B L ONOFF LH LH Tremor Instruction Prints 1 Color Process Black Folded size: 65mm x 121mm Extended size: 392mm x 121mm 1. Slide ON/OFF switch on the bottom of the vehicle to OFF. 2. Insert battery pack into the battery compartment as shown. (See diagram 2) 3. Push battery pack forward in direction of arrow engraved on battery pack. 4. Use a coin to turn the battery compartment latch counterclockwise until it stops to lock the battery pack in position. When the vehicle slows down, recharge the battery pack. When the battery pack will no longer hold a charge, replace it. Note: To remove, use a coin to turn the battery compartment latch clockwise until it stops, slide the battery pack up and remove it from the battery compartment. Fast Lane is a mark of Geoffrey, Inc. ©1999 Geoffrey, Inc. Distributed by Toys“R”Us, Inc., Wayne, NJ 07470 Made in China www.toysrus.com 6 + FOR AGES DRIVING THE CAR: Warning: Never play with your vehicle in the street. 1. Slide ON/OFF switch on the side of the vehicle to ON. (See diagram 4) 2. Use the transmitter’s control levers as follows: (See diagram 5) Left Control Lever: • Push forward to move forward (F). • Pull back to move backward (B). • Release to stop. Right Control Lever: • Push left to move left (L). • Push right to move right (R). • Release to go straight. Caution: If the vehicle gets stuck under an object, immediately release the control levers on the transmitter, then retrieve the vehice. 3. When you finish driving, slide the ON/OFF switch on the vehicle to OFF. HOW TO OPERATE: 1. If the vehicle does not go in a straight line when you release the right control lever, adjust the wheel alignment control on the bottom of the vehicle. Turn the wheel alignment control toward L if the vehicle is pulling to the right, or toward R if the vehicle is pulling to the left. (See diagram 6) 2. Slide L/H switch beneath the rear bumper to H for driving on a smooth surface or to L for a rough surface or climbing slopes. (See diagram 7) Note: If you cannot easily slide the switch, slightly turn the vehicle's back wheels by hand. Then try again. HELPFUL HINTS: The following hints can help you get the most enjoyment from your vehicle: • Running your vehicle continuously for long periods generates high heat levels. Heat causes wear and tear on the motor. When your vehicle’s battery dies, let the vehicle cool at least 10 minutes before installing a newly charged battery pack. This helps keep heat levels down. • If the vehicle’s motor runs but does not respond to the transmitter, move closer to the vehicle and try again. • If someone uses a CB nearby, it might interfere with control of the vehicle. If this happens, move the vehicle and transmitter away from the CB. • You cannot operate your vehicle near devices with transmitters that use the same frequency, (27 MHz or 49 MHz). Check the packaging to see which frequency your vehicle uses. • If the vehicle moves slowly, and you have installed a recharged battery pack, check the wheel mechanisms for lint, thread, hair or dust. CARE: The following suggestions will help you care for your vehicle so you can enjoy it for years: • Never drive the vehicle on a wet floor, on sand, or in mud, rain, or snow. These can damage it. • Do not expose the vehicle to extreme temperatures. • To protect the vehicle’s wheel mechanisms from lint and hair, do not drive it on carpet. • Occasionally wipe the vehicle with a damp cloth to keep it looking new. Do not use harsh chemicals to clean the vehicle. Modifying or tampering with the vehicle or the transmitter’s internal components can cause a malfunction and void your FCC authorization to operate them. THE FCC WANTS YOU TO KNOW: Your vehicle or transmitter might cause TV or radio interference even when it is operating properly. To determine whether your vehicle or transmitter is causing the interference, turn off your vehicle and release the transmitter’s control levers. If the interference goes away, your vehicle or transmitter is the cause. Try to eliminate the interference by: • Moving your vehicle and transmitter away from the TV or radio. If you cannot eliminate the interference, the FCC requires that you stop using your vehicle. BATTERY INSTALLATION: TRANSMITTER: The transmitter requires one 9-volt battery (included). For the best performance and longest life, we recommend an alkaline battery. Follow these steps to install the battery in the transmitter: 1. Remove battery compartment cover by sliding it in the direction of the arrow shown on the compartment cover. 2. Place battery in the compartment according to the polarity symbols (+ and -) marked inside. (See diagram 1) 3. Replace the cover and snap it shut. When the transmitter’s range decreases, replace battery. CAR: Your vehicle requires a 6-volt rechargeable battery pack (included). You must charge the battery pack with a battery charger before you can use it to power your vehicle. To charge it, follow the battery charger instructions. Then follow these steps to put the battery pack in the vehicle: BATTERY CHARGER INSTRUCTIONS: CHARGER MUST BE OPERATED BY ADULT ONLY. 1. Plug charger into a standard household outlet (110/120 Volt). 2. Join together the plug from the battery to the receptacle plug attached to the charger wires. Be sure to get a firm fit by having the ridge snap into place with the clip. 3. Allow battery to charges for 5 hours for a complete and full charge. Additional charging will not improve your battery's output, and could eventual damage the battery. Do not charge a battery if you notice it leaking or see corrosion on any part of the battery. • A characteristic of Ni-Cd batteries is a loss of power quickly. A spare battery is therefore recommended for longer play, and happier operates. • If the battery is hot after operation please wait until it is cool befor…
