FHO-E1901BUNDVIKA Baby Monitor

UNDVIKA A, Baby Unit B, Parent Unit 10 11 12 1 2 3 45 6 7 8 9 13 14 15 16 17 18 19 20 English Français Español 4 16 30 4English A, Baby Unit 1. On/Off switch and Microphone sensitity control 1-3 2. Input connector for charger 3. Search button. 4. Battery Indicator 5. Range/Transmitting indicator 6. Speaker 7. Charging connector for parent unit 8. Microphone 9. Battery compartment B, Parent Unit 10. On/Off switch and Volume control 1-3 11. Input USB-C connector for charger 12. Battery Indicator 13. Receiving/Picking up Sound level indicator 14. Rubber ring 15. Range Indicator 16. Talk back button 17. Speaker 18. Charging connector to Baby unit 19. Microphone 20. Battery compartment 5 IMPORTANT! READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE! Before usage NOTE! TO AVOID UNPLEASANT FEEDBACK NOISES, PLEASE FOLLOW THE INSTRUCTIONS FOR SWITCHING ON EACH UNIT UNDER “HOW TO USE” BELOW. Included parts: 1 baby unit, 1 adult unit, 1 charger cable, 1 rubber ring, 1 24V adapter, 1 manual. LOW RADIATION. The radiation from the baby unit is very low and the baby unit does not transmit continuously in stand-by mode. The units can be used while they’re being charged. The maximum distance the units can be apart and still communicate is approximately 300 m, in an open air. Different building materials and placement of the units can affect the 6 wireless connectivity range, so it is VERY IMPORTANT THAT YOU CHECK THE FUNCTION OF THE PRODUCT BEFORE USING THE TWO UNITS. If units are out of range the Range indicator (15) on the parent unit will start to flash red. NOTE! The baby monitor should never be used as a medical device, nor should it replace direct supervison of your child, at regular intervals by a responsible adult. Warning! Strangulation Hazard. Children have STRANGLED in cords. Keep units and cords out of the reach of children and crib (more than 3 ft (0.9 m) away) due to risk of strangulation. Getting Started Open lid (9 & 19) and insert 3xAAA/HR03 NiMH batteries in both parent unit and baby unit with correct polarity. Connect wall adapter dc plug into baby unit connector (2) 7 How To Use A, Baby Unit 1. Switch the power on by turning the On/Off switch (1) from 0 to 1. When the power is on, the Battery indicator (4) lights up green. If the indicator starts blinking red, the unit needs to be charged. 2. You can adjust the sensitivity of the microphone from 1 to 3 using the Microphone sensitivity control (1). The microphone is most sensitive to sound when it is set to 3, and least sensitive when it is set to 1. If there is a lot of background noise, it’s a good idea to lower the microphone sensitivity. If the surroundings are quiet, the microphone sensitivity can be set higher. 3. You can search for the parent unit by pressing search button (3). Pressing the button will make the parent unit emit a notification sound for 20 seconds. Long press on the talk back button on the parent unit will turn the notification sound off. 4. The Range/Transmitting indicator (5) lights up green when it picks up sound. Solid green when parent unit is within range. Flashing red when parent unit is out of range. 5. Place the baby unit near your child, with the microphone facing the child. Make sure the unit is close enough to pick up sounds from your child, but not so close that your child can reach it. 0.9 metre (3 ft) is a good distance. 8 B, Parent Unit NOTE! Make sure the parent unit is at least a couple of metres away from the baby unit before you switch it on. If the units are too close to each other, feedback between the units can create a loud screeching noise. 1. Switch the power on by turning the On/Off switch (10) from 0 to 1. When the power is on, the battery indicator (12) lights up green. If the indicator starts blinking red, the unit needs to be charged. 2. You can adjust volume of the speaker (17) from 1 (lowest) to 3 (highest) using the Volume control (10). 3. When a signal is received, the Sound level indicator (13) will light up in three levels depending on the intensity of the sound transmitted from the baby unit. At level 3 the unit will also vibrate. This indicator is useful for monitoring your child when the volume of the parent unit is set on low. 4. When the parent unit is in contact with the baby unit, this is indicated by a green steady light on the Range indicator (15). If the units are out of contact with each other the range indicator will start blinking red. There will also be a beeping signal to alert your attention. This signal is also activated if the baby unit is switched off. 5. You can talk to your baby through the parent unit to the baby unit by holding the Talk back button (16). 9 6. You can carry the parent unit with you by attaching the Rubber ring (14). To remove the rubber ring, bend it outwards and pull it off the unit. Charging Baby unit: When battery is low the battery symbol will flash red. Connect a power supply to the input connector (2). Parent unit: When battery is low the battery symbol will flash red. Place parent unit in baby unit docking connector (7) or connect a power supply to the USB-C connector (11). For charging, use only NIMH type AAA/HR03 rechargeable batteries. Do not attempt to charge other types such as Alkaline, Carbon Zink etc. The baby monitor has built in protection and will detect wrong battery types. The battery symbol (4) will indicate error by flashing. Recommended battery types: 3 x IKEA LADDA 900 (AAA/HR03, 1.2V, 900mAh, Ni-MH) (Not included) Do not mix batteries of different capacities, types or date stamps. 10 IMPORTANT! Disposal of batteries to be done according to instructions, see below. • Only use the included 24V adapter for charging the baby monitor units. Other adapters could cause damage to the units. • If you don’t plan to use the units for more than a week, make sure the batteries are fully charged before putting the units away. Leaving the units unused and completely uncharged could cause them to stop functioning. • Disconnect the AC…

Text truncated - open the document above for the full version.

IKEA of Sweden AB Date: June 10 , 2020 To : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The IKEA of Sweden AB the undersigned, hereby authorizes TÜV Rheinland Shanghai Co., Ltd, to act on the behalf of the IKEA of Sweden AB solely in matters relating to the application for an FCC equipment authorization for FCC ID: FHO-E1901B including the signing of documents in connection with this Application. Necessary acts carried out by IKEA of Sweden AB on our behalf of the IKEA of Sweden AB in connection with the Application shall have the same effect as acts of the IKEA of Sweden AB. IKEA of Sweden AB also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Ivan Susak Product Engineering Manager IKEA of Sweden AB

IKEA of Sweden AB Date: June 10, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Confidentiality Request Applicant: IKEA of Sweden AB FCC ID: FHO-E1901B To whom it may concern: Permanent Confidentiality Request is hereby submitted by IKEA of Sweden AB to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential for FCC ID: FHO-E1901B: Exhibit Type Block Diagram Schematics Operational Description Part list Short-term Confidentiality Request is hereby submitted by IKEA of Sweden AB to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of authorization: Exhibit Type Test setup photos External photos Internal photos Rationale for request for the confidentiality: IKEA of Sweden AB has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading IKEA of Sweden AB edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] Yours Sincerely, Ivan Susak Product Engineering Manager IKEA of Sweden AB

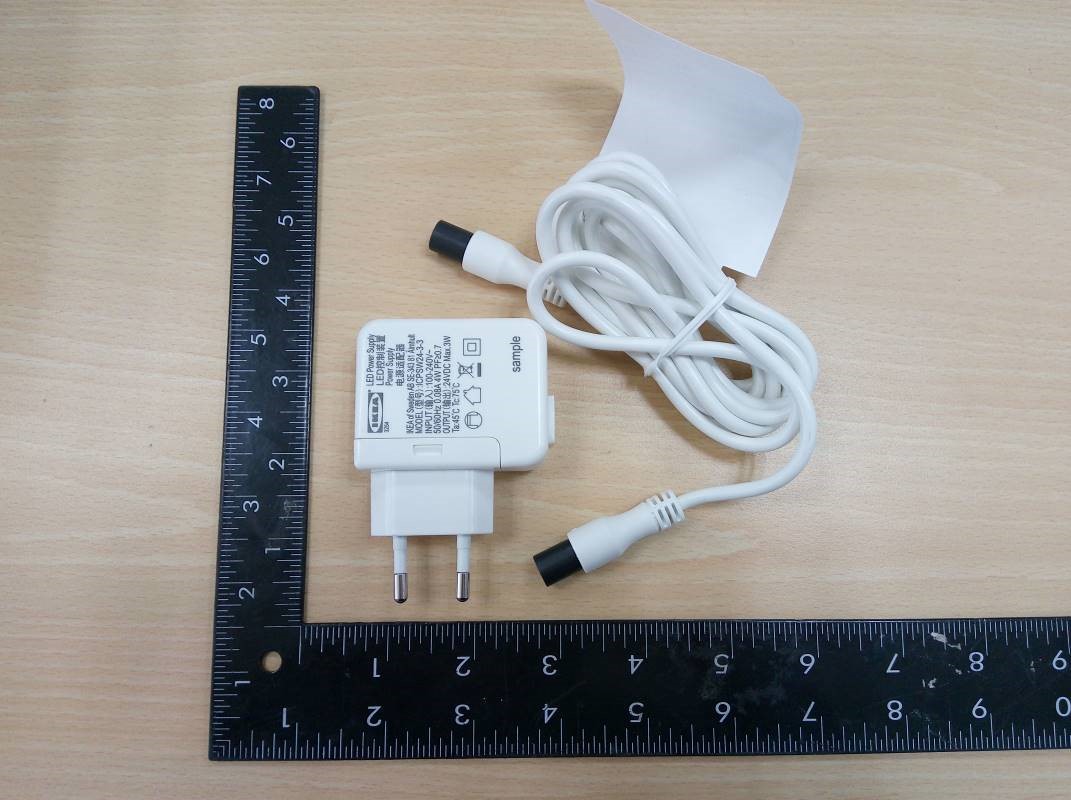

Produkte Products Prüfbericht - Nr.: Test Report No. 60380902 001 Seite 1 von 2 Page 1 of 2 Appendix II- External Photos Produkte Products Prüfbericht - Nr.: Test Report No. 60380902 001 Seite 2 von 2 Page 2 of 2

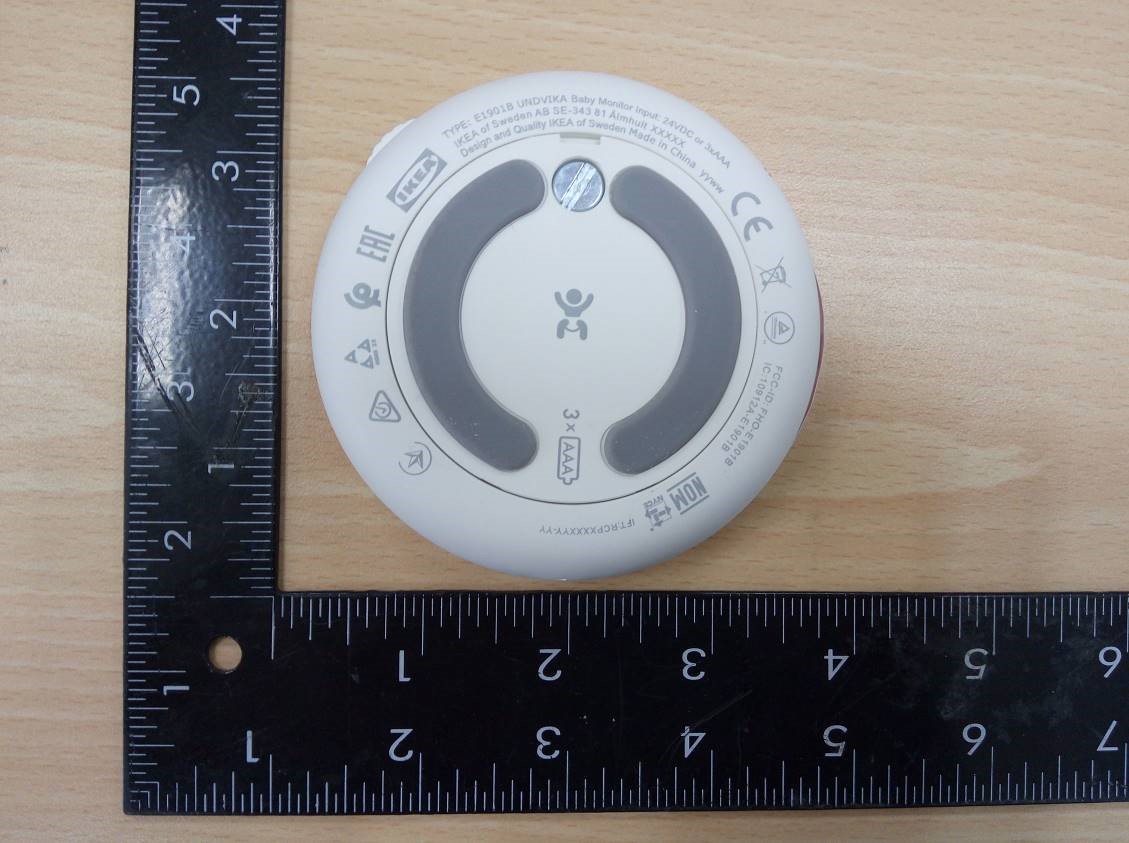

I C : 1 0 9 1 2 A - E 1 9 0 1B I F T : R C P X X X X Y Y - Y Y EU&NA-Baby unit 20200518 o r 3 x A A A I K E A o f S w e d e n A B S E - 3 4 3 8 1 Ä l m h u l t X X X X X D e s i g n a n d Q u a l i t y I K E Ao f S w e d e n M a d e i n C h i n a y y w w T Y P E : E 1 9 0 1 B U N D V I K A B a b y M o n i t o r I n p u t : 2 4 V , 0 . 1 2 5 A

Produkte Products Prüfbericht - Nr.: Test Report No. 60380902 001 Seite 1 von 4 Page 1 of 4 Appendix III- Internal Photos Produkte Products Prüfbericht - Nr.: Test Report No. 60380902 001 Seite 2 von 4 Page 2 of 4 Produkte Products Prüfbericht - Nr.: Test Report No. 60380902 001 Seite 3 von 4 Page 3 of 4 Produkte Products Prüfbericht - Nr.: Test Report No. 60380902 001 Seite 4 von 4 Page 4 of 4

TÜV Rheinland (Shanghai) Co., Ltd. No.177, 178, Lane 777 West Guangzhong Road, Jing'an District, Shanghai, China Produkte Products Prüfbericht-Nr.: Test Report No.: 60369664 001 Auftrags-Nr.: Order No.: 244197745 Seite 1 von 44 Page 1 of 44 Kunden-Referenz-Nr.: Client Reference No.: 1288983 Auftragsdatum: Order date.: 03.01.2020 Auftraggeber: Client: IKEA of Sweden AB Box 702, SE-343 81 Älmhult, Sweden Prüfgegenstand: Test item: UNDVIKA Baby Monitor Bezeichnung / Typ-Nr.: Identification / Type No.: E1901B, E1901P Auftrags-Inhalt: Order content: EMC test Prüfgrundlage: Test specification: FCC 47 CFR Part 15, Subpart B:2019 Class B ICES-003:2016 Wareneingangsdatum: Date of receipt: 06.05.2020 Refer to the sample file Prüfmuster-Nr.: Test sample No.: A002814908-001 Prüfzeitraum: Testing period: Refer to test report Ort der Prüfung: Place of testing: EMC laboratory Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 18.06.2020 Jessie Xu/Senior project engineer kontrolliert von / reviewed by: 18.06.2020 Xuelan Zhang/Senior project manager Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges / Other: Refer to the clause 2.2 for further information. FCC ID of Model E1901B: FHO-E1901B FCC ID of Model E1901P: FHO-E1901P IC of model E1901B:10912A-E1901B IC of model E1901P:10912A-E1901P Test Firm Registration Number: 958801 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. Produkte Products Prüfbericht - Nr.: Test Report No.: 60369664 001 Seite 2 von 44 Page 2 of 44 TEST SUMMARY 4.1.1 CONDUCTED EMISSION Result: Passed 4.2.1 RADIATED EMISSION IN THE FREQUENCY RANGE UP 1 GHZ Result: Passed 4.2.2 RADIATED EMISSION IN THE FREQUENCY RANGE ABOVE 1 GHZ Result: Passed Produkte Products Prüfbericht - Nr.: Test Report No.: 60369664 001 Seite 3 von 44 Page 3 of 44 Contents 1 TEST SITES ................................................................................................................................................ 4 1.1 TEST FACILITIES....................................................................................................................................... 4 2 GENERAL PRODUCT INFORMATION .................................................................................................. 4 2.1 PRODUCT FUNCTION AND INTENDED USE .................................................................................................. 4 2.2 RATINGS AND SYSTEM DETAILS................................................................................................................ 4 2.3 INDEPENDENT OPERATION MODESS .......................................................................................................... 4 2.4 DESCRIPTION OF INTERCONNECTING CABLES ............................................................................................. 5 2.5 NOISE GENERATING AND NOISE SUPPRESSING PARTS ................................................................................ 5 2.6 HIGHEST FREQUENCY GENERATED OR USED IN THE DEVICE OR ON WHICH THE DEVICE OPERATES OR TUNES . 5 2.7 SUBMITTED DOCUMENTS .......................................................................................................................... 5 3 TEST SET-UP AND OPERATION MODES .............................................................................................. 6 3.1 PRINCIPLE OF CONFIGURATION SELECTION ............................................................................................... 6 3.2 EQUIPMENT AND CABLE ARRANGEMENT.................................................................................................... 6 3.3 TEST SOFTWARE ...................................................................................................................................... 7 3.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT ................................................................................. 7 3.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ................................................................................ 7 4 TEST RESULTS E M I S S I O N ............................................................................................................. 8 4.1 EMISSION IN THE FREQUENCY RANGE UP TO 30 MHZ ................................................................................ 8 4.1.1 Conducted emission ......................................................................................................................... 8 4.2 EMISSION IN THE FREQUENCY RANGE ABOVE 30 MHZ ............................................................................. 16 4.2.1 Radiated emission in the frequency range up 1 GHz........................................................................ 16 4.2.2 Radiated Emission in the frequency range above 1 GHz .................................................................. 25 5 PHOTOGRAPHS OF THE TEST SET-UP ................................................…

Text truncated - open the document above for the full version.

Test Set-up Photos Photograph 1: Set-up for measurement of conducted emission (Mode 1) (Mode 2 on baby unit) (Mode 2 on parent unit) Photograph 2: Set-up for measurement of radiated emission (Mode 1 for frequency range 30-1000 MHz) (Mode 2 for frequency range 30-1000 MHz) (Mode 3 for frequency range 30-1000 MHz) (Mode 4 for frequency range 30-1000 MHz) (Mode 1 for frequency range 1-12.5 GHz) (Mode 2 for frequency range 1-12.5 GHz) (Mode 3 for frequency range 1-12.5 GHz) (Mode 4 for frequency range 1-12.5 GHz)
