FHO-E1901PUNDVIKA Baby Monitor

UNDVIKA A, Baby Unit B, Parent Unit 10 11 12 1 2 3 45 6 7 8 9 13 14 15 16 17 18 19 20 English Français Español 4 16 30 4English A, Baby Unit 1. On/Off switch and Microphone sensitity control 1-3 2. Input connector for charger 3. Search button. 4. Battery Indicator 5. Range/Transmitting indicator 6. Speaker 7. Charging connector for parent unit 8. Microphone 9. Battery compartment B, Parent Unit 10. On/Off switch and Volume control 1-3 11. Input USB-C connector for charger 12. Battery Indicator 13. Receiving/Picking up Sound level indicator 14. Rubber ring 15. Range Indicator 16. Talk back button 17. Speaker 18. Charging connector to Baby unit 19. Microphone 20. Battery compartment 5 IMPORTANT! READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE! Before usage NOTE! TO AVOID UNPLEASANT FEEDBACK NOISES, PLEASE FOLLOW THE INSTRUCTIONS FOR SWITCHING ON EACH UNIT UNDER “HOW TO USE” BELOW. Included parts: 1 baby unit, 1 adult unit, 1 charger cable, 1 rubber ring, 1 24V adapter, 1 manual. LOW RADIATION. The radiation from the baby unit is very low and the baby unit does not transmit continuously in stand-by mode. The units can be used while they’re being charged. The maximum distance the units can be apart and still communicate is approximately 300 m, in an open air. Different building materials and placement of the units can affect the 6 wireless connectivity range, so it is VERY IMPORTANT THAT YOU CHECK THE FUNCTION OF THE PRODUCT BEFORE USING THE TWO UNITS. If units are out of range the Range indicator (15) on the parent unit will start to flash red. NOTE! The baby monitor should never be used as a medical device, nor should it replace direct supervison of your child, at regular intervals by a responsible adult. Warning! Strangulation Hazard. Children have STRANGLED in cords. Keep units and cords out of the reach of children and crib (more than 3 ft (0.9 m) away) due to risk of strangulation. Getting Started Open lid (9 & 19) and insert 3xAAA/HR03 NiMH batteries in both parent unit and baby unit with correct polarity. Connect wall adapter dc plug into baby unit connector (2) 7 How To Use A, Baby Unit 1. Switch the power on by turning the On/Off switch (1) from 0 to 1. When the power is on, the Battery indicator (4) lights up green. If the indicator starts blinking red, the unit needs to be charged. 2. You can adjust the sensitivity of the microphone from 1 to 3 using the Microphone sensitivity control (1). The microphone is most sensitive to sound when it is set to 3, and least sensitive when it is set to 1. If there is a lot of background noise, it’s a good idea to lower the microphone sensitivity. If the surroundings are quiet, the microphone sensitivity can be set higher. 3. You can search for the parent unit by pressing search button (3). Pressing the button will make the parent unit emit a notification sound for 20 seconds. Long press on the talk back button on the parent unit will turn the notification sound off. 4. The Range/Transmitting indicator (5) lights up green when it picks up sound. Solid green when parent unit is within range. Flashing red when parent unit is out of range. 5. Place the baby unit near your child, with the microphone facing the child. Make sure the unit is close enough to pick up sounds from your child, but not so close that your child can reach it. 0.9 metre (3 ft) is a good distance. 8 B, Parent Unit NOTE! Make sure the parent unit is at least a couple of metres away from the baby unit before you switch it on. If the units are too close to each other, feedback between the units can create a loud screeching noise. 1. Switch the power on by turning the On/Off switch (10) from 0 to 1. When the power is on, the battery indicator (12) lights up green. If the indicator starts blinking red, the unit needs to be charged. 2. You can adjust volume of the speaker (17) from 1 (lowest) to 3 (highest) using the Volume control (10). 3. When a signal is received, the Sound level indicator (13) will light up in three levels depending on the intensity of the sound transmitted from the baby unit. At level 3 the unit will also vibrate. This indicator is useful for monitoring your child when the volume of the parent unit is set on low. 4. When the parent unit is in contact with the baby unit, this is indicated by a green steady light on the Range indicator (15). If the units are out of contact with each other the range indicator will start blinking red. There will also be a beeping signal to alert your attention. This signal is also activated if the baby unit is switched off. 5. You can talk to your baby through the parent unit to the baby unit by holding the Talk back button (16). 9 6. You can carry the parent unit with you by attaching the Rubber ring (14). To remove the rubber ring, bend it outwards and pull it off the unit. Charging Baby unit: When battery is low the battery symbol will flash red. Connect a power supply to the input connector (2). Parent unit: When battery is low the battery symbol will flash red. Place parent unit in baby unit docking connector (7) or connect a power supply to the USB-C connector (11). For charging, use only NIMH type AAA/HR03 rechargeable batteries. Do not attempt to charge other types such as Alkaline, Carbon Zink etc. The baby monitor has built in protection and will detect wrong battery types. The battery symbol (4) will indicate error by flashing. Recommended battery types: 3 x IKEA LADDA 900 (AAA/HR03, 1.2V, 900mAh, Ni-MH) (Not included) Do not mix batteries of different capacities, types or date stamps. 10 IMPORTANT! Disposal of batteries to be done according to instructions, see below. • Only use the included 24V adapter for charging the baby monitor units. Other adapters could cause damage to the units. • If you don’t plan to use the units for more than a week, make sure the batteries are fully charged before putting the units away. Leaving the units unused and completely uncharged could cause them to stop functioning. • Disconnect the AC…

Text truncated - open the document above for the full version.

IKEA of Sweden AB Date: June 10 , 2020 To : Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 To Whom It May Concern: The IKEA of Sweden AB the undersigned, hereby authorizes TÜV Rheinland Shanghai Co., Ltd, to act on the behalf of the IKEA of Sweden AB solely in matters relating to the application for an FCC equipment authorization for FCC ID: FHO-E1901P including the signing of documents in connection with this Application. Necessary acts carried out by IKEA of Sweden AB on our behalf of the IKEA of Sweden AB in connection with the Application shall have the same effect as acts of the IKEA of Sweden AB. IKEA of Sweden AB also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Thank you for your attention to this matter. Yours Sincerely, Ivan Susak Product Engineering Manager IKEA of Sweden AB

IKEA of Sweden AB Date: June 10, 2020 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 Confidentiality Request Applicant: IKEA of Sweden AB FCC ID: FHO-E1901P To whom it may concern: Permanent Confidentiality Request is hereby submitted by IKEA of Sweden AB to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential for FCC ID: FHO-E1901P: Exhibit Type Block Diagram Schematics Operational Description Part list Short-term Confidentiality Request is hereby submitted by IKEA of Sweden AB to withhold from public review for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 180 days from the date of authorization: Exhibit Type Test setup photos External photos Internal photos Rationale for request for the confidentiality: IKEA of Sweden AB has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading IKEA of Sweden AB edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] Yours Sincerely, Ivan Susak Product Engineering Manager IKEA of Sweden AB

Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 1 von 1 Page 1 of 1 Appendix II- External Photos

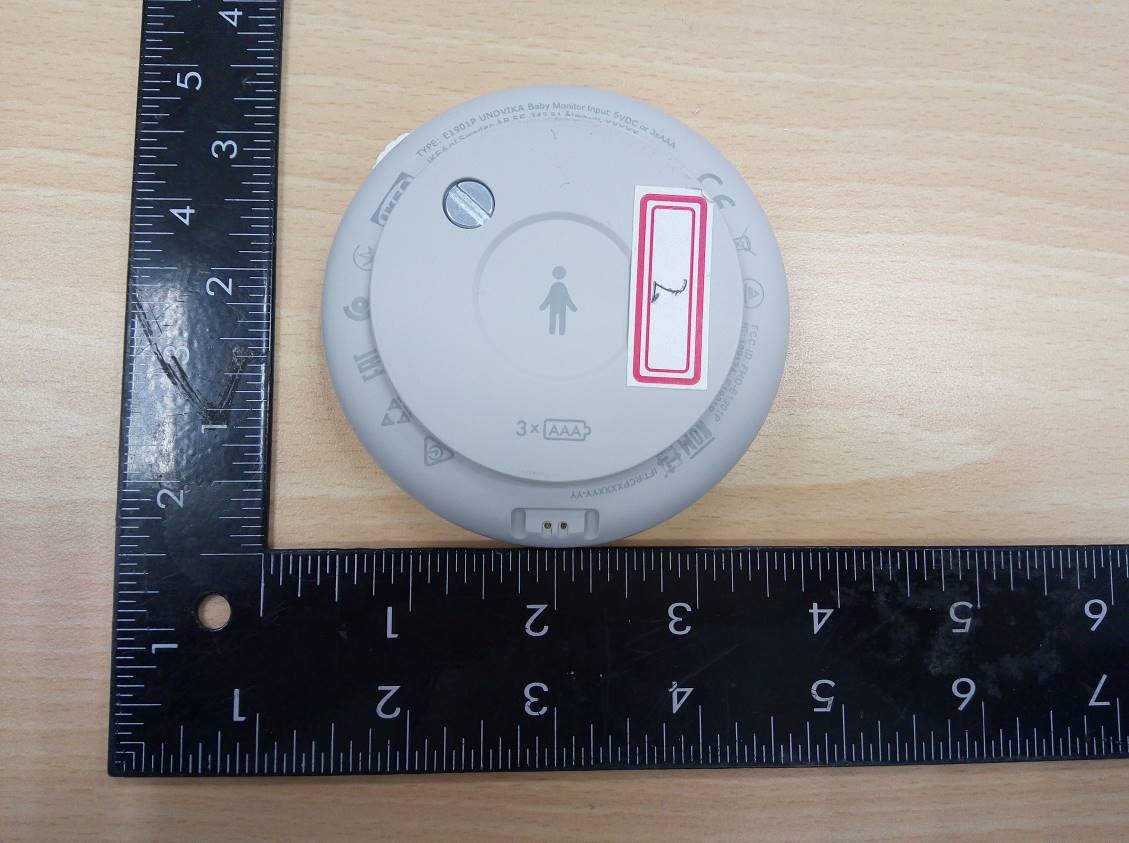

I F T : R C P X X X X Y Y - Y Y EU&NA –Parentunit 20200526 o r 3 x A A A I K E A o f S w e d e n AB S E - 3 4 3 8 1 Ä l m h u l t X X X X X D e s i g n a n d Q u a l i t y I K E A o f S w e d e n M a d e i n C h i n a y y w w T Y P E : E 1 9 0 1 P U N D V I K A B a b y M o n i t o r I n p u t : 5 V , 0 . 5 A

Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 1 von 4 Page 1 of 4 Appendix III- Internal Photos Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 2 von 4 Page 2 of 4 Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 3 von 4 Page 3 of 4 Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 4 von 4 Page 4 of 4

MRT Technology (Suzhou) Co., Ltd Report No.: 2005WSU002-U1 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 07-14-2020 Page Number: 1 of 48 FCC ID: FHO-E1901P Applicant: IKEA of Sweden AB Application Type: Certification Product: UNDVIKA Baby Monitor Model No.: E1901P Brand Name: IKEA FCC Classification: Spread Spectrum Transmitter (DSS) FCC Rule Part(s): FCC 47 CFR Part 2.1093 Test Procedure(s): IEEE 1528:2013; IEEE C95.1- 2005; KDB 447498 D01v06; KDB 865664 D01v01r04 Test Date: May 22, 2020 SAR MEASUREMENT REPORT Reviewed By: ( Oscar Shi ) Approved By: ( Robin Wu ) The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in IEEE1528, KDB 447498 and KDB 865664. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2005WSU002-U1 Page Number: 2 of 48 Revision History Report No. Version Description Issue Date Note 2005WSU002-U1 Rev. 01 Initial Report 07-14-2020 Valid Report No.: 2005WSU002-U1 Page Number: 3 of 48 CONTENTS Description Page 1. Introduction ............................................................................................................................ 6 1.1. Scope ........................................................................................................................... 6 1.2. MRT Test Location ....................................................................................................... 6 2. Product Information ............................................................................................................... 7 2.1. General Description for EUT ......................................................................................... 7 2.2. Product Specification Subjective to this Report ............................................................. 7 2.3. Description of Available Antennas ................................................................................ 7 2.4. Ancillary Equipment ...................................................................................................... 7 3. Summary of Test Result ........................................................................................................ 8 3.1. Test Standards ............................................................................................................. 8 3.2. Environment Condition ................................................................................................. 8 3.3. RF Exposure Limits ...................................................................................................... 8 3.4. Test Result Summary ................................................................................................... 9 4. Specific Absorption Rate (SAR).......................................................................................... 10 4.1. Introduction ................................................................................................................. 10 4.2. Definition .................................................................................................................... 10 5. DASY6 Measurement System ............................................................................................. 11 5.1. Introduction ................................................................................................................. 11 5.2. DASY6 Measurement System Diagram ...................................................................... 11 5.3. System Components Details ....................................................................................... 12 6. The SAR Measurement Procedure ..................................................................................... 23 6.1. Measurement Process Diagram.................................................................................. 23 6.2. Test Position Definition ............................................................................................... 24 6.3. Test Procedure ........................................................................................................... 27 7. System Verificaiton.............................................................................................................. 29 7.1. Tissue Check .............................................................................................................. 29 7.2. System Check ............................................................................................................ 32 8. Analysis and Results ........................................................................................................... 34 8.1. Antenna Location ........................................................................................................ 34 8.2. Conducted Power ....................................................................................................... 35 8.3. SAR Exclusion Analysis .............................................................................................. 36 Report No.: 2005WSU002-U1 Page Number: 4 of 48 8.4. Required Configurations of SAR Test ......................................................................... 38 8.5. SAR Test Results ....................................................................................................... 39 8.6. Estimated SAR Calculation ......................................................................................... 40 9. Simultaneous Transmission Analysis ................................................................................ 41 10. Test Equipment Used .......................................................................................................... 42 11. …

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht-Nr.: Test Report No.: 60380903 001 Auftrags-Nr.: Order No.: 244197745 Seite 1 von 57 Page 1 of 57 Kunden-Referenz-Nr.: Client Reference No.: 412131 Auftragsdatum: Order date.: 03.01.2020 Auftraggeber: Client: IKEA of Sweden AB BOX 702 SE-343 81 Älmhult Sweden Prüfgegenstand: Test item: UNDVIKA Baby Monitor Bezeichnung / Typ-Nr.: Identification / Type No.: E1901P FCC ID: FHO-E1901P IC: 10912A-E1901P Auftrags-Inhalt: Order content: Complete test Prüfgrundlage: Test specification: FCC CFR47 Part 15, Subpart C Section 15.247 KDB 558074 D01 15.247 Meas Guidance v05r02 RSS-Gen Issue 5, Amendment 1, March 2019 RSS-247 Issue 2, February 2017 ANSI C63.10: 2013 Wareneingangsdatum: Date of receipt: 24.04.2020 Prüfmuster-Nr.: Test sample No.: A002814908-004 Prüfzeitraum: Testing period: Refer to test report Ort der Prüfung: Place of testing: TÜV Rheinland (Shanghai) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von / tested by: 15.07.2020 Hongfei Wu / PE kontrolliert von / reviewed by: 15.07.2020 Elliot Zhang / Reviewer Datum Date Name/Stellung Name/Position Unterschrift Signature Datum Date Name/Stellung Name/Position Unterschrift Signature Sonstiges / Other: HVIN: E1901P Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shanghai) Co., Ltd., Floor 1~3, No. 178, Lane 777 W est Guangzhong Road, Jingan District, Shanghai 200072, P.R. China Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 2 von 57 Page 2 of 57 TEST SUMMARY 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 20DB & 99% BANDWIDTH RESULT: Pass 5.1.3 PEAK OUTPUT POWER RESULT: Pass 5.1.4 FREQUENCY SEPARATION RESULT: Pass 5.1.5 NUMBER OF HOPPING FREQUENCY RESULT: Pass 5.1.6 TIME OF OCCUPANCY RESULT: Pass 5.1.7 CONDUCTED BAND-EDGE RESULT: Pass 5.1.8 CONDUCTED SPURIOUS EMISSIONS RESULT: Pass 5.2.1 CONDUCTED EMISSION RESULT: Pass 5.3.1 RADIATED BAND-EDGE RESULT: Pass 5.3.2 RADIATED SPURIOUS EMISSION RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 3 von 57 Page 3 of 57 Contents 1. GENERAL REMARKS ......................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS .......................................................................................... 4 2. TEST SITES ...................................................................................................................... 4 2.1 TEST FACILITIES ............................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS ............................................................... 5 2.3 TRACEABILITY .................................................................................................................. 5 2.4 CALIBRATION ................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY........................................................................................... 6 3. GENERAL PRODUCT INFORMATION .................................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE ........................................................................... 7 3.2 RATINGS AND SYSTEM DETAILS ........................................................................................ 7 3.3 INDEPENDENT OPERATION MODES .................................................................................... 8 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ....................................................... 8 3.5 SUBMITTED DOCUMENTS................................................................................................... 8 4. TEST SET-UP AND OPERATION MODES .............................................................................. 9 4.1 PRINCIPLE OF CONFIGURATION SELECTION ........................................................................ 9 4.2 TEST OPERATION AND TEST SOFTWARE ............................................................................ 9 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT .......................................................... 9 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE ......................................................... 9 5. TEST RESULTS ............................................................................................................... 10 5.1 CONDUCTED TESTING AT ANTENNA PORT ........................................................................ 10 5.1.1 Antenna Requirement ............................................................................................................ 10 5.1.2 20dB & 99% Bandwidth ......................................................................................................... 12 5.1.3 Peak Output Power .............................................................................................…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 1 von 4 Page 1 of 4 Appendix I- Test Setup Photos Conducted Test Setup Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 2 von 4 Page 2 of 4 Conducted Emission Test Setup, Mode 5 Conducted Emission Test Setup, Mode 6 Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 3 von 4 Page 3 of 4 Radiated Emission Test Setup 30MHz to 1GHz 1GHz to 18GHz Produkte Products Prüfbericht - Nr.: Test Report No. 60380903 001 Seite 4 von 4 Page 4 of 4 18GHz to 25GHz

Report No.: 2005WSU002-UT 1 of 3 SAR Test Setup Photograph Description: Body Front position with 0mm gap for Parent unit Description: Body Back position with 0mm gap for Parent unit Report No.: 2005WSU002-UT Description: Body Side position with 0mm gap for Description: Body Side+10° position with 0mm gap for Report No.: 2005WSU002-UT Description: Body Side-10° position with 0mm gap for
