FHO-E2032Battery Charger

1 LITOSFÄR Typical charging time(H) AA/HR6 2450mAh AA/HR6 1900mAh AAA/HR03 900mAh AAA/HR03 750mAh 1-8 pcs 11 h 8.5 h 8 h 7 h English 4 Français 9 Español 14 4 remains powered, it will go into trickle charging. Batteries can be stored in the charging slots without discharging. • Safety by separate safety timer and temperature sensors. • Non-rechargeable and damaged batteries detection. • Charging status with 2 color LED indicator for each slot. • Store up to 8 HR6/AA English This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Product features • 8 individual charging slots. • Charge and store up to 8 pieces of rechargeable batteries. • Each slot can fit both HR6/AA or HR03/AAA rechargeable battery. • Charge is terminated by individual minus delta or zero delta voltage detection (-dV/dT or 0dV/dT) • After batteries are fully charged and the charger 5 connected to power outlet for the trickle charging to work during storage. • Disconnect the charger from the power outlet before cleaning or when it is not used. Good to know • Brand new batteries need 2 to 3 times of charging and usage cycles to optimize the battery performance. • It is normal for batteries to become hot during charging and they will gradually cool down after charging is finished. • Charging time may vary based on different battery capacities, remaining charge, battery age and temperature in the surrounding area. • Charger operating temperature: 0°C to 40°C. batteries and 4 HR03/AAA additional batteries in the storage compartment inside the lid. HR6/AA storage slots can also fit HR03/AAA batteries. • Possible to wall mount the charger by the two key holes located on the back. Operating instructions • Connect the provided power cord with charger and plug it into the power outlet. • Insert the batteries into the charging slots according to the polarity indications (+/-) • The LED indicator status: White LED pulsing on: Charging in progress White LED steady on: Charging complete Red LED flashing: Error - inserted batteries are non- rechargeable, damaged, have too high temperature or the batteries are not connected in accordance with polarity indications. • The charger must be 6 Technical data Model: E2032 LITOSFÄR Input: 100-240VAC, 0.09A Output: AA 1.5V, 0.24A x 8 AAA 1.5V, 0.12A x 8 Indoor use only Recommended battery types: LADDA rechargeable battery AA, LADDA rechargeable battery AAA CONFORMS TO UL STD.1310 CERTIFIED TO CSA STD. C22.2 NO.223-M91 Manufacturer: IKEA of Sweden AB Address: Box 702, SE-343 81 Älmhult, SWEDEN This device complies with Part 15 of the FCC Rules/ Innovation Science and Economic Development Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions: CAUTION • Disconnect the charger from the power outlet before cleaning or when it is not used. • Use damp cloth when cleaning the charger. Do not immerse into water. • Risk of Injury. Risk of Electric Shock. Indoor use only. • Charge only Ni-MH type rechargeable batteries with minimum capacity 500mAh (AAA) or 1000mAh (AA). • DO NOT TRY TO CHARGE NON-RECHARGEABLE BATTERIES. Keep this manual for future use. PRODUCT SERVICING Do not attempt to repair this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. 7 This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the quipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. WARNING: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. 8 • Consult the dealer or an experienced radio/TV technician for help. The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store. 9 (-dV/dT ou 0dV/dT). • Lorsque les piles sont complètement chargées et que le chargeur reste sous tension, il passe en charge de maintien. Les piles peuvent être rangées dans les emplacements de charge sans se décharger. • Sécurité assurée par une minuterie et des capteurs de température distincts. • Détection des batteries non rechargeables et Français Cet appareil peut êt…

Text truncated - open the document above for the full version.

IKEA of Sweden AB Attestation Statements Not Covered Entity Applicant To: Federal Communications Commission Date: 2023.6.21 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(ii) filing FCC ID: FHO-E2032 IKEA of Sweden AB (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely yours, Applicant Signature Printed Name: Ivan Susak Title: BA Product Engineering Manager Address: Box 702 SE-343 81, Almhult, Sweden Tel.: +4647681000 Email: [email protected] Ivan Susak (Jun 29, 2023 08:10 GMT+2) Ivan Susak

IKEA of Sweden AB Attestation Statements Not Covered Equipment To: Federal Communications Commission Date: 2023.6.21 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) filing FCC ID: FHO-E2032 IKEA of Sweden AB (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Ivan Susak Title: BA Product Engineering Manager Address: Box 702 SE-343 81, Almhult, Sweden Tel.: +4647681000 Email: [email protected] Ivan Susak (Jun 29, 2023 08:10 GMT+2) Ivan Susak

Internal IKEA of Sweden AB U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Go Global Compliance, Inc. Contact Name: Peter Merguerian Street Address: 4454 Crabapple Ct. City/Province/Zip: Tracy, CA 95377 Telephone No: (408) 931-3303 Email: [email protected] FRN #: 0033672916 This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Signed by (Printed Name/Title): Peter Merguerian, President & CEO *This letter must be dated within 1-year (update if other terms apply) of the date the application is submitted to the TCB for device certification The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: IKEA of Sweden AB FCC ID: FHO-E2032 Contact Name: Ivan Susak Street Address: Box 702, SE-343 81, City/Province/Zip: Älmhult, Sweden Telephone No: +46766190914 Email: [email protected] Applicant Signature: Date: Signed by (Printed Name/Title): Ivan Susak / BA Product Engineering Manager Ivan Susak (Jun 16, 2023 11:04 GMT+2) Ivan Susak Jun 16, 2023 Jun 18, 2023

IKEA of Sweden AB Page 1 of 1 Authority to Act as Agent Date: 2023.6.21 TUV Rheinland of North America, Inc. 1279 Quarry Lane., Suite. A Pleasanton, CA 94566 To Whom It May Concern: I appoint Jessie Xu of TÜV Rheinland (Shanghai) Co., Ltd. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the FCC or Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by TUV Rheinland Group, still resides with IKEA of Sweden AB (address: Box 702 SE-343 81, Almhult, Sweden). For TCB applications, We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Date: 2023.6.21 Agreement is valid for 12 months from the above date. By: __________________________ Ivan Susak (Signature) (Print name) BA Product Engineering Manager +4647681000 (Title) (Telephone) On behalf of: IKEA of Sweden AB (Company Name) Ivan Susak (Jun 29, 2023 08:10 GMT+2) Ivan Susak

IKEA of Sweden AB MS-0044715 Page 1 of 1 Revision 1 Date: 2023.6.21 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Confidentiality Request for FCC ID: FHO-E2032 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term n/a External Photo Short Term Permanent Internal Photos *** Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Permanent Test Setup*** Short Term Permanent Tune-Up Procedure Short Term Permanent User’s Manual*** Short Term Permanent Part List/ Antenna Construction IKEA of Sweden AB has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. (*** Exceptional case for Permanent Confidentiality for these Exhibits by PAG only) Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________ BA Product Engineering Manager __ ____ Ivan Susak _________________ (Signature/Title) (Print name) Tel: +4647681000 Email: [email protected] Ivan Susak (Jun 29, 2023 08:10 GMT+2) Ivan Susak

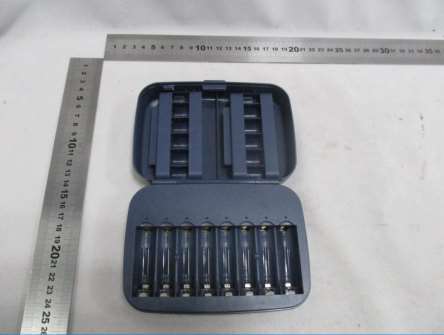

Report Number: Attachment 1 of CN2335XG 001 Model: E2032 LITOSFÄR - Page 1 of 1 - External Photos

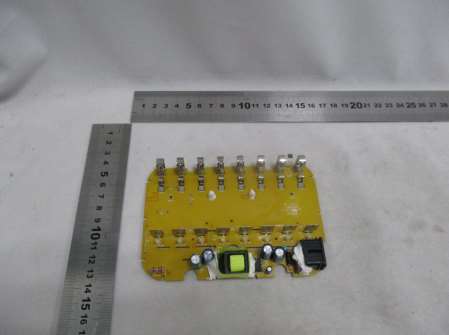

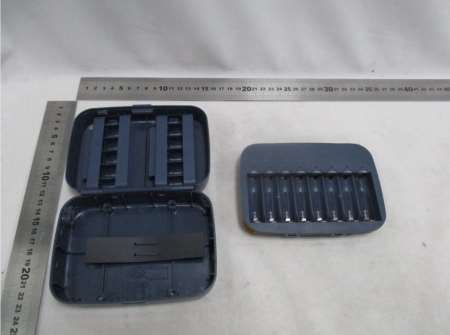

Report Number: Attachment 2 of CN2335XG 001 Model: E2032 LITOSFÄR - Page 1 of 2 - Internal Photos Report Number: Attachment 2 of CN2335XG 001 Model: E2032 LITOSFÄR - Page 2 of 2 -

Prüfbericht - Produkte Test Report - Products Certificate #4301.01 Prüfbericht-Nr.: Test report no.: CN2335XG 001 Auftrags-Nr.: Order no.: 244510955 Seite 1 von 20 Page 1 of 20 Kunden-Referenz-Nr.: Client reference no.: 1288983 Auftragsdatum: Order date: 2023-04-25 Auftraggeber: Client: IKEA of Sweden AB Box 702, SE-343 81 Älmhult, Sweden Prüfgegenstand: Test item: Battery Charger Bezeichnung / Typ-Nr.: Identification / Type no.: E2032 LITOSFÄR Auftrags-Inhalt: Order content: TÜV Rheinland EMC service Prüfgrundlage: Test specification: FCC 47 CFR Part 15, Subpart B:2021 Class B ICES-003:2020 ICES-005:2018 Wareneingangsdatum: Date of sample receipt: 2023-04-26 Refer to the EUT photos file Prüfmuster-Nr.: Test sample no: A003464346-001 Prüfzeitraum: Testing period: Refer to test report Ort der Prüfung: Place of testing: Refer to clause 1.1 Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shanghai) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2023-07-04 Ausstellungsdatum: Issue date: 2023-07-04 Stellung / Position: Sachverständige(r)/Expert Stellung / Position: Sachverständige(r)/Expert Sonstiges / Other: FCC ID: FHO-E2032 Test Firm Registration Number: 958801 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Shanghai) Co., Ltd. No.177, 178, Lane 777 West Guangzhong Road, Jing'an District,Shanghai, China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN2335XG 001 Test report no.: Seite 2 von 20 Page 2 of 20 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test report is based on the “Zero Guard Band Rule” and “Simple Acceptance” in accordance with ILAC G8:2019 and IEC Guide 115:2021, unless otherwise specified in the applied standard mentioned on Page 1 of this report or requested by the customer. This means that measurement uncertainty is not taken in account and hence also not declared in the test repo…

Text truncated - open the document above for the full version.

Report Number: Attachment 3 of CN2335XG 001 Model: E2032 LITOSFÄR - Page 1 of 1 - Test Set-up Photos Photograph 1: Set-up for measurement of conducted emission Photograph 2: Set-up for measurement of radiated emission
