FN6-WR300NRWireless Extender and Router

Wireless Extender&Router WR300NR Quick Installation Guide(Q.I.G.) REV.1.0 Introduction： The Wireless Extender&Routeris a combined wired/wireless network connection device designed specifically for small business, office, and home office networking requirements. It complies with the IEEE 802.11n (Draft 2.0) standard. It adopts MIMO as well as SST technologies. It also works well with other 11b/g and 11n protocol wireless products. Create instant WiFi hotspots at any location where you have Internet connection . Main Features � Complies with IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards � Supports Router, Client, Bridge, Repeater, AP mode � QoS function assures the quality of VoIP and multimedia streaming � Wireless N speed up to 300Mbps and Backward compatible with 802.11b/g products � Compact and portable, powerful wireless signal as well � Travel size design, ideal for home or travel use � Supports WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Package Contents Before you starting to use this router, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: • 1 x Wireless N Mini Router • 1 x Quick Installation Guide • 1 x RJ-45 Networking Cable Getting Started Setting up a Wireless Infrastructure Network For a typical wireless setup at home (as shown above), Please do the following: 1. You will need broadband Internet access (a ADSL, Cable Modem line into your home or office). 2. Consult with your ADSL or Cable Modem provider for proper installation of the modem. 3. Connect the ADSL or Cable modem to the Wireless N Mini Router. Plug the power plug of the Router in electrical wall socket. 4. Adding computers to the Wireless N Mini Router. IMPORTANT NOTE You can reset your Wireless-N Router to default setting by press the ‘RESET’ button on the back side of the Router. You can use this solution if you forget your password. Adding computers to the Wireless N Mini Router Router 1. Log on to the computer. 2. Open Connect to a Network by right-clicking the network icon ( or ) in the notification area. 3. Choose the wireless network “ Wireless-N ” from the list that appears, and then click Connect . 4. Type the network security key or passphrase if you are asked to do so, and then click OK . You'll see a confirmation message when you are connected to the network. 5. To confirm that you added the computer, do the following: Open Network by clicking the Start button , and then clicking Control Panel . In the search box, type network , and then, under Network and Sharing Center, click View network computers and devices . You should see icons for the computer you added and for the other computers and devices that are part of the network. Note : If you don't see icons in the Network folder, then network discovery and file sharing might be turned off. For more information: http://windows.microsoft.com/en-US/windows7/Add-a-device-or-computer-to-a-network http://windows.microsoft.com/en-US/windows7/Setting-up-a-wireless-network http://windows.microsoft.com/en-US/windows-vista/Setting-up-a-wireless-network Configuring via Web Browser Open web browser and type http://192.168.10.253 in the browser's address box. This number is the default IP address for this device. The login screen below will appear. Enter the “User Name” and “Password” and click “OK” to login. The default User name is “ admin” and the Password is “admin”. Setup Wizard After a successfully login, you can click the Quick Setup menu to quickly configure your Router. Choose the Operation Mode you need,and then click Next. AP Mode: Set the wireless parameter.It's recommended that you rename an SSID, choose a Security Mode and enter a Key. Click Save&Reboot to reboot the Router and make the settings take effect. Router Mode: Set the wireless parameter.It's recommended that you rename an SSID, choose a Security Mode and enter a Key. Choose your WAN Connection Type. If Dynamic IP is selected, the Router gets the IP address automatically from the DHCP server or the ISP. No configuration should be set and you can go on with the wireless configuration. If PPPoE is selected, please enter the User Name and Password giben by your ISP,These fields are case-sensitive. Click Save&Reboot to reboot the Router and make the settings take effect. Repeater Mode: Select the SSID of the target network and click Select. The target network's SSID will be automatically filled into the wireless setting figure. Select the Password. Then click Save&Reboot to reboot the Router and make the settings take effect. Bridge Mode: Select the SSID of the Access Point you want to access and click Select. The target network's SSID will be automatically filled into the wireless setting figure. Select the Password. Then click Save&Reboot to reboot the Router and make the settings take effect. Client Mode: Select the SSID of the Access Point you want to access and click Select. The target network's SSID will be automatically filled into the wireless setting figure. Select the Password. Then click Save&Reboot to reboot the Router and make the settings take effect. LAN Settings Please click “Network �LAN Settings ” located at the web management interface, the following message will be displayed on your web browser: IP Address: Enter the IP address of your Router or reset it in dotted- decimal notation Wireless-N Router (factory default: 192.168.10.253). Subnet Mask: An address code that determines the size of the network. Normally use 255.255.255.0 as the subnet mask. DHCP Type: Server, Client or Disable Note: 1) If you change the IP Address of LAN, you must use the new IP Address to login the Router. 2) If the new LAN IP Address you set is not in the same subnet, the IP Address pool of the DHCP server will change accordingly at the same time，while the Virtual Server and DMZ Host will not take effect until they are re-configured. Connect to Internet Please click “Network �WAN Settings” located at the web management int…

Text truncated - open the document above for the full version.

Best Data Products Inc. 20740 Plummer Street, Chatsworth CA 91311, U.S.A FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Best Data Products Inc. Addresss 20740 Plummer Street, Chatsworth CA 91311, U.S.A City California Country U.S.A FF request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: FN6 - WR300NR of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) California U.S.A March 26, 2013 Louis Kokenis Manager

Best Data Products Inc. 20740 Plummer Street, Chatsworth CA 91311, U.S.A FCC Authorization Letter Number: CF304 Version: V01 Date: 01-02-2010 . We, (the approval holder) Company name Best Data Products Inc. Addresss 20740 Plummer Street, Chatsworth CA 91311, U.S.A City California Country U.S.A declare that the following representative (agent): Name (person) Ruby zhang Function Supervisor Company name Compliance Certification Services (Shenzhen) Inc. Addresss No10-1, Mingkeda Logistics Park, No.18 Huanguan South RD. Guan lan Town, Baoan District, Shenzhen China City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Wireless Extender & Router Type or Model(s) WR300NR Tradename or Brand(s) Diamond Multimedia We also authorize Teleconformity, Mr. M. Koop, (address: Rietven 31, 7534NH Enschede, Netherlands) to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) California U.S.A March 26, 2013 Louis Kokenis Manager

Best Data Products Inc. 20740 Plummer Street, Chatsworth CA 91311, U.S.A FCC Declaration of Conformity Number: CF302 Version: V03 Date: 22-08-2011 A declaration of conformity can only be issued by a U.S. entity based on a test report from an accredited laboratory. Accredited laboratories are located in the US, or in a country where the FCC has signed an MRA with. For a full list of accredited laboratories recognized by the FCC, please go to the FCC website https://fjallfoss.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm and for Test Firm Type, select “Accredited”. Additional information on administrative requirements for Declaration of Conformity can be found in KDB Publication Number 349827 . We, (responsible party must be a legal entity registered within the U.S., see FCC rule part 2.909 (2), must a U.S. address, such as importer or local manufacturer) Company Name: Best Data Products Inc. Address: 20740 Plummer Street, Chatsworth CA 91311, U.S.A Postal/Zip: City: Chatsworth State/Province: Country: U.S.A Contact Person: Mr. Ms. Name: Louis Kokenis Function:Manager Email: [email protected] Web: Phone:13823227022 Fax: 0755-83022207 declare for the equipment identified by: Product Description Wireless Extender & Router Type or Model(s) WR300NR Tradename or Brand(s) Diamond Multimedia that: (if the DoC test reports are available at this moment, please cross item a below) a). The following test reports, issued by an FCC accredited Laboratory, are subject to this declaration: Accredited Test Firm or Laboratory name: Test Report Number: Date of issue: Compliance Certification Services Inc. Wugu Laboratory T130306E02 March 4, 2013 (if no DoC test report is available at this moment, then if you agree with the statement made in item b below, please cross item b below) b). DoC testing is pending at this moment, but will execute and finish the required DoC testing in an FCC accredited Laboratory before marketing the device in the U.S. The following Accredited Test Firm will complete DoC testing: Accredited Test Firm or Laboratory name: Attestation: In addition to our declaration above, we also will ensure to label the equipment with the FCC logo, the name of the manufacturer and model number, as required by the FCC rule part 15.19 . City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) California U.S.A March 26, 2013 Louis Kokenis Manager This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. DoC

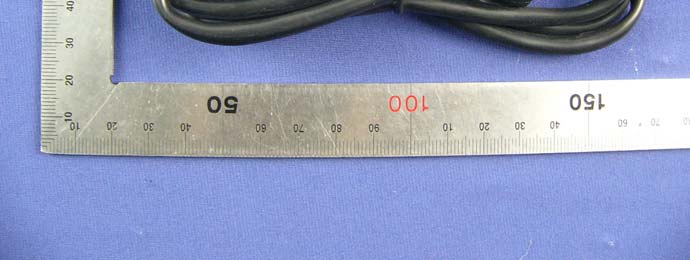

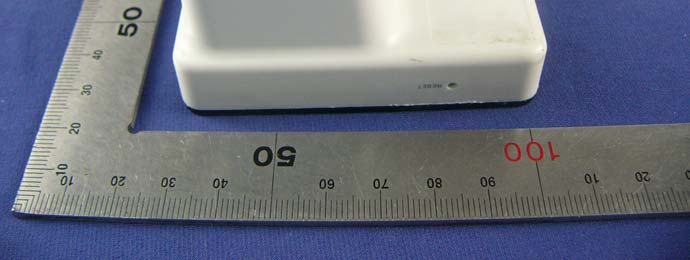

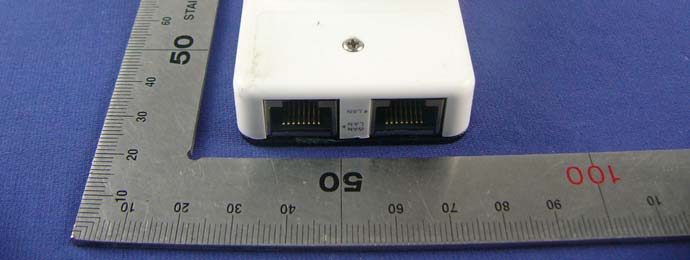

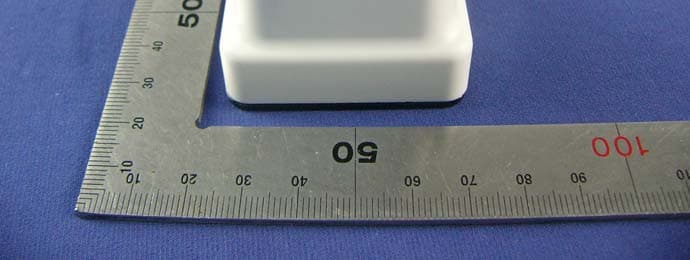

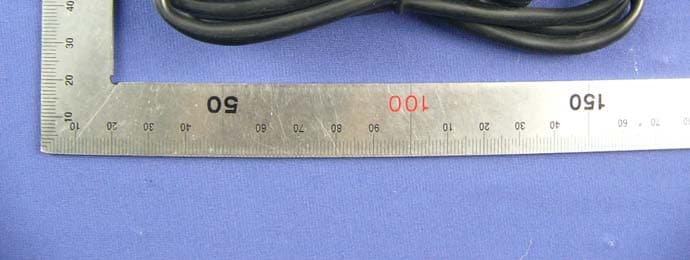

Report No.: C130125Z02-RP1 Page 1/4 External Photos of EUT Report No.: C130125Z02-RP1 Page 2/4 Report No.: C130125Z02-RP1 Page 3/4 Report No.: C130125Z02-RP1 Page 4/4

MPE Calculation FCC ID: FN6-WR300NR Remark: Average ≤ Peak, which means that calculating the power density applying Peak power is worst case. The worst case operation mode generating the highest power in each frequency range is taken for calculation. Frequency range:2412-2462MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =11.31dBm =13.52mW Antenna Gain: G = 2dBi =1.58on the linear scale Calculation: P radiated = P conducted + G linear =11.31dBm +2dBi =13.31dBm =21.43mW Power density S = (P radiated ) / (4π x d 2 ) =21.43/5026 =0.0043mW/cm 2 <1=> below limit Frequency range:2422-2452MHzTypical use distance: d ≥20cm Power density limit for mobile devices at 2.4 GHz: S ≤1mW/cm 2 Maximum measured conducted power (Peak): Pconducted =9.37dBm =8.65mW Antenna Gain: G = 2dBi =1.58on the linear scale Calculation: P radiated = P conducted + G linear =9.37dBm +2dBi =11.37dBm =13.71mW Power density S = (P radiated ) / (4π x d 2 ) =13.71/5026 =0.0027mW/cm 2 <1=> below limit

Compliance Certification Services Inc. Report No: C130125Z02-RP1_MPE FCC ID: FN6-WR300NR Date of Issue: April 8, 2013 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. EUT Specification TEST RESULT No non-compliance noted. EUT Wireless-N Router Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 11.31dBm (13.52mW) Antenna gain (Max) 2.00dBi (Numeric gain:1.58) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power is 11.31dBm (13.52mW) at 2422MHz (with 1.58 numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. Compliance Certification Services Inc. Report No: C130125Z02-RP1_MPE FCC ID: FN6-WR300NR Date of Issue: April 8, 2013 2 Calculation Given d GP E ×× = 30 & 3770 2 E S= Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=13.52mW Numeric antenna gain=1.58 Substituting the MPE safe distance using d=20 cm into Equation 1 : Yields The power density S = 30 × 13.52 × 1.58/ (3770 × 400) cm 2 =4.24966X 10 -4 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C130125Z02-RP1 FCC ID : FN6-WR300NR Page 71 / 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE 802.11n HT40 MHz mode(Antenna 0) Peak power (CH Low) Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 72 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Peak power (CH Mid) Peak power (CH High) Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 73 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. IEEE 802.11n HT40 MHz mode(Antenna 1) Peak power (CH Low) Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 74 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Peak power (CH Mid) Peak power (CH High) Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 75 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. 7.5. BAND EDGES MEASUREMENT 7.5.1. LIMITS According to §15.247(d), in any 100 kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in 15.209(a) (see Section 15.205(c)). 7.5.2. TEST INSTRUMENTS Radiated Emission Test Site 966(2) Name of EquipmentManufacturer Model NumberSerial Number Last Calibration Due Calibration PSA Series Spectrum Analyzer Agilent E4446A US44300399 03/19/2012 03/19/2013 ESCI EMI TEST RECEIVER.ESCI ROHDE&SCHWARZESCI 100783 03/17/2012 03/17/2013 Amplifier MITEQ AM-1604-3000 1123808 03/18/2012 03/18/2013 Turn Table EMCO 2081-1.21 N/A N.C.R N.C.R Controller CTN/A N/A N.C.R N.C.R High Noise Amplifier Agilent 8449B 3008A01838 03/18/2012 03/18/2013 Bilog AntennaSCHAFFNERCBL6143 5082 03/17/2012 03/17/2013 Horn AntennaSCHWARZBECK BBHA9120 D28603/17/2012 03/17/2013 Loop AntennaA、R、A PLA-1030/B 1029 03/23/2012 03/23/2013 Temp. / Humidity Meter VICTOR VC230 N/A 03/19/2012 03/19/2013 Antenna TowerSUNOL TLT2 N/A N.C.R N.C.R Test S/W FARAD LZ-RF / CCS-SZ-3A2 NOTE: 1. The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 2. The FCC Site Registration number is 101879. 3. N.C.R = No Calibration Required. Report No.: C130125Z02-RP1 FCC ID : FN6-WR300NR Page 76 / 103 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 7.5.3. TEST PROCEDURES (please refer to measurement standard) 1. The EUT is placed on a turntable, which is 0.8m above the ground plane. 2. The turntable shall be rotated for 360 degrees to determine the position of maximum emission level. 3. EUT is set 3m away from the receiving antenna, which is varied from 1m to 4m to find out the highest emission. 4. Set the spectrum analyzer in the following setting in order to capture the lower and upper band-edges of the emission: (a) PEAK: RBW=VBW=1MHz / Sweep=AUTO (b) AVERAGE: RBW=1MHz / VBW=10Hz / Sweep=AUTO 5. Repeat the procedures until all the PEAK and AVERAGE versus POLARIZATION are 7.5.4. TEST SETUP 1m 30cm Spectrum analyzer Horn antenna 3m 4m Turntable EUT 0.8m Antenna tower Pre-amp Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 77 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. 7.5.5. TEST RESULTS Test Plot IEEE 802.11b mode(Antenna 1) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 78 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 79 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 80 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 81 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. IEEE 802.11g mode(Antenna 1) Band Edges (CH Low) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 82 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizontal Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 83 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Band Edges (CH High) Detector mode: Peak Polarity: Vertical Detector mode: Average Polarity: Vertical Report No.: C130125Z02-RP1 FCC ID: FN6-WR300NR Page 84 /103 This report shall not be reproduced except infull, without the written approvalof ComplianceCertification Services. Detector mode: Peak Polarity: Horizontal Detector mode: Average Polarity: Horizonta…
