FSUGG000B2.4GHz XBOX GAME PAD

Wireless XBOX Controller FEATURE This Mini Wireless controller uses state of the art technology for a better gaming experience. The technology used in this controller al lows up to 16 pl ayers to use these controllers in one area. The ergonomically designed grips combine functionality as well as comfort. The use of 2 AA batteries(not included)allows for up to 70 hours of pl ay time depending on the use of the vibration control switch. In most cases the software used for game pl ay wil l di ctate the functions of the controller buttons. See 'Controller Setup' in the software game menu. Prior to using the controller, you should move the Analog Sticks in a circular motion. 1. State Of The Art2.4GHz Technology Allows Up To 16 Players 2. Ergonomic Analog Sticks & Directional Pad For Superior Control 3. Uses 2 AA Batteries(Not Included) For Up TO 70 Hours Of Play Time 4. Rubberized Grips For Comfortable Handling 5. Auto-Detect Feature For Simplified Set Up 6. Turbo Function For Rapid Fire INSTRUCTION 1.Remove the battery cover on the back of the controller and insert 2 AA batteries. Replace the cover. 2.Plug the receiver into one of the XBOX controller ports of X-BOX console 3.If the LED on the receiver does not automatically begin flashing, press the connect button on the receiver. The green LED should now be flashing. This indicates that it is searching for a controller to connect to . 4.Turn the controller on using the on/off switch on the controller. 5.If the LED on the controller is off or flashing, Press the connect button on the controller. If it automatically turns on ,proceed to next step. 6.The controller and receiver should be connected now. The red LED on the controller should be on ,and the green LED on the receiver should have stopped flashing and should be on .You are now ready to pl ay. Repeat the above procedure for each additional player using an Mini Wireless Controller, one at a time. Plug only one receiver into the XBOX. Follow the procedure above for connecting that controller. Then pl ug the second receiver into the XBOX and follow the procedure above for connecting that controller. Continue connecting them one at a time until al l your controllers are connected. You may use up to 16 of these controllers in one area without interfering with each other. TURBO&CLEAR FUNCTIONS: Use the Turbo function for auto repeat(auto fire). When activated, this wil l cause the selected button to repeat its function until you release the button . TO SET AN ACTION BUTTON TO TURBO: Press and hold the TURBO button. Press and release any action buttons you want to put into Turbo mode, then rel ease the TURBO button. (You can set A, B, X, Y, Black, White, Right and left Triggers to Turbo mode.) TO CLEAR THE TURBO FUNCTION FROM AN ACTION BUTTON: Press and hold the Clear button. Press and release any action buttons you wish to cancel, then rel ease the Clear button. The action buttons you pressed wil l now return to their original function. SLEEP MODE: Sleep Mode is smart feature for saving battery li fe. If the Controller is left al one without movement for 2 minutes, It enters sleep mode. If you want to continue pl ay, press on any key. This feature al lows pl ayer to save battery li fe if you forget to turn off the power switch. TROUBLESHOOTING If you turn a controller off and on ,or unplug a receiver you may lose the connection between that controller and receiver. If you have lost the connection, unplug the receiver and turn off the controller. Plug the receiver in and press the connect button on the receiver. Turn the controller on, and if necessary, press the connect WARNING Read, follow & understand all warnings in this manual, your video game system instruction manual & video software for safety, health & other information Do not submerge in water Do not disassemble any part of controller & receiver Do not place heavy objects on top of controller & receiver Do not allow small children to play with controller & receiver unsupervised Do not use this controller in any other way than its intended use Do not unplug controller cable while the console is turned on Keep away from areas where dirt or liquid can get into controller & receiver Keep away from extreme temperatures Store in areas away from dust and humidi ty Turn off or discontinue use of Vibration function if you have any hand or wri st ailments or if you have any injury's to which the vibration creates discomfort to you in any way button on the controller. Whenever you are trying to connect a receiver and controller, unplug the receiver and turn off the controller and follow the steps outlined above in Setup for each controller. Analog Control Sticks Back Start Di rectional Pad Connect Clear Vibration Turbo Action Buttons Analog Control Sticks Control Switch Connect Button Connect LED Power LED Dual Sl ots For Memory Card& Other Peripherals Analog Triggers OFF 1 2 Vibration Federal Communications Commission (FCC) Statement 2.4GHz PS2 GAME PAD FCC ID: FSUGG000B This device complies with Part 15 of the FCC rules. Operation is subject to t he following two conditions: 1) this device may not caus e harmful interference, and 2) this device must accept any in terference received, including interfer ence that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interferen ce in a residential installation. This equipment generates , uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio com munications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferen ce to radio or television reception, which can be determined by turning the equipment off and on, the user is encourage…

Text truncated - open the document above for the full version.

Block diagram description 1. Transmitter block diagram The part is controlled mainly by MCU. Key Scan is used to detected the Keys of Gamepad, LED Display is used to indicated status of the Gamepad, MOTOR VIBRATION is used to report vibration message which come from the host, RF MODULE is used to transmit and receive RF signal, POWER MANOSTAT is used to regulate the power which is supplied by battery stably, and then output it to all circuit. The following is the principle: the MCU will encode KEY SCAN message then transmit it to RF MODULE as soon as it is detected by MCU, and then transmit it to receiver; then RF MODULE will receive vibration message of the motor and transmit it to MCU, after having decoded it, MCU will enable MOTOR VIBRATION Circuit, at same time, MCU will control the LED DISPLAY block to indicate the correspondent working status of the Gamepad. 2. Receiver block diagram The part also is controlled mainly by MCU, LED Display is used to indicate RF connection, RF MODULE is used to transmit and receive RF signal, POWER MANOSTAT is used to regulate the power which is supplied by XBOX CONSOLE stably, and then output it to all circuit. Attention, the receiver doesn’t include XBOX CONSOLE which is a necessary host for the receiver. The following is the principle: when RF MODULE have received the KEY SCAN message of Gamepad, it will transmit the message to MCU, MCU will decode the message, then the decoded message will be transmitted to XBOX CONSOLE. XBOX CONSOLE will transmit MOTOR VIBRATION message to MCU, the MCU will encode the message, then the encoded message will be transmitted to RF MODULE which will transmit it out at once. KEY SCAN block may control the RF connection via MCU. 1 2 3 4 ABCD 4 3 2 1 D CBA Manostat Power XBOX Console RF Module (Transceiver) MCU CodingDecode LED Display KeyScan RF ANT 1 2 3 4 ABCD 4 3 2 1 D CBA RF Module(Transceiver) MCU CodingDecodePower Manostat Key ScanLED Display Motor Vibration Battery RF ANT Transmitter block diagram

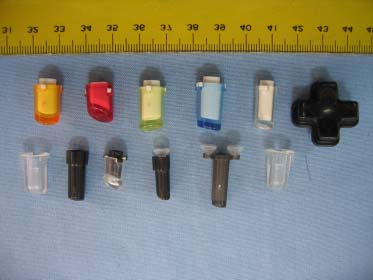

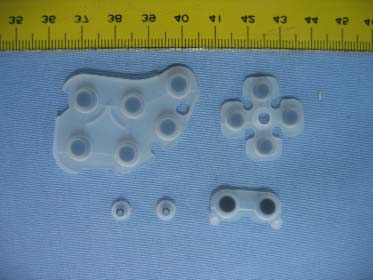

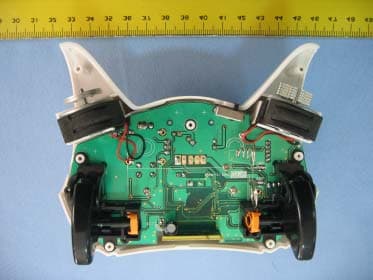

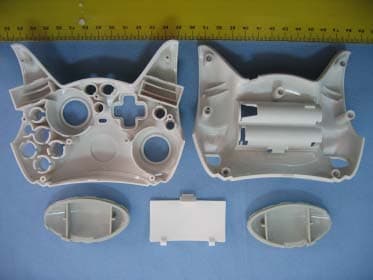

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is large enough for it to be placed warning statement on the device as follow: FCC ID: FSUGG000B This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received including interference that may cause undesired operation.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Operational Description of equipment 2.4GHz XBOX GAME PAD FCC ID: FSUGG000B The wireless game pad inserted 2 AA batteries is operated under game system as XBOX. Its frequency band is from 2400 to 2481 MHz, amounting 20 channels under operation. The operation is stated clearly as follow: (1) Puts the dongle part into the game system’s pad slot, then turns on the game system. (2) Press the connect button of the dongle. At the same time, the LED is going to flash. (3) Press the game pad’s connect button, it will flash too. When the LED sustain light at both game pad and dongle. The game pad can be used to control the game system. PRODUCT 2.4G XBOX GAME PAD MODEL NO. Wireless Blaze X ( XBOX ) POWER SUPPLY DC 3V 10m FREQUENCY BAND 2400~2481HMz NUMBER OF CHANNEL 20 RATED RF OUTPUT POWER 0dBm MODULATION TYPE FSK BIT RATE OF TRANSMISSION 1Mbps ANTENNA TYPE Integral Antenna

1 2 3 4 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 30-Aug-2005 Sheet of File: F:\HONG\ps joyspad.ddb Drawn By: 1 1 2 2 3 3 4 4 5 5 6 6 CABLE1J1 1 1 2 2 3 3 4 4 5 5 J1J2 R12R105 BC5C27BC4C27 Y1 24MHZ R1533R R16 33R VBI1 EC2 100UF/10V BC2C104 D11N4148 R11 R220 R9 R750 R7R153 R6R153 VBI1VBI2 R4 R153 R5R153 R8 R750 R10 R220 1 1 2 2 3 3 4 4 5 5 J2J3 EC1 100UF/10V BC1 C104 R13 R152 BC8C33 +5VA +3.3V 记忆卡上插槽记忆卡下插槽 R24 D43.3V +5Va +5VA USBVDD +5VA USBVDD C4 C5 RFLED BPKTCLBXTLENBNDENBDDATBDCLKBDPWRBADATA1HZ12M 123456789101112 RF1SIGNIA MODULE +3.3V RFLED1 INA 1 DN 2 DP 3 DPB 4 DPC 6 DNB 5 DNC 7 GND 8 RFPWR 9 RFCE 10 RFCS 11 RFDR 12 RFCLK 13 RFDATA 14 RFADD1 15 RFADD2 16 RFADD3 17 RFADD4 18 RFADD5 19 HZ50 20 HOLDIN 21 HOLDOUT 22 HZA60 23 HZB60 24 HZC60 25 HZD60 26 AUTOPAD 27 VCC 28 XYAL2 29 XYAL1 30 GND 31 HZ12M 32 BPKTCTL 33 BXTLEN 34 BNDEN 35 BDDATA 36 BDCLK 37 BNPWR 38 BDDATA1 39 RESETKEY 40 RFLED 41 RFSEL 42 RFADD6 43 RFADD7 44 ADDR4 45 ADDR3 46 ADDR2 47 ADDR1 48 VDD 49 U1 YR8450-118 DN1 DN1 DP1 DP1 DNBDPB DPBDNBDNC DNCDPC DPC AD1 AD2 AD3 AD4 AD1 AD2 AD3 AD4 USBVDD USBVDD USBVDD USBVDD D33.9V R2320R HZ12MBXTLENBPKTCLBNDEN BDDAT BDCLK BDPWR BADATA1 A HZ1 R1331 +5VA EC3 100UF/10V BC3C104 R25 R220R C1 INDUCTOR C2INDUCTOR 旭邦科技 AK62-RF XBOX RX (2039) SCH V1.0 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 30-Aug-2005 Sheet of File: F:\HONG\ps joyspad.ddb Drawn By: R3-3 L3 SELECT START VR2 VR1 VR4 VR3 R5 BC2BC1 Y1 SW1 R21 BATTERY R20 EC1 +3.3VD +3.3VD RF12M BADATA1 BNPWR BDCLK BDDATA BNDENBXTLENBPKTCTL BPKTCLBXTLENBNDENBDDATABDCLKBNPWRBADATA1RF12M LMOTORRMOTOR RMOTOR Q3 Q2 R1 R3 BC2 VC1 D2 VC1 Q4 Q1 R2 R4 BC1 LMOTOR VC1 D1 VC1 +3.3VD RP1RP2RP3RP4 RP1 RP2 RP3 RP4 BDBR BU POWERCHECK POWERCHECK R1 R2 L1 L2 AU AR +3V BC3 UP DOWN L2 L1-1 RIGHT LEFT UPAL RIGHTDOWN R2L2BUBRBL BD R9 R20R8R7R10R12R16R15R13 R14 10K 10K BU BL BR R1-1 BD R2-2 BL AD AL +3.3VD +3.3VD MG1 MG2 123456789101112 RF1 +3.3VD ANALOG SPARE ADD1ADD2ADD3ADD4ADD5ADD6ADD7 +3.3VD RFDATA RFDR1 DISRL RFLED +3.3VD +3.3VD R22 R23 R24 R25 R1 L1 R23 R24 +3.3VD SW1 AD1AD2AD3AD4 +3.3V 3.9k3.9k3.9k3.9k A/0 6.8M 33P33P AL 1 GND 2 XTAL1 3 XTAL2 4 VDD 5 DISRL 6 RFFRE1 7 RFFRE2 8 RFFRE3 9 RFFRE4 10 RFFADD1 11 RFFADD2 12 RFFADD3 13 RFFADD4 14 RFFADD5 15 RFFADD6 16 RFFADD7 17 RFSEL 18 MOTORKEY 44 MODE1 20 OPTION 21 OPTION1 22 OPTION2 23 RFLED 24 RPLED 25 GPLED 26 TURLED 27 SLOWLED 28 PROGRAMLED 29 ANALOGLED 30 RF12M 32 BDDATA1 33 RFPWR 34 RFDATA 35 RFCLK 36 RFDR 37 BDDATA 38 RFCS 39 RFCE 40 BPKTCTL 41 LMOTOR 42 RMOTOR 43 POWERKEY 45 KEY-TURBO 47 KEY-CLR 48 KEY-SLOW 49 Q 50 D 51 C 52 S 53 RP1 54 RP2 55 RP3 56 RP4 57 BD 58 BR 59 BL 60 BU 61 POWERCHECK 62 R1 63 L1 64 R2 65 L2 66 R3 67 L3 68 START 69 SELECT 70 SPARE 71 ANALOG 72 AU 73 AR 74 AD 75 CONNECT 19 MOTORLED 31 PORGRAM 46 U1YR8450-117C +3.3VD 3.9K3.9K3.9K3.9K3.9K3.9K 331 331 105205 331 左 3D-X 轴 左 3D-Y 轴 331 331 331 8050 8050 8050 8050 103 1N4148 C104 R103 R331 R331 104 1N4148 旭邦科技 AK62-RF XBOX TX (2039) SCH

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A05101406 Report No.:FCCA05101406 FCCID: FSUGG000B Page:2 of 54 Date:Jan. 04, 2006 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT....................................................4 1.1 DOCUMENT POLICY......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION...........................................................................................4 2. DESCRIPTION OF EUT AND TEST MODE................................................. 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.2 DESCRIPTION OF SUPPORT UNIT.................................................................. 5 2.3 DESCRIPTION OF TEST MODE ....................................................................... 6 3. DESCRIPTION OF APPLIED STANDARDS................................................ 6 4. CONDUCTED EMISSION TEST .........................................................................7 4.1.1 CONDUCTED EMISSION LIMIT ..................................................................... 7 4.1.2 TEST EQUIPMENT ......................................................................................... 7 4.1.3 TEST SETUP .................................................................................................. 8 4.1.4 TEST PROCEDURE ....................................................................................... 8 4.1.5 EUT OPERATING CONDITION ...................................................................... 8 4.1.6 TEST RESULT ................................................................................................ 9 4.2 TECHNICAL CHARACTERISTICS TEST.................................................. 13 4.2.1 6dB Bandwidth .............................................................................................. 13 4.2.2 LIMIT ............................................................................................................. 13 4.2.3 TEST EQUIPMENT ....................................................................................... 13 4.2.4 TEST SET-UP ............................................................................................... 13 4..2.4 TEST PROCEDURE .................................................................................... 13 4.2.5 EUT OPERATING CONDITION .................................................................... 13 4.2.6 TEST RESULT .............................................................................................. 14 4.3 PEAK POWER TEST ....................................................................................... 18 4.3.1 LIMIT ................................................................................................................ 18 4.3.2 TEST EQUIPMENT ....................................................................................... 18 4.3.3 TEST SET-UP ............................................................................................... 19 4.3.4 TEST PROCEDURE ..................................................................................... 19 4.3.5 EUT OPERATING CONDITION .................................................................... 19 4.3.6 TEST RESULT .............................................................................................. 20 4.4 BAND EDGE TEST .......................................................................................... 24 4.4.1 LIMIT ................................................................................................................ 24 4.4.2 TEST EQUIPMENT ....................................................................................... 25 4.4.3 TEST SET-UP ............................................................................................... 26 4.4.4 TEST PROCEDURE ..................................................................................... 27 4.4.5 EUT OPERATING CONDITION .................................................................... 27 4.4.6 TEST RESULT .............................................................................................. 28 4.5 FUNDERMENTAL & SPURIOUS RADIATED EMISSION TEST ...................... 32 4.5.1 LIMIT................................................................................................................ 32 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.:A05101406 Report No.:FCCA05101406 FCCID: FSUGG000B Page:3 of 54 Date:Jan. 04, 2006 4.5.2 TEST EQUIPMENT ....................................................................................... 33 4.5.3 TEST SET-UP ............................................................................................... 34 4.5.4 TEST PROCEDURE ..................................................................................... 35 4.5.5 EUT OPERATING CONDITION .................................................................... 35 4.5.6 TEST RESULT .............................................................................................. 36 4.7 POWER DENSITY TEST................................................................................ 43 4.7.1 LIMIT ................................................................................................................ 43 4.7.2 TEST EQUIPMENT.......................................................................................... 43 4.7.3 TEST SET-UP .................................................................................................. 43 4.7.4 TEST PROCEDURE ........................................................................................ 43 4.7.5 EUT OPERATING CONDITION .............................…
