FSUGG000EWireless Grandias 12V/Receiver

Wireless Grandias 12V AK-34 Table of Contents English ..  1  .. .. 2 Deutsch .. .. 3 Fran ais .. .. 4 Italiano .. .. 5 Espa ol ..  6 Brasil ..  7 Portugu s ..  8 Nederlands ..  9 esky ..  10 Magyar ..  11 Polski ..  12 Srpski ..  13 Rom n ..  14  ..  15 Trk e ..  16 aa ..  17 Eesti ..  18 Latvie u ..  19 Lietuvi kai ..  20  ..  21 !"# ..  22 ENGLISH 1 Audio Interface for Grandias Commander only: EarphoneMicrophone Receiver for Wireless Grandias 12V only: ONLinkPower LED OFFVibration PS3PC Software Installation:Install the software first before you install Grandias12V or Wireless Grandias 12V. The Game Pad will work without the vibration function even if the driver is not installed. 1.Insert the driver CD into your CD-ROM; wait for a few seconds for your PC to load the disc; the auto run program is executed and the opening installation screen appears. Please follow the on-screen instructions. 2.If your system doesn’t launch the installation software automatically, you can locate the file in the directory of your CD drive and click on it, then follow the on-screen instruction to install the software. Hardware Installation 1.Plug the game pad to a USB port on the PC or a USB Hub. After connection, the“Find a new hardware”message appears and the standard USB driver will be located for you to finish the installation. 2.Go to Game Controllers page and select“Advanced“. The Game Pad should work as an USB, 2-axis 12-button game pad. Check the installation again if it is not correct. Set wireless function (for Wireless Grandias 12V only): Once you complete the Wireless Grandias 12V installation, it will automatically search and link with the receiver. The yellow LED on the Game Pad will be lit for five seconds then will turn off if you have a successful connection. Searching ModeWake suspend mode upSuspend ModeLow Battery Indicator START+MODE buttonSTART button or SELECT button. After 2 minutes without any button activity. Yellow LED continues to flash slowly. Set audio output (for Grandias Commander only): If there is more than one audio device inside the system; you need to go to the audio setup screen and select the audio device to be“USB Audio”. Turbo/Macro Functions 1.Set/Clear Turbo Functions: Press and hold the TURBO button, thenpress any action button to set the turbo function for it. To release the Turbo function, repeat the same procedure again. Macro Functions 1.Set MACRO Functions: The Macro function only can be programmed for Buttons5~8 (L1/R1/L2/R2). Press the MACRO key, and the green LED will be flashing slowly to initiate the macro function. Press any of the action buttons (Button 1~4, 11, 12) or direction pad step by step. The green LED will flash faster during the setting. Then press the MACRO button again to complete the setting. The contents of the macro function will remain at the programmed macro buttons, even if the Grandias 12 V is unplugged from the computer. 2.Clear Macro Functions: Press and hold the programmed Macrobutton, then press the TURBO button twice to remove the macro function from this button. Set Turbo/Macro Speed: Press the Turbo or MACRO button and hold, then press the START button only. The Turbo/Macro speed will be adjusted cyclically from 2->4->8->16->2 Hz, each time the START button is pressed. 3.MODE: Press MODE button to toggle between Analog to Digital Mode. The red LED will be lit in Analog MODE. Importance & Attention 1.Make sure your software supports the Game Controller/Joystick. 2.Not every game requires all functioning buttons. If you find some buttons do not work inside the game, please check the game settings again. 3.The function of the game pad buttons may vary in different games. Before proceeding to game settings from the OPTION inside the game, always read your game’s manual carefully to set the best game settings. Wireless Grandias 12V / MaxFire Grandias 12V/Grandias Commander Buttons1~4 8-Way D-Pad MODE/LED Analog Mini Stick Buttons 5~8 TURBO/SELECT/START/MACRO Русский 2 Установка программного обеспечения:Перед установкойGrandias 12ВилиWireless Grandias 12В необходимо установить программное обеспечение.Геймпад будет работать без функции вибрации даже если драйвер не установлен. 1.Вставьте компакт-диск с драйверомGrandias 12Vв дисковод компакт-дисков.Подождите несколько секунд,чтобы диск загрузился. 2.Если программа установки не запускается автоматически,найдите в каталоге компакт-диска нужный файл и щелкните по нему,а затем установите программу Grandias12V,следуя инструкциям. Установка аппаратного обеспечения 1.Подключите геймпад кUSB-порту илиUSB-концентратору компьютера.После подключения появится сообщение "Обнаружено новое оборудование",после чего для завершения установки будет обнаружен стандартный USB-драйвер. 2.На страницеGame Controllers ("Игровые контроллеры")выберите “Advanced“("Дополнительно").Геймпад должен функционировать как2-осевая12-кнопочная игровая панель USB. Еще раз проверьте правильность установки. Установка функции беспроводного управления (только для Wireless Grandias 12В): После завершения установкиWireless Grandias 12В начнется автоматический поиск и подключение с помощью ресивера.Индикатор желтого цвета…

Text truncated - open the document above for the full version.

January 29, 2008 Federal Communications Commission Authorization and Evaluation Division FCC ID: FSUGG000E Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, --------------------------------- Shigeru Oikawa , Manager

Date: 2008/01/25 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Kevin Wang /V.P. of Taiwan office of Complianc Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Kevin Wang of CCS TW on our behalf shall have the same effect as acts of our own. In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, --------------------------------- Shigeru Oikawa , Manager REMARK : 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

1 Lucy Tsai From:amanda.wu [[email protected]] on behalf of application [[email protected]] Sent:Wednesday, January 30, 2008 12:32 AM To:Lucy Tsai Cc:application.2008 Subject: FW: KYE SYSTEMS CORP., FCC ID: FSUGG000E, Assessment NO.: AN08T7557, Notice#1 Attachments:AK-34 Test Report revised 0130.pdf; AK-34 Operation Description revised 0130.pdf; AK-34 Block Diagram revised 0130.pdf Dear Lucy, Pls see the reply as the belows. Thank you Rgds, Gloria "Lucy Tsai" <[email protected]> 2008/01/29 08:18 PM "application" <[email protected]> FW: KYE SYSTEMS CORP., FCC ID: FSUGG000E, Assessment NO.: AN08T7557, Notice#1 Hi Gloria, Please address following issues. Q#1: The operational description only provide the warning when using this dongle which is more like the instruction manual. There are no information mentioned regarding the transmitter's modulation, transmitting frequency and etc.. Please provide. Ans: We added the statements on the revised operational description.Pls find the attached. Q#2: There are 3 block diagrams as device block diagram, dongle block diagram and RF module block diagram in the exhibit of block diagram. Please clarify what the device block diagram refers to. Ans: We removed 2 block diagrams.Pls find the attached for dongle block diagram. Q#3: Test report is not approved yet. Please have a check. Ans:Pls see page3 on the revised report. Q#4: Test report mentioned that EUT is powered by Notebook computer via a USB cable which doesn't agree with the test setup. Please revise. Ans:Pls see the page4 on the the revised report. Best Rgeards, Lucy 2 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

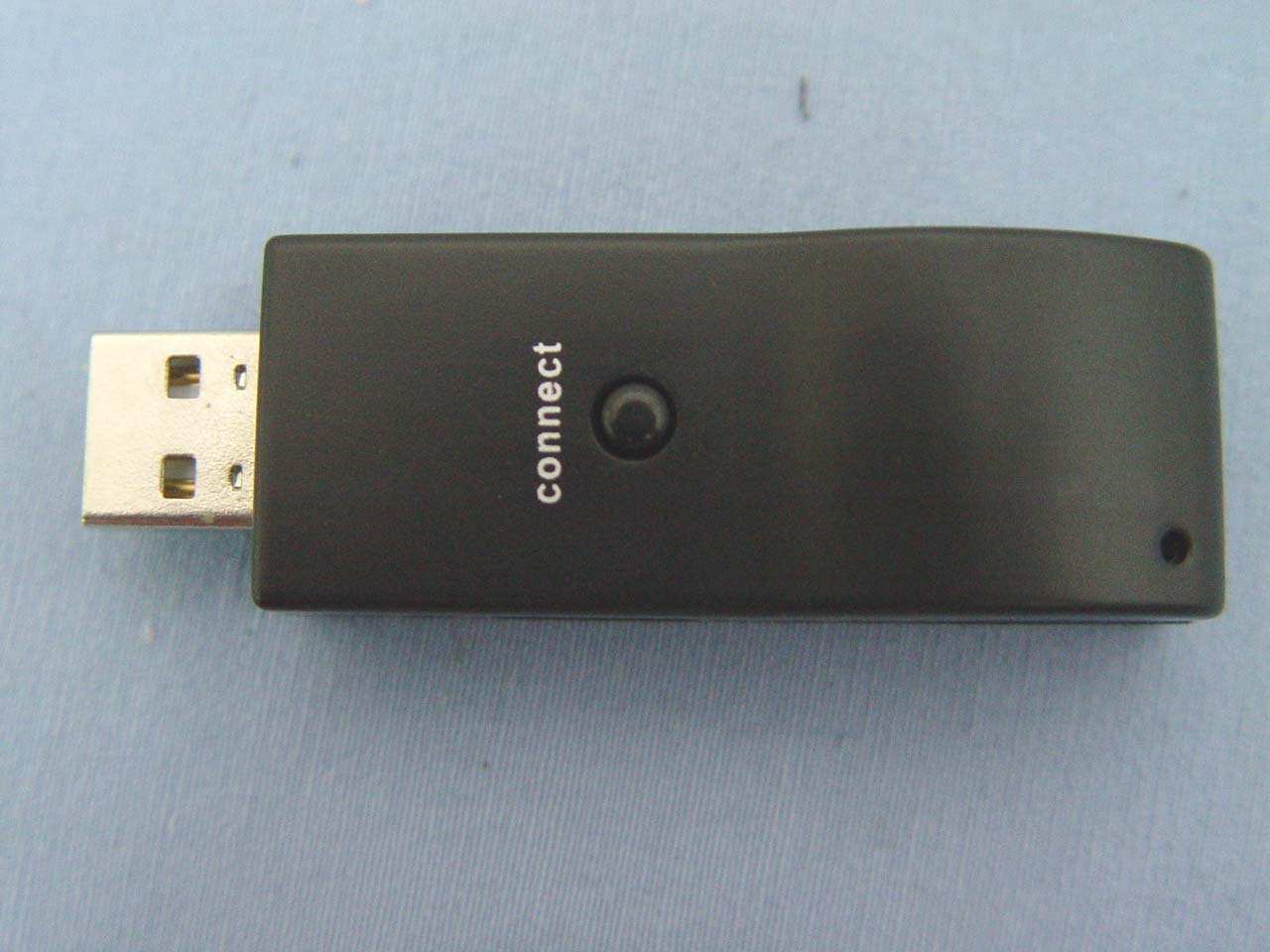

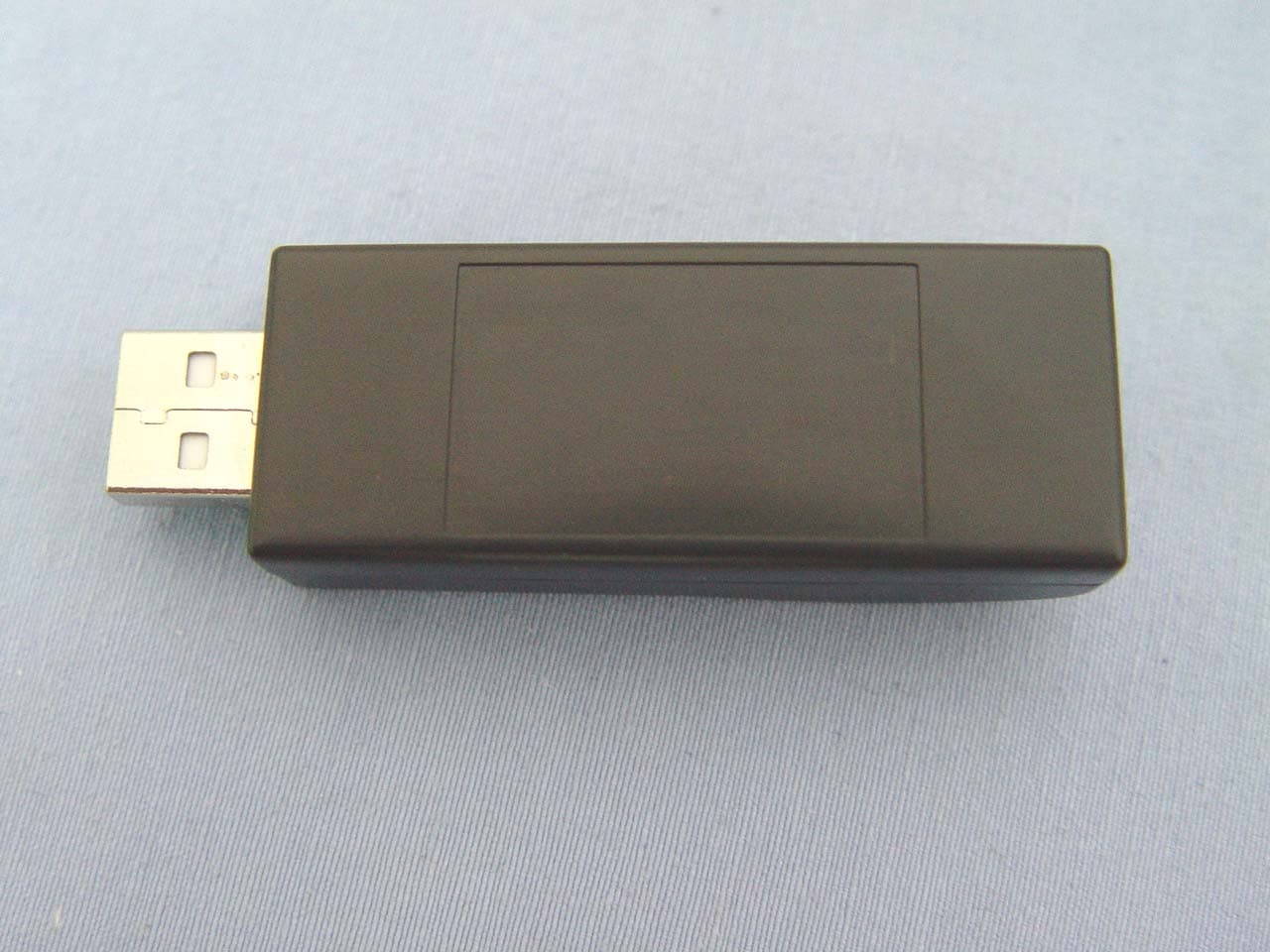

Compliance Certification Services Inc. Report No.: 71004005 Date of Issue: January 29, 2008 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71004005 Date of Issue: January 29, 2008 Page 2 Rev. 00

Compliance Certification Services Inc. Report No.: 71004005 Date of Issue: January 29, 2008 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 71004005 Date of Issue: January 29, 2008 Page 4 Rev.00

Antenna spec ================================= Antenna type : Printed Antenna ANT Gain : 0 dBi

Compliance Certification Services Inc. Report No.: 71004005-RP1 FCC ID: FSUGG000E Date of Issue: January 29, 2008 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 29 Rev. 00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Wireless Grandias 12V/Receiver Model Number: AK-34 Tr a d e Na me : G e n ius Issued to KYE SYSTEMS CORP. No.492, Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 71004005-RP1 FCC ID: FSUGG000E Date of Issue: January 29, 2008 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION.................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED.................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 8 5.1 FACILITIES .. ................................................................................................................................ 8 5.2 EQUIPMENT................................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS................................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 10 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 10 6.2 SUPPORT EQUIPMENT ........................................................................................................ 10 7. FCC PART 15.249 REQUIREMENTS......................................................................................... 11 7.1 20 DB BANDWIDTH ............................................................................................................. 11 7.2 BAND EDGES MEASUREMENT ......................................................................................... 13 7.3 SPURIOUS EMISSION ..........................................................................................................18 7.4 POWERLINE CONDUCTED EMISSIONS........................................................................... 25 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 28 Compliance Certification Services Inc. Report No.: 71004005-RP1 FCC ID: FSUGG000E Date of Issue: January 29, 2008 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: KYE SYSTEMS CORP. No.492, Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Equipment Under Test: Wireless Grandias 12V/Receiver Trade Name: Genius Model Number: AK-34 Date of Test: October 8 ~ 22, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 71004005-RP1 FCC ID: FSUGG000E Date of Issue: January 29, 2008 Page 4 Rev. 00 2. EUT DESCRIPTION Product Wireless Grandias 12V/Receiver Trade Name Genius Model Number AK-34 Model Discrepancy N/A Power Supply Powered from host device. Frequency Range Channel Frequency (MHz) Channel Frequency (MHz) 1 2408 18 2442 2 2410 19 2444 3 2412 20 2446 4 2414 21 2448 5 2416 22 2450 6 2418 23 2452 7 2420 24 2454 8 2422 25 2456 9 2424 26 2458 10 2426 27 2460 11 2428 28 2462 12 2430 29 2464 13 2432 30 2466 14 2434 31 2468 15 2436 32 2470 16 2438 33 2472 17 2440 34 2474 Frequency Spacing 2 MHz Modulation Technique GFSK Antenna Gain 0 dBi Antenna Designation Printed Antenna Remark: 1. The sample selected for test w…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 71004005-RP1 FCC ID: FSUGG000E Date of Issue: January 29, 2008 Page 28 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No.: 71004005-RP1 FCC ID: FSUGG000E Date of Issue: January 29, 2008 Page 29 Rev. 00 Powerline Conducted Emissions Setup Photos
