FSUGG000GJoystick

KYE SYSTEMS CORP.
Joystick - FCC ID FSUGG000G - KYE SYSTEMS CORP.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Mar 12, 2008
Application Purpose
Original Equipment
Date of Application
Mar 12, 2008
Equipment Note
Joystick
Frequency Range
2410.00000000 - 2474.87200000
Company
KYE SYSTEMS CORP.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Table of Contents English ....................................................................... ....................................... 1 Русский ....................................................................... ......................................... 2 Deutsch ....................................................................... ......................................... 3 Français ....................................................................... ......................................... 4 Italiano ....................................................................... ......................................... 5 Español ....................................................................... ....................................... 6 Brasil ....................................................................... ....................................... 7 Português ....................................................................... ....................................... 8 Nederlands ....................................................................... ....................................... 9 Česky ....................................................................... ....................................... 10 Magyar ....................................................................... ....................................... 11 Polski ....................................................................... ....................................... 12 Srpski ....................................................................... ....................................... 13 Română ....................................................................... ....................................... 14 Ελληνικά ....................................................................... ....................................... 15 Türkçe ....................................................................... ....................................... 16 Укрaï ʜ с ь кa ....................................................................... ....................................... 17 Eesti ....................................................................... ....................................... 18 LatvieŠu ....................................................................... ....................................... 19 LietuviŠkai ....................................................................... ....................................... 20 Қазақ ....................................................................... ....................................... 21  ....................................................................... ....................................... 22 English 1 b. d. c. e. f. h. i. g. j. a. Front view: Side view: Hardware Overview Check out the diagram below so you can see what each button function does on your MetalStrike Series. Function list: Note: a Adjustment screw Only for MetalStrike FF, Pro and Wireless MetalStrike b Fire trigger c Cool fan switch Only for MetalStrike FF and MetalStrike Pro d 8 additional function buttons on base e Adapter joint Only for MetalStrike FF and Wireless MetalStrike f 8-way Hat Switch as a View Finder g Major function buttons h 3D rotational handgrip with rudder function i Throttle (Center) j Turbo button and LED indicator Installation: Note: Always install the MetalStrike Series driver first (MetalStrike 3D does not need a driver), then the joystick.  Software Installation 1. Place the CD disc into your CD-ROM drive; and wait for a few seconds for your computer to read it. 2. If your system is set up to automatically read a CD, then the auto-run program is executed and the opening screen for installation appears. Follow the on-screen instructions to install the MetalStrike Series driver step-by-step. If your system doesn’t launch the driver installation automatically, type in the filename “Install.bat”, found on your CD drive and click on it, then follow the on-screen instructions to install the driver.  Hardware Installation 1. Insert the MetalStrike Series USB connector to the USB port or USB hub of your computer and make sure it is firmly connected. If your MetalStrike Series joystick is wireless, plug in the dongle. 2. After the MetalStrike Series is connected, the monitor shows “Find a new hardware” and the MetalStrike Series driver is located so you can now play games. 3. Most games that support vibration feedback also have feedback adjustment sections, and will require DirectX support. Refer to your game manual for more information. Now you can calibrate the joystick, or play a game right away. Advanced function:  Turbo/Auto Setting 1. Turbo Mode: press the Turbo button and hold, then press any other button and release the turbo button. 2. Cancel Turbo: press the button you set for Turbo and hold, and then press the Turbo button again to cancel the Turbo function for this button. 3. Auto Mode: hold the Turbo button for two seconds, and the LED indicator will blink to indicate it is in Auto mode. Press any button you want to set to auto mode one by one. Press the Turbo button again to finish the Auto mode setting. 4. Cancel Auto: follow step three to cancel all buttons set in Auto mode.  Throttle Grip The centralized throttle has a standard throttle function, which is required by flight simulation games. You may accelerate or slow down the aircraft speed by rotating this switch for efficient maneuver control.  Cool Fan handle There is a fan in the joystick handle, just use the switch to control the two speed (Off/Low/Light) fan. It keeps you hand cool and dry when you’re playing games that require a lot of joystick movement. Русский 2 Вид сбоку: b. d . c. e. f. h i. g. j. a. Вид спереди: Общее представление об аппаратном обеспечении Схема внизу даст вам возможность увидеть, как работает каждая функция кнопки на MetalStrike Series. Список функций: Примечание: a Регулировочный винт Только для MetalStrike FF, Pro и …

Text truncated - open the document above for the full version.

External Photos

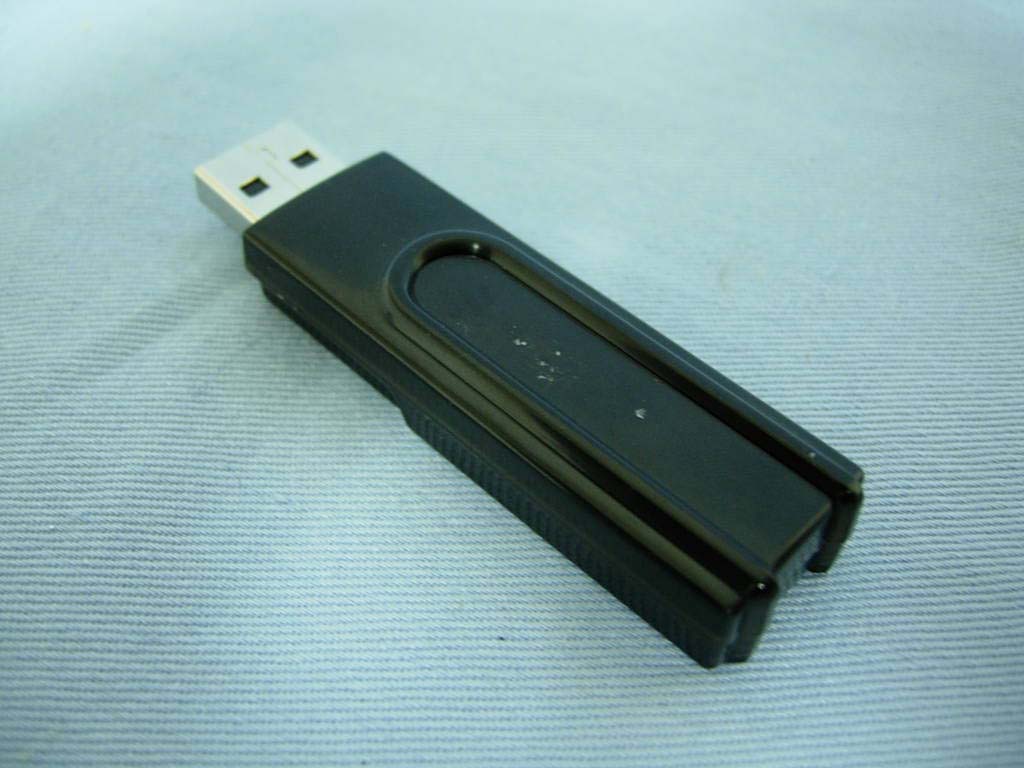

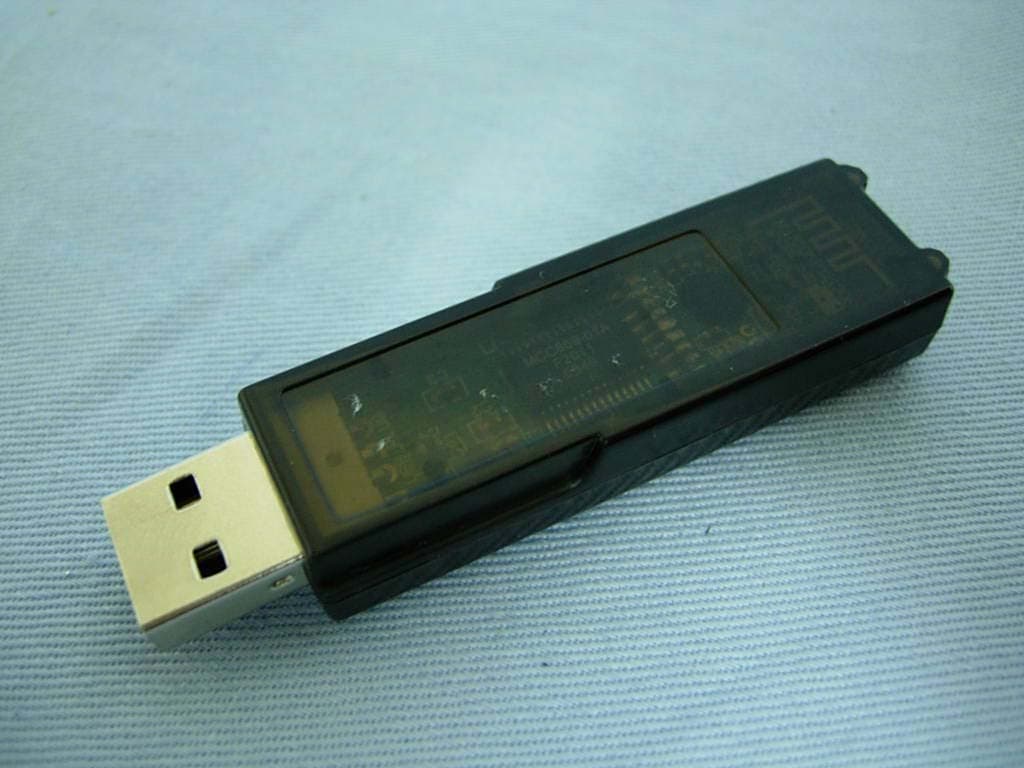

Report No.: 079268R-RFUSP07V01-A Page : 1 of 5 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

KYE SYSTEMS CORP. FCC ID.: FSUGG000G No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C..Tel : 886-2-2698-1478 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Internal Photos

Report No.: 079268R-RFUSP07V01-A Page : 2 of 5 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 079268R-RFUSP07V01-A Page : 3 of 5 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 079268R-RFUSP07V01-A Page : 4 of 5 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 079268R-RFUSP07V01-A Page : 5 of 5 Version:1.0 (9) EUT Photo

Operational Description

Report No. 079268R-RFUSP07V01-A Page : 6 of 33 Version:1.0 1.2. Operation Description The EUT is a USB Receiver. The operation frequency is 2410-2474.872MHz Seventy-seven manually selectable channels are built in the EUT. The signals modulated by MSK are transmitted from the printed antenna on PCB of the EUT. DC 5V (Power by PC) shall be provided for EUT operation. Test Mode Mode 1: Transmitter

Test Report

Report No. 079268R-RFUSP07V01-A Page : 1 of 33 Version:1.0 Test Report Product Name Joystick Model No. Wireless MetalStrike FCC ID. FSUGG000G Applicant KYE SYSTEMS CORP. Address No. 492 Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Date of Receipt Sep. 20, 2007 Issued Date Nov. 28, 2007 Report No. 079268R-RFUSP07V01-A The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 079268R-RFUSP07V01-A Page : 2 of 33 Version:1.0 Test Report Certification Issued Date: Nov. 28, 2007 Report No.: 079268R-RFUSP07V01-A Product Name Joystick Applicant KYE SYSTEMS CORP. Address No. 492 Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Manufacturer KYE SYSTEMS CORP. Model No. Wireless MetalStrike Rated Voltage AC 120V/60Hz Working Voltage DC 5V (Power by PC) Trade Name Genius Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : (Engineer/Dino Chen ) Approved By : ( Deputy Manager / V i n c e n t L i n ) Report No. 079268R-RFUSP07V01-A Page : 3 of 33 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.................................................................................................................4 1.1. EUT Description ...................................................................................................................... 4 1.2. Operation Description.............................................................................................................. 6 1.3. Tested System Details............................................................................................................. 7 1.4. Configuration of Tested System .............................................................................................. 7 1.5. EUT Exercise Software ...........................................................................................................8 1.6. Test Facility ............................................................................................................................. 9 2. Conducted Emission.......................................................................................................................10 2.1. Test Equipment ..................................................................................................................... 10 2.2. Test Setup ............................................................................................................................. 10 2.3. Limits ..................................................................................................................................... 10 2.4. Test Procedure ...................................................................................................................... 11 2.5. Uncertainty ............................................................................................................................ 11 2.6. Test Result of Conducted Emission....................................................................................... 12 3. Radiated Emission...........................................................................................................................14 3.1. Test Equipment ..................................................................................................................... 14 3.2. Test Setup ............................................................................................................................. 14 3.3. Limits ..................................................................................................................................... 15 3.4. Test Procedure ...................................................................................................................... 16 3.5. Uncertainty ............................................................................................................................ 16 3.6. Test Result of Radiated Emission.......................................................................................... 17 4. Band Edge..........................................................................................................................................24 4.1. Test Equipment ..................................................................................................................... 24 4.2. Test Setup ............................................................................................................................. 25 4.3. Limit....................................................................................................................................... 25 4.4. Test Procedure ...................................................................................................................... 26 4.5. Uncertainty ............................................................................................................................ 26 4.6. Test Result of Band Edge...................................................................................................... 27 5. EMI Reduction Method During Compliance Testing...............................................................31 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 079268R-RFUSP07V01-A Page : 4 of 33 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name Joystick Trade Name Genius FCC ID. FSUGG000G Model No. Wireless MetalStrike Freq…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 079268R-RFUSP07V01-A Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 079268R-RFUSP07V01-A Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 079268R-RFUSP07V01-A Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)

Contact Information

Applicant

Ricky Chen(Section Supervisor)
[email protected]+886-2-2995-6645Fax: +886-2-2999-9464

Technical Contact

QuieTek CorporationVincent Lin
[email protected]

No. 5-22, Ruei-Shu Valley,Ruei-Ping Tsuen, · Taipei · Taiwan

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD. LinKouMirenda Liao
[email protected]+886-2-2602-7968Fax: +886-2-2602-3286

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.47 GHz-
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. This is a portable device. The device must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.
