FSUGJ0003JOYSTICK

SpeedWheel Force Feedback Features:
Most Popular I-Force ® 2.0 Force Feedback Technology
16 bit 48 MHz CPU Inside
6 Rapid Buttons and 2 Easy Reached Paddles
Comfortable Ergonomics Rubber Wheel
Excellent Stable Base Design
USB or Serial Interface System Requirements:
IBM TM -Compatible PC, with Pentium ® processor or faster
16MB RAM minimum
15MB hard-disk space
CD-ROM Drive
One dedicated USB port or 9-pin serial COM port
Serial connection requires Windows ® 95 or Windows ® 98
USB connection requires Windows ® 98
An installed mouse Package includes:
Genius SpeedWheel Force Feedback Steering Wheel
Genius SpeedWheel Force Feedback Pedal
Genius Driver for Windows ® 95/98 CD-ROM
Installation Guide

SpeedWheel Force Feedback Installation Guide Important Ergonomic Information FCC ID : FSUGJ0003 WARNING! Some studies suggest that long periods of exposure to vibrating hand tools, coupled with an improper environment, incorrect habits or individual factors, may be linked to hand-arm vibration syndrome (HAVS), also called vibration-induced white fin- ger (VWF) or Raynaud's syndrome. To help avoid this condition, take frequent breaks of at least 10 minutes per hour, keep hands and body warm, avoid using a tight hand grasp, and maintain neutral postures of wrist, elbow, and shoulder. If you feel numbing and/or tingling in your fingers or if your fingers appear to be a pale or ashen color, consult a qualified health professional. Using Your Steering Wheel Safely Some studies suggest that long periods of repetitive motion coupled with an improper environment and incorrect habits may be linked to certain types of physical discomfort or injury. These include carpal tunnel syndrome (CTS), tendinitis, and tenosynovitis. Take frequent breaks while using the steering wheel. If you feel ach- ing, numbing, or tingling in your arms, wrists, or hands, consult with a qualified health professional. Introduction Thanks for your purchasing Genius ® SpeedWheel Force Feedback, the most natural and easy-to-use force feedback game device. The Genius ® SpeedWheel Force Feedback steering wheel provides the ultimate experience in high-end racing simulation programs for your computer. Using the latest I-Force 2.0 force feedback technology, Genius ® SpeedWheel Force Feedback steering wheel puts you closer to the action, while offering a high degree of realism, so you can experience the same excitement and sensory effects that have only been available previously in arcade games. System Requirements To install and use the Genius ® SpeedWheel Force Feedback steering wheel, your system must have the following:
IBM TM -Compatible PC, with Pentium ® processor or faster
16MB RAM minimum (32MB recommended)
15MB hard-disk space
CD-ROM Drive
One dedicated USB port or 9-pin serial COM port
Serial connection requires Windows ® 95 or Windows ® 98
USB connection requires Windows ® 98
An installed mouse SpeedWheel Force Feedback Contents Before installing the steering wheel, make sure you have the following components. If anything is missing or damaged, contact your supplier before installing the steering wheel.
Genius ® SpeedWheel Force Feedback steering wheel
Genius ® SpeedWheel Force Feedback pedals
Genius ® Driver for Windows ® 95/98 CD-ROM
Serial connecter to USB connecter adapter
Power supply adapter
Installation Guide Install the SpeedWheel Force Feedback Steering wheel For best performance in Windows 98, plug the Genius ® SpeedWheel Force Feedback steering wheel cable connecter into the USB port of your computer (by Serial connecter to USB connecter adapter). For Windows 95, plug the Genius ® SpeedWheel Force Feedback steering wheel cable connector into the computer's serial port. Note. Do not connect the SpeedWheel Force Feedback steering wheel to your computer until after you have installed the SpeedWheel Force Feedback steering wheel driver. 1. With your computer running, insert the SpeedWheel Force Feedback steering wheel driver CD into the CD-ROM drive of your computer. If your computer is AutoPlay compatible, wait a few seconds. When the Setup screen displays, go to Step 4 to finish software installation. 2. Go to the Windows Taskbar and click Start, then Run. 3. Type D:\SETUP.EXE and press the Enter key, where "D:" is the drive designation of your CD-ROM drive. 4. Follow the on-screen instructions to complete software installation. 5. Plug the SpeedWheel Force Feedback steering wheel cable connecter into your computer before you restart your system. 6. After your computer restart, select Start / Settings / Control Panel. 1. Double click Game Controllers, select General tabclick Add. Select Genius SpeedWheel Force Feedback from the list and click OK. 8. You would see the status become OK. Then click OK to finish your installation. Troubleshooting SpeedWheel Force Feedback does not produce force feedback effects
Make sure that the game you are playing supports force feedback effects, and make sure that force feedback is enable in the game.
Make sure the “Force” button of the SpeedWheel Force Feedback steering wheel is in enable force feedback status. SpeedWheel Force Feedback is not responding
For a serial connection, check for bent pins, and make sure that the SpeedWheel Force Feedback data cable is securely connected to your computer whether you are using a serial or USB connection.
Make sure that the (connection) status of SpeedWheel Force Feedback is "OK" in the Windows ® 95/98 Control Panel/Game Controller's window. SpeedWheel Force Feedback should be the first priority game controller. (Remove all other device drivers in the Windows ® 95/98 Control Panel/Game Controller's window is recommended.) Refer to your Windows documentation for more information.
If you are using a serial connection, make sure that the serial port has properly configured. Refer to your computer documentation for the correct port configuration.
You may have other system devices (e.g., a modem card) that conflict with SpeedWheel Force Feedback. Check the IRQ/address settings of these devices for conflicts, and change the settings as required. Refer to your computer documentation to make these changes.
If SpeedWheel Force Feedback still does not work after you check all items above, shut down the Windows, turn off the computer, waiting 20 seconds, and restart the system. My game froze up or crashed When a game crashes, it may inadvertently disable SpeedWheel Force Feedback until the system is powered down and restarted. The safest way to do this is to shut down Windows, turn off the computer, wait 20 seconds, and restart the system. FCC Radio Frequency Energy Notice This equipment has been tested a…

Text truncated - open the document above for the full version.

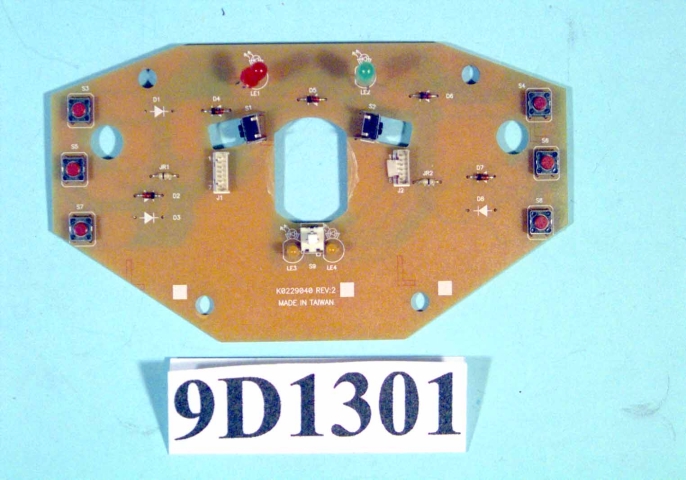

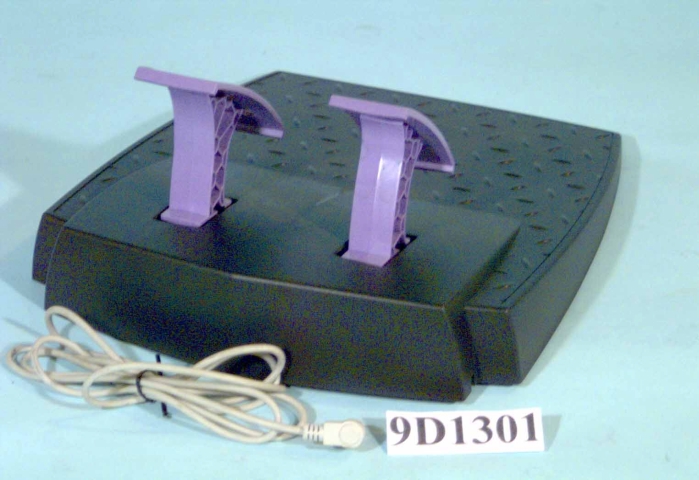

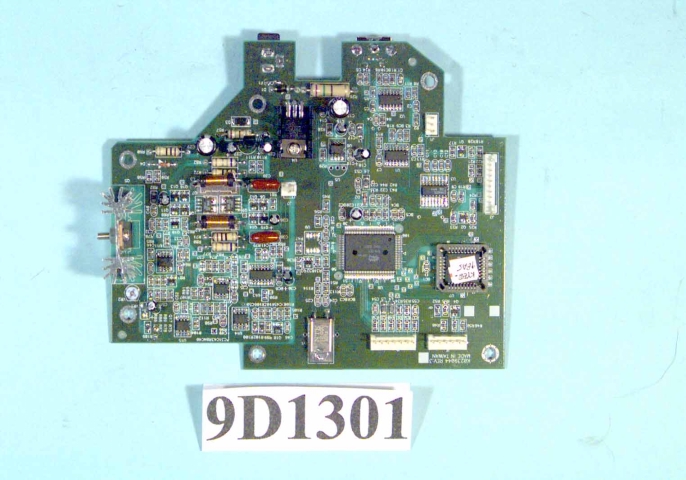

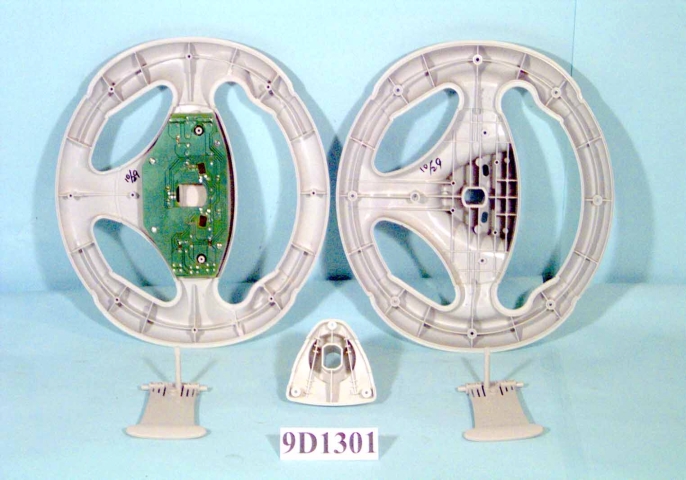

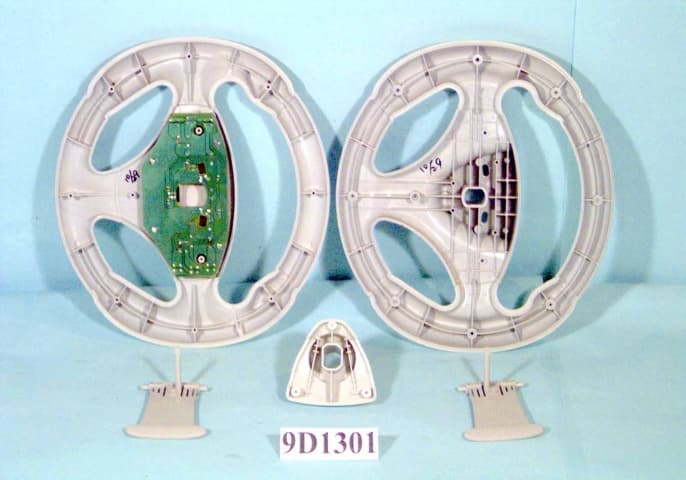

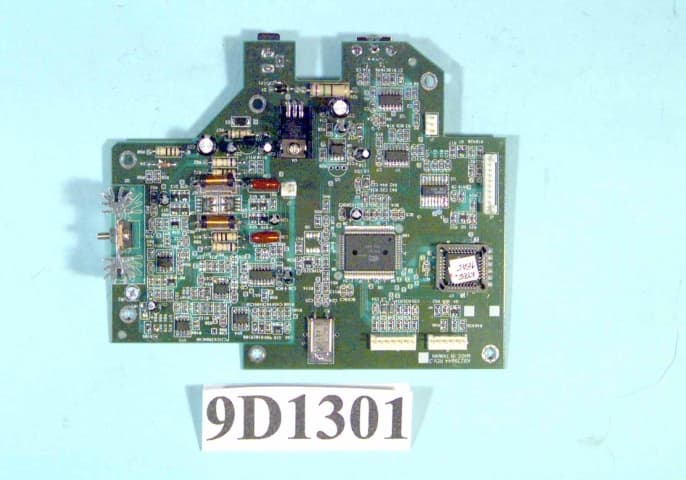

FCC ID : FSUGJ003FRONT SIDE OF EUT Number 1 9D1301-01-2new.jpg FCC ID : FSUGJ003REAR SIDE OF EUT Number 2 9D1301-02new.jpg FCC ID : FSUGJ003REAR SIDE OF EUT Number 3 9D1301-03.jpg FCC ID : FSUGJ003Mechanical Construction Number 4 9D1301-04.jpg FCC ID : FSUGJ003Mechanical Construction Number 5 9D1301-05.jpg FCC ID : FSUGJ003Front side of main board Number 6 9D1301-06.jpg FCC ID : FSUGJ003Rear side of main board Number 7 9D1301-07.jpg FCC ID : FSUGJ003Mechanical Construction(Reference Modification No.1; Reference Modification No.2) Number 8 9D1301-08.jpg 1 FCC ID : FSUGJ003Mechanical Construction Number 9 9D1301-09.jpg FCC ID : FSUGJ003Mechanical Construction Number 10 9D1301-10.jpg FCC ID : FSUGJ003Front side of main board Number 11 9D1301-11.jpg FCC ID : FSUGJ003Rear side of main board Number 12 9D1301-12.jpg FCC ID : FSUGJ003FRONT SIDE OF EUT Number 13 9D1301-13.jpg FCC ID : FSUGJ003REAR SIDE OF EUT Number 14 9D1301-14.jpg FCC ID : FSUGJ003Mechanical Construction Number 15 9D1301-15.jpg FCC ID : FSUGJ003FRONT SIDE OF ADAPTER (Reference Modification No.3) Number 16 9D1301-16-2new.jpg 3 FCC ID : FSUGJ003REAR SIDE OF ADAPTER Number 17 9D1301-17-2new.jpg FCC ID : FSUGJ003Mechanical Construction Number 18 9D1301-18-2.jpg FCC ID : FSUGJ003Mechanical Construction Number 19 9D1301-19-2.jpg FCC ID : FSUGJ003Front side of main board Number 20 9D1301-20-2.jpg FCC ID : FSUGJ003Rear side of main board Number 21 9D1301-21-2.jpg

FCC ID LOCATION 9D1301-14.jpg

FCC ID LOCATION 9D1301-14.jpg

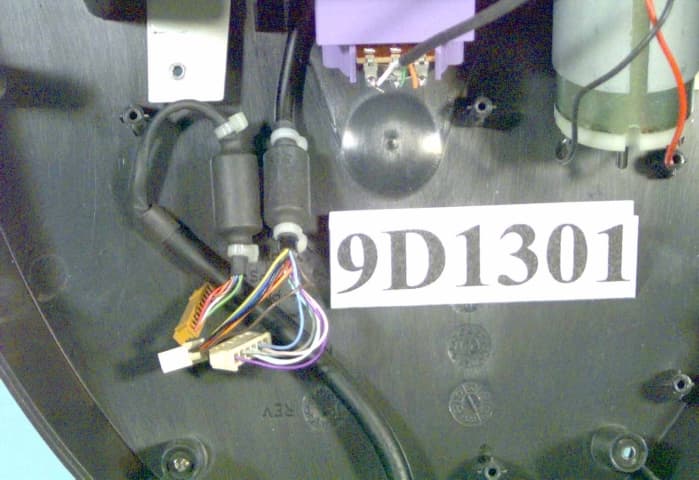

FEDERAL COMMUNICATIONS COMMISSIONFCC ID:FSUGJ0003 Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. Re: About the modification of JOYSTICK Gentlemen: I, hereby, declare that all modification on the E.U.T., FCC ID: FSUGJ0003, will be added or layout on the mass production products. Modifications are shown as below: 1. Add one core on handle cable. (As the photo No.8) 2. Add one core on data cable. (As the photo No.8) 3. Add one core on power cord=. (As the photo No.16) Sincerely yours Tim Cho OEM Manager

FCC TEST REPORTReport No. : F9D1301 SPORTON International Inc. FCC ID: FSUGJ0003 TEL : 886-2-2696-2468Page No.: 1 of 27 FAX : 886-2-2696-2255Issued Date : Jan. 13, 2000 FCC TEST REPORT for CISPR PUB. 22 Class B Equipment: JOYSTICK Model No.: Speed Wheel Force Feedback FCC ID: FSUGJ0003 Filing Type: Original Grant Applicant: KYE SYSTEMS CORP. No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 241, Taiwan, R.O.C.
The test result refers exclusively to the test presented test model / sample.
Without the written authorization of the test lab., the Test Report may not be copied.
Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORTReport No. : F9D1301 SPORTON International Inc. FCC ID: FSUGJ0003 TEL : 886-2-2696-2468Page No.: 2 of 27 FAX : 886-2-2696-2255Issued Date : Jan. 13, 2000 Table of Contents CERTIFICATE OF COMPLIANCE ....................................................................................................................... 3 1. General Description of Equipment under Test ............................................................................................ 4 1.1. Applicant .................................................................................................................................................................................... 4 1.2. Manufacturer .............................................................................................................................................................................. 4 1.3. Basic Description of Equipment under Test ................................................................................................................................ 4 1.4. Feature of Equipment under Test ............................................................................................................................................... 4 2. Test Configuration of Equipment under Test .............................................................................................. 5 2.1. Test Manner ............................................................................................................................................................................... 5 2.2. Description of Test System ......................................................................................................................................................... 5 Connection Diagram of Test System .................................................................................................................................................. 7 3. Test Software .................................................................................................................................................. 8 4. General Information of Test ........................................................................................................................... 9 4.1. Test Facility ................................................................................................................................................................................ 9 4.2. Standard for Methods of Measurement....................................................................................................................................... 9 4.3. Test in Compliance with.............................................................................................................................................................. 9 4.4. Frequency Range Investigated ................................................................................................................................................... 9 4.5. Test Distance ............................................................................................................................................................................. 9 5. Test of Conducted Powerline ...................................................................................................................... 10 5.1. Major Measuring Instruments ................................................................................................................................................... 10 5.2. Test Procedures ....................................................................................................................................................................... 11 5.3. Typical Test Setup Layout of Conducted Powerline .................................................................................................................. 12 5.4. Test Result of AC Powerline Conducted Emission.................................................................................................................... 13 5.5. Photographs of Counducted Powerline Test Configuration ....................................................................................................... 15 6. Test of Radiated Emission ........................................................................................................................... 19 6.1. Major Measuring Instruments ................................................................................................................................................... 19 6.2. Test Procedures ....................................................................................................................................................................... 20 6.3. Typical Test Setup Layout of Radiated Emission ...................................................................................................................... 21 6.4. Test Result of Radiated Emission ............................................................................................................................................. 22 6.5. Photogr…
