FSUGKZGCWireless Keyboard

User’s Guide 1/30 RF Wheel Mouse and Keyboard User’s Guide User’s Guide 2/30 Some research suggests that long periods of repetitive motion using an improperly setup workspace, incorrect body position, and poor work habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. However, if you experience symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensation, or stiffness, DO NOT IGNORE THESE WARNING SIGNS. PROMPTLY SEE A QUALIFIED HEALTH PROFESSIONAL, even if symptoms occur when you are not working at your computer. ÜS ym pt om s such as these can be associated with painful and sometimes permanently disabling injuries or disorders of the nerves, muscles, tendons, or other parts of the body. ◆ These musculoskeletal disorders (MSDs) include carpal tunnel syndrome, tendonitis, tenosynovitis, and other conditions. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS: z Take frequent short breaks. Get up and walk around several times every hour. z Vary your tasks throughout the day. Do something different with your hands and arms from time to time. z Use a light touch on the keyboard and for better control of the mouse or trackball. z Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach to use them. z Adjust your chair and keyboard so your upper arms and wrists are straight. z Avoid resting your wrists on sharp edges. z Use the software features of your keyboard, mouse, or trackball to help reduce stress to your arms, wrists, or hands by minimizing repetitive or awkward motions. User’s Guide 3/30 Acknowledgement Thanks for your purchasing this RF keyboard and mouse, the most natural and easy-touse input device. This RF keyboard and mouse provide you comfortable experience with ergonomic and convenience design. Using the latest radio frequency technology, the RF keyboard and mouse let you work without wires and feel free more than you have. About this Usersí Guide The Usersí Guide introduces the step-by-step process for installing your RF keyboard and mouse. It can be divided into six chapters: General Description, Hardware Installation, Software Installation, Buttons Settings, Troubleshooting and Maintenance. The Usersí Guide is believed to be correct and accurate in all respects. The information contained in this document is subject to change without notice. Periodic changes may be made in this document without any obligation to notify any person of such changes. No responsibility is assumed for any errors or omissions in this document. The symbols showed as the following will be used regularly in the Usersí Guide. Please pay attention to these descriptions and finish them patiently. Note: indicates that mis-installation might be done or something you should pay attention to. Warning: indicates that ignoring the warning may cause the permanent damage to the product or injure to the person. Copyright© 2001 by KYE SYSTEMS CORP. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of KYE SYSTEMS CORP. Windows XP, Windows ME and Windows 2000 are registered trademark of Microsoft Corporation. Other products and company names mentioned herein may be the trademarks of their respective owners. User’s Guide 4/30 Table of Content ABOUT THIS USERS’ GUIDE ...................................................................................................... 3 1. GENERAL DESCRIPTION ...................................................................................................... 5 1.1I NTRODUCTION.................................................................................................................. 5 1.2U NPACKING ANDINSPECTION............................................................................................. 5 1.3S YSTEMREQUIREMENTS....................................................................................................... 6 1.4E NVIRONMENTREQUIREMENTS............................................................................................. 6 2.HARDWARE INSTALLATION .............................................................................................. 7 2.1I NSTALLING THEBATTERIES.................................................................................................... 7 2.2S ETTING UP THEIDCHANNEL............................................................................................... 8 2.3C ONNECTING THERF RECEIVER TOYOURCOMPUTER........................................................... 9 2.4S ETTING UP Y OUR RF D ESKTOP .......................................................................................... 10 3.SOFTWARE INSTALLATION.............................................................................................. 11 4.SETTING UP THE RF KEYBOARD AND MOUSE ................................................................ 14 4.1F ACTORYSETTING............................................................................................................ 14 M OUSE...................................................................................................................................... 14 K EYBOARD................................................................................................................................. 15 4.2B UTTONCONTROLPANEL................................................................................................. 16 M OUSE...................................................................................................................................... 16 4.3S ETTING UP RF MOUSE O PTIONS FOR I NTERNET .................................................................... 17 4.4S OME A VAILABLE F EATURES FOR MOUSE ..............................................................…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 28, 2001 RE: KYE Systems Corp. FCC ID: FSUGKZGC I have a single comment on this Application. 1.) Please provide Occupied Bandwidth for the Test Report William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

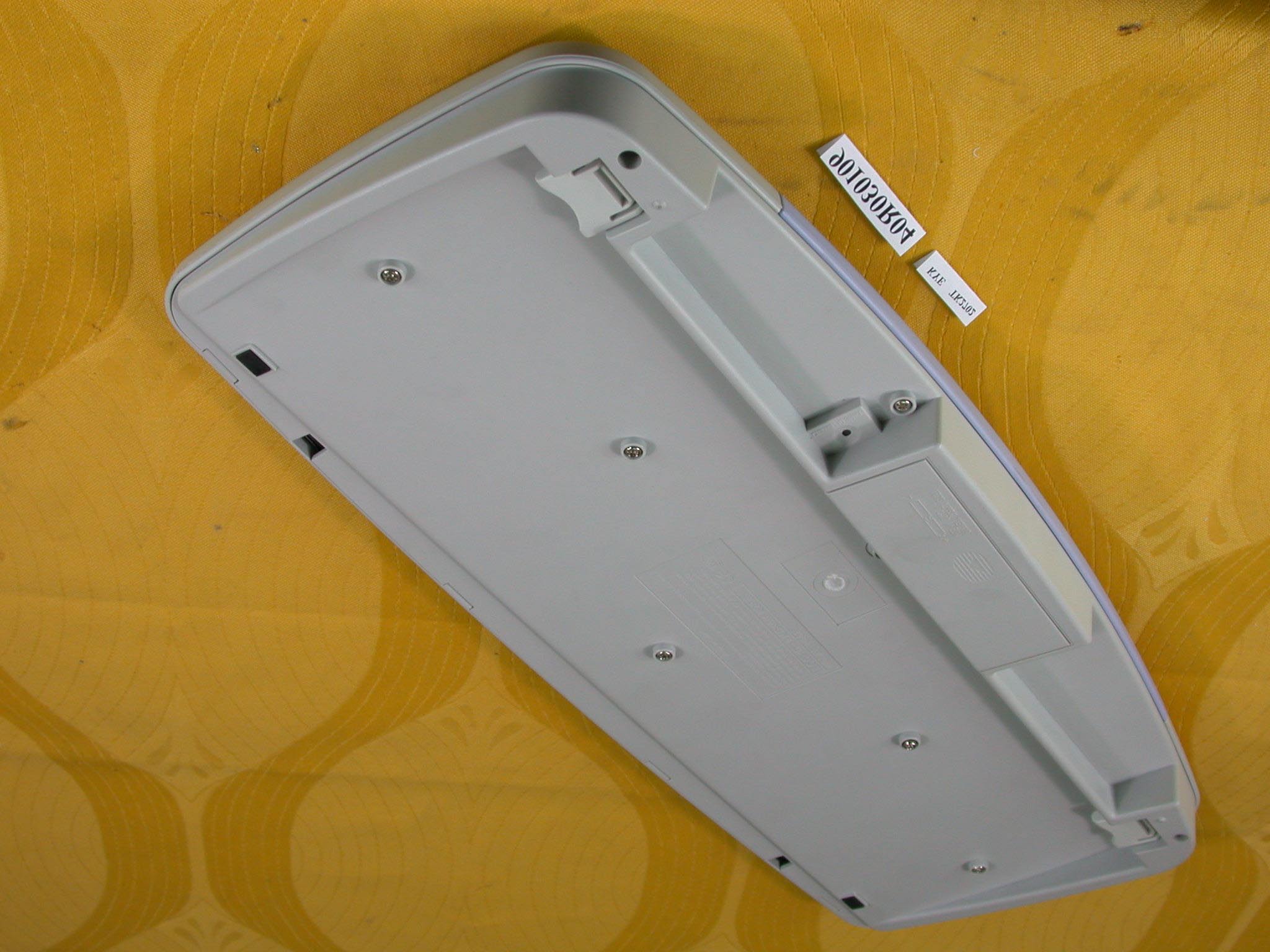

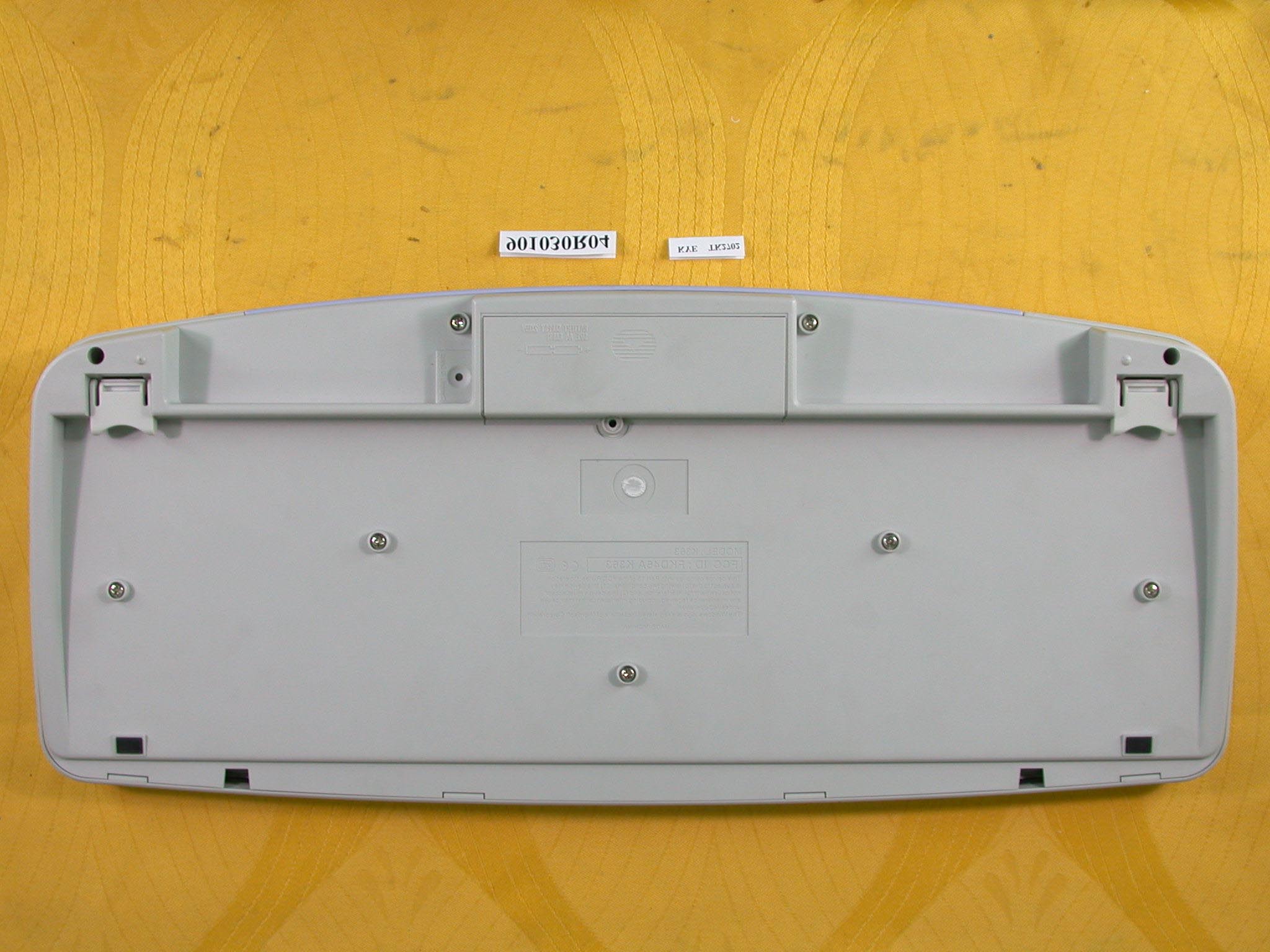

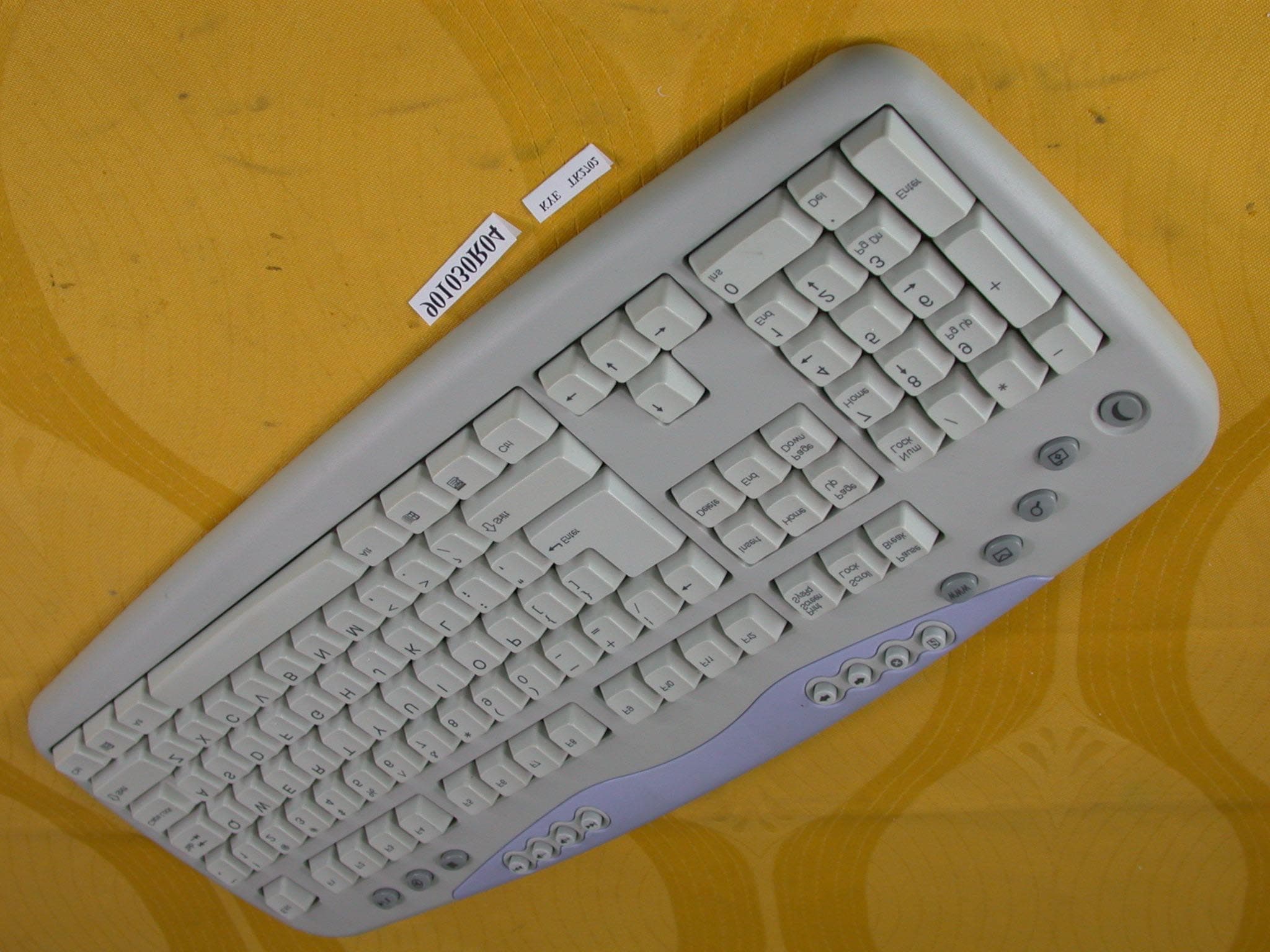

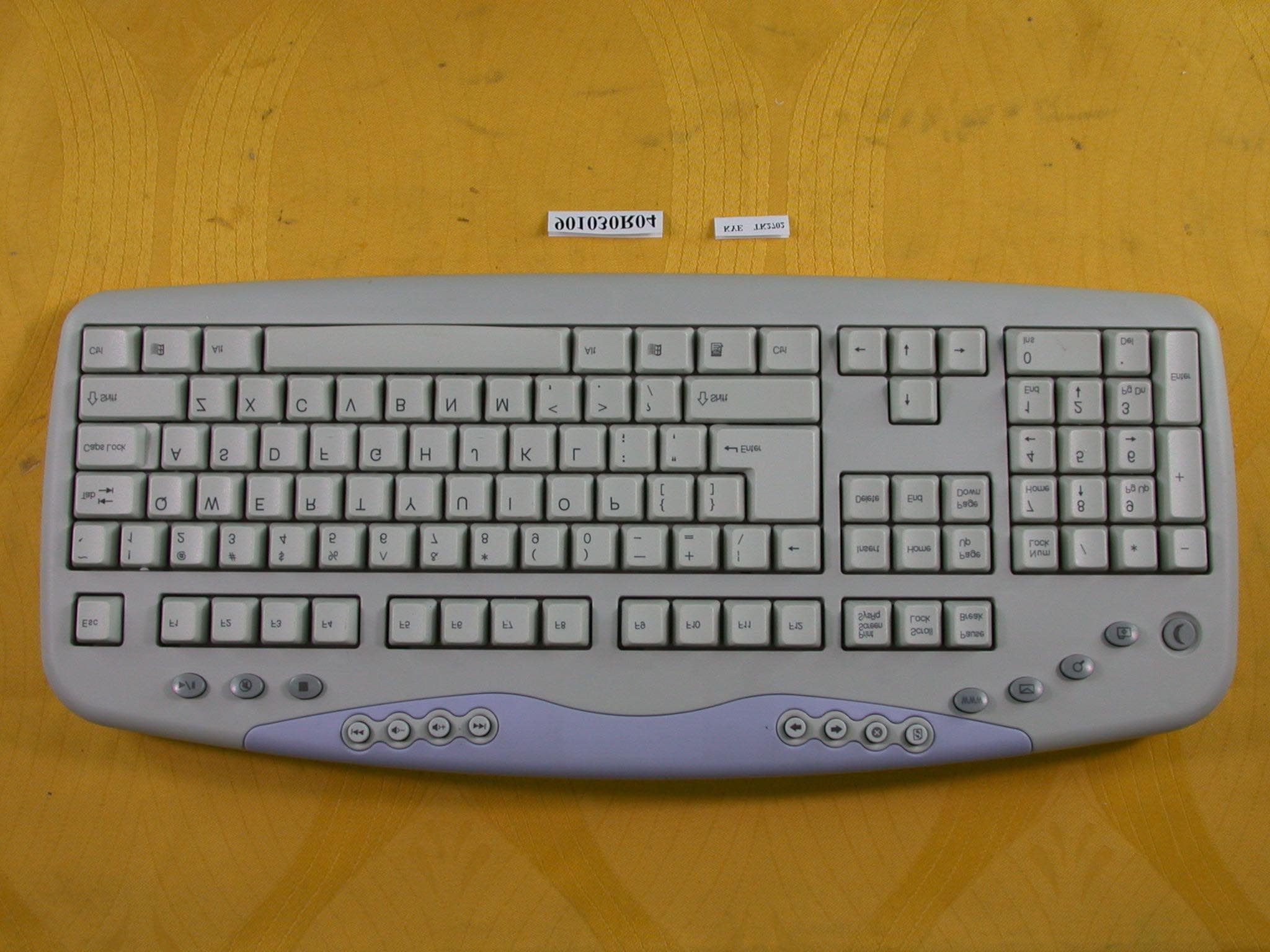

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

FCC ID LABEL LOCATION

Page 3 Page 4

FCC ID: FSUGKZGC ADT No.901030R04 Operational Description The transmitter of the EUT (Wireless keyboard) is powered by 3V Battery. The receiver is powered by host computer. The transmitter use Wired antenna and receiver use Printed antenna. Because the room inside the housing is very limited, so the size of the antenna is far smaller than one wavelength (27MHz), which means the radiation efficiency is very low. But under normal use condition, the transmitter and the receiver is quite close, so high EIRP power is not needed and neither not allowed because of interference.

FCC ID: FSUGKZGC Report No.: RF901030R04 1 Issued: Nov. 26, 2001 FCC TEST REPORT REPORT NO.: RF901030R04 MODEL NO.: TK2702 RECEIVED: Oct. 30, 2001 TESTED: Nov. 5 ~ Nov. 8, 2001 APPLICANT:KYE SYSTEMS CORP. ADDRESS: No.492 SEC.5, CHUNG HSIN RD., SAN CHUNG, TAIPEI HSIEN 241, TAIWAN, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: FSUGKZGC Report No.: RF901030R04 2 Issued: Nov. 26, 2001 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS .................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT ................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 TEST SETUP.................................................................................................10 4.2.5 EUT OPERATING CONDITION.....................................................................10 4.2.6 TEST RESULT............................................................................................... 11 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................13 6INFORMATION ON THE TESTING LABORATORIES ..................................14 FCC ID: FSUGKZGC Report No.: RF901030R04 3 Issued: Nov. 26, 2001 1 CERTIFICATION PRODUCT : Wireless Keyboard BRAND NAME : KYE, Monterey MODEL NO : TK2702 APPLICANT : KYE SYSTEMS CORP. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Nov. 5, 2001 ~ Nov.8, 2001. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: FSUGKZGC Report No.: RF901030R04 4 Issued: Nov. 26, 2001 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.107Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is ñ10.00dBuV at 461.39MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: FSUGKZGC Report No.: RF901030R04 5 Issued: Nov. 26, 2001 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Keyboard MODEL NO.TK2702 POWER SUPPLY3VDC from battery MODULATION TYPEFSK CARRIER FREQUENCY OF EACH CHANNEL 27.145 MHz BANDWIDTH OF EACH CHANNEL 10KHz NUMBER OF CHANNEL1 ANTENNA TYPEWired antenna DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of a Wireless Keyboard. 2. The EUT has two brand names due to marketing requirement. 3. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: FSUGKZGC Report No.: RF901030R04 6 Issued: Nov. 26, 2001 3.2 DESCRIPTION OF TEST MODES One channel is provided in this EUT. ChannelFrequencyChannelFrequency 127.145 MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Keyboard. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: FSUGKZGC Report No.: RF901030R04 7 Issued: Nov. 26, 2001 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Field strength limits are at the distance of 3 meters, emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Field Strength of Fundamental Other Frequencies (MHz) uV/meterdBuV/meter 30-8810040.0 88-21615043.5 216-96020046.0 Above 96050054.0 As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emission shall not exceed the maximum permitted ave…
