FSUGKZGLWireless Keyboard

Hardware Installation Hardware Installation 1. You can connect the receiver to a USB port of a PC. 2. Install two AA rechargeable batteries in the mouse and two AA rechargeable batteries in the keyboard. 3. Turn on your computer. 4. After you open Windows, please press the button on the receiver first (RB) and then press the button under the mouse (MB) and keyboard (KB) for ID channel setting. You only have six seconds to press the receiver, the channel button on the keyboard (KB), then the receiver button again and the channel button on the mouse (MB). So you press RB, KB, RB, MB to set the channel setting. Important: You can use the battery charger receiver to recharge two AA or two AAA rechargeable batteries each time when you use the PC. Plug the battery charger receiver USB connector into the PC directly and remember do not put the batteries in the wrong direction, use the same types of batteries, and if you recharge via the USB hub, that will make your receiver, main-board and hub burn or become non-usable easily. Also, keep all drinks away! If any spill occurs on the receiver, unplug the USB connector first and clean the receiver immediately. Please remove the batteries if you do not use this device for at least two weeks. Warning: (Troubleshooting) 1. When you use Wireless TwinTouch Optical Office on a desk that is made of metal, try using a pad and reduce the receiving distance. 2. Before the first installation is completed (channel setting ready), the keyboard and mouse will not work in DOS. If your USB keyboard does not work in BIOS, DOS or Windows, then use another PS2 keyboard to make the USB controller (USB function) and USB legacy (USB keyboard) “On” in the BIOS setup. This may occur with older BIOS versions. Then unplug the PS2 keyboard and plug in your USB keyboard and everything should be working properly. 3. The Wireless TwinTouch Optical Office channel provides 256 ID-codes, and it automatically selects the ID # for your keyboard and mouse. You can only set up one Wireless TwinTouch Optical Office at a time. But if you have additional Wireless TwinTouch Optical Office sets in an area of 10 square meters, more interference will occur between the receiver and your keyboard and mouse. 4. If you feel the mouse does not move smooth as usual or the keyboard does not work when typing, that the batteries have lost their charge, so please replace them. Also, the wireless icon will be blinking “red” when there is a battery-low situation. The LED on the receiver shows the battery-recharging status (from shining to LED completely “on” for battery full). You should set up channel again every time you replace batteries. 5. If you need to buy new batteries, please choose Ni-MH (Nickel-Metal-Hydride) batteries with AA size, 1300 to 1600 mAH and 1.2 Voltages. Please do not mix or use other types of batteries (Li-ion, Ni-Cd, Alkaline, etc.). 6. The Wireless TwinTouch Optical Office with radio frequency gives you free movement and an enjoyable experience. For optimal performance, place the receiver at least 8 inches (about 20 cm) away from the mouse and other electrical devices, such as the computer, monitor, and etc. Software Installation 1. Make sure the mouse and keyboard is connected to the computer. 2. Put the Setup disk (or CD) into the disk drive. 3. Follow the instructions on the screen to finish the software installation. Factory Setting 1. Mouse: Magic-Roller Press the “Magic-Roller” to surf the Internet and Windows documents Left Button Provides traditional mouse functions such as click, double click and drag. Right Button You can assign this button frequently used keyboard and mouse functions in addition to features like EasyJump, Auto-Panning, Zoom, etc. Roller Button You can assign this button frequently used keyboard and mouse functions in addition to features like EasyJump, Auto-Panning, Zoom, etc. Side Button You can assign the following function (Application/Document, Horizontal Scroll, Last/Next Page, and Zoom in/out) to the upper or lower side button with the roller. 2. Keyboard: 1. Word: Open Word application 2. Excel: Open Excel application 3. Scroll Wheel: For fast browsing and switching between applications. (If you want to select the application, please switch the scroll wheel again.) 4. Vol.-& +: decrease or increase volume 5. Mute: Remove the sound 6. Play & Pause: Play and pause of audio or video CD’s 7. Rewind: Previous track of audio or video CD’s 8. Forward: Next track of audio or video CD’s 9. Stop: Stop play of audio or video CD’s 10. Media: Controls the playback of music CDs and PC audio 11. E-mail: Open mail folder 12. Stop: Stop your command when you using browser 13. Refresh: Refresh the page 14. Back: See last page when viewing the Internet 15. www: Open browser in Netscape or IE 16. Forward: Go to next page when viewing the Internet 17. Search: Open the search function when you using browser 18. My favorite: Open my favorite web-site 19. Sleep: Turn system into sleep mode 20. Calculator: Open the calculator from Windows 21. My Computer: Open my computer folder from Windows Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase th…

Text truncated - open the document above for the full version.

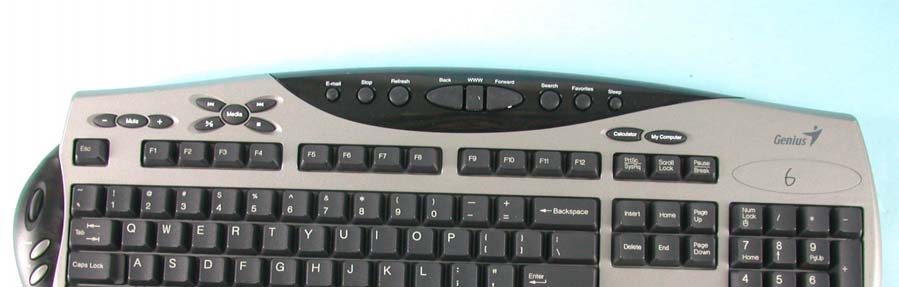

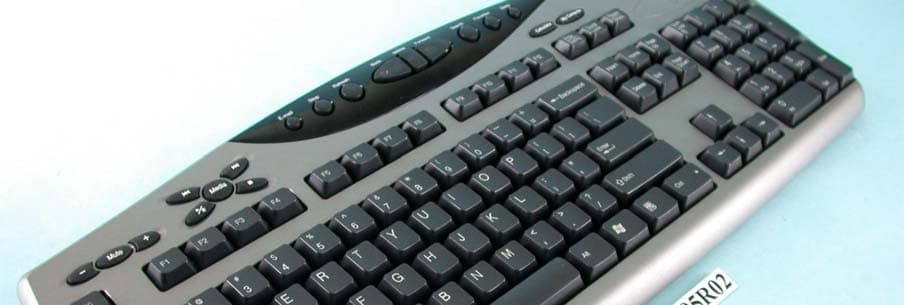

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

LABEL LOCATION FOR FCC ID

Page 3 Page 4 Page 5 Page 6

FCC ID: FSUGKZGL ADT No.911205R01A Operational Description The transmitter of the EUT (Wireless keyboard) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use Integral Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: FSUGKZGL Report No.: RF911205R01A1Issued: December 23, 2002 FCC TEST REPORT REPORT NO.: RF911205R01A MODEL NO.: Wireless TwinTouch Optical Office / Keyboard RECEIVED: Dec. 5, 2002 TESTED: Dec. 9, 2002 APPLICANT: KYE Systems Corp. ADDRESS: No.492, Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: FSUGKZGL Report No.: RF911205R01A2Issued: December 23, 2002 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS .....................................................................4 3GENERAL INFORMATION ..............................................................................5 3.1GENERAL DESCRIPTION OF EUT ................................................................5 3.2DESCRIPTION OF TEST MODES ..................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS ............................................................6 4TEST PROCEDURE AND RESULT.................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT .....................................7 4.2.2 TEST INSTRUMENT .......................................................................................8 4.2.3 TEST PROCEDURE........................................................................................9 4.2.4 DEVIATION FROM TEST STANDARD............................................................9 4.2.5 TEST SETUP.................................................................................................10 4.2.6 EUT OPERATING CONDITION.....................................................................10 4.2.7 TEST RESULT............................................................................................... 11 4.3ANTENNA REQUIREMENT ..........................................................................13 4.3.1 STANDARD APPLICABLE.............................................................................13 4.3.2 ANTENNA CONNECTED CONSTRUCTION ................................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION ....................................14 6INFORMATION ON THE TESTING LABORATORIES...................................15 FCC ID: FSUGKZGL Report No.: RF911205R01A3Issued: December 23, 2002 1 CERTIFICATION PRODUCT : Wireless Keyboard BRAND NAME : KYE, Genius MODEL NO : Wireless TwinTouch Optical Office / Keyboard APPLICANT : KYE Systems Corp. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on Dec. 9, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: FSUGKZGL Report No.: RF911205R01A4Issued: December 23, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.209Radiated Emission TestPASS Minimum passing margin is –14.00dBuV at 54.00MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: FSUGKZGL Report No.: RF911205R01A5Issued: December 23, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Keyboard MODEL NO. Wireless TwinTouch Optical Office / Keyboard POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.145MHz BANDWIDTH OF EACH CHANNEL +/-5kHz NUMBER OF CHANNEL 1 ANTENNA TYPE Integral antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of Wireless Keyboard. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: FSUGKZGL Report No.: RF911205R01A6Issued: December 23, 2002 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.145MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Keyboard. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: FSUGKZGL Report No.: RF911205R01A7Issued: December 23, 2002 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Emissions radiated outside of the specified bands, shall be according to the gener…

Text truncated - open the document above for the full version.

FCC ID: FSUGKZGL Report No.: RF911205R01A14Issued: December 23, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
