FSUGKZGSWIRELESS KEYBOARD

GK-05002/K Block diagram MA6231 EEPROM 93C46 Oscillator CRYSTAL 27.145M Keyboard Amplifier Antenna

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 1 PHOTOS OF EUT

Sample of FCC ID Label

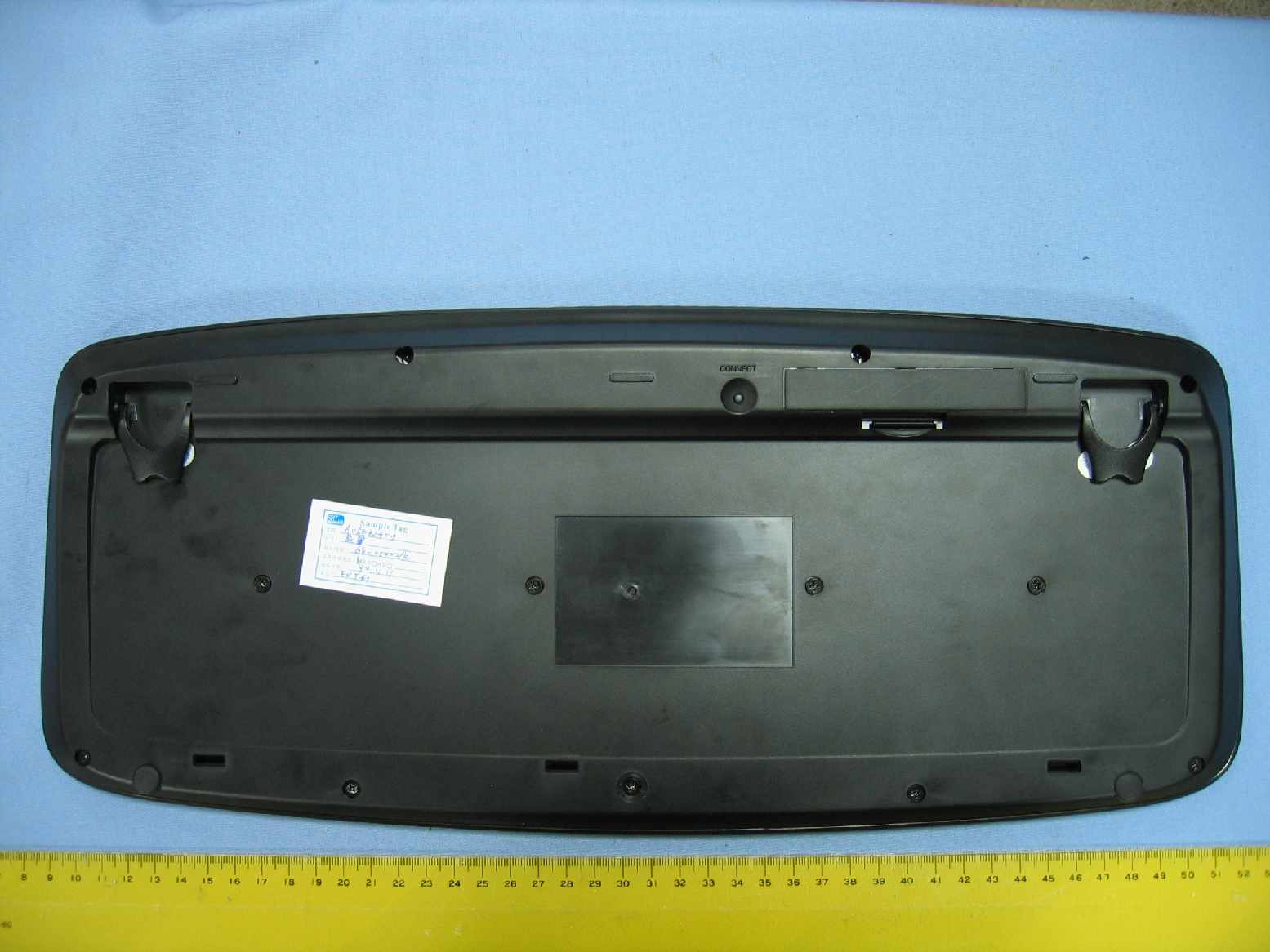

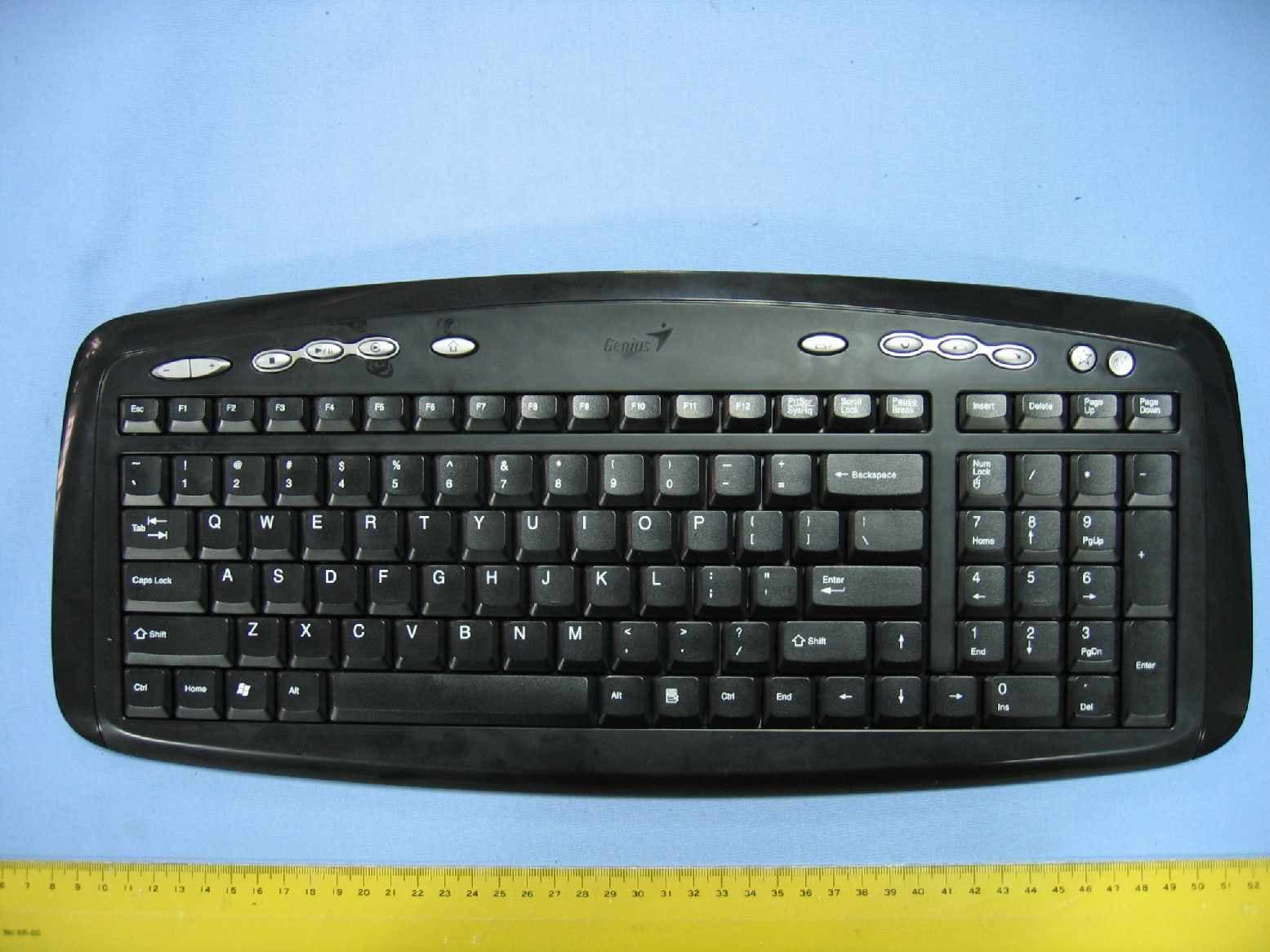

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 3 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 3 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 3 PHOTOS OF EUT

FCC ID: FSUGKZGS Operational Description of equipment The EUT is an excellent tool for mobile professionals, Install two AAA rechargeable battery in the keyboard and connect the receiver to a USB port of a PC an turn on your computer. PRODUCT Wireless Keyboard MODEL NO. GK-05002 POWER REQUIREMENTS +3V DC FREQUENCY BAND 27MHz CARRIER FREQUENCY 27.145 MHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 62dBV@3m MODULATION TYPE FSK MODE OF OPERATION Simplex ANTENNA TYPE Loop antenna CHANNEL BANDWIDTH 6KHz

S13S8 L2 390nH C856P 1 2 C1104 12 S4 BT1Battery R6 33K C26 0 R0 C7104 EEP_DIDO R1 + C9100uF EEP_CS Q1 3904 C15 1N TP1TEST POINT 1 R2 68K VDD S16S9 C148P X2 27.142M C22 0 C3104 12 S11 R310 R7 680 C11104 12 S7 S13 R1 C28 0 S5 EEP_DIDO S1 S6 VDD R0 R2 C2033P C6 47P 1 2 S2R3 S8 R4220K 93LC46 U1 1234 8765 CSSKDIDO Vcc NC PROT GND EEP_CLK S15 ANTENNA 1 2 1 2 S9 S10 S12 + C10 100uF R7 C25 0 C23 0 S12 S17 R1 10M C19104 C27 0 R6 S7 VDD SW1 ID_learning_buttom BAT S4 X1 32.768K C17100P 2 BAT S10 + C2100uF S14 R9 0 C16 39P C5 47P 1 2 GK-05002-K R4S17 S1 EEP_CS MA6231-COB U5 MA6231 COL[1]COL[0]VDD45OSCINOSCOUTORF1ORFORFOUTORF2 TXD BTL COL[21] COL[20] V1IN V2IN Z1IN Z2IN W1IN W2IN X1R SVDIN ROW[7] ROW[6] ROW[5] ROW[4] ROW[3]ROW[2]ROW[1]ROW[0] EE_CS EE_SK EE_DATA RFSEL VSS2 VL DCVR COL[19]COL[18] COL[17] COL[16] COL[15] COL[14] COL[13] COL[12] COL[11] COL[10] COL[9] COL[8] COL[7] COL[6] COL[5] COL[4] COL[3] COL[2] TXC BVSS1 C1839P S14 R4 S11 D1 1N5817 CKT:20310000001 PCB:10230056100 B 11 Wednesday , March 23, 2005 Tit leSize Document Number Rev Date: Sheet of VDDS5 R82M R5100K C4 104 1 2 S6R6 C1327P RFCircuit S0R7 Q2 3904 J1 conn26 123456789 1011121314151617181920212223242526 1234567891011121314151617181920212223242526 S16 S0 EEP_CLK S3 C24 0 L182UH C21 0 R2 S2 R5 R3 C12104 12 S15 S3R5

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05032907 Report No.:FCCA05032907 Page:2 of 18 Date:Apr. 11, 2005 FCC ID: FSUGKZGS Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ................................................ 3 1.1 DOCUMENT POLICY .........................................................................................3 1.2 TEST STATEMENT .............................................................................................3 1.3 EUT MODIFICATION ......................................................................................... 3 2. DESCRIPTION OF EUT AND TEST MODE....................................................... 4 2.1 GENERAL DESCRIPTION OF EUT....................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE.....................................................4 2.3 DESCRIPTION OF TEST MODE ........................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT ..................................................................5 3. DESCRIPTION OF APPLIED STANDARDS ...................................................... 5 4. CONDUCTED EMISSION TEST ........................................................................ 6 4.1 CONDUCTED EMISSION LIMIT.........................................................................6 4.2 TEST EQUIPMENT.............................................................................................6 4.3 TEST SETUP ......................................................................................................7 4.4 TEST PROCEDURE ...........................................................................................7 4.5 EUT OPERATING CONDITION ..........................................................................7 4.6 TEST RESULT ....................................................................................................8 5. RADIATED EMISSION TEST ............................................................................. 9 5.1 RADIATED EMISSION LIMIT..............................................................................9 5.2 TEST EQUIPMENT...........................................................................................10 5.3 TEST SET-UP ................................................................................................... 11 5.4 TEST PROCEDURE .........................................................................................12 5.5 EUT OPERATING CONDITION ........................................................................12 5.6 RADIATED EMISSION TEST RESULT .............................................................13 6. PHOTOS OF TESTING.................................................................................... 15 7. TERMS OF ABRIVATION ................................................................................. 18 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05032907 Report No.:FCCA05032907 Page:3 of 18 Date:Apr. 11, 2005 FCC ID: FSUGKZGS 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY -The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. -The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. -The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT -The test results in the report apply only to the unit tested by SRT Lab. -There was no deviation from the requirements of test standards during the test. -AC power source, 120 Vac/60 Hz, was used during the test. 1.3 EUT MODIFICATION -No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05032907 Report No.:FCCA05032907 Page:4 of 18 Date:Apr. 11, 2005 FCC ID: FSUGKZGS 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Keyboard MODEL NO. GK-05002 POWER REQUIREMENTS +3V DC FREQUENCY BAND 27MHz CARRIER FREQUENCY 27.145 MHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER62dBȝV@3m MODULATION TYPEFSK MODE OF OPERATIONSimplex ANTENNA TYPELoop antenna CHANNEL BANDWIDTH6KHz NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICEBRAND / MAKERMODEL #FCC ID/DOCREMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05032907 Report No.:FCCA05032907 Page:5 of 18 Date:Apr. 11, 2005 FCC ID: FSUGKZGS 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:2003 and CISRP22:2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NODEVICEBRANDMODEL #FCC ID/DOCCABLE 1 NOTEBOOKDELLC510/C610 DOC 1.5m unshielded power cord 1.2m shielded data cable 2 MODEM ACEEX DM-1414 DOC 1.5m unshielded power cord 1.5m shielded data cable 3 PRINTER EPSON STYLUS C20SXDOC 1.8m unshielded power cord 1.5m shielded data cable 4 MOUSE KYEGM-04010A/T FSUGMZH1 N/A 5 WIRELESS RECEIVER KYESlimMate 3000 DOCN/A NOTE :For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of wireless product and to be connected with a PC system for normal use. According to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C ANSI C63.4:2003 All tests have been performed and recorded as per the above standards. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8,…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Conducted test - Radiated test (TX) - Radiated test (RX)
