FSUGKZGZLUXE MATE 600 LASER

ENGLISH 1 Hardware Installation 1. Install two AA batteries in the mouse and two AAA batteries in the keyboard. 2. Plug in your USB receiver to a USB port of your PC. 3. Turn on your PC. Software Installation 1. Place your CD driver in your PC drive for software installation 2. Follow the instruction on the screen to finish the software installation Replace Batteries When mouse or keyboard does not work properly, then the batteries have lost their charge, so please replace them. (Warning: please do not mix or use different types of batteries at the same time) ENGLISH 2 ID Channel Setting The channel buttons are factory preset. The green LED, the data transmissions indicator on the receiver will be lit when the keyboard or mouse is in normal operation. If the keyboard / mouse do not work then you have to reset the ID channel setting. Please press the connect button on the receiver first and press the connect buttons under the mouse and keyboard within 20 seconds. Warning (Trouble shooting) 1. The wireless desktop set provides 256 ID codes, and it selects the ID # for your wireless devices. You can only set up one wireless desktop at a time. When you have another 27Mhz wireless desktop set within 10 square meters, there may be interference between the wireless devices. 2. Although that the mouse has granted the eye safety certification, it is strongly suggested that a direct eye contact with the laser lens should be avoid. 3. To use MSN and Lock function, it requires software to be installed. 4. To re-program for other media programs, software installation is required. ENGLISH 3 Factory Setting 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: You can assign this button to frequently used keyboard and mouse functions in addition to features like Easy Jump, Auto-Panning, Zoom, etc. 3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. Keyboard hot key definition 1. Volume Down: Decrease volume. 2. Volume Up: Increase volume 3. Stop: Stop playing the media sources. 4. Mute: Mute the media source 5. Play/Pause: Play /Pause the media sources. 6. Media Player: Activate the Media Player feature 7. WWW: Your preset homepage through Netscape or IE. 8. Refresh: Refresh the internet page 9. My computer: activate my computer function 10. Mail: Open your email feature ENGLISH 4 11. MSN: Activate internet conversational tools such MSN messenger, ICQ, Windows messenger, Skype, etc 12. Lock: Activate the security lock function Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: „ Different battery types and surrounding temperatures may affect the battery performance. „ Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance. „ If you are using the new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) might affect the number of pictures that can be taken. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use. „ The battery may feel warm when using the wireless device for an extended period of time or using the flash continuously. This is normal and not a malfunction. „ The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction. „ If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion. „ Always keep the terminals in a clean state. „ Never use manganese batteries. „ Risk of explosion if battery is replaced by an incorrect type. „ Dispose of used batteries according to the instructions. ENGLISH 5 „ NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

2012/01/12 SUBJECT: CONFIDENTIALLITY REQUEST REGARDING FCCID: FSUGKZGZ REFERENCE: FCCID: FSUGKZGZ Granted 08 Jan. 2007 To Whom It May Concern, Pursuant to Sections 0.457 and 0.459 of the commission’s Rules and our marketing department requirements. We hereby request confidentiality treatment of information accompanying this FCC ID as outlined below; Long Term: Block Diagram.pdf Schematic diagram.pdf The above material contains trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. We are aware that these documents have been public on the FCC Website since 08 Jan. 2007. The reason that this was not requested originally was that SRT made a mistake and we made a mistake in that we did not check on their work. Sincerely, M.H.Lee

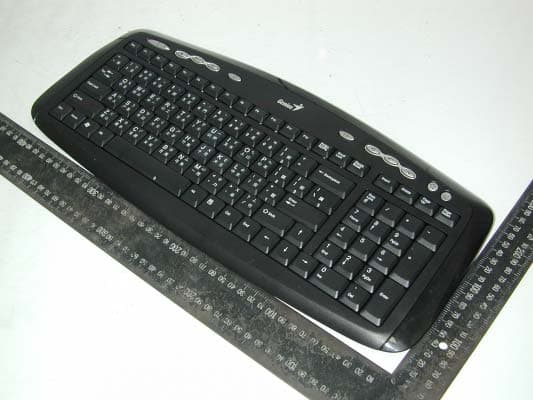

HomeTek Technology Inc. FB5K035 Appendix B : PHOTO OF EUT 1 of 3 Front View of EUT Rear View of EUT Model : GK-060013/K

HomeTek Technology Inc. FB5K035 Appendix A : PHOTO OF Label Label Front View Label of EUT 1 of 2

HomeTek Technology Inc. FB5K035 Appendix B : PHOTO OF EUT 2 of 3 Inside View of EUT Case Inside View of EUT Model : GK-060013/K HomeTek Technology Inc. FB5K035 Appendix B : PHOTO OF EUT Solder Side of Main Board Solder Side of Main Board 3 of 3 Model : GK-060013/K

Operational description of GK-060013/K, GK-060013/R This Unit is a wireless keyboard. The frequency is 27.145MHz. Operating process: 1. Wireless keyboard use steady voltage circuit to offer the steady voltage (DC/DC converter). 2. MCU through touch panel to receiver signal. 3. This IC use crystal is 4 MHz. Power Requirement: This unit input is 2 AA batteries. Operated is DC3V. Operating principle Carries on FSK in the tone circuit (frequency-shift keying modulation) modulate the center frequency is 27.145MHz RF signal from the antenna radiation to space.

HomeTek Technology Inc. FCC TEST REPORT FOR APPLICANT : KYE SYSTEMS CORP. ADDRESS : No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 241, Taiwan, R.O.C. EUT : LuxeMate 600 Laser MODEL NO. : GK-060013/K, GK-060013/R FCC ID : FSUGKZGZ Under Part 15, SUBPART B AND SUBPART C CLASS B Certification MEASUREMENT PROCEDURE USED FCC RULES AND FCC / ANSI C63.4-2003 PREPARED BY : HomeTek Technology Inc. No. 67-9, Shir Men Road, Tu Cheng City, Taipei Hsien. Taiwan Report # : FB5K035 ADDRESS: No. 67-9, Shir Men Road, Tu Cheng City, Taipei Hsien, Taiwan PHONE : 886-2-22608375 FAX : 886-2-22748013 E - mail: [email protected] HomeTek Technology Inc. FCC ID : FSUGKZGZ FB5K035 Page : 1 of 16 TABLE OF CONTENTS......................................................................................................................................... 1 GENERAL INFORMATION.......................................................................................................................................... 2 MODIFICATION LIST................................................................................................................................................... 4 CONDUCTED POWER LINE TEST ............................................................................................................................ 5 1 TEST PROCEDURE............................................................................................................................................ 5 2 RESULT OF CONDUCTED EMISSION TEST.................................................................................................. 5 RADIATED EMISSION TEST (3M) ............................................................................................................................. 6 1 TEST INSTRUMENTS & FACILITIES.............................................................................................................. 6 2 EUT OPERATING CONDITION........................................................................................................................ 7 3 TEST SETUP ....................................................................................................................................................... 8 4 CONFIGURATION OF THE EUT .................................................................................................................... 10 5 TEST PROCEDURE.......................................................................................................................................... 11 6 LIMIT OF RADIATED EMISSION CLASS B ................................................................................................. 12 7 RESULT OF RADIATED EMISSION TEST.................................................................................................... 13 8 EMISSION BAND MEASUREMENT........................................................................................................................ 15 PHOTO OF FCC ID LABEL ........................................................................................................................................ 16 APPENDIX A PHOTOS OF TEST CONFIGURATION APPENDIX B PHOTOS OF EUT APPENDIX C PLOT OF OCCUPIED BANDWIDTH HomeTek Technology Inc. FCC ID : FSUGKZGZ FB5K035 Page : 2 of 16 GENERAL INFORMATION 1 APPLICANT : KYE SYSTEMS CORP. 2 ADDRESS : No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 241, Taiwan, R.O.C. 3 MANUFACTURER : KYE SYSTEMS CORP. 4 ADDRESS : No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 241, Taiwan, R.O.C. 5 DESCRIPTION OF EUT : EUT : LuxeMate 600 Laser FCC ID : FSUGKZGZ Model Number : GK-060013/K, GK-060013/R Serial # : N/A HomeTek Technology Inc. FCC ID : FSUGKZGZ FB5K035 Page : 3 of 16 6 FEATURES OF EUT : 6.1 Frequency Band: 27MHz. 6.2 Carrier Frequency: 27.145MHz. 6.3 Modulation Type: FSK. HomeTek Technology Inc. FCC ID : FSUGKZGZ FB5K035 Page : 4 of 16 MODIFICATION LIST THE FOLLOWING ACCESSORIES WERE ADDED TO THE EUT DURING TESTING : NO MODIFICATION BY HOMETEK TECHNOLOGY INC. HomeTek Technology Inc. FCC ID : FSUGKZGZ FB5K035 Page : 5 of 16 CONDUCTED POWER LINE TEST 1 TEST PROCEDURE According to ANSI C63.4 – 2003. 2 RESULT OF CONDUCTED EMISSION TEST N/A(Conducted Power Line Test is not applicable to this EUT (Model : GK-060013/K, GK-060013/R). HomeTek Technology Inc. FCC ID : FSUGKZGZ FB5K035 Page : 6 of 16 RADIATED EMISSION TEST (3M) 1 TEST INSTRUMENTS & FACILITIES The following test Instruments was used during the radiated emission test : Item Instruments /facilities Specification Manufacturer Model # / S/N# Date of Cal. 1 OPEN AREA TEST SITE ; OATS 3 JUL/2006 2 EMI TEST RECEIVER 20Hz ~ 26.5GHz ROHDE & SCHWARZ ESMI 845442/006 FEB/2006 3 PRE- AMPLIFIER 9KHz ~ 3000MHzADVANTEST BB525C 90081001 OCT/2006 4 ANTENNA (LOOP) 10KHz ~ 30MHzZHINAN ZN30900A NOV/2005 5 Horn Antenna1G ~ 18GHz BJXIBAO 040506 OCT/2006 6 Attenuation 50Ω/6dB JYE BAO FAT-N (M-F) 001 JUL/2006 7 Cable 10m SUHNER RG214/U OS3-003 DEC/2005 8 Cable 14m BELDEN 9913 OS3-001 DEC/2005 9 EMI 32 (software) N/A AUDIX 19991013-0923 N/A Note : Items 1 ~ 8 were calibrated within period of 1 year. HomeTek Technology Inc. FCC ID : FSUGKZGZ FB5K035 Page : 7 of 16 2 EUT OPERATING CONDITION 2.1 Configure the EUT according to the ANSI C63.4 - 2003. 2.2 The frequency of the EUT is 27.145 MHz. 2.3 The radiated emission in the frequency range from 30 MHz - 1000 MHz was test in a horizontal and vertical polarization at HomeTek Lab’s open site III. 2.4 The crystal frequency of the EUT is 12 MHz (For Model No.: GK-060013/R); the crystal frequency of the EUT is 27.145 MHz (For Model No.: GK-060013/K). 2.5 Provided by 2AA battery to Mouse. Connect receiver to USB port of Person computer. 2.6 Turn on all the power of EUT and peripheral. 2.7 The EUT was operated in its normal operating mode for the purpose of the measurements. 2.8 The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was rotated through …

Text truncated - open the document above for the full version.

HomeTek Technology Inc. FB5K035 Appendix C PLOT OF OCCUPIED BANDWIDTH HomeTek Technology Inc. FB5K035 27.145 MHz

Block Diagram MCU (27.145MHz) Battery RF Circuit KEY INPUT ANT EEROM DC/DC Converter
