FSUGKZH3WIRELESS KEYBOARD

ENGLISH 1 Hardware Installation 1. Install two AA batteries in the mouse and two AA batteries in the keyboard. 2. Plug in your USB receiver to a USB HUB or the front panel USB port of your PC. 3. Turn on your PC. Warning: To prevent interference occur, DO NOT plug the USB receiver behind the USB port. Software Installation 1. Place your CD driver in your PC drive for software installation 2. Follow the instruction on the screen to finish the software installation Replace Batteries When mouse or keyboard does not work properly, then the batteries have lost their charge, so please replace them. (Warning: please do not mix or use different types of batteries at the same time) ENGLISH 2 ID Channel Setting The channel buttons are factory preset. The green LED, the data transmissions indicator on the receiver will be lit when the keyboard or mouse is in normal operation. If the keyboard / mouse do not work then you have to reset the ID channel setting. Please press the connect button on the receiver first and press the connect buttons under the mouse and keyboard within 20 seconds. Warning (Trouble shooting) This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1）This device may not cause harmful interference and, （2）This device must accept any interference received, including interference that may cause undesired operation . NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER＇S AUTHORITY TO OPERATE THE EQUIPMENT 1. The wireless desktop set provides 256 ID codes, and it selects the ID # for your wireless devices. You can only set up one wireless desktop at a time. When you have another 27Mhz wireless desktop set within 10 square meters, there may be ENGLISH 3 interference between the wireless devices. 2. Although that the mouse has granted the eye safety certification, it is strongly suggested that a direct eye contact with the laser lens should be avoid. 3. To use non defaulted hotkey function, it requires software to be installed. 4. To re-program for other media programs, software installation is required. 5. For Windows Media Player Ver 11.0, you need to click on the play to start playing the music first after software installation due to Microsoft system presets. Factory Setting 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: You can assign this button to frequently used keyboard and mouse functions in addition to features like Easy Jump, Auto-Panning, Zoom, etc. 3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. Keyboard hot key definition 1. Dashboard : Activate the dashboard function ENGLISH 4 2. iTune: Activate iTune website 3. iChat: activate: activate iChat feature 4. Mail: Open your email feature 5. WWW: Your preset homepage through Netscape or IE. 6. QuickTime: Active QuickTime feature 7. Play/Pause: Play /Pause the media sources. 8. Stop: Stop playing the media sources. 9. Volume Down: Decrease volume. 10. Volume Up: Increase volume 11. Mute: Mute the media source 12. Eject: Eject the CD or DVD in your CD/ DVD-ROM drive or hold down the F12 key until the Eject icon appears Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: „ Different battery types and surrounding temperatures may affect the battery performance. „ Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance. „ If you are using the new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) might affect the ENGLISH 5 number of pictures that can be taken. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use. „ The battery may feel warm when using the wireless device for an extended period of time or using the flash continuously. This is normal and not a malfunction. „ The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction. „ If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion. „ Always keep the terminals in a clean state. „ Never use manganese batteries. „ Risk of explosion if battery is replaced by an incorrect type. „ Dispose of used batteries according to the instructions.

2012/01/12 SUBJECT: CONFIDENTIALLITY REQUEST REGARDING FCCID: FSUGKZH3 REFERENCE: FCCID: FSUGKZH3 Granted 16 Feb. 2007 To Whom It May Concern, Pursuant to Sections 0.457 and 0.459 of the commission’s Rules and our marketing department requirements. We hereby request confidentiality treatment of information accompanying this FCC ID as outlined below; Long Term: Block Diagram.pdf Schematic diagram.pdf The above material contains trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. We are aware that these documents have been public on the FCC Website since 16 Feb. 2007 . The reason that this was not requested originally was that SRT made a mistake and we made a mistake in that we did not check on their work. Sincerely, M.H.Lee

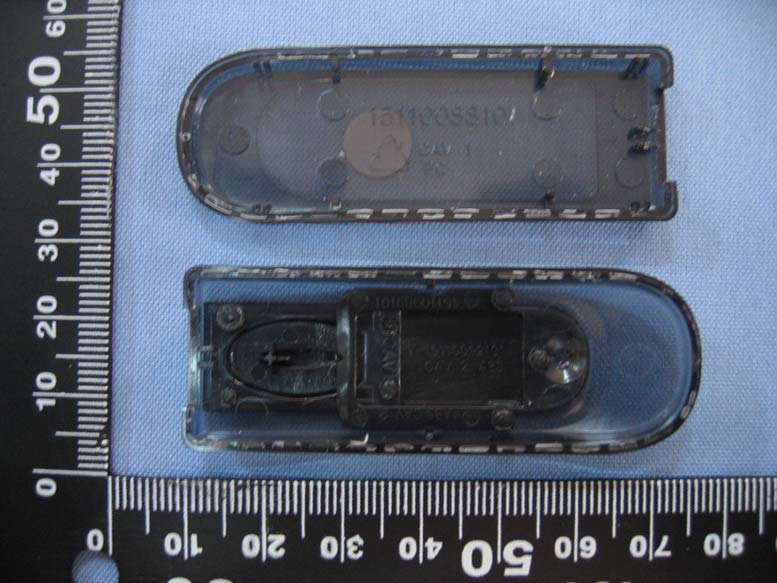

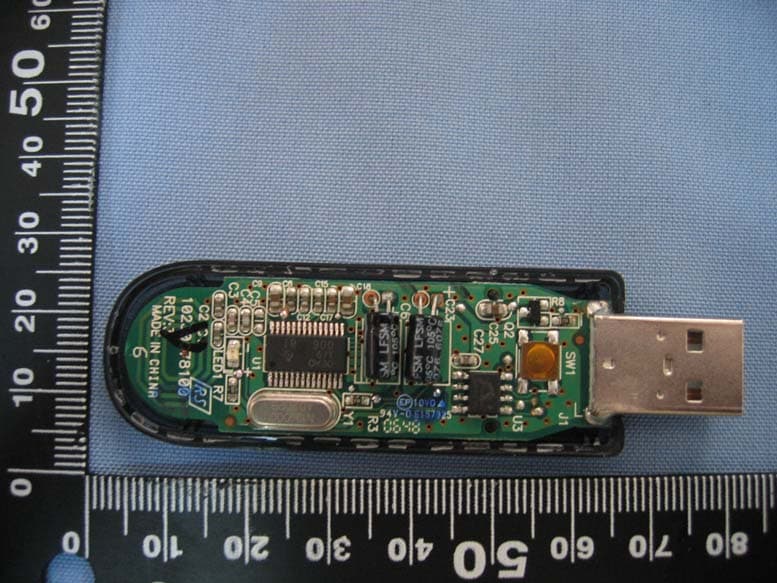

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 4 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 4 PHOTOS OF EUT-TOP IN Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 4 PHOTOS OF EUT-CASE

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 5 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 5 PHOTOS OF EUT – TOP IN Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 5 PHOTOS OF EUT - KEYPAD Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 5 PHOTOS OF EUT - CASE

Sample of FCC ID Label This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1） This device may not cause harmful interference and, （2） This device must accept any interference received, including interference that may cause undesired operation . FCC ID :FSUGKZH3

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 4 PHOTOS OF EUT-PCB

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 5 of 5 PHOTOS OF EUT - PCB

FCC ID: FSUGKZGS Operational Description of equipment The EUT is an excellent tool for mobile professionals, Install two AA rechargeable battery in the keyboard and connect the receiver to a USB port of a PC an turn on your computer. This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1） This device may not cause harmful interference and, （2） This device must accept any interference received, including interference that may cause undesired operation . Product Wireless Keyboard Moedl No. GK-060017/K,GK-060018/K Power Supply 3Vdc from battery Cable N/A Carrier Frequency 27.145 MHz Number of channel 1 Rated RF Output power 66dBuV Modulation type FSK Mode of operation Simplex Channel bandwidth 10KHz Antenna type Loop antenna

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:2 of 21 Date: Feb. 01, 2007 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ............................................... 3 1.1 DOCUMENT POLICY ........................................................................................ 3 1.2 TEST STATEMENT............................................................................................ 3 1.3 EUT MODIFICATION ......................................................................................... 3 2. DESCRIPTION OF EUT AND TEST MODE ...................................................... 4 2.1 GENERAL DESCRIPTION OF EUT .................................................................. 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE ................................................... 4 2.3 DESCRIPTION OF TEST MODE ....................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT ................................................................. 5 3. DESCRIPTION OF APPLIED STANDARDS ..................................................... 5 4. CONDUCTED EMISSION TEST ........................................................................ 6 4.1 CONDUCTED EMISSION LIMIT ....................................................................... 6 4.2 TEST EQUIPMENT............................................................................................ 6 4.3 TEST SETUP..................................................................................................... 7 4.4 TEST PROCEDURE .......................................................................................... 7 4.5 EUT OPERATING CONDITION ......................................................................... 7 4.6 TEST RESULT ................................................................................................... 8 -5. RADIATED EMISSION TEST ........................................................................... 9 5.1 RADIATED EMISSION LIMIT ............................................................................ 9 5.2 TEST EQUIPMENT...........................................................................................10 5.3 TEST SET-UP ...................................................................................................11 5.4 TEST PROCEDURE .........................................................................................12 5.5 EUT OPERATING CONDITION ........................................................................12 5.6 RADIATED EMISSION TEST RESULT ............................................................13 6. BAND EDGE.................................................................................................... 15 6.1 BAND EDGE LIMIT ..........................................................................................15 6.2 TEST EQUIPMENT...........................................................................................15 6.3 TEST SET-UP ...................................................................................................15 6.4 TEST PROCEDURE .........................................................................................15 6.5 EUT OPERATING CONDITION ........................................................................15 6.6 BAND EDGE TEST RESULT ...........................................................................16 7. PHOTOS OF TESTING.................................................................................... 17 8. TERMS OF ABBREVIATION ........................................................................... 21 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:3 of 21 Date: Feb. 01, 2007 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - Power source, 3 Vdc(for EUT) and 120 Vac/60 Hz(for support units), was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:4 of 21 Date: Feb. 01, 2007 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT Product Wireless Keyboard Moedl No. GK-060017/K,GK-060018/K Power Supply 3Vdc from battery Cable N/A Carrier Frequency 27.145 MHz Number of channel 1 Rated RF Output power 66dBuV Modulation type FSK Mode of operation Simplex Channel bandwidth 10KHz Antenna type Loop antenna NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual. Different: GK-060017/K for Mac,GK-060018/K for PC 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKERMODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:5 of 21 Date: Feb. 01, 2007 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:2003 and CISPR22:2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables a…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:17 of 21 Date: Feb. 01, 2007 7. PHOTOS OF TESTING - Conducted test Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:18 of 21 Date: Feb. 01, 2007 - Radiated test (RX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:19 of 21 Date: Feb. 01, 2007 - Radiated test - TX (9K-30M) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011003 Report No.:FCCA07011003 FCC ID: FSUGKZH3 Page:20 of 21 Date: Feb. 01, 2007 - Radiated test - TX (30M-1G)
