FSUGKZH6TwinTouch 720e

ENGLISH 1 Federal Communications Commission (FCC) Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installations, if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient / Relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that the receiver is connected. 4. Consult the dealer or an experienced radio / TV technician for help. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. Disclaimer The following does not apply to any country where such provisions are inconsistent with local law: KYE Systems Corp. makes no warranties with respect to this documentation, whether expressed or implied. All material is provided “as is”. This includes, but is not limited to, any implied warranties of merchantability and fitness is for a particular purpose. The information covered in this document is subject to change without notice. KYE Systems Corp. assumes no responsibility for any errors that may appear in this document. All brand names mentioned in this manual are trademarks or registered trademarks of their respective companies. Copyright © 2007 KYE Systems Corp. All rights reserved. ENGLISH 2 Hardware Installation 1. Install two AA batteries each into the mouse and keyboard. 2. Plug in your USB receiver to a USB port of your PC. Software Installation 1. Place your CD driver in your PC drive for software installation. 2. Follow the instructions on the screen to finish the software installation. Replace Batteries If the mouse or keyboard does not work properly, then the batteries have lost their charge, so you need to replace them. Warning: do not mix or use different types of batteries at the same time. ID Channel Setting The channel ID is factory preset. The green LED (data transmission indicator) will be lit constantly when the wireless device is in normal operation. In case your wireless devices do not work, reset the ID channel by: 1. Press the connect button on the receiver and the LED will be blinking for connection. 2. Press the connect button on each wireless device within 20 seconds and observe if the LED light on the receiver has gone off. If yes, it means the wireless device is ready for use. ENGLISH 3 “Warning (Trouble shooting) 1. The wireless desktop set provides 256 ID codes, and it selects the ID # for your wireless devices. You can only set up one wireless desktop at a time. If you have another 27Mhz wireless desktop set within 10 square meters, there may be interference between the wireless devices. 2. Some of keyboard buttons may not work until the driver has been installed. We recommend you install the driver first before you use this product. 3. To re-program other media programs, software installation is required. Mouse Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: Provides traditional mouse click function 3. Magic-Roller: Scroll the button to surf the Internet and Windows documents. ENGLISH 4 Keyboard hot key definition Hot key Description 4D pad: Press up/down/left/right to scroll Control the playback of audio and video sources. Play and pause the audio or video sources. Stop play of audio or video CD. Turn up the volume. Turn down the volume. Access to MS Office Word file. Access to MS Office Excel file. Access to MS Office Power Point file. Activate Messenger. Open browser in Netscape or IE. Open mail folder. Search for a file or folder. Close current Window. *Windows Vista - Open photo Gallery file. *Windows XP/2000 – Open my picture file. *Windows Vista - Turn the screen into 3D mode. *Windows XP/2000 – Application switch mode. Turn system into Screen Lock mode. ENGLISH 5 Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below:
Different battery types and surrounding temperatures may affect the battery performance.
Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance.
If you are using a new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) it might affect the period of time you can use this device. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use.
The battery may feel warm when using the wireless device for an extended period of time. This is normal and not a malfunction.
The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction.
If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion. …

Text truncated - open the document above for the full version.

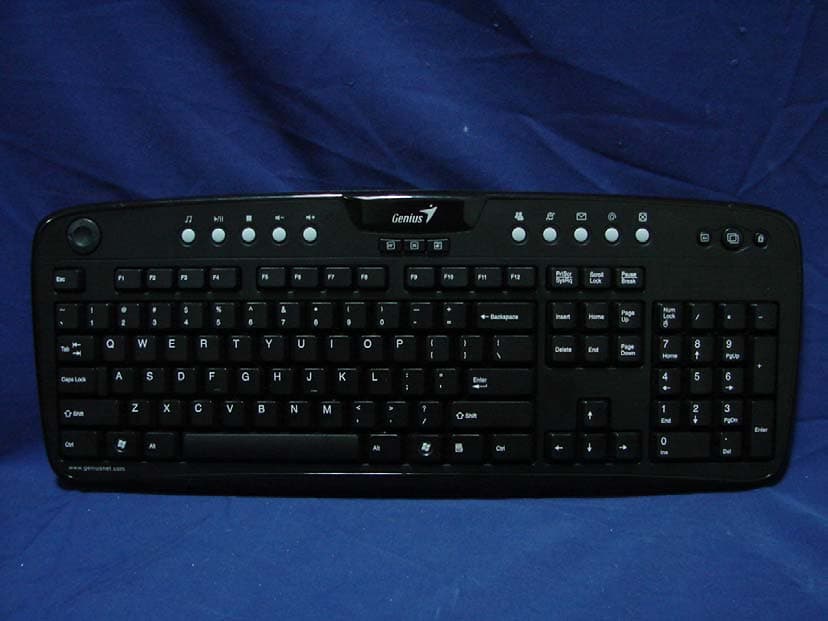

Report No.: 081078R-RFUSP03V01 Page : 1 of 4 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

KYE SYSTEMS CORP. (Genius) FCC ID.: FSUGKZH6 No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C..Tel : 886-2-2995-6645#3399 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 081078R-RFUSP03V01 Page : 2 of 4 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 081078R-RFUSP03V01 Page : 3 of 4 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 081078R-RFUSP03V01 Page : 4 of 4 Version:1.0 (7) EUT Photo

Report No. 081078R-RFUSP03V01 Page : 5 of 22 Version:1.0 1.2. Operational Description The EUT is a TwinTouch 720e used in household and office PC system. The number of the channels is 1 in 27.148MHz. The device adapts FSK modulation. The loop antenna provides diversity function to improve the transmitting function. Test Mode Mode 1: Transmitter

Report No. 081078R-RFUSP03V01 Page : 1 of 22 Version:1.0 Test Report Product Name TwinTouch 720e Model No. GK-070011/K FCC ID. FSUGKZH6 Applicant KYE SYSTEMS CORP. (Genius) Address No.492 Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan. R.O.C. Date of Receipt Jan. 04, 2008 Issued Date Jan. 21, 2008 Report No. 081078R-RFUSP03V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 081078R-RFUSP03V01 Page : 2 of 22 Version:1.0 Test Report Certification Test Date: Jan. 21, 2008 Report No.: 081078R-RFUSP03V01 Product Name TwinTouch 720e Applicant KYE SYSTEMS CORP. (Genius) Address No.492 Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan. R.O.C. Manufacturer KYE SYSTEMS CORP. (Genius) Model No. GK-070011/K FCC ID. FSUGKZH6 Rated Voltage AC 120V/60Hz EUT Working Voltage DC 3V(Power by Battery) Trade Name Genius Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2007 ANSI C63.4: 2003 CISPR 22: 2005 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : (Engineer/Tim Sung ) Approved By : ( Deputy Manager / Vincent Lin) Report No. 081078R-RFUSP03V01 Page : 3 of 22 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ............................................................................................................. 4 1.2. Operational Description .................................................................................................. 5 1.3. Test System Details ........................................................................................................ 6 1.4. Configuration of Test System.......................................................................................... 6 1.5. EUT Exercise Software .................................................................................................. 7 1.6. Test Facility..................................................................................................................... 8 2. Conducted Emission.................................................................................................... 9 2.1. Test Equipment............................................................................................................... 9 2.2. Test Setup ......................................................................................................................9 2.3. Limits .............................................................................................................................. 9 2.4. Test Procedure ............................................................................................................. 10 2.5. Uncertainty ................................................................................................................... 10 2.6. Test Data of Conducted Emission ................................................................................ 10 3. Radiated Emission ..................................................................................................... 11 3.1. Test Equipment............................................................................................................. 11 3.2. Test Setup .................................................................................................................... 11 3.3. Limits ............................................................................................................................ 12 3.4. Test Procedure ............................................................................................................. 13 3.5. Uncertainty ................................................................................................................... 13 3.6. Test Data of Radiated Emission ................................................................................... 14 4. Band Edge................................................................................................................... 17 4.1. Test Equipment............................................................................................................. 17 4.2. Test Setup .................................................................................................................... 17 4.3. Limit .............................................................................................................................. 18 4.4. Test Procedure ............................................................................................................. 18 4.5. Test Result of Band Edge ............................................................................................. 19 5. EMI Reduction Method During Compliance Testing ............................................... 20 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 081078R-RFUSP03V01 Page : 4 of 22 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name TwinTouch 720e Trade Name Genius FCC ID. FSUGKZH6 Model No. GK-070011/K EUT Working Voltage AC 120V/60Hz Frequency Range 27.148MHz Type of Modulation FSK Type of antenna Loop Antenna Number of Channel 1 Channel Control N/A Frequency of Each Channel: Channel Frequency Channel 01: 27.148MHz Note: 1. The EUT is a TwinTouch 720e used in household and office PC system or related application. 2. These tests were conducted on a sample of the equipment for the purpose of demonstratin…

Text truncated - open the document above for the full version.

Report No.: 081078R-RFUSP03V01 Page : 1 of 2 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No.: 081078R-RFUSP03V01 Page : 2 of 2 Version:1.0 Front View of Radiated Test (Loop) Back View of Radiated Test (Loop)
