ENGLISH 1 Hardware Installation 1. Install one AAA battery into the mouse and two AA into the keyboard. 2. Plug in your USB receiver to a USB port of your PC. Software Installation 1. Place your CD driver in your PC drive for software installation. 2. Follow the instructions on the screen to finish the software installation. Replace Batteries If the mouse or keyboard does not work properly, then the batteries have lost their charge, so you need to replace them. Warning: do not mix or use different types of batteries at the same time. ID Channel Setting and connection: Follow these steps: 1. The micro dongle is stored inside of the mouse, plug it into a USB port and wait about 5-10 seconds. 2. Press the connect button on the mouse first, then the keyboard. 3. The connection will be executed and the kit will be ready for use. Warning (Trouble shooting) 1. Some of keyboard buttons may not work until the driver has been installed. We recommend you install the driver first before you use this product. 2. To re-program other media programs, software installation is required. 3. In case the wireless device was not connected when you set the ID channel setting, check if you have installed the batteries with the positive (+) and negative (-) polarity in the correct position, then repeat the ID channel setting again. 4. For optimum performance, please make sure that the distance between the wireless device and the micro dongle receiver does not exceed 10M. Important Notice: The factory default for the sleep mode function is around 15 minutes without usage; just press any key to wakeup the touch-panel. ENGLISH 2 To maximize the power-saving ability, you can disable the touch-panel. Press “Fn” and then “End” on your keyboard, and the touch-panel will be in “sleep mode” to reduce the power consumption. To activate the touch panel, press “Fn” and then “End” to wakeup the touch-panel. Keyboard hot key definition A) Active Windows Media Player Play/Pause audio and video sources Previous Track Next Track Stop playing the audio/video sources Turn the sound off Slider bar control for volume up and down ENGLISH 3 B) + Active “My computer” function + Open Internet “My favorite” function + Search for Internet pages or file + Return to previous Internet page + Go to next Internet page + Refresh current Internet page + Close current windows + Open Windows Office “Word” function + Open Windows Office “Excel” function + Open Windows Office “PowerPoint” function ENGLISH 4 Mouse Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Scroll the button to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click + Active Windows “ Calculator” function + Turn system into Screen Lock mode C) Active Windows Live Massager Open Internet page Open Email folder *Windows Vista - Open photo Gallery file. *Windows XP/2000 – Open my picture file. *Windows Vista - Turn the screen into 3D mode. *Windows XP/2000 – Application switch mode. ENGLISH 5 Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below:
Different battery types and surrounding temperatures may affect the battery performance.
Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance.
If you are using a new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) it might affect the period of time you can use this device. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use.
The battery may feel warm when using the wireless device for an extended period of time or using the flash continuously. This is normal and not a malfunction.
The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction.
If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion.
Always keep the terminals in a clean state.
Never use manganese batteries.
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions. Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3)) 6

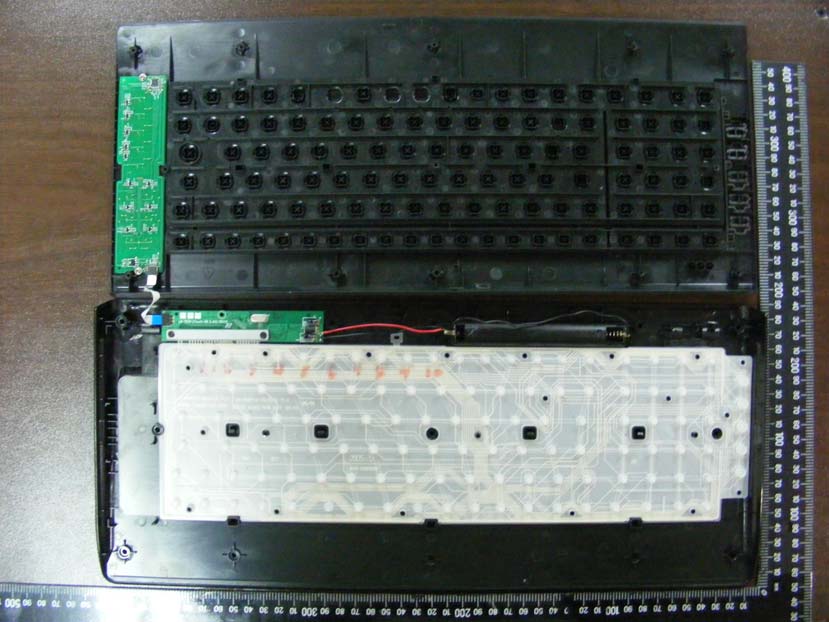

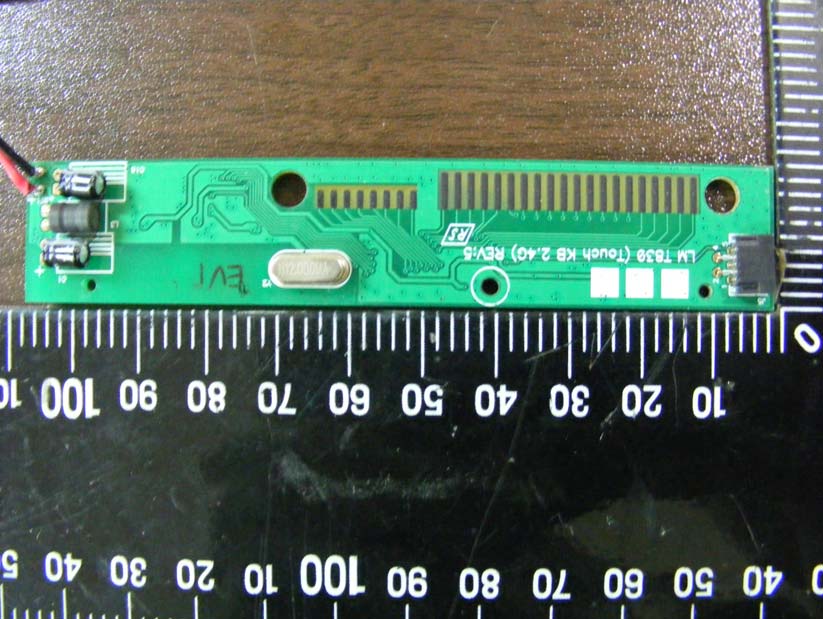

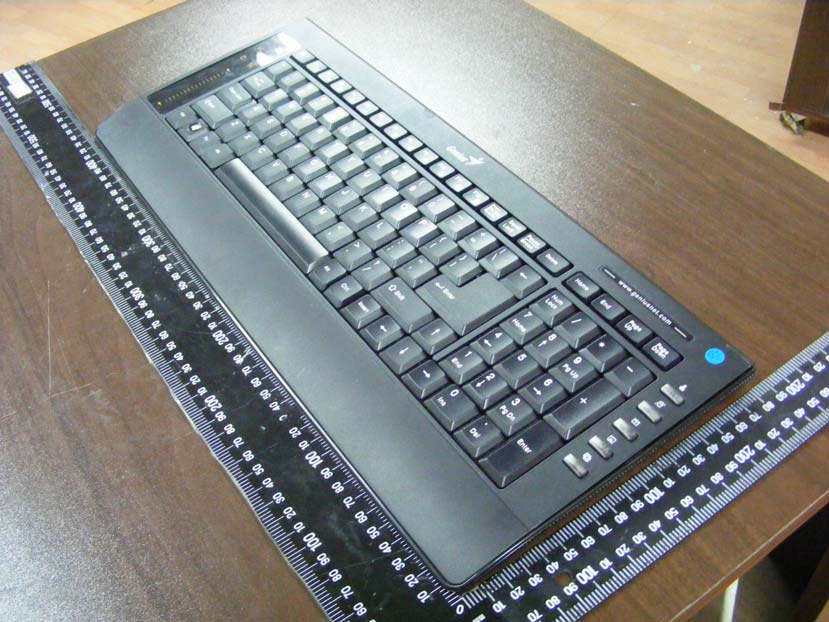

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : 992401 PHOTO OF EUT PHOTO OF EUT : 1 of 3 Front View of EUT 1 Rear View of EUT 1 Global Certification Corp. Report No. : 992401 PHOTO OF EUT PHOTO OF EUT : 2 of 3 Inside View of EUT 1 Component Side of Main Board 1 Global Certification Corp. Report No. : 992401 PHOTO OF EUT PHOTO OF EUT : 3 of 3 Component Side of Main Board 2 Solder Side of Main Board 2

Label location

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : 992401 PHOTO OF EUT PHOTO OF EUT : 1 of 3 Front View of EUT 1 Rear View of EUT 1 Global Certification Corp. Report No. : 992401 PHOTO OF EUT PHOTO OF EUT : 2 of 3 Inside View of EUT 1 Component Side of Main Board 1 Global Certification Corp. Report No. : 992401 PHOTO OF EUT PHOTO OF EUT : 3 of 3 Component Side of Main Board 2 Solder Side of Main Board 2

Global Certification Corp. Date of Issue: Oct. 22,2009 Report No:F992401A Page1/25 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Product Name: LuxeMate T830 Model : GK-080015/K Trade Name: Genius Issued to KYE SYSTEMS CORP. No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Issued by Global Certification Corp. EMI Test Site Sansia Lab NO.34-3,Zihhe Rd.,Sansia Township,Taipei County 237, Taiwan ,R.O.C. EMC Test Site Sijhih office and Lab No. 146. Sec.2. Siangjhang Rd. Sijhih City. Taipei County 221, Taiwan(R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: Oct. 22,2009 Report No:F992401A Page2/25 TABLE OF CONTENTS ----------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES----------------------------------------------------------------------------------------------- 4 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 5 2.1 GENERAL TEST PROCEDURES --------------------------------------------------------------------------------------------------- 5 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ----------------------------------------------------------------- 5 2.3 DESCRIPTION OF TEST MODES -------------------------------------------------------------------------------------------------- 6 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------------- 7 3. TEST AND MEASUREMENT EQUIPMENT ----------------------------------------------------------------------------------- 9 3.1 CALIBRATION----------------------------------------------------------------------------------------------------------------------- 9 3.2 EQUIPMENT-------------------------------------------------------------------------------------------------------------------------- 9 4. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL/ HARMONICS) ----------------------------------------------11 4.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------11 4.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------11 4.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------11 4.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------11 5. SECTION 15.205 REQUIREMENTS (BAND EDGE)-------------------------------------------------------------------------15 5.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------15 5.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------15 5.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------16 5.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------16 6. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION) -------------------------------------------20 6.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------20 6.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------21 6.3 TEST PROCEDURE-----------------------------------------------------------------------------------------------------------------22 6.4 RESULT: PASSED ----------------------------------------------------------------------------------------------------------------22 6.5 TEST DATA: ------------------------------------------------------------------------------------------------------------------------23 7. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS) ----------------------------------25 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 3 PHOTOS OF EUT Global Certification Corp. Date of Issue: Oct. 22,2009 Report No:F992401A Page3/25 1. GENERAL INFORMATION Applicant :KYE SYSTEMS CORP. Address :No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Manufacturer :KYE SYSTEMS CORP. Address :No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. EUT : LuxeMate T830 Model Name :GK-080015/K Model Differences :N/A Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart C and the measurement procedures were according to ANSI C63.4-2003. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC part 15 subpart C Receipt Date : 07/07/2009 Final Test Date : 10/22/2009 Taipei, Taiwan Oct. 22, 2009 Alex Chou / Manager (Place) (Date) (Signature) Designation Number: TW1030 Global Certification Corp. Date of Issue: Oct. 22,2009 Report No:F992401A Page4/25 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT Name : LuxeMate T830 Model Number : GK-080015/K FCC ID : FSUGKZHE Input Voltage : 3Vdc Power From Inside Outside Adaptor BATTERY AC Power Source DC Power Source Support Unit PC Operate Frequency : Refer to the channel list as described below Modulation Technique : GFSK Number …
