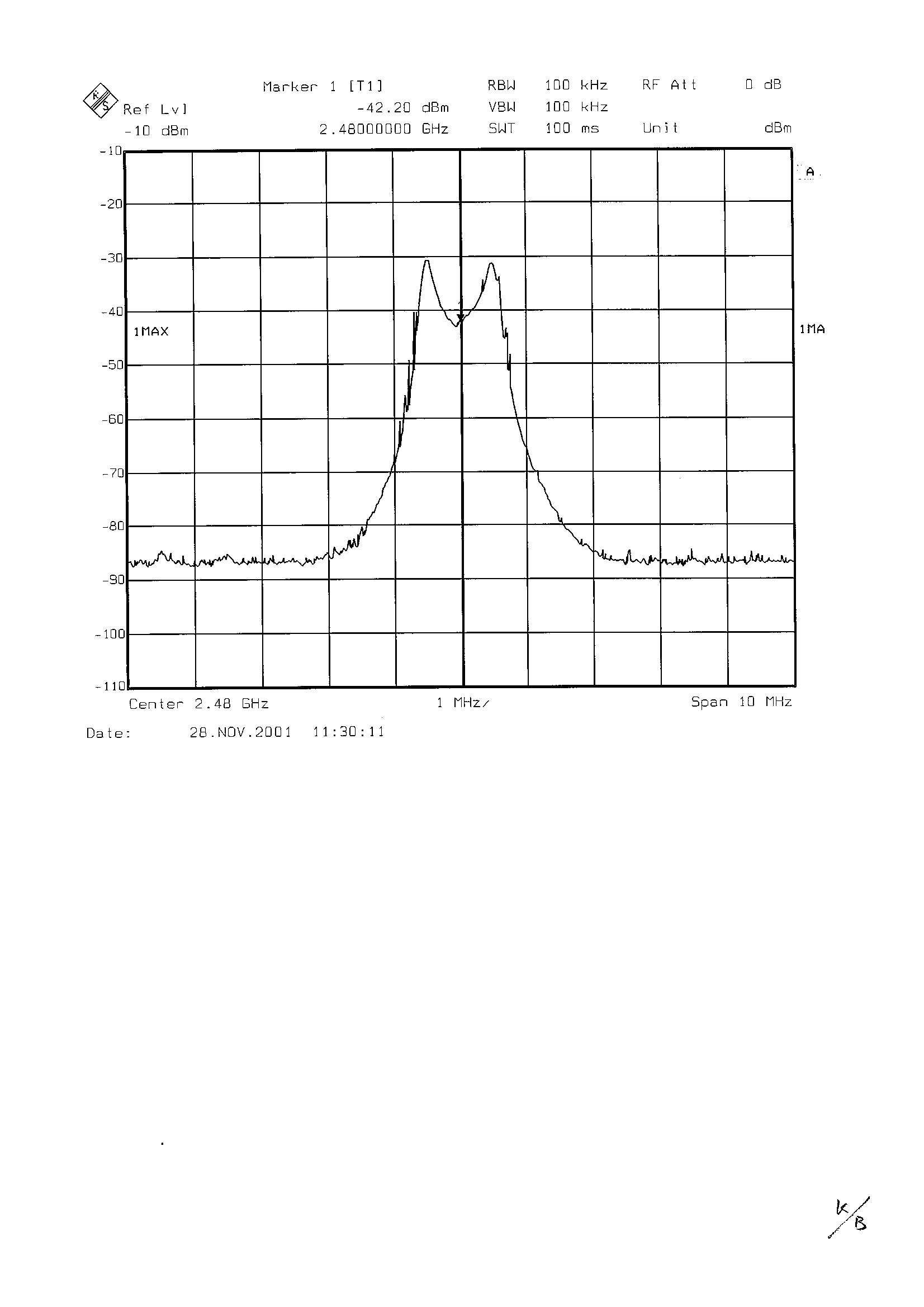

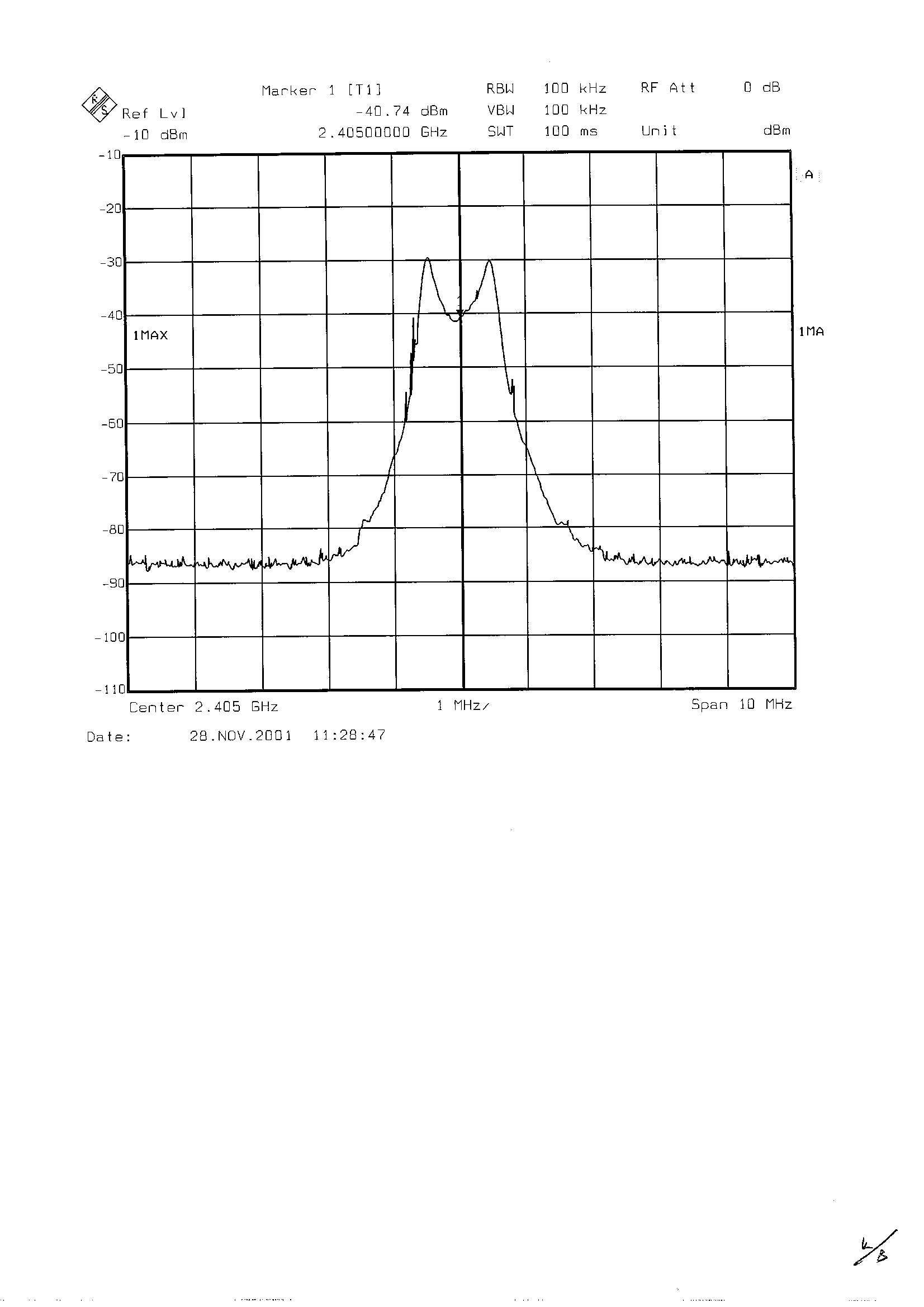

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 28, 2001 RE: KYE Systems Corp FCC ID: FSUGMZGA I have a few comments on this Application. 1.) Please note the proper Rule section for this device is 15.249 for this 2.4GHz device. Your 731 requested 15.227 which is not applicable. 2.) Please note label lacks an FCC ID. Please correct. 3.) Please provide Occupied Bandwidth plot on this device. 4.) Was unit tested in three orthogonal planes? William H. Graff President and Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Page 1 FCC Label Location

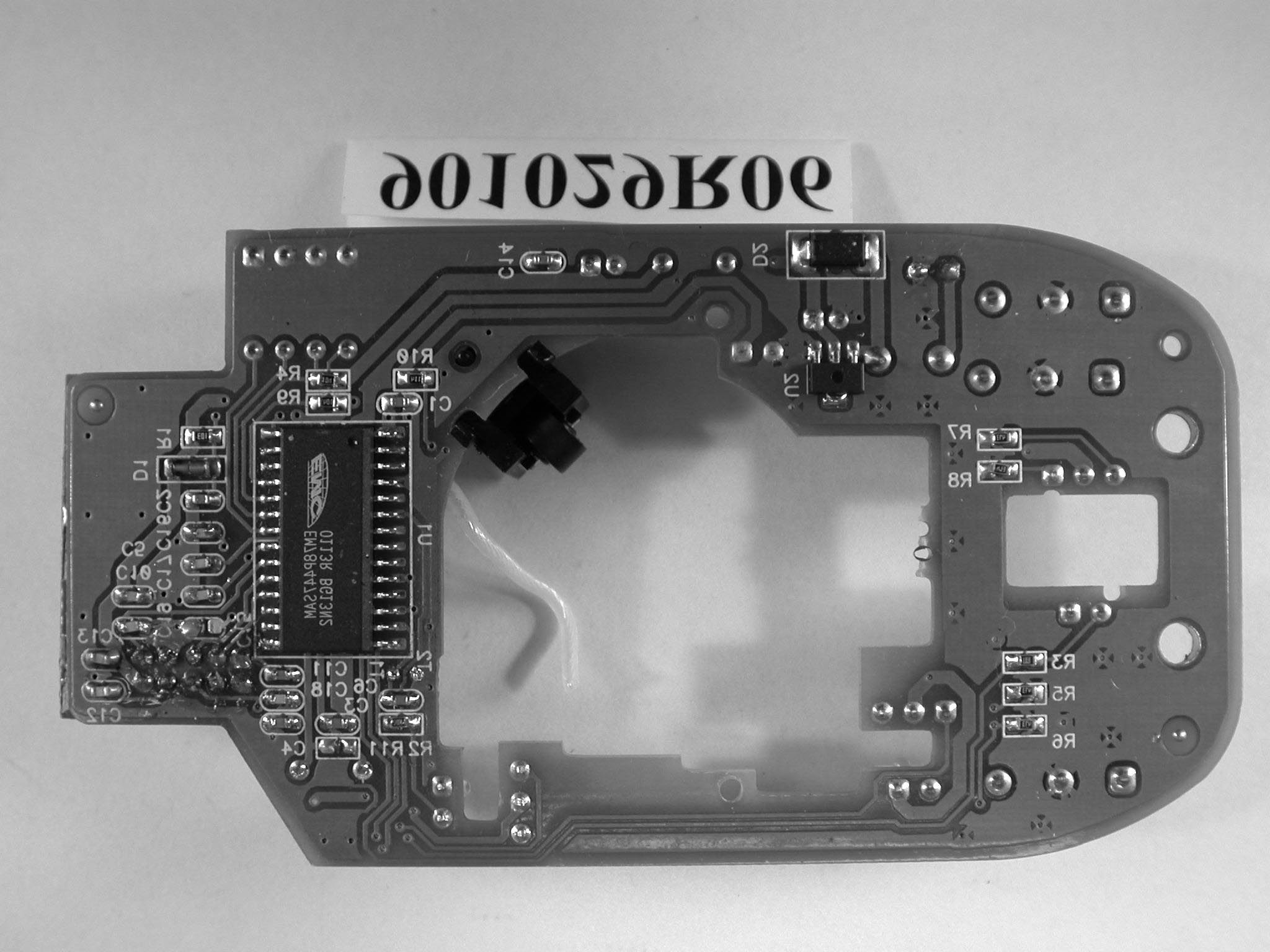

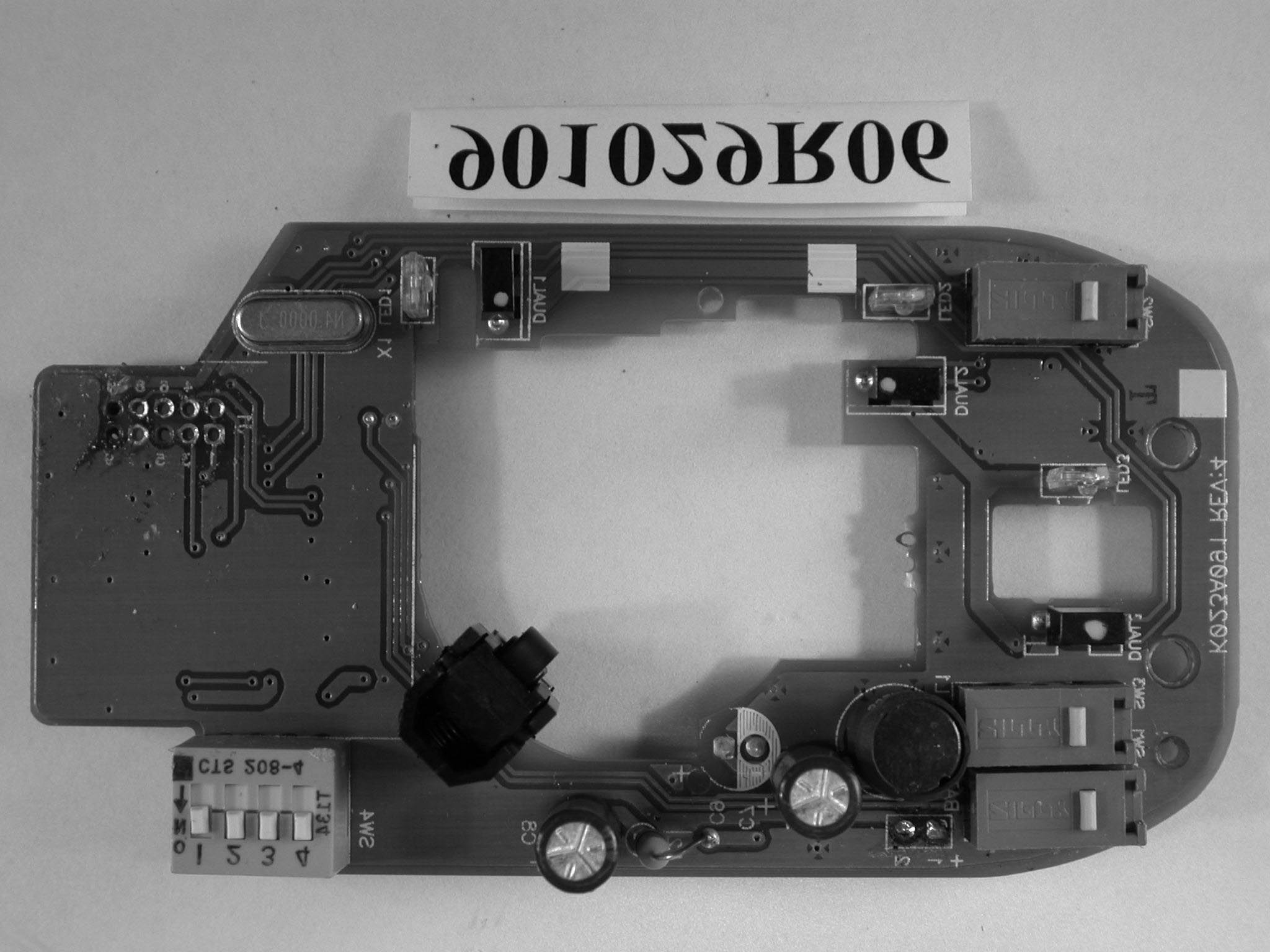

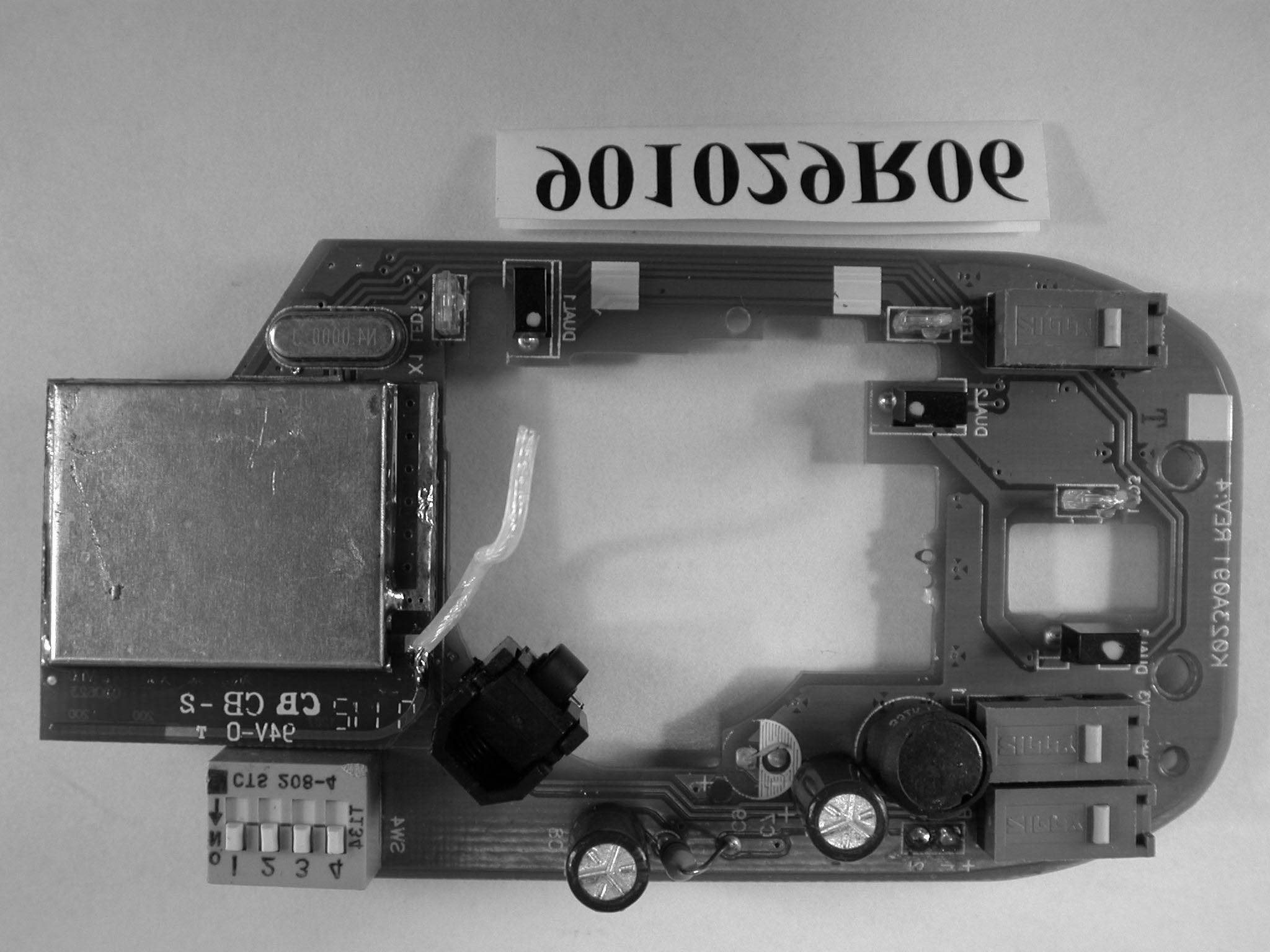

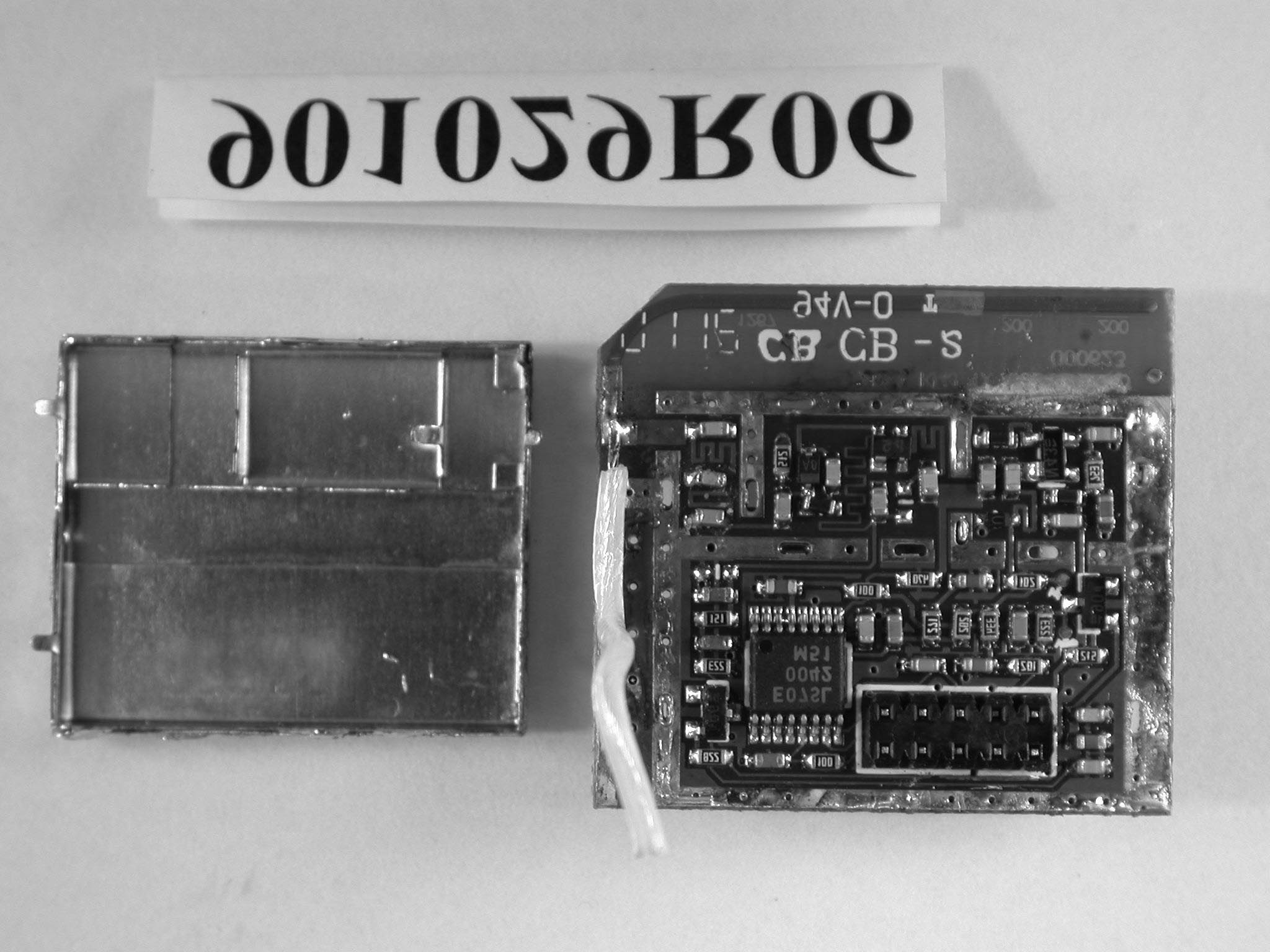

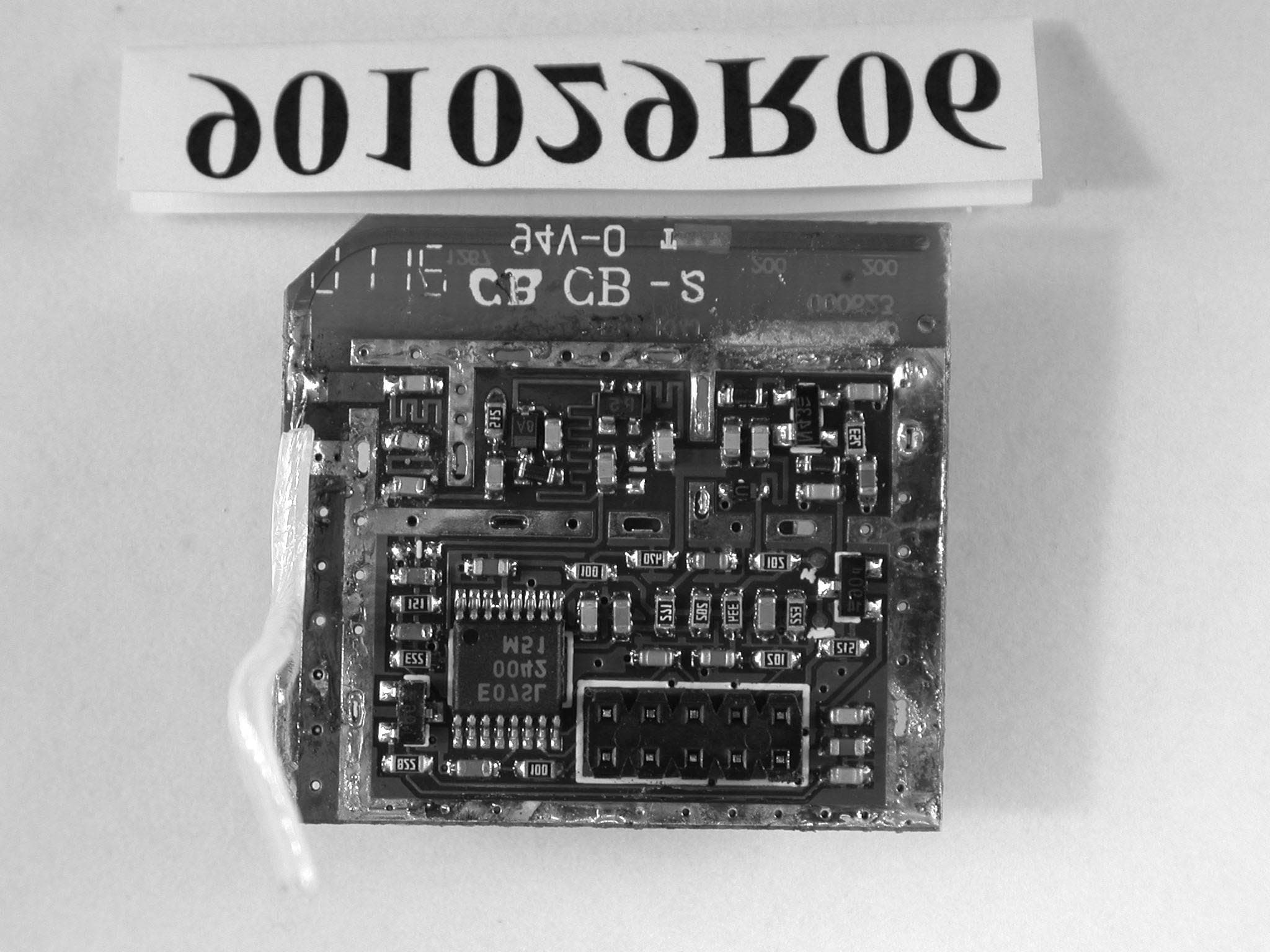

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: FSUGMZGA ADT No.901030R03 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use internal printed antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: FSUGMZGA Report No.: RF901030R03 1 Issued: Nov. 14, 2001 FCC TEST REPORT REPORT NO.: RF901030R03 MODEL NO.: Powerscroll Wireless 2.4G RECEIVED: Oct. 30, 2001 TESTED: Nov. 1 ~ Nov. 8, 2001 APPLICANT: KYE SYSTEMS CORP. ADDRESS: NO.492, SEC.5, CHUNG HSIN RD., SAN CHUNG, TAIPEI HSIEN, TAIWAN, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 24 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 ILAC MRA 0528 FCC ID: FSUGMZGA Report No.: RF901030R03 2 Issued: Nov. 14, 2001 Table of Contents 1CERTIFICATION ............................................................................................. 3 2SUMMARY OF TEST RESULTS..................................................................... 4 3GENERAL INFORMATION ............................................................................. 5 3.1GENERAL DESCRIPTION OF EUT ............................................................... 5 3.2DESCRIPTION OF TEST MODES.................................................................. 6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS................................. 6 3.4DESCRIPTION OF SUPPORT UNITS............................................................ 6 4TEST PROCEDURE AND RESULT................................................................ 7 4.1CONDUCTED EMISSION MEASUREMENT .................................................. 7 4.2RADIATED EMISSION MEASUREMENT ....................................................... 7 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT..................................... 7 4.2.2 TEST INSTRUMENT....................................................................................... 8 4.2.3 TEST PROCEDURE ....................................................................................... 9 4.2.4 TEST SETUP ................................................................................................ 10 4.2.5 EUT OPERATING CONDITION .................................................................... 10 4.2.6 TEST RESULT ...............................................................................................11 4.3BAND EDGES MEASUREMENT .................................................................. 19 4.3.1 LIMITS OF BAND EDGES MEASUREMENT ............................................... 19 4.3.2 TEST INSTRUMENTS .................................................................................. 19 4.3.3 TEST PROCEDURE ..................................................................................... 19 4.3.4 EUT OPERATING CONDITION .................................................................... 20 4.3.5 TEST RESULTS............................................................................................ 20 5PHOTOGRAPHS OF THE TEST CONFIGURATION ................................... 23 6INFORMATION ON THE TESTING LABORATORIES .................................. 24 FCC ID: FSUGMZGA Report No.: RF901030R03 3 Issued: Nov. 14, 2001 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : Genius MODEL NO : Powerscroll Wireless 2.4G APPLICANT : KYE SYSTEMS CORP. STANDARDS : 47 CFR Part 15, Subpart C(15.249) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Nov. 1, 2001 to Nov. 8, 2001. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: FSUGMZGA Report No.: RF901030R03 4 Issued: Nov. 14, 2001 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PAR AGR APH TEST TYPERESULTREMARK 15.107Conducted Emission TestNA Power supply is 3VDC from batteries 15.249(C)Radiated Emission TestPASS Minimum passing margin is –13.50 dBuV at 110.00 MHz 15.249(C)Band edge TestPASS NA NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: FSUGMZGA Report No.: RF901030R03 5 Issued: Nov. 14, 2001 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. Powerscroll Wireless 2.4G POWER SUPPLY 3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 2405MHz, 2410 ~ 2480MHz BANDWIDTH OF EACH CHANNEL 5MHz NUMBER OF CHANNEL 16 ANTENNA TYPE Integral antenna DATA CABLE NA I/O PORTS NA ASSOCIATED DEVICES NA NOTE: 1. The EUT is the transmitter part of a wireless mouse. 2. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: FSUGMZGA Report No.: RF901030R03 6 Issued: Nov. 14, 2001 3.2 DESCRIPTION OF TEST MODES All channels are listed in the following table: ChannelFrequencyChannelFrequency 12405 MHz22410 MHz 32415 MHz42420 MHz 52425 MHz62430 MHz 72435 MHz82440MHz 92445 MHz102450 MHz 112455 MHz122460 MHz 132465 MHz142470 MHz 152475 MHz162480 MHz NOTE: 1. Below 1 GHz, channel 1, 8, 16 were pre-tested in chamber. Channel 16, the worst case, were chosen for the final test. 2. Above 1 GHz, channel 1, 8, 16 were chosen for the final test. 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C(15.249) ANSI C63.4-1992 All tests have been performed and recorded as per the above …

Text truncated - open the document above for the full version.

FCC ID: FSUGMZGA Report No.: RF901030R03 23 Issued: Nov. 14, 2001 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
