FSUGMZGHWireless Optical Mouse

Hardware Installation 1. You can connect the receiver to a USB port of either a PC or Notebook. 2. If you want to connect receiver to PC or recharge the batteries, please using the USB battery charger Y cable. (Please do not connect the receiver directly to PC that was placed under a table, or you will get RF performance decreased easily.) 3. Install two AAA rechargeable batteries in the mouse. (Please do not put un-rechargeable batteries into mouse when you are charging the batteries that will make your mouse or main-board broken or burning!) 4. Turn on your computer. 5. After you open Windows, please press the button under the receiver first and then press the button under the mouse for channel setting. Make sure each button press is for at least three seconds. 6. First time you use this product, please run out of remains then recharge the batteries at least 12 to 16 hours. Warning: 1. Please do not use Wireless WebScroll+ NBEye on a desk that is made of glass, mirror, iron, or black velvet. Also, a flat surface is necessary or the Optical Sensor could be error easily. When you use Wireless WebScroll+ NBEye on a desk that is made of metal, try using a pad and reduce the receiving distance. 2. Before the first installation is completed (channel setting ready), the mouse will not work in DOS. 3. The Wireless WebScroll+ NBEye channel provides 256 ID-codes, and it automatically selects the ID # for your mouse. You can only set up one Wireless WebScroll+ NBEye at a time. But if you have additional Wireless WebScroll+ NBEye sets in an area of 10 square meters, more interference will occur between the receiver and your mouse. 4. If you feel the mouse does not move smooth as usual, that the batteries have lost their charge, so please replace them or using the USB battery charger Y cable to recharging the batteries. The LED of mouse’s tail shows battery-recharging status from shining to die out till battery full. You should set up channel again every time you replace batteries. 5. If you need to buy new batteries, please choose Ni-MH (Nickel-Metal-Hydride) batteries with AAA size, 550 to 700 mAH and 1.2 Voltages. 6. The Wireless WebScroll+ NBEye with radio frequency gives you free movement and an enjoyable experience. For optimal performance, place the receiver at least 8 inches (about 20 cm) away from the mouse and other electrical devices, such as the computer, monitor, and etc. Software Installation 1. Make sure the mouse is connected to the computer. 2. Put Setup the disk (or CD) into the disk drive. 3. Follow the instructions on the screen to finish the software installation. Factory Setting Magic-Roller Press the “Magic-Roller” to surf the Internet and Windows documents Left Button Provides traditional mouse functions such as click, double click and drag. Right Button You can assign this button frequently used keyboard and mouse functions in addition to features like EasyJump, Auto-Panning, Zoom, etc. Roller Button You can assign this button frequently used keyboard and mouse functions in addition to features like EasyJump, Auto-Panning, Zoom, etc. MouseMate Software Features Browsing Speed You can adjust the browsing speed when you surf the Internet or Windows documents. Browsing Direction Move the “Magic-Roller” forward and the screen will browse to the top of the document. Move it in reverse and the document will go in the opposite direction Button Find Automatically positions the cursor on the default button, usually the OK button, when the dialog box appears on your screen. Trails This option makes it easier to find the cursor when using an LCD monitor. This option cannot be used if your monitor does not support it. Loop When you move the cursor to the top (or bottom) of the screen, it will automatically move the cursor to the bottom (or top) of the screen. Mouse Speed This function lets you adjust the speed at which the pointer moves across the screen. Double Click Speed Use this function to set the double click speed of the mouse. Swap Left/Right Select this option if you want to have the mouse operate with the right mouse button as the primary button. Pointers Folders This lets you change the shape of the cursor. Office Mode Only supports Microsoft Office 97 along with some new applications. Features include zoom, scrolling and Auto-scrolling features. It’s similar to Microsoft’s IntelliMouse. Genius Mode Supports all applications that use scrollbars, including Office97, with zoom, Auto-panning, and scrolling functions. About Click here to open the Genius Homepage “www.geniusnet.com.tw” Orientation This function lets you set the angle when you move the mouse upward. It gives you a more comfortable angle when holding the mouse. This function works best with a portable trackball. EasyJump for Windows EasyJump lets you open eight special functions quickly. Close AP Close the application you are using. Horizontal Moves the cursor to the horizontal scroll bar. Vertical Moves the cursor to the vertical scroll bar. Start Activates the Windows Start menu. Internet Access This function opens Browser to access the Internet. Help This opens the Help menu. Control Panel Opens the mouse control panel. Auto-Panning Move the mouse, and the document will move in the direction you move the mouse. Switch Applications When the right-button or Magic-Roller is set to “Switch AP”, you can quickly switch from one open application to another without moving the mouse. To switch to a specific application, press the the right button or the Magic-Roller to select the application. Zoom function for Office and IE Applications Press the “Ctrl” key and move the “Magic-Roller” forward (or backward) to set the Zoom In/Out function. You can also use just one hand to Zoom In/Out: set the right button to be the “Ctrl” function, press the right button and move the “Magic-Roller” forward (or backward) to enlarge (or decrease) the document window. Auto-Panning You can set this function in the Button Assignment menu. Mov…

Text truncated - open the document above for the full version.

Inform Letter Dear Customer, According to FCC’s regulation, the following Declaration of Conformity has to be made by a company located in USA. They are: This device has been confirmed to be in compliance with the requirements of ANSI C63.4 & FCC part 15 regulations. The test result has been shown in the ADT test report with number RF910701R03. And this compliance is subject to the following two conditions: (1) This device may not cause harmful interference and, (2) This device must accept any interference received, including interference that may cause undesired operation. This declaration can be a separate sheet and be sure that the following message will be also included in this declaration: 1) Product name, model name and trade name. 2) Company name, and address of the one who is responsible for this declaration. 3) Name, title, telephone and fax number as well as the signature of the contact person. Thanks for your attention. KYE Systems corp. Add: No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan, R.O.C

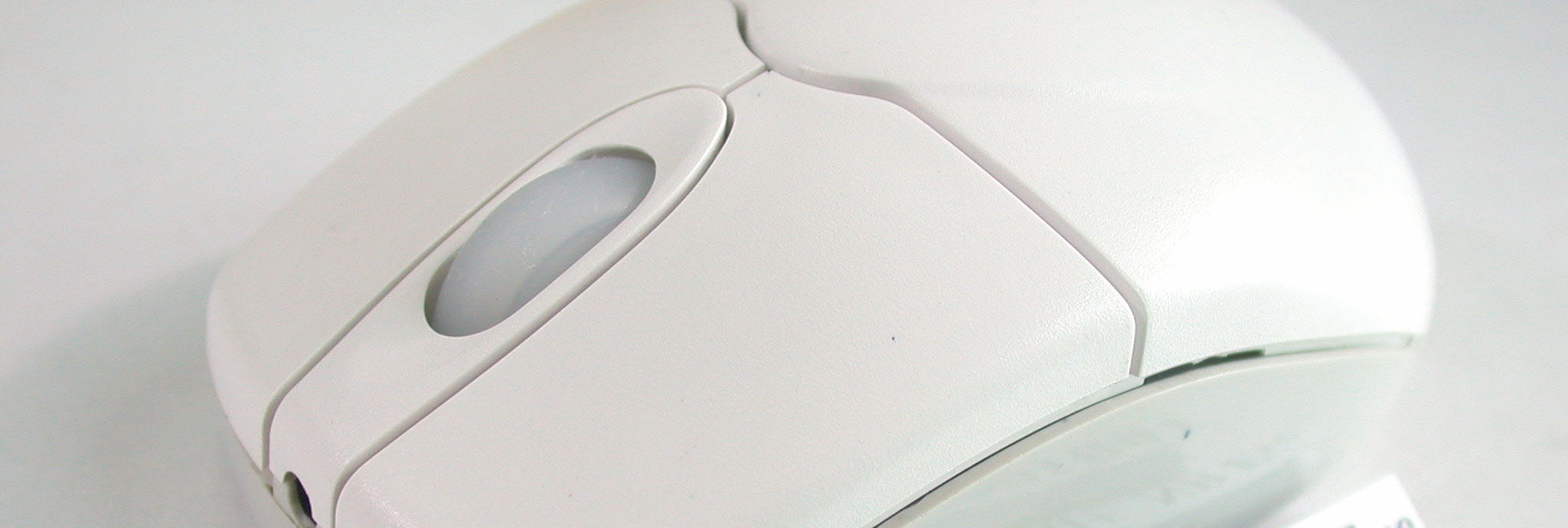

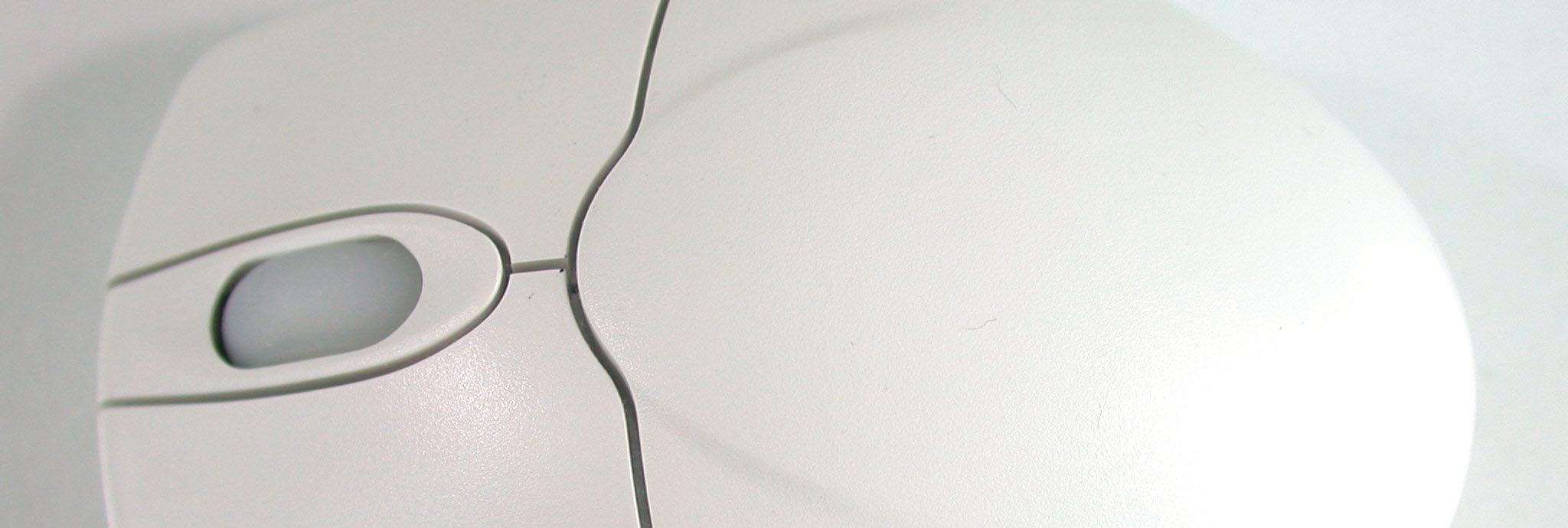

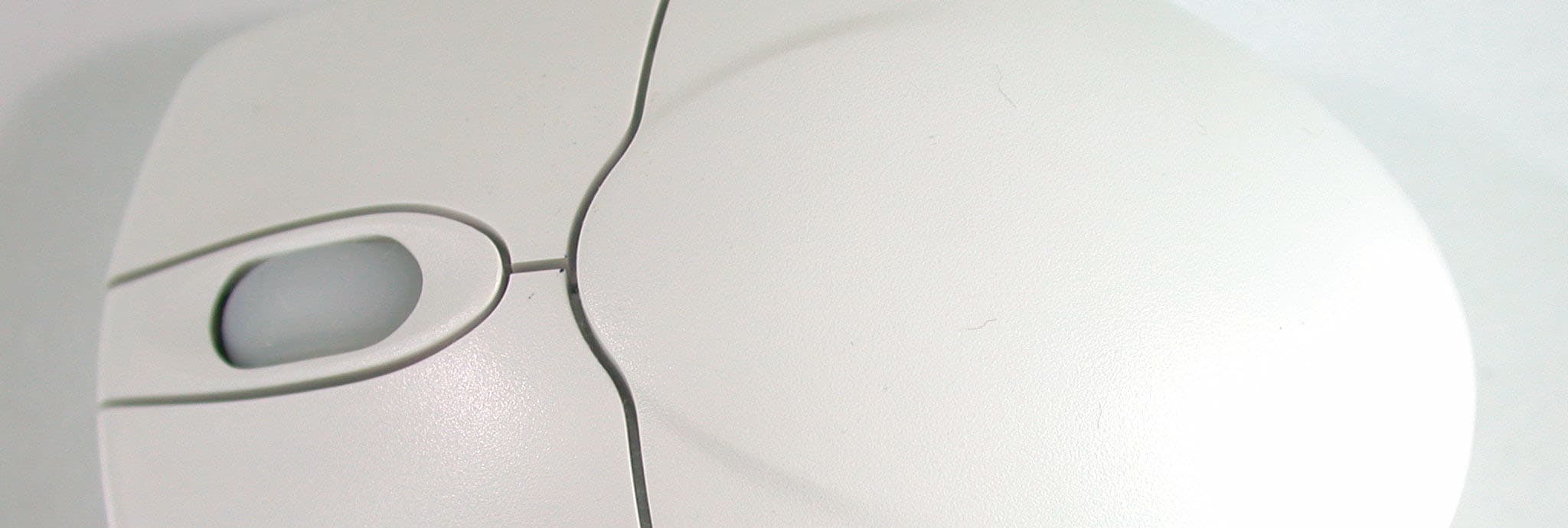

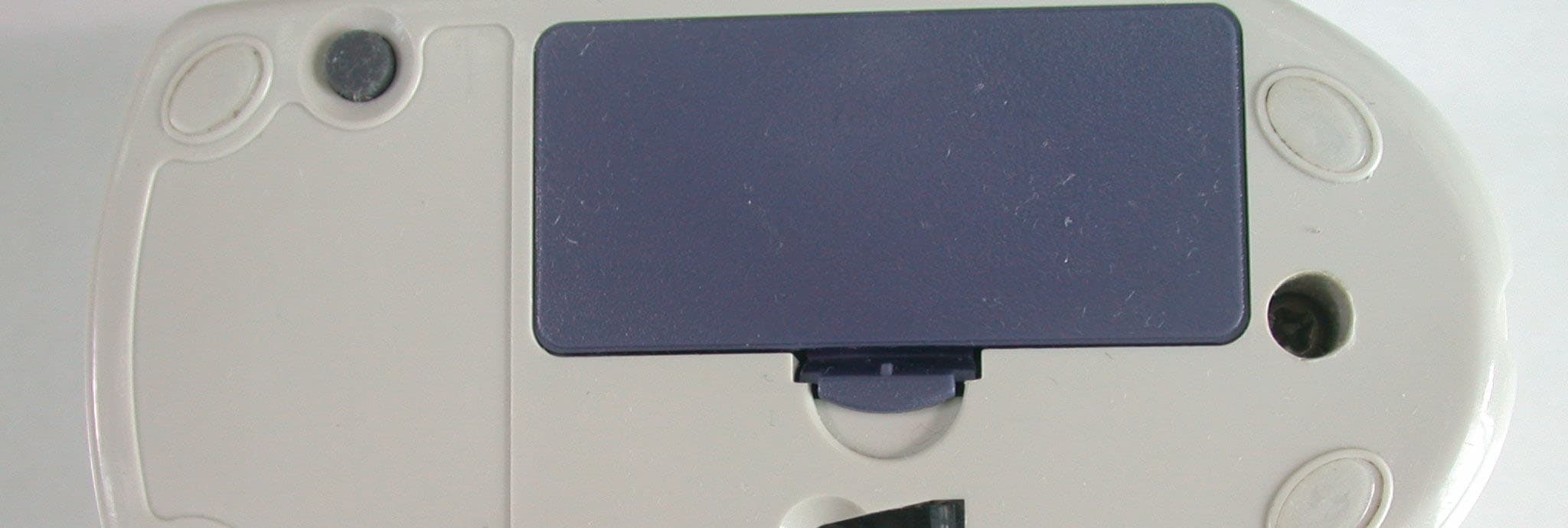

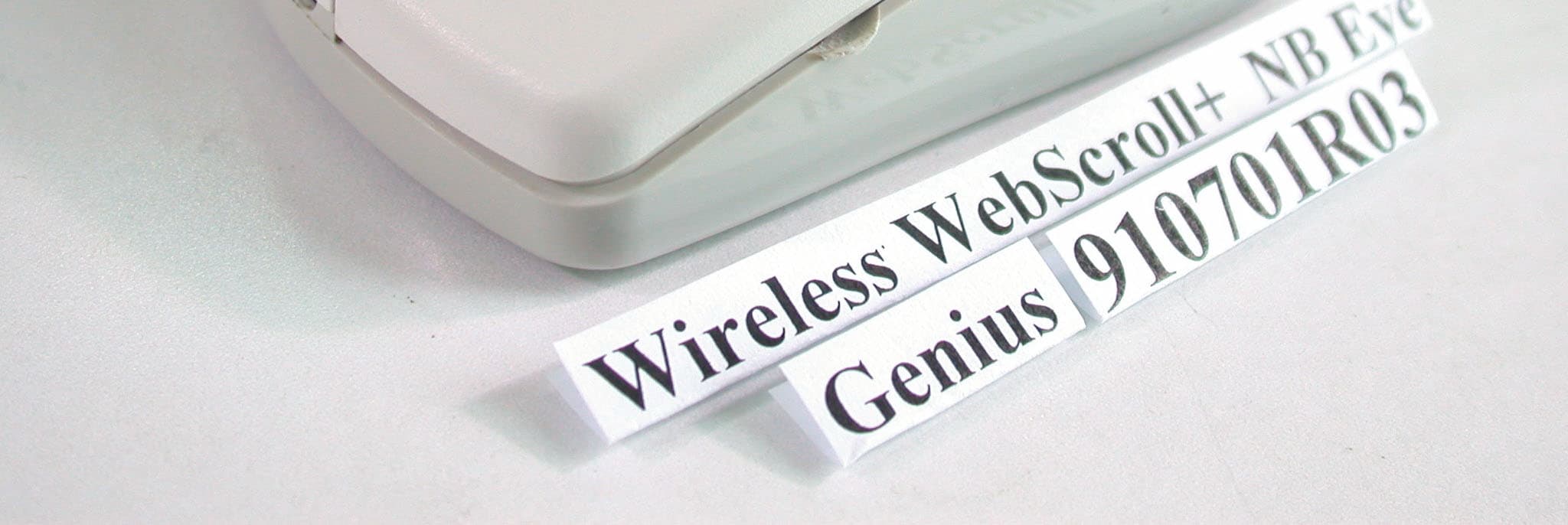

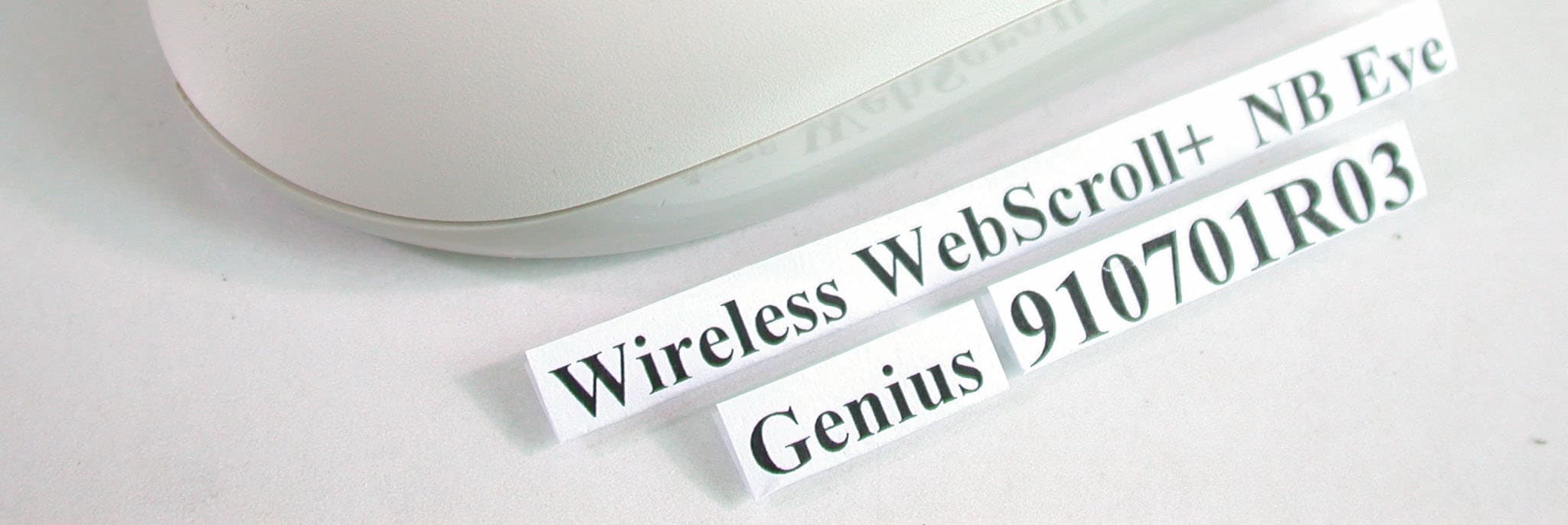

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2

Page 3 Page 4

Page 5 Page 6

FCC ID: FSUGMZGH ADT No.910701R03 Operational Description The transmitter of the EUT (Wireless Optical Mouse) is powered by 3V Battery. The receiver is powered by host computer. Both transmitter and receiver use Integral Antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: FSUGMZGH Report No.: RF910701R031Issued: July 29, 2002 FCC TEST REPORT REPORT NO.: RF910701R03 MODEL NO.: Wireless WebScroll+ NB Eye Wireless PowerScroll NB Eye RECEIVED: July 1, 2002 TESTED: July 3, 2002 APPLICANT:KYE SYSTEMS CORP. ADDRESS: NO.492, SEC.5, CHUNG HSIN RD., SAN CHUNG, TAIPEI HSIEN, TAIWAN, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 14 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by NVLAP or any U.S. government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: FSUGMZGH Report No.: RF910701R032Issued: July 29, 2002 Table of Contents 1CERTIFICATION..............................................................................................3 2SUMMARY OF TEST RESULTS......................................................................4 3GENERAL INFORMATION..............................................................................5 3.1GENERAL DESCRIPTION OF EUT.................................................................5 3.2DESCRIPTION OF TEST MODES...................................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................6 3.4DESCRIPTION OF SUPPORT UNITS.............................................................6 4TEST PROCEDURE AND RESULT.................................................................7 4.1CONDUCTED EMISSION MEASUREMENT...................................................7 4.2RADIATED EMISSION MEASUREMENT........................................................7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................7 4.2.2TEST INSTRUMENT........................................................................................8 4.2.3TEST PROCEDURE........................................................................................9 4.2.4DEVIATION FROM TEST STANDARD............................................................9 4.2.5TEST SETUP.................................................................................................10 4.2.6EUT OPERATING CONDITION.....................................................................10 4.2.7TEST RESULT................................................................................................11 5PHOTOGRAPHS OF THE TEST CONFIGURATION.....................................13 6INFORMATION ON THE TESTING LABORATORIES...................................14 FCC ID: FSUGMZGH Report No.: RF910701R033Issued: July 29, 2002 1 CERTIFICATION PRODUCT : Wireless Optical Mouse BRAND NAME : Genius MODEL NO : Wireless WebScroll+ NB Eye Wireless PowerScroll NB Eye APPLICANT : KYE SYSTEMS CORP. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on July 3, 2002. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: FSUGMZGH Report No.: RF910701R034Issued: July 29, 2002 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –22.7dBuV at 135.22MHz NOTE: The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. FCC ID: FSUGMZGH Report No.: RF910701R035Issued: July 29, 2002 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Optical Mouse MODEL NO. Wireless WebScroll+ NB Eye Wireless PowerScroll NB Eye POWER SUPPLY3VDC from battery MODULATION TYPE FSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz BANDWIDTH OF EACH CHANNEL NA NUMBER OF CHANNEL1 ANTENNA TYPEIntegral antenna DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. The EUT is the transmitter part of a Wireless Optical Mouse. 2. Two model names were provided to this EUT. The two models are identical to each other expect for their model names. 3. For more detailed features description of the EUT, please refer to the manufacturer's specifications or the User's Manual. FCC ID: FSUGMZGH Report No.: RF910701R036Issued: July 29, 2002 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Optical Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC CFR 47 Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: FSUGMZGH Report No.: RF910701R037Issued: July 29, 2002 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Field strength limits are at the distance of 3 meters, emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Field Strength of Fundamental Other Frequencies (MHz) uV/meterdBuV/meter 30-8810040.0 88…

Text truncated - open the document above for the full version.

FCC ID: FSUGMZGH Report No.: RF910701R0313Issued: July 29, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST
