RF Mouse: J06S Hardware Installation Note: Before installing or removing the mouse (either the original or the wireless one) to or from your computer, always remember to turn off your computer. Installing or removing the mouse when your computer is running will cause permanent damage to them or your computer. 1. Press the tab on the bottom of the wireless mouse. 2. Press the latch then slide the cover off the wireless mouse. 3. Insert 2 AAA batteries into the battery compartment. Pay attention to the polarity. A diagram in the battery compartment shows the correct battery installation. 4. Replace the covers to the wireless mouse until a click is heard. Warning 1. Do not use your wireless keyboard or mouse on a metal surface. Use a pad to prevent the radio channel from being interfering. 2. For optimal performance, place the RF receiver at least 8 inches (about 20cm) away from the wireless mouse and other electrical devices, such as computer, monitor, etc. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

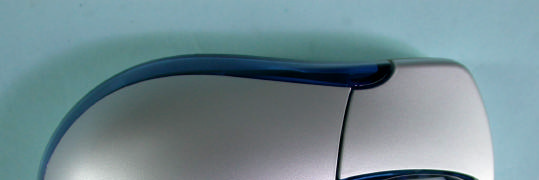

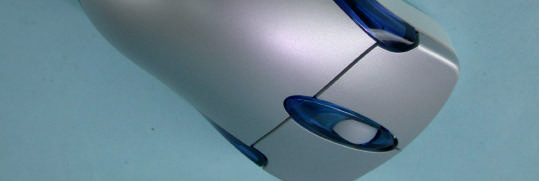

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

Page 2 FCC Label Location

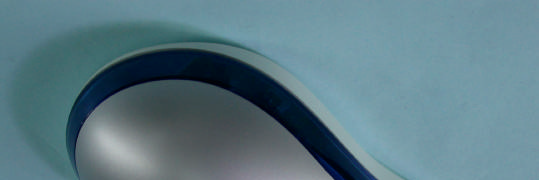

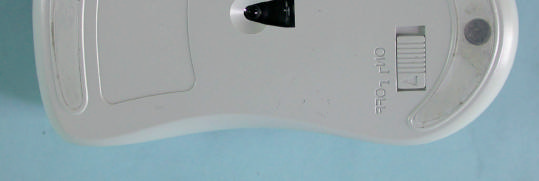

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: FSUGMZGP ADT No.920912R05 Operational Description The transmitter of the EUT (Wireless Mouse) is powered by 3V Battery. The transmitter used Integral Antenna. The output power of this device is very low. Under normal use condition, the transmitter is quite close, so high EIRP power is neither necessary nor allowed because of interference.

FCC ID: FSUGMZGP Report No.: RF920912R051Issued: Sep. 19, 2003 FCC TEST REPORT REPORT NO.: RF920912R05 MODEL NO.: J06S RECEIVED: Sep. 12, 2003 TESTED: Sep. 17, 2003 APPLICANT:KYE Systems Corp. ADDRESS: No.492, Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:47 14th Lin, Chia Pau Tsuen, Linkou Hsiang, Taipei, Taiwan, R.O.C. This test report consists of 15 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200102-0 0528 ILAC MRA FCC ID: FSUGMZGP Report No.: RF920912R052Issued: Sep. 19, 2003 Table of Contents 1CERTIFICATION.........................................................................................3 2SUMMARY OF TEST RESULTS................................................................4 3GENERAL INFORMATION.........................................................................5 3.1GENERAL DESCRIPTION OF EUT...........................................................5 3.2DESCRIPTION OF TEST MODES.............................................................6 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS.............................6 3.4DESCRIPTION OF SUPPORT UNITS.......................................................6 4TEST PROCEDURE AND RESULT............................................................7 4.1CONDUCTED EMISSION MEASUREMENT..............................................7 4.2RADIATED EMISSION MEASUREMENT...................................................7 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT................................7 4.2.2TEST INSTRUMENT..................................................................................8 4.2.3TEST PROCEDURE...................................................................................9 4.2.4TEST SETUP............................................................................................10 4.2.5EUT OPERATING CONDITION................................................................10 4.2.6TEST RESULT..........................................................................................11 4.3ANTENNA REQUIREMENT.....................................................................13 4.3.1STANDARD APPLICABLE........................................................................13 4.3.2ANTENNA CONNECTED CONSTRUCTION...........................................13 5PHOTOGRAPHS OF THE TEST CONFIGURATION...............................14 6INFORMATION ON THE TESTING LABORATORIES..............................15 FCC ID: FSUGMZGP Report No.: RF920912R053Issued: Sep. 19, 2003 1 CERTIFICATION PRODUCT : Wireless Mouse BRAND NAME : KYE MODEL NO : J06S TEST ITEM: ENGINEERING SAMPLE APPLICANT : KYE Systems Corp. STANDARDS : 47 CFR Part 15, Subpart C(15.227) ANSI C63.4-1992 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility from Sep. 17, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample's EMC characteristics under the conditions herein specified. FCC ID: FSUGMZGP Report No.: RF920912R054Issued: Sep. 19, 2003 2 SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: 47 CFR Part 15, Subpart C STANDARD PARAGRAPH TEST TYPERESULTREMARK 15.207Conducted Emission TestN/A Power supply is 3VDC from batteries 15.227Radiated Emission TestPASS Minimum passing margin is –2.2dB at 81.76MHz NOTE: 1. The receiver part to communicate with the EUT has been verified to comply with FCC Part 15, Subpart B, Class B (DoC). The test report can be provided upon request. 2. The information of measurement uncertainty is available upon the customer’s request. FCC ID: FSUGMZGP Report No.: RF920912R055Issued: Sep. 19, 2003 3 GENERAL INFORMATION 3.1 GENERAL DESCRIPTION OF EUT PRODUCTWireless Mouse MODEL NO.J06S POWER SUPPLY3VDC from batteries MODULATION TYPEFSK CARRIER FREQUENCY OF EACH CHANNEL 27.045MHz BANDWIDTH OF EACH CHANNEL NA NUMBER OF CHANNEL1 ANTENNA TYPEIntegral Antenna DATA CABLENA I/O PORTSNA ASSOCIATED DEVICESNA NOTE: 1. This EUT is the transmitter part of Wireless Mouse. 2. For more detailed feature description of the EUT, please refer to user’s manual. FCC ID: FSUGMZGP Report No.: RF920912R056Issued: Sep. 19, 2003 3.2 DESCRIPTION OF TEST MODES One channel was provided to this EUT. ChannelFrequency 127.045 MHz 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS The EUT is the transmitter part of a Wireless Mouse. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC 47 CFR Part 15, Subpart C (15.227) ANSI C63.4-1992 All tests have been performed and recorded as per the above standards. 3.4 DESCRIPTION OF SUPPORT UNITS NA FCC ID: FSUGMZGP Report No.: RF920912R057Issued: Sep. 19, 2003 4 TEST PROCEDURE AND RESULT 4.1 CONDUCTED EMISSION MEASUREMENT NA 4.2 RADIATED EMISSION MEASUREMENT 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT According to 15.227 the field strength of emissions from intentional radiators operated under these frequencies bands shall not exceed the following: Fundamental Frequency (MHz) Field Strength of Fundamental (dBuV/m) PeakAverage 26.96-27.28 10080 Emissions radiated outside of the specified bands, shall be according to the general radiated limits in 15.209 as following: Frequencies (MHz) Field strength (microvolts/meter) Measurement distance (meters) 30-881003 88-2161503 216-9602003 Above 9605003 As shown in 15.35(b), for frequencies above 1000MHz, the field strength limits are based on average detector, however, the peak field strength of any emissi…
