FSUGMZH327 MHz Wireless Mouse

Hardware Installation 1.You can connect the receiver to a USB port of a PC 2.Install two AAA batteries in the mouse. 3. Turn on your computer. 4.After you open Windows, please press the button on the receiver first and then press the button under the mouse for channel setting. Important: Remember do not put the batteries in the wrong direction, use the same types of batteries. Also, keep all drinks away! If any spill occurs on the receiver, unplug the USB connector first and clean the receiver immediately. Please switch the button to "off" under the mouse once you don't use it for a long time, and remove the batteries if you do not use this device for at least two weeks. Warning: (Troubleshooting) 1.Please do not use Wireless Mini Navigator on a desk which is made of glass, mirror, iron, or black velvet. Also, a flat surface is necessary or the Optical Sen - sor will error easily. When you use Wireless Mini Navigator on a desk that is made of metal, try using a pad and reduce the receiving distance. 2.Before the first installation is completed (channel setting ready), the mouse will not work in DOS. 3.The Wireless Mini Navigator channel provides 256 ID-codes, and it automati - cally selects the ID # for your mouse. You can only set up one Wireless Mini Navigator at a time. But if you have additional Wireless Mini Navigator sets in an area of 10 square meters, more interference will occur between the receiver and your mouse. 1 ENGLISH 4.If you feel the mouse does not move smooth as usual, then the batteries have lost their charge, so please replace them. 5.The Wireless Mini Navigator with radio frequency gives you free movement and an enjoyable experience. For optimal performance, place the receiver at least 8 inches (about 20 cm) away from the mouse and other electrical devices, such as the computer, monitor, and etc. Software Installation 1. Make sure the mouse is connected to the computer. 2. Put the Setup disk (or CD) into the disk drive. 3. Follow the instructions on the screen to finish the software installation. Factory Setting Button Assignments The Button Assignment feature lets you work in a more efficient way because you can assign the most frequently used commands in Windows to the mouse buttons. Magic-RollerPress the “Magic-Roller” to surf the Internet and Windows docu - ments 2 Changing the Faceplate Left ButtonProvides traditional mouse functions such as click, double click and drag. Right ButtonYou can assign this button frequently used keyboard and mouse functions in addition to features like EasyJump, Auto-Panning, Zoom, etc. Roller ButtonYou can assign this button frequently used keyboard and mouse functions in addition to features like EasyJump, Auto-Panning, Zoom, etc. MouseMate Software Features Browsing SpeedYou can adjust the brows - ing speed when you surf the Internet or Windows docu - ments. Browsing Direction Move the “Magic-Roller” forward and the screen will browse to the top of the document. Move it in reverse and the document will go in the opposite direction Button FindAutomatically positions the cursor on the default button, usually the OK button, when the dialog box appears on your screen. TrailsThis option makes it easier to find the cursor when using an LCD monitor. This option cannot be used if your monitor does not support it. LoopWhen you move the cursor to the top (or bottom) of the screen, it will automatically move the cursor to the bot - tom (or top) of the screen. Mouse SpeedThis function lets you adjust the speed at which the pointer moves across the screen. Double Click Speed Use this function to set the double click speed of the mouse. Swap Left/RightSelect this option if you want to have the mouse operate with the right mouse button as the primary button. Pointers FoldersThis lets you change the shape of the cursor. 3 ENGLISH Office 97 Mode Only supports Microsoft Office along with some new ap - plications. Features include zoom, scrolling and Auto- scrolling features. It’s similar to Microsoft’s Intelli- Mouse. Genius ModeSupports all applications that use scrollbars, including Of - fice, with zoom, Auto-panning, and scrolling functions. AboutClick here to open the Genius Homepage “www.geniusnet.com.tw” OrientationThis function lets you set the angle when you move the mouse upward. It gives you a more comfortable angle when holding the mouse. This function works best with a portable trackball. EasyJump “EasyJump” now has two working modes: Office Easy - Jump mode and Traditional EasyJump mode. “Office EasyJump” lets you use eight commonly used applications and 16 Cyber functions more easily and quickly. Once you press the button you assigned, “Office Easy- Jump” will be displayed on a Frisbee. Note that the func- tions are only available in the applications they belong to. Click this application button to show the mouse control panel. You can check or modify the mouse properties. Click this function and the pan icon appears. You can move the mouse in any direction in a document or a spreadsheet. The farther you move the pointer from the pan icon, the faster you can pan in that direction. Click this function and Office EasyJump Frisbee will always be on the screen and the button will change to. Click it again to cancel this effect. This is a programmable application button. Press the right button on this icon and a dialog box will display for you to select an executable program. Click on this button to launch your specific application. Click this function to implement the “replace” function in the current application. Click on this application to launch Microsoft Word. Click this function to perform the “cut” function in Word. Click this function to implement the “paste” function in Word. 4 Click on this application to launch Microsoft Excel. Click this function to implement the “select all” function in Excel. Click this function to perform the “undo” function in Excel. Click on this application to launch Microsoft PowerPoint. Click this fu…

Text truncated - open the document above for the full version.

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID :FSUGMZH3

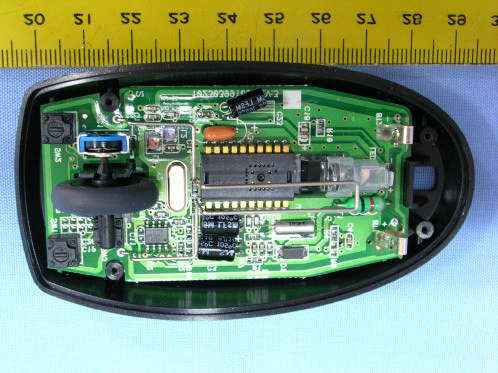

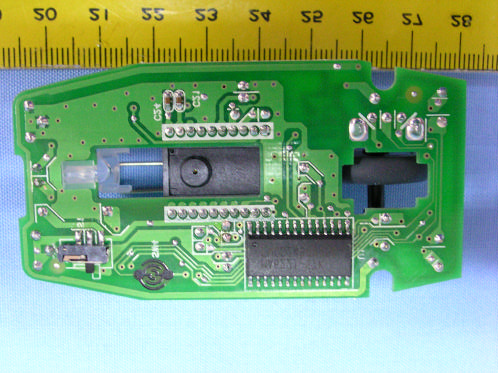

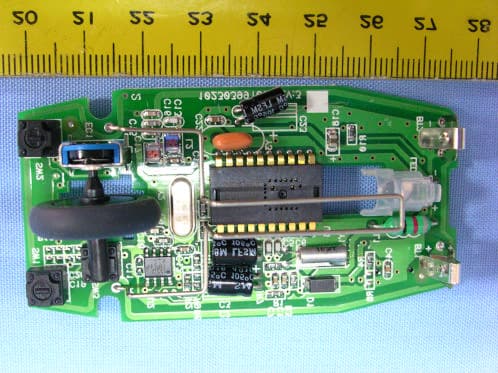

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 3 Model No.: GM-04015U/T PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 3 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 3 PHOTOS OF EUT

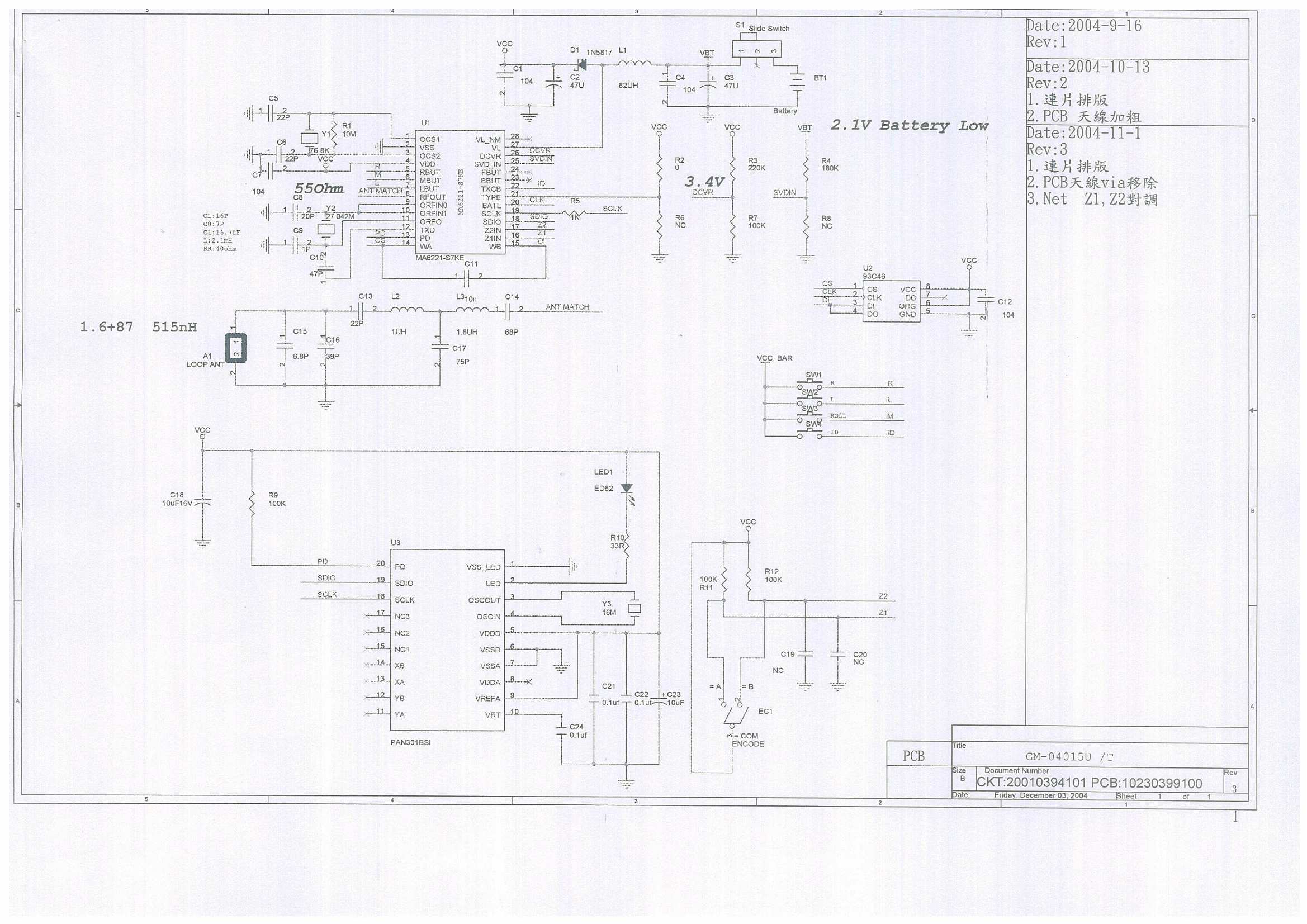

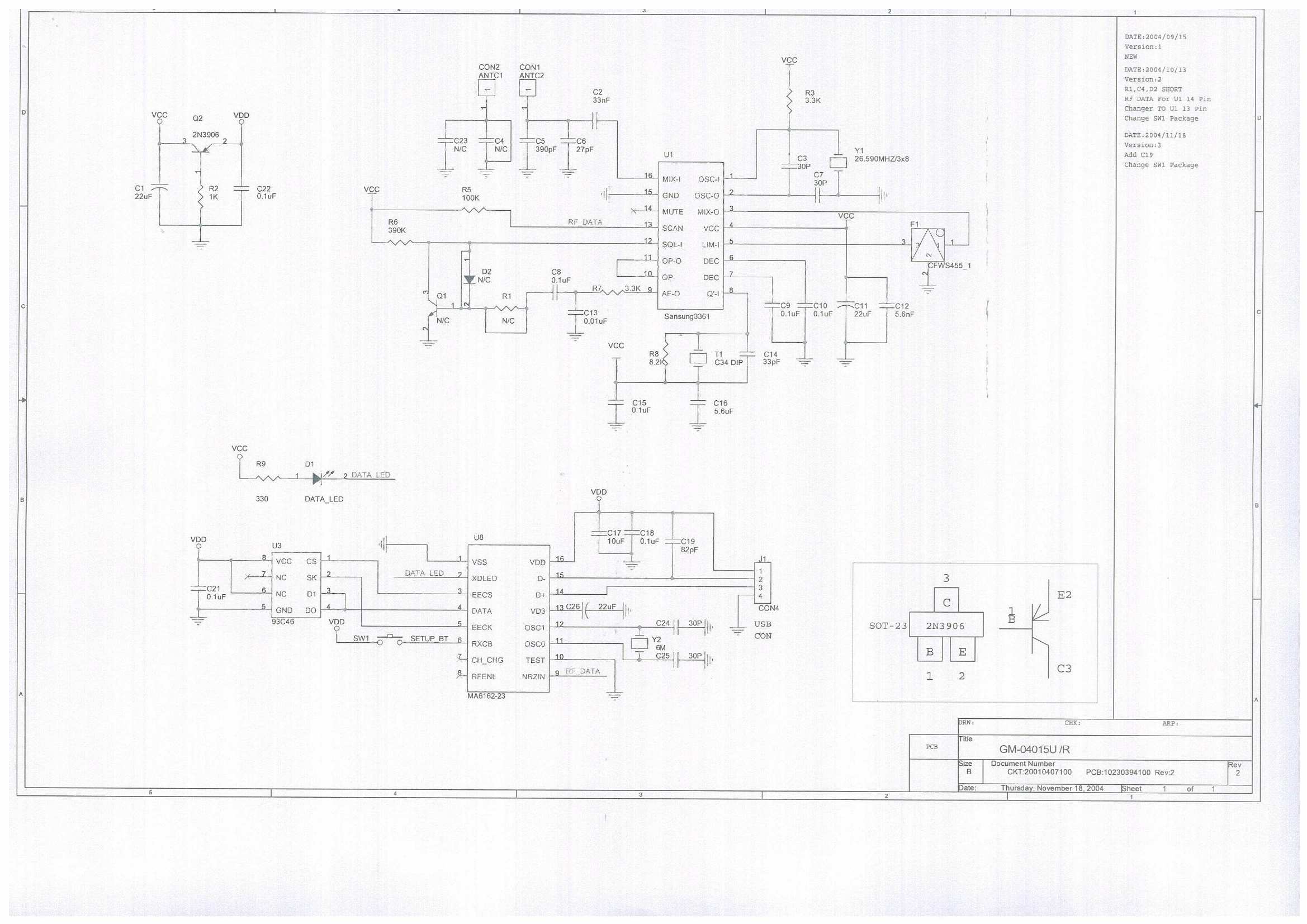

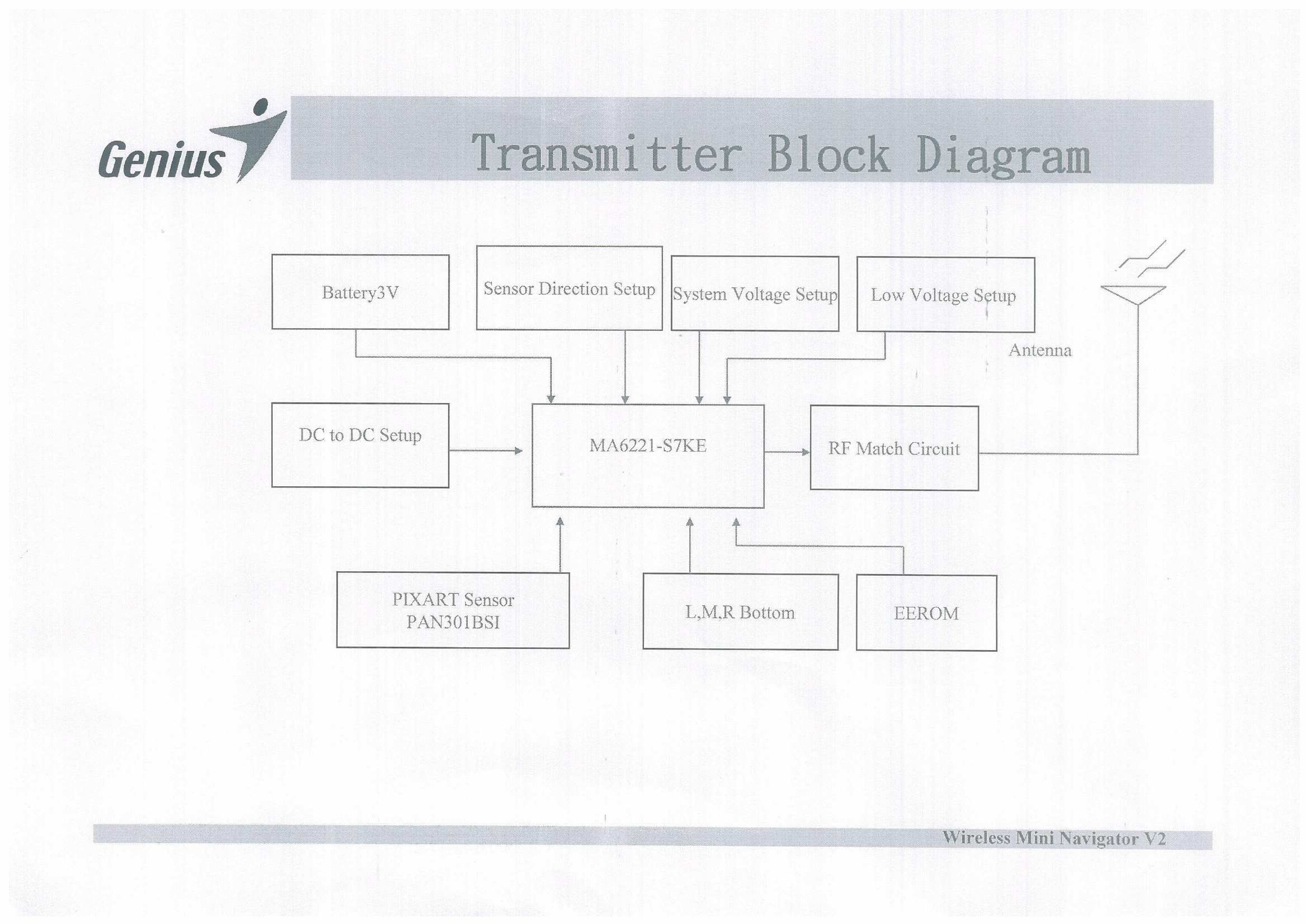

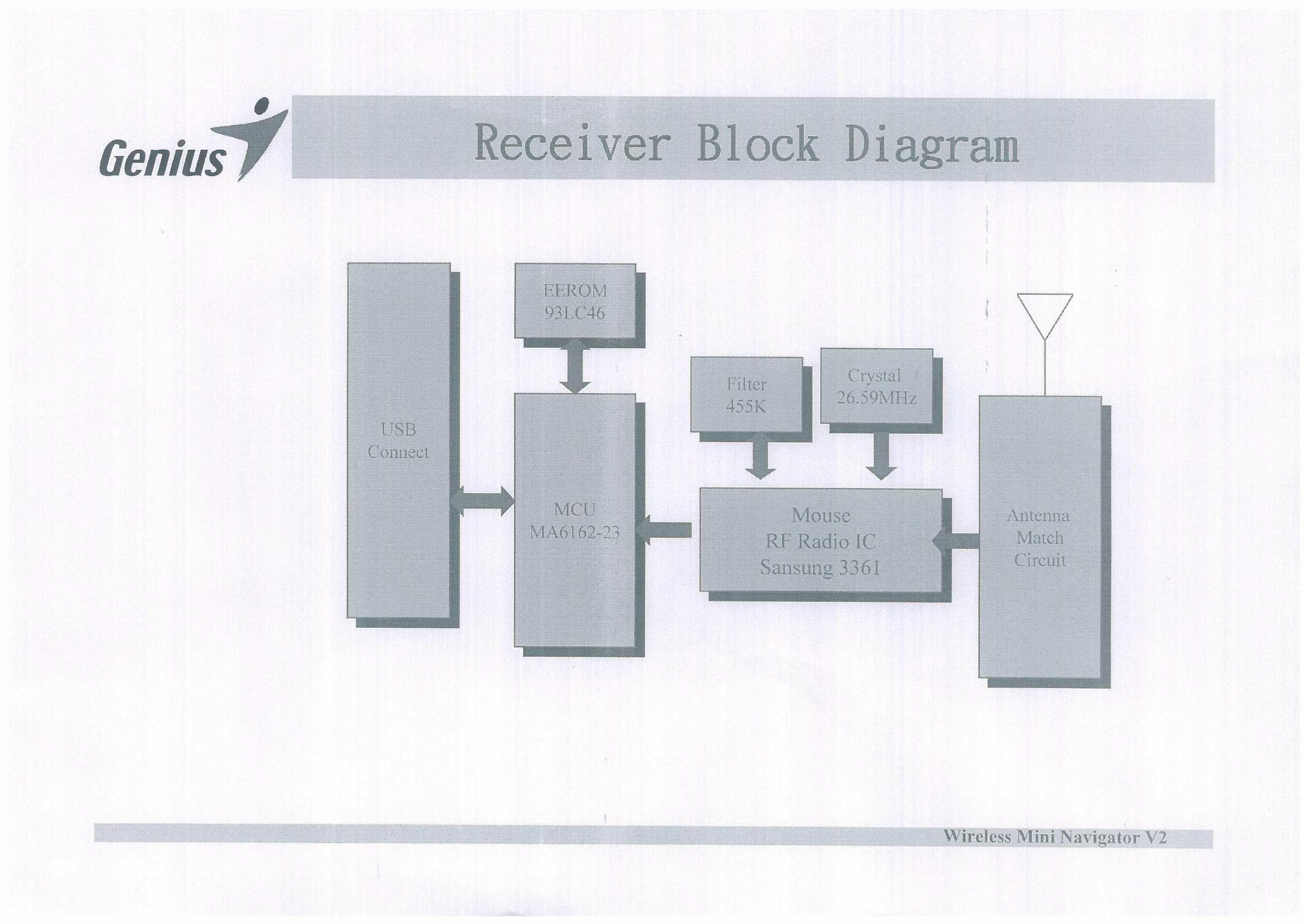

FCC ID: FSUGMZH3 Operational Description of the equipment The EUT is an excellent tool for mobile professionals. PRODUCT Wireless Mouse MODEL NO. GM-04015U/T POWER SUPPLY 3Vdc from battery (1.5V x 2) CABLE N/A CARRIER FREQUENCY 27.045 MHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 50dBμV@3m MODULATION TYPE FSK BIT RATE OF TRANSMISSION 4.8 kbps SENSOR TYPE PAN301BSI 800DPI ANTENNA TYPE Loop antenna NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCBA04113005 Page:2 of 15 Date:Dec. 02, 2004 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................3 1.1 DOCUMENT POLICY.........................................................................................3 1.2 TEST STATEMENT............................................................................................3 1.3 EUT MODIFICATION..........................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE.......................................................4 2.1 GENERAL DESCRIPTION OF EUT...................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE....................................................4 2.3 DESCRIPTION OF TEST MODE.......................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT..................................................................5 3. DESCRIPTION OF APPLIED STANDARDS......................................................5 4. CONDUCTED EMISSION TEST........................................................................6 4.1 CONDUCTED EMISSION LIMIT........................................................................6 4.2 TEST EQUIPMENT............................................................................................6 4.3 TEST SETUP.....................................................................................................7 4.4 TEST PROCEDURE..........................................................................................7 4.5 EUT OPERATING CONDITION.........................................................................7 4.6 TEST RESULT...................................................................................................8 5. RADIATED EMISSION TEST.............................................................................9 5.1 RADIATED EMISSION LIMIT.............................................................................9 5.2 TEST EQUIPMENT............................................................................................9 5.3 TEST SET-UP..................................................................................................10 5.4 TEST PROCEDURE........................................................................................11 5.5 EUT OPERATING CONDITION.......................................................................11 5.6 RADIATED EMISSION TEST RESULT............................................................12 6. PHOTOS OF TESTING....................................................................................13 7. TERMS OF ABRIVATION.................................................................................15 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCBA04113005 Page:3 of 15 Date:Dec. 02, 2004 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - AC power source, 120 Vac/60 Hz, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCBA04113005 Page:4 of 15 Date:Dec. 02, 2004 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Receiver MODEL NO. GM-04015U/R POWER SUPPLY 5Vdc from PC system CABLE N/A LOCAL FREQUENCY 26.59MHz SENEITIVITY -62dBm DEMODULATOR FSK DEVIATION 3K DISTANCE 100cm@50dBuV POWER CONSUMPTION 35mA@5V NOTE : For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCBA04113005 Page:5 of 15 Date:Dec. 02, 2004 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:2003 and CISPR22:2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOC CABLE 1 NOTEBOOK DELL C510/C610 DOC 2.7m shielded power cord 2 MODEM ACEEX DM-1414 DOC 1.8m unshielded power cord 1.5m shielded data cable 3 PRINTER EPSON STYLUS C20SX DOC 1.5m unshielded power cord 1.5m shielded data cable NOTE : For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of wireless product and to be connected with a PC system for normal use. According to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart B, Class B ANSI C63.4:2003 All tests have been performed and recorded as per the above standards. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCBA04113005 Page:6 of 15 Date:Dec. 02, 2004 4. CONDUCTED EMISSION TEST 4.1 CONDUCTED EMISSION LIMIT Class A (dBμV) Cl…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCCA04113005 Page:2 of 18 Date:Dec. 02, 2004 FCC ID:FSUGMZH3 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................3 1.1 DOCUMENT POLICY.........................................................................................3 1.2 TEST STATEMENT............................................................................................3 1.3 EUT MODIFICATION..........................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE.......................................................4 2.1 GENERAL DESCRIPTION OF EUT...................................................................4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE....................................................4 2.3 DESCRIPTION OF TEST MODE.......................................................................4 2.4 DESCRIPTION OF SUPPORT UNIT..................................................................5 3. DESCRIPTION OF APPLIED STANDARDS......................................................5 4. CONDUCTED EMISSION TEST........................................................................6 4.1 CONDUCTED EMISSION LIMIT........................................................................6 4.2 TEST EQUIPMENT............................................................................................6 4.3 TEST SETUP.....................................................................................................7 4.4 TEST PROCEDURE..........................................................................................7 4.5 EUT OPERATING CONDITION.........................................................................7 4.6 TEST RESULT...................................................................................................8 5. RADIATED EMISSION TEST.............................................................................9 5.1 RADIATED EMISSION LIMIT.............................................................................9 5.2 TEST EQUIPMENT..........................................................................................10 5.3 TEST SET-UP..................................................................................................11 5.4 TEST PROCEDURE........................................................................................12 5.5 EUT OPERATING CONDITION.......................................................................12 5.6 RADIATED EMISSION TEST RESULT............................................................13 6. PHOTOS OF TESTING....................................................................................15 7. TERMS OF ABRIVATION.................................................................................18 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCCA04113005 Page:3 of 18 Date:Dec. 02, 2004 FCC ID:FSUGMZH3 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - Power source, 3 Vdc(for EUT) and 120 Vac/60 Hz(for support units), was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCCA04113005 Page:4 of 18 Date:Dec. 02, 2004 FCC ID:FSUGMZH3 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. GM-04015U/T POWER SUPPLY 3Vdc from battery (1.5V x 2) CABLE N/A CARRIER FREQUENCY 27.045 MHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 50dBμV@3m MODULATION TYPE FSK BIT RATE OF TRANSMISSION 4.8 kbps SENSOR TYPE PAN301BSI 800DPI ANTENNA TYPE Loop antenna NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A04113005 Report No.:FCCA04113005 Page:5 of 18 Date:Dec. 02, 2004 FCC ID:FSUGMZH3 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:2003 and CISPR22:2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOC CABLE 1 NOTEBOOK DELL C510/C610 DOC 1.8m unshielded power cord 2 MODEM ACEEX DM-1414 DOC 1.8m unshielded power cord 1.5m shielded data cable 3 PRINTER EPSON STYLUS C20SX DOC 1.5m unshielded power cord 1.5m shielded data cable NOTE : For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of wireless product and to be connected with a PC system for normal use. According to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C ANSI C63.4:2003 All tests have been performed and recorded as per the above standards. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Refere…

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Conducted test - Radiated test (TX) - Radiated test (RX)
