FSUGMZH8WIRELESS MOUSE

Hardware Installation 1.You can connect the receiver to a USB port of a PC 2.Install one AA battery in the mouse. 3.Turn on your computer. 4.After you open Windows, please press the button on the receiver first and then press the button under the mouse for channel setting. Important: Remember do not put the batteries in the wrong direction, use the same types of batteries. Also, keep all drinks away! If any spill occurs on the receiver, unplug the USB connector first and clean the receiver immediately. Please switch the button to "off" under the mouse once you don't use it for a long time, and remove the batteries if you do not use this device for at least two weeks. Warning: (Troubleshooting) 1.Please do not use Wireless optical mouse on a desk which is made of glass, mir - ror, iron, or black velvet. Also, a flat surface is necessary or the Optical Sensor will error easily. When you use Wireless optical mouse on a desk that is made of metal, try using a pad and reduce the receiving distance. 1 ENGLISH 2.Before the first installation is completed (channel setting ready), the mouse will not work in DOS. 3.The Wireless optical mouse channel provides 256 ID-codes, and it automatically selects the ID # for your mouse. You can only set up one Wireless optical mouse at a time. But if you have additional Wireless optical mouse sets in an area of 10 square meters, more interference will occur between the receiver and your mouse. 4.If you feel the mouse does not move smooth as usual, then the batteries have lost their charge, so please replace them. 5.The Wireless optical mouse with radio frequency gives you free movement and an enjoyable experience. For optimal performance, place the receiver at least 8 inches (about 20 cm) away from the mouse and other electrical devices, such as the computer, monitor, and etc. Software Installation 1. Make sure the mouse is connected to the computer. 2. Put the Setup disk (or CD) into the disk drive. 3. Follow the instructions on the screen to finish the software installation. Factory Setting 2 Button Assignments The Button Assignment feature lets you work in a more efficient way because you can assign the most fre - quently used commands in Windows to the mouse but - tons. Magic-RollerPress the “Magic-Roller” to surf the Internet and Windows documents Horizontal Scroll Press the roller to the left and the cursor scrolls to the left; press the roller to the right and the cursor scrolls to the right. Left ButtonProvides traditional mouse functions such as click, double click and drag. Right ButtonYou can assign this button frequently used keyboard and mouse func - tions in addition to features like EasyJump, Auto-Panning, Zoom, etc. Roller ButtonYou can assign this button frequently used keyboard and mouse func- tions in addition to features like EasyJump, Auto-Panning, Zoom, etc. 3 FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. The equipment has been certified to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by switching the equipment off and on. The user can try to correct the interference by the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or and experience radio/TV technician for help. Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Block Diagram MCU+SENSOR Batt ery RF Circuit Bottom s and Z wheel ANT DC/DC Con v erter EER O M

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 1 PHOTOS OF EUT

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID: FSUGMZH8

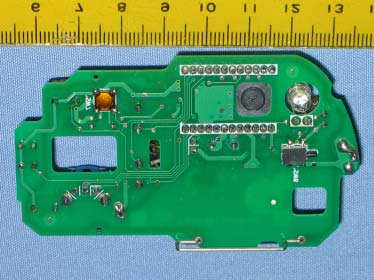

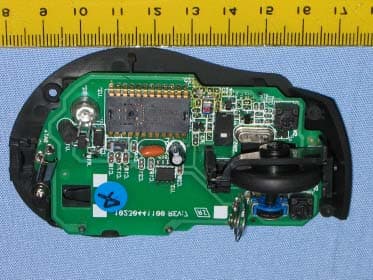

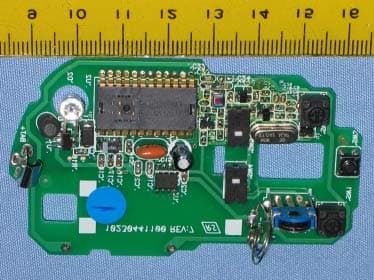

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 3 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 3 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 3 PHOTOS OF EUT

FCC ID: FSUGMZH8 Operational Description of equipment The EUT is an excellent tool for mobile professionals, Install a AA battery in the mouse and connect the receiver to a USB port of a PC an turn on your computer. PRODUCT Wireless Mouse MODEL NO. GM-04018U/T, Ergo 3000/T POWER REQUIREMENTS DC 1.5V FREQUENCY BAND 27MHz CARRIER FREQUENCY 27.045 MHz CHANNEL BANDWIDTH 10KHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 47 dBuV MODE OF OPERATION Simplex ANTENNA TYPE Loop antenna

55 44 33 22 11 D D C C B B A A Date:2005-01-13Rev:1NewDate:2005-01-31Rev:2RF Part ChangeDate:2005-02-23Rev:31. U1 SOT-89change SOT-232. C1 changeplace3. Add attena4. Add C8 withRF partDate:2005-03-23Rev:41. Add C14 withRF part 12 Date:2005-04-01Rev:51. AddVLED=3.6VDate:2005-04-20Rev:6刪除 3.6V 倍壓 出連片 , 以 REV4 為主 Date:2005-05-24Rev:7Del C1,C3Add C8,C25 NCU1 改為 SOT-89 C2 改為 B-case 鉭電 3 2 CKT:21010017101 PCB: 10230441100 Rev:7 7 GM-04018U Er go 3000/USB TX B 11 Wednesday, June 08, 2005 TitleSize Document Number Rev Date: Sheet of ZX2 OSCI RF_POWER ZX1 OSCO LINK_B ISCK LINK_B Z2 OSCO RF_DATA R_BM_B ZX2 L_B ZX1 OSCI L_B M_BISDA Z1 RF_POWER R_B ISCKISDA Z2Z1 RF_DATA VDD VDD VDD VBAT VRF VDD VRF VDD VDD Y1CRYSTAL C247UF B-case C171UF 0603 R9180 0402 C180.1UF 0603 D1 1N5817 1 2 U2 PIXART 4D5B 123456789 101112 131415161718192021222324 ZY1ZY2L_KEYB4_KEYLEDOSC_OUTOSC_INVDDQVSSAVDDVDDAVAY B5_KEY NC ISCKISDA CPI/RFID RF_DATA RF_ENR_KEY M_KEY IRCTL ZX2ZX1 SW1 L C4 22P 0402 BT13V C2375P 0603 C7 10nF 0402 C16 0.1UF 0603 C200.1UF 0603 ANT1PIFA C13 100P 0402 R1 47K 0402 C1510UF R2 5.6K 0402 R7 33K 0402 C11470P 0402 C26180P 0402 SW5 ZX2 R10 22 0603 Q4MPSH10 L21000nH 1008 C1020P 0402 R8 5.6K 0402 C141UF 0603 D2 LED U3 24CXX 1234 5678 A0A1A2GND SDA SCL WP VDD Q2 MPSH10 R412 0402 R3 0 0603 U1 1.8V DC-DC 1 2 3 VSS LX OUT C24 10nF 0603 C25 NC SW7 LINK R5 68K 0402 C2115P 0603 R6 12 0402 Q12N3906 1 23 L1 220UH 1 2 C1915P 0603 X1 27.042M SW6 Power C8NC C6 7P 0402 ALPS ABC EC1Encoder DIYA Q3 3904 C5 1500P 0402 SW2 R C910P 0402 SW4 ZX1 SW3 M C22 100P 0603

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05052008 Report No.:FCCA05052008 Page:2 of 18 Date:June 09, 2005 FCC ID:FSUGMZH8 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT................................................ 3 1.1 DOCUMENT POLICY ........................................................................................ 3 1.2 TEST STATEMENT............................................................................................ 3 1.3 EUT MODIFICATION ......................................................................................... 3 2. DESCRIPTION OF EUT AND TEST MODE ...................................................... 4 2.1 GENERAL DESCRIPTION OF EUT .................................................................. 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE.................................................... 4 2.3 DESCRIPTION OF TEST MODE ....................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT ................................................................. 5 3. DESCRIPTION OF APPLIED STANDARDS ...................................................... 5 4. CONDUCTED EMISSION TEST ........................................................................ 6 4.1 CONDUCTED EMISSION LIMIT........................................................................ 6 4.2 TEST EQUIPMENT............................................................................................ 6 4.3 TEST SETUP..................................................................................................... 7 4.4 TEST PROCEDURE .......................................................................................... 7 4.5 EUT OPERATING CONDITION ......................................................................... 7 4.6 TEST RESULT ................................................................................................... 8 5. RADIATED EMISSION TEST ............................................................................. 9 5.1 RADIATED EMISSION LIMIT............................................................................. 9 5.2 TEST EQUIPMENT...........................................................................................10 5.3 TEST SET-UP...................................................................................................11 5.4 TEST PROCEDURE .........................................................................................12 5.5 EUT OPERATING CONDITION ........................................................................12 5.6 RADIATED EMISSION TEST RESULT.............................................................13 6. PHOTOS OF TESTING.................................................................................... 15 7. TERMS OF ABRIVATION................................................................................. 18 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05052008 Report No.:FCCA05052008 Page:3 of 18 Date:June 09, 2005 FCC ID:FSUGMZH8 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - AC power source, 120 Vac/60 Hz, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05052008 Report No.:FCCA05052008 Page:4 of 18 Date:June 09, 2005 FCC ID:FSUGMZH8 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Wireless Mouse MODEL NO. GM-04018U/T, Ergo 3000/T POWER REQUIREMENTS DC 1.5V FREQUENCY BAND 27MHz CARRIER FREQUENCY 27.045 MHz CHANNEL BANDWIDTH 10KHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 47 dBuV MODE OF OPERATION Simplex ANTENNA TYPE Loop antenna NOTE : The EUT has two model numbers as below on market. They are identical in all aspects except for the customer. For more detailed features, please refer to the manufacturer’s specification or User’s Manual. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A05052008 Report No.:FCCA05052008 Page:5 of 18 Date:June 09, 2005 FCC ID:FSUGMZH8 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:2003 and CISPR22:2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOC CABLE 1 NOTEBOOK COMPAQ C510/C610 DOC 1.5m unshielded power cord 1.2m shielded data cable 2 MODEM ACEEX DM-1414 DOC 1.5m unshielded power cord 1.5m shielded data cable 3 PRINTER EPSON STYLUS C20SX DOC 1.8m unshielded power cord 1.5m shielded data cable 4 RECEIVER KYE GM-04018U/R DOC N/A 5 NOTE : For the actual test configuration, please refer to the photos of testing. 3. DESCRIPTION OF APPLIED STANDARDS The EUT is a kind of wireless product and to be connected with a PC system for normal use. According to the specifications provided by the applicant, it must comply with the requirements of the following standards: 47 CFR Part 15, Subpart C ANSI C63.4:2003 All tests have been performed and recorded as per the …

Text truncated - open the document above for the full version.

PHOTOS OF TESTING - Conducted test - Radiated test (TX) - Radiated test (RX)
