FSUGMZHJNavigator 805

ENGLISH 1 Hardware Installation 1. You can connect the receiver to a USB port of a PC 2. Install two AA batteries in the mouse. 3. Turn on your computer. The mouse can be worked. Not˸ˍʳIf the mouse does not have connection to the receiver, press the button on the receiver first and then press the button under the mouse for channel setting again. Important: Remember do not put the batteries in the wrong direction; use the same types of batteries. Also, keep all drinks away! If any spill occurs on the receiver, unplug the USB connector first and clean the receiver immediately. Please switch the button to "off" under the mouse once you don't use it for a long time, and remove the batteries if you do not use this device for at least two weeks. W arning: (Troubleshooting) 1. Please do not use wireless laser mouse on a desk, which is made of glass or mirror. Also, a flat surface is necessary or the laser sensor will error easily. When you use wireless laser mouse on a desk that is made of metal, try using a pad and reduce the receiving distance. 2. The wireless laser mouse channel provides 16 channels and 256 ID-codes, and it automatically selects the ID # for your mouse. You can only set up one wireless laser mouse at a time. ENGLISH 2 3. If the power indicator is on (see Button Assignments), then the batteries have lost their charge, so you need to replace them. Software Installation 1.Make sure the mouse is connected to the computer. 2.Put the CD driver into the CD drive. 3.Follow the instructions on the screen to finish the software installation. Security Function Setting: 1. After you install software driver, please click the mouse icon on the task bar and select “Mouse”. 2. Click “Settings” when the Mouse Properties appears up and click “Security Options”. 3. Choose a picture from your images to display when the computer is locked. Also set your password for unlock computer. Then, press “OK”, and the security setting will be finished. ENGLISH 3 4. If you want to start the security function, just press “ ”, and the picture you set pop up to hide the screen. For security, the mouse and keyboard won’t work. 5. If you want to unlock this function, just press “ ”again, and install your password. Factory Setting ENGLISH 4 Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: You can assign this button to frequently used keyboard and mouse functions in addition to features like Easy Jump, Auto-Panning, Zoom, etc. 3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. Horizontal Scroll: Press the roller to the left and the cursor scrolls to the left; press the roller to the right and the cursor scrolls to the right. 4. Security: Lock your screen, mouse and keyboard unless you install the password. 5. Power indicator: If your battery power is low, the LED will brighten. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

KYE SYSTEMS CORP. Date: December 27, 2005 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, KYE SYSTEMS CORP. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

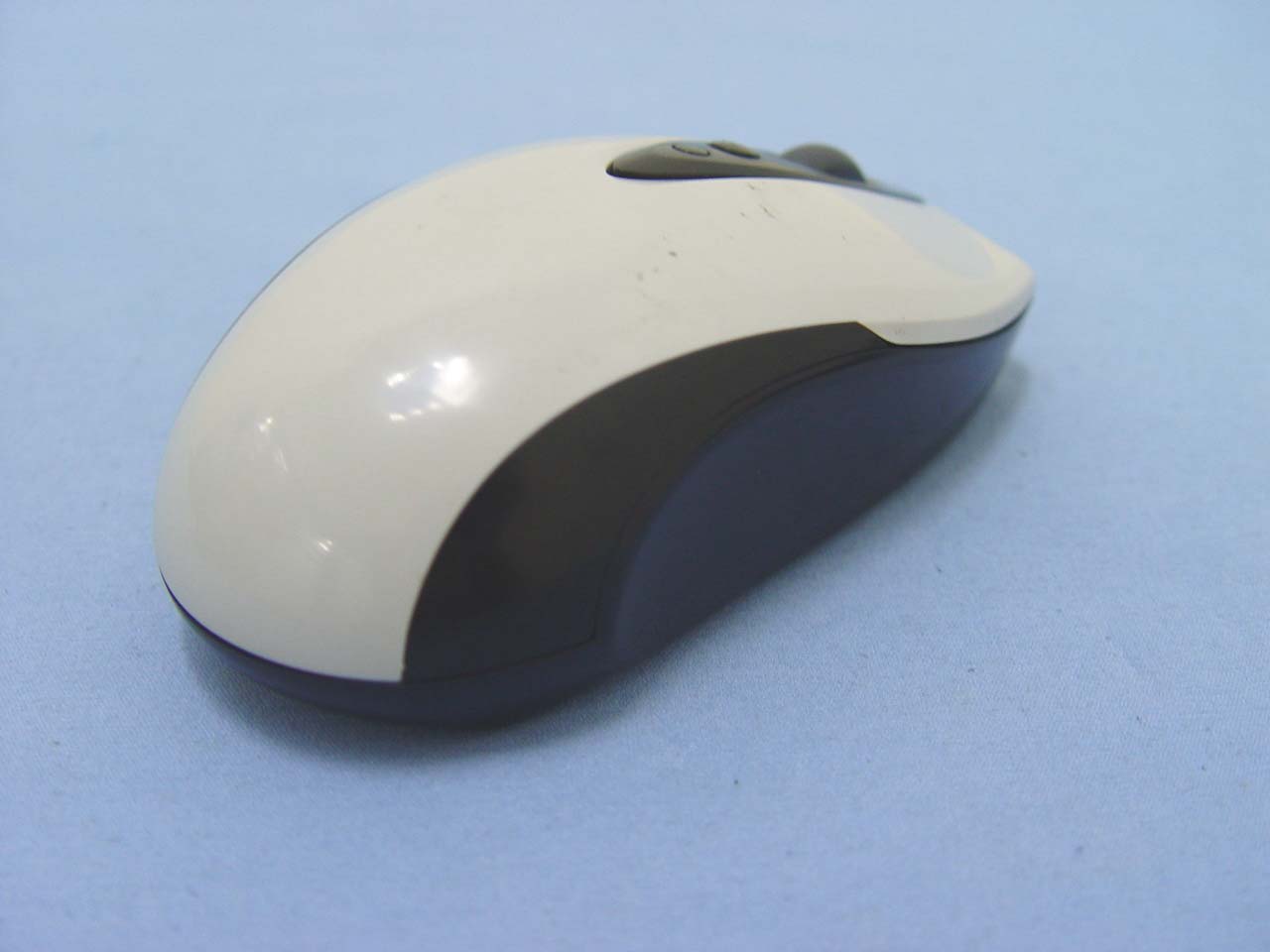

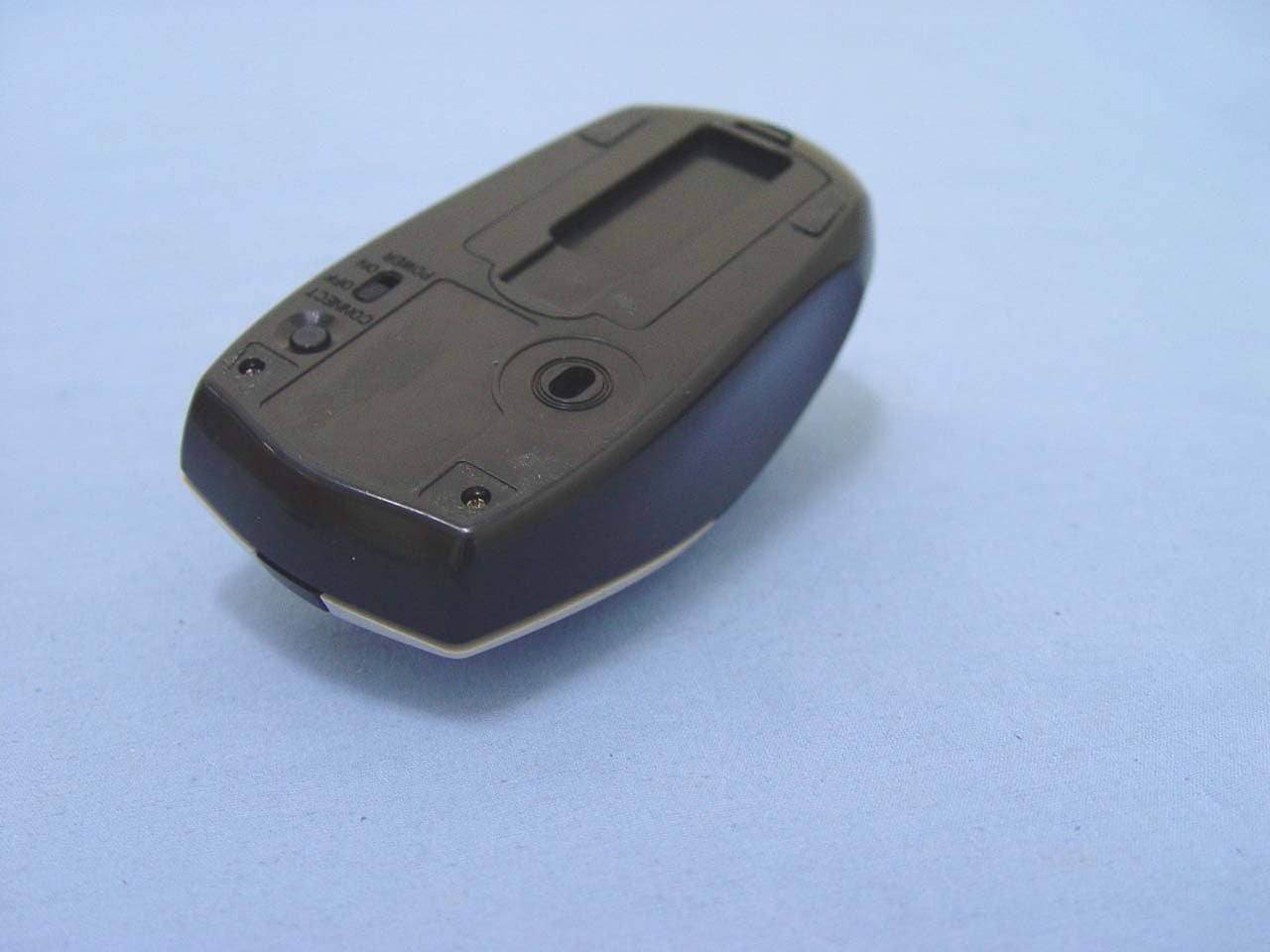

Compliance Certification Services Inc. Report No: 60428206 Date of Issue: June 16, 2006 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

Compliance Certification Services Inc. Report No: 60428206 Date of Issue: June 16, 2006 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60428206 Date of Issue: June 16, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 60428206 Date of Issue: June 16, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 60428206 Date of Issue: June 16, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 60428206 Date of Issue: June 16, 2006 Page 6 Rev.00

Compliance Certification Services Inc. Report No.: 60428206-RP1 FCC ID: FSUGMZHJ Date of Issue: June 9, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 Rev. 00 FCC 47 CFR PART 15 Subpart C TEST REPORT For Navigator 805 Model Number: GM-050024 / T Tr a d e Na me : G e n ius Issued to KYE SYSTEMS CORP No.492,Sec.5,Chung Hsin Rd.,San Chung, Taipei Hsien,241,Taiwan,R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60607208-RP1 FCC ID: FSUGMZHJ Date of Issue: June 9, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION.................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED.................................................................................. 7 4.3 FACILITIES .................................................................................................................................. 8 4.4 EQUIPMENT................................................................................................................................. 8 4.5 TABLE OF ACCREDITATIONS AND LISTINGS................................................................................ 9 5. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 10 5.1 SETUP CONFIGURATION OF EUT................................................................................................ 10 5.2 SUPPORT EQUIPMENT ........................................................................................................ 10 6. FCC PART 15.249 REQUIREMENTS......................................................................................... 11 6.1 BAND EDGES MEASUREMENT ......................................................................................... 11 6.2 RADIATED EMISSION ......................................................................................................... 16 6.3 POWERLINE CONDUCTED EMISSIONS........................................................................... 23 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP............................................................................ 24 Compliance Certification Services Inc. Report No.: 60428206-RP1 FCC ID: FSUGMZHJ Date of Issue: June 9, 2006 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: KYE SYSTEMS CORP. No.492, Sec.5, Chung Hsin Rd.,San Chung, Taipei Hsien, 241, Taiwan, R.O.C. Equipment Under Test: Navigator 805 Trade Name: Genius Model Number: GM-050024 / T Date of Test: May 18, ~ May 26, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Gavin Lim Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 60428206-RP1 FCC ID: FSUGMZHJ Date of Issue: June 9, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Navigator 805 Trade Name Genius Model Number GM-050024 / T Model Discrepancy N/A Power Supply Battery: AA *2 (DC 3V) Modulation Technique GFSK Number of Channels 16 Channels Channel Frequency (MHz) 0 2402 1 2425 2 2448 3 2471 4 2405 5 2428 6 2451 7 2474 8 2408 9 2431 10 2454 11 2477 12 2411 13 2434 14 2457 15 2480 Antenna Gain -3dBi Antenna Designation Printed Antenna Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: FSUGMZHJ filing to comply with Section 15.107 & 15.109 (FCC Part 15, Subpart B) and Section 15.207, 15.209, 15.249 (FCC Part 15, Subpart C Rules.) Compliance Certification Services Inc. Report No.: 60428206-RP1 FCC ID: FSUGMZHJ Date of Issue: June 9, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were perform…
