FSUGMZHTNAVIGATOR 900G LASER WIRELESS MOUSE

ENGLISH 1 Navigator 900G Laser (GM-060038) Hardware Installation 1. You can connect the receiver to a USB port of a PC 2. Install two AAA batteries in the mouse. 3. Turn on your computer. The mouse can be worked. Note: If the mouse does not have connection to the receiver, press the button on the receiver first and then press the button under the mouse for channel setting again. Important: Remember do not put the batteries in the wrong direction; use the same types of batteries. Also, keep all drinks away! If any spill occurs on the receiver, unplug the USB connector first and clean the receiver immediately. Please switch the button to "off" under the mouse once you don't use it for a long time, and remove the batteries if you do not use this device for at least two ENGLISH 2 weeks. W arning: (Troubleshooting) 1. Please do not use wireless laser mouse on a desk, which is made of glass or mirror. Also, a flat surface is necessary or the laser sensor will error easily. When you use wireless laser mouse on a desk that is made of metal, try using a pad and reduce the receiving distance. 2. The wireless laser mouse channel provides 16 channels and 256 ID-codes, and it automatically selects the ID # for your mouse. You can only set up one wireless laser mouse at a time. 3. If the power indicator is on (see Button Assignments), then the batteries have lost their charge, so you need to replace them. This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1） This device may not cause harmful interference and, （2） This device must accept any interference received, including interference that may cause undesired operation . NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT Software Installation 1. Make sure the mouse is connected to the computer. 2. Put the CD driver into the CD drive. 3. Follow the instructions on the screen to finish the software installation. Security Function Setting: 1. After you install software driver, please click the mouse icon on the task bar ENGLISH 3 and select “Mouse”. 2. Click “Settings” when the 3. Mouse Properties appears up and click “Security Options”. 4. Choose a picture from your images to display when the computer is locked. Also set your password for unlock computer. Then, press “OK”, and the security setting will be finished. ENGLISH 4 Factory Setting Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: You can assign this button to frequently used keyboard and mouse functions in addition to features like Easy Jump, Auto-Panning, Zoom, etc. 3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. Horizontal Scroll: Press the roller to the left and the cursor scrolls to the left; press the roller to the right and the cursor scrolls to the right. 4. Power indicator: If your battery power is low, the LED will brighten.

2012/01/12 SUBJECT: CONFIDENTIALLITY REQUEST REGARDING FCCID: FSUGMZHT REFERENCE: FCCID: FSUGMZHT Granted 22 Jan. 2007 To Whom It May Concern, Pursuant to Sections 0.457 and 0.459 of the commission’s Rules and our marketing department requirements. We hereby request confidentiality treatment of information accompanying this FCC ID as outlined below; Long Term: Block Diagram.pdf Schematic diagram.pdf The above material contains trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. We are aware that these documents have been public on the FCC Website since 22 Jan. 2007 . The reason that this was not requested originally was that SRT made a mistake and we made a mistake in that we did not check on their work. Sincerely, M.H.Lee

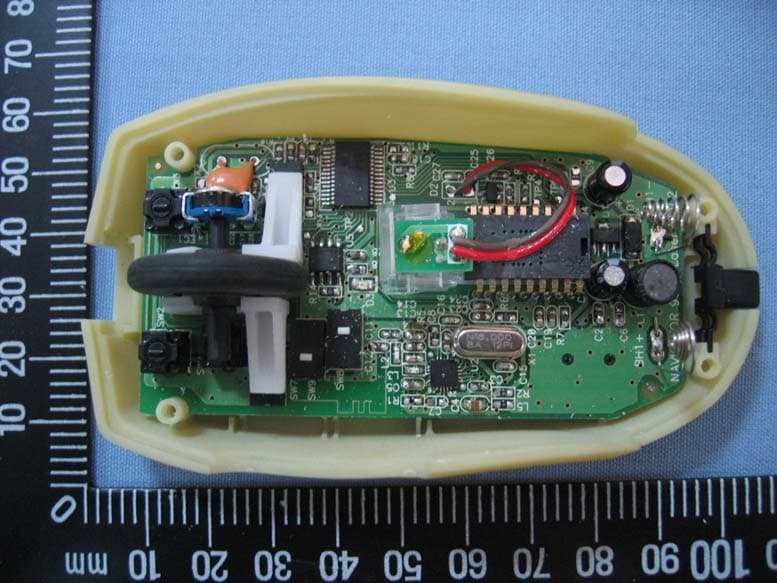

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 4 PHOTO OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 4 PHOTO OF EUT – TOP INSIDE Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 4 PHOTO OF EUT - CASE

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1） This device may not cause harmful interference and, （2） This device must accept any interference received, including interference that may cause undesired operation . FCC ID : FSUGMZHT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 4 PHOTO OF EUT - PCB

FCC ID: FSUGMZHM Operational Description of the equipment This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1） This device may not cause harmful interference and, （2） This device must accept any interference received, including interference that may cause undesired operation . The EUT is an excellent tool for mobile professionals. Product Navigator 900G Laser Model No. GM-060038/T Power Supply DC 3 V Frequency Band 2400-2480MHz Number of Channel 16 Channel Spacing 3 MHz Rated RF Output Power -6 dBm Modulation Type GFSK Bit Rate of Transmission 2000 kbps Mode of Operation Duplex. Antenna Gain -3 dBi Duty Cycle 50 % NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A07010409 Report No.: FCCA07010409 FCCID: FSUGMZHT Page:2 of 26 Date: Jan. 10, 2007 TABLE OF CONTENTS 1. DOCUMENT POLICY AND TEST STATEMENT...................................................... 3 1.1 DOCUMENT POLICY............................................................................................. 3 1.2 TEST STATEMENT ................................................................................................ 3 1.3 EUT MODIFICATION ............................................................................................. 3 2. DESCRIPTION OF EUT AND TEST MODE ........................................................... 4 2.1 GENERAL DESCRIPTION OF EUT....................................................................... 4 2.2 DESCRIPTION OF SUPPORT UNIT...................................................................... 4 2.3 DESCRIPTION OF TEST MODE ........................................................................... 5 3. DESCRIPTION OF APPLIED STANDARDS .......................................................... 5 4. TECHNICAL CHARACTERISTICS TEST................................................................ 6 4.1 20DB BANDWIDTH............................................................................................... 6 4.1.1 LIMIT ...................................................................................................................6 4.1.2 TEST EQUIPMENT ............................................................................................. 6 4.1.3 TEST SET-UP...................................................................................................... 6 4.1.4 TEST PROCEDURE............................................................................................ 6 4.1.5 TEST RESULT .................................................................................................... 7 4.2 BAND EDGE TEST ................................................................................................ 9 4.2.1 LIMIT...................................................................................................................... 9 4.2.2 TEST EQUIPMENT ........................................................................................... 10 4.2.3 TEST SET-UP.................................................................................................... 11 4.2.4 TEST PROCEDURE.......................................................................................... 12 4.2.5 EUT OPERATING CONDITION ........................................................................ 12 4.2.6 TEST RESULT .................................................................................................. 12 4.3 FUNDERMENTAL & SPURIOUS RADIATED EMISSION TEST ......................... 15 4.3.1 LIMIT....................................................................................................................15 4.3.2 TEST EQUIPMENT ........................................................................................... 16 4.3.3 TEST SET-UP.................................................................................................... 17 4.3.4 TEST PROCEDURE.......................................................................................... 18 4.3.5 EUT OPERATING CONDITION ........................................................................ 18 4.3.6 TEST RESULT .................................................................................................. 19 5. ANTENNA APPLICATION ..................................................................................... 23 5.1 ANTENNA REQUIREMENT ................................................................................. 23 5.2 RESULT................................................................................................................ 23 6. PHOTOS OF TESTING ........................................................................................ 24 7. TERMS OF ABBREVIATION ................................................................................. 26 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A07010409 Report No.: FCCA07010409 FCCID: FSUGMZHT Page:3 of 26 Date: Jan. 10, 2007 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - AC power source, 120 VAC/60 Hz, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A07010409 Report No.: FCCA07010409 FCCID: FSUGMZHT Page:4 of 26 Date: Jan. 10, 2007 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT Product Navigator 900G Laser Model No. GM-060038/T Power Supply DC 3 V Frequency Band 2402-2480MHz Number of Channel 16 Channel Spacing 3 MHz Rated RF Output Power -6 dBm Modulation Type GFSK Bit Rate of Transmission 2000 kbps Mode of Operation Duplex. Antenna Gain -3 dBi Duty Cycle 50 % NOTE： For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.2 DESCRIPTION OF SUPPORT UNIT The transmitter part of EUT was tested with a PC system and configured by the requirement of ANSI C63.4. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. No Device Brand Model # FCC ID/DoC Cable 1 N/A 2 3 4 5 NOTE ： For the actual test configuration, please refer to the photos of testing. Spectrum Research & Testing Lab., Inc. No. 101-10,…
