FSUGMZHUwireless mouse

ENGLISH 2 4. If the mouse does not have connection to the receiver, press the button on the receiver first and then press the button under the mouse for channel setting again. Software Installation 1. Make sure the mouse is connected to the computer. 2. Put the Setup disk (or CD) into the disk drive. 3. Follow the instructions on the screen to finish the software installation. Factory Setting 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: Provides traditional mouse click functions. 3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. Horizontal Scroll: Press the roller to the left and the cursor scrolls to the left; press the roller to the right and the cursor scrolls to the right.

ENGLISH 2 4. If the mouse does not have connection to the receiver, press the button on the receiver first and then press the button under the mouse for channel setting again. Software Installation 1. Make sure the mouse is connected to the computer. 2. Put the Setup disk (or CD) into the disk drive. 3. Follow the instructions on the screen to finish the software installation. Factory Setting 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: Provides traditional mouse click functions. 3. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. Horizontal Scroll: Press the roller to the left and the cursor scrolls to the left; press the roller to the right and the cursor scrolls to the right.

2012/01/12 SUBJECT: CONFIDENTIALLITY REQUEST REGARDING FCCID: FSUGMZHU REFERENCE: FCCID: FSUGMZHU Granted 31 Jan. 2007 To Whom It May Concern, Pursuant to Sections 0.457 and 0.459 of the commission’s Rules and our marketing department requirements. We hereby request confidentiality treatment of information accompanying this FCC ID as outlined below; Long Term: Block Diagram.pdf Schematic diagram.pdf The above material contains trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. We are aware that these documents have been public on the FCC Website since 31 Jan. 2007 . The reason that this was not requested originally was that SRT made a mistake and we made a mistake in that we did not check on their work. Sincerely, M.H.Lee

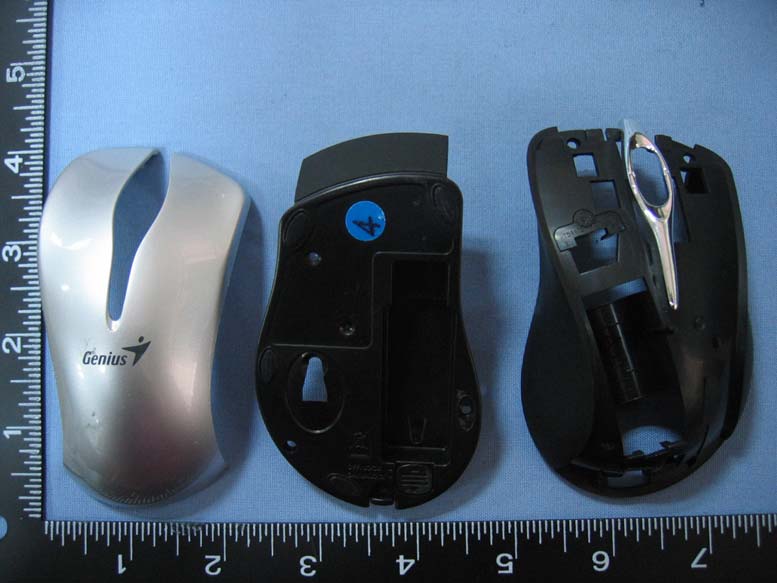

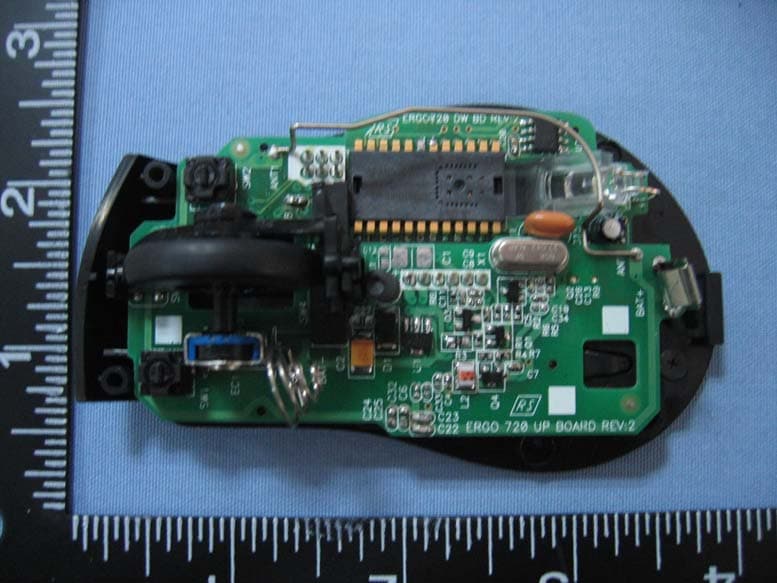

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 4 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 4 PHOTOS OF EUT-TOP IN Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 4 PHOTOS OF EUT-CASE

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 1 of 4 Model No.: GM-060036/T PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 2 of 4 PHOTOS OF EUT-TOP IN Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 3 of 4 PHOTOS OF EUT-CASE

Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1） This device may not cause harmful interference and, （2） This device must accept any interference received, including interference that may cause undesired operation . FCC ID :FSUGMZHU

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Photo Page: 4 of 4 PHOTOS OF EUT-PCB

C22 150PF C2333PF C25 NC C24 103 C32 10P C26180P C28103 C34NC C10 30P ZX2 SW7 LINK SW4 ZX1 SW1 L SW5 ZX2 L_B SW2 R R_B VDD M_BZX1 SW3 M LINK_B RF_POWER L_B C1915P 0603 ZX1 Tit leSize Document Number Rev Date: Sheet of 11 Wednesday , January 17, 2007 CKT: 21010038101 PCB: 上板 :10230694100 下板 :10230695100 A GM-060036 (Ergo 720 Laser) B C6 NC C1510UF C14105 LINK_B R733K VDD OSCO RF_DATA C20104 VDD ZX2 OSCO C7 103 C2115P 0603 Y118.43M ISDA C5 1500P U3 24CXX A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VDD 8 C422P VRF Q4MPSH 10 C18104 Q12N3906 1 23 M_BISCK D2 LED OSCI R412 ISCK C16104 Q33904 Z1 VDD L21000nH 1008 C17105 R539K C13NC RF_POWER U2 PAN3202 DI-L ZY1 1 ZY2 2 L_KEY 3 B4_KEY 4 LED 5 OSC_OUT 6 OSC_IN 7 VDDQ 8 VSSA 9 VDD 10 VDDA 11 VAY 12 B5_KEY 13 NC 14 ISCK 15 ISDA 16 CPI/RFID 17 RF_DATA 18 RF_EN 19 R_KEY 20 M_KEY 21 IRCTL 22 ZX2 23 ZX1 24 C87P R_B OSCI ISDA R2 5.6K Z2 Q22SC2714 X1 27.042M R9180 R1 47K R8 5.6K R612 ALPS ABC EC1Encoder DIY A Z2 VDD Z1 C9NC VBAT BT13V PCB R3 0 0805 D1 1N5817 1 2 VDD C33NC L1 220UH 1 2 C2 47UF B-case VRF GND J3CON6 123456 RF_DATA L_B RF_POWER VDDZ2 M_B ZX2 R_BZX1 LINK_B VDD Z1 LED_VCC J4CON6A 1 2 3 4 5 6 R104.7 C11470P R114.7 R124.7 R134.7 RF_DATA R144.7 R154.7 APR: DRW: SW6 Power DATE:2006-11-08Rev:1NEW 田淑真 彭志豪 S S CHK: ANT1PIFA LED_VCCC1NC C12NC C27NC DATE:2006-12-03Rev:2增加 C28,ESD 修改 J1CON6 123456 J2CON6A 1 2 3 4 5 6 U1 1.8V DC-DC VSS 1 LX 3 OUT 2 RF_POWER RF_DATA GNDVDDZ2L_B ZX2Z1LINK_B ZX1M_BR_B 2 3 1 2 Down Board

FCC ID: FSUGMZHM Operational Description of the equipment This device complies with Part 15 of the FCC rules, operation is subject to the following two conditions. （1） This device may not cause harmful interference and, （2） This device must accept any interference received, including interference that may cause undesired operation . The EUT is an excellent tool for mobile professionals. Product Wireless Mouse Moedl No. GM-060036/T Power Supply 1.5Vdc from battery Cable N/A Carrier Frequency 27.045 MHz Number of channel 1 Rated RF Output power 47dBuV Modulation type FSK Mode of operation Simplex Channel bandwidth 10KHz Antenna type Loop antenna NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:2 of 22 Date: Jan. 24, 2007 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ............................................... 3 1.1 DOCUMENT POLICY ........................................................................................ 3 1.2 TEST STATEMENT............................................................................................ 3 1.3 EUT MODIFICATION ......................................................................................... 3 2. DESCRIPTION OF EUT AND TEST MODE ...................................................... 4 2.1 GENERAL DESCRIPTION OF EUT .................................................................. 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE ................................................... 4 2.3 DESCRIPTION OF TEST MODE ....................................................................... 4 2.4 DESCRIPTION OF SUPPORT UNIT ................................................................. 5 3. DESCRIPTION OF APPLIED STANDARDS ..................................................... 5 4. CONDUCTED EMISSION TEST ........................................................................ 6 4.1 CONDUCTED EMISSION LIMIT ....................................................................... 6 4.2 TEST EQUIPMENT............................................................................................ 6 4.3 TEST SETUP..................................................................................................... 7 4.4 TEST PROCEDURE .......................................................................................... 7 4.5 EUT OPERATING CONDITION ......................................................................... 7 4.6 TEST RESULT ................................................................................................... 8 -5. RADIATED EMISSION TEST ........................................................................... 9 5.1 RADIATED EMISSION LIMIT ............................................................................ 9 5.2 TEST EQUIPMENT...........................................................................................10 5.3 TEST SET-UP ...................................................................................................11 5.4 TEST PROCEDURE .........................................................................................12 5.5 EUT OPERATING CONDITION ........................................................................12 5.6 RADIATED EMISSION TEST RESULT ............................................................13 6. BAND EDGE.................................................................................................... 16 6.1 BAND EDGE LIMIT ..........................................................................................16 6.2 TEST EQUIPMENT...........................................................................................16 6.3 TEST SET-UP ...................................................................................................16 6.4 TEST PROCEDURE .........................................................................................16 6.5 EUT OPERATING CONDITION ........................................................................16 6.6 BAND EDGE TEST RESULT ...........................................................................17 7. PHOTOS OF TESTING.................................................................................... 18 8. TERMS OF ABBREVIATION ........................................................................... 22 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:3 of 22 Date: Jan. 24, 2007 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. - The report must not be used by the applicant to claim that the product is endorsed by NVLAP, TÜV, NEMKO and SRT. - The NVLAP logo applies only to the applicable standards specified in this report. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - Power source, 3 Vdc(for EUT) and 120 Vac/60 Hz(for support units), was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:4 of 22 Date: Jan. 24, 2007 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT Product Wireless Mouse Moedl No. GM-060036/T Power Supply 1.5Vdc from battery Cable N/A Carrier Frequency 27.045 MHz Number of channel 1 Rated RF Output power 47dBuV Modulation type FSK Mode of operation Simplex Channel bandwidth 10KHz Antenna type Loop antenna NOTE : For more detailed features, please refer to the manufacturer’s specification or User’s Manual. 2.2 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKERMODEL # FCC ID/DOC REMARK N/A 2.3 DESCRIPTION OF TEST MODE N/A (It is only applicable to more than one test mode.) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:5 of 22 Date: Jan. 24, 2007 2.4 DESCRIPTION OF SUPPORT UNIT The EUT was configured by the requirement of ANSI C63.4:2003 and CISPR22:2003. All interface ports were connected to the appropriate support units via specific cables. The support units and cables are listed below. NO DEVICE BRAND MODEL # FCC ID/DOCCABLE 1 Printer …

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:18 of 22 Date: Jan. 24, 2007 7. PHOTOS OF TESTING - Conducted test Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:19 of 22 Date: Jan. 24, 2007 - Radiated test (Link) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:20 of 22 Date: Jan. 24, 2007 - Radiated test - TX (9K-30M) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TEST REPORT Reference No.:A07011803 Report No.:FCCA07011803 FCC ID:FSUGMZHU Page:21 of 22 Date: Jan. 24, 2007 - Radiated test - TX (30M-1G)
