FSUGMZHZErgo 825 Laser - Dongle

KYE SYSTEMS CORP.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Jun 11, 2007
Application Purpose: Original Equipment
Date of Application: Jun 10, 2007
Equipment Note: Ergo 825 Laser - Dongle
Frequency Range: 2402.00000000 - 2480.00000000
Company: KYE SYSTEMS CORP.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ENGLISH 1 Hardware Installation 1. You can connect the receiver to a USB port of a PC or Notebook. 2. Install the enclosed two AA batteries as directed 3. Turn on your computer 4. The channel setting is factory preset. Please try on the mouse after complete above procedures; if it is not working; Please re-connect by pressing the button on the receiver first and observe for flash light and press connect button underneath the mouse , then receiver will be lit and off when connection is confirmed. Software Installation 1. Make sure the mouse is connected to the computer 2. Place the setup disk (CD driver) into a DVD/CD Rom drive 3. Follow the instruction on the screen to complete the software installation ENGLISH 2 Warning (Trouble shooting) 1. Please do not use the wireless laser out on a desk that is made of glass or mirror 2. Although that the mouse has granted the eye safety certification, it is strongly suggested that a direct eye contact with the laser lens should be avoid. 3. The wireless laser mouser gives you free movement and an enjoyable wireless experience. For Optimal performance, place the receiver at least 8 inches (20cm) away from the mouse device. 4. For “HELP: of the Genius driver, please double click the icon right hand side. Mouse button definition: 1. Smart-search button Using the mouse to mark “key words” and press the button for fast access to open Yahoo, Google webpage or your PC system(Yahoo is the default webpage, you can change it in ioCentre software). All the information or files you searched will be listed. 2. Flip 3D button Provides fast access to scan all open windows in one easy view. 3. Zoom in/out button Press this button, then scroll the middle button. Scrolling up is “Zoom-in” and scrolling down is “Zoom-out”. Press the button again to release the function. ENGLISH 3 4. Left Button Provides traditional mouse functions such as click, double click and drag. 5. Turbo roller button Provides quick roller- up 6. Roller button/Middle button Scroll the button to surf the Internet and Windows documents. 7. Right button Provides traditional mouse click function 8. Turbo roller button Provides quick roller down 9. Battery low indicator The LED will be lit /flash when battery power is low. ENGLISH 4 10. FCC Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Attestation Statements


External Photos

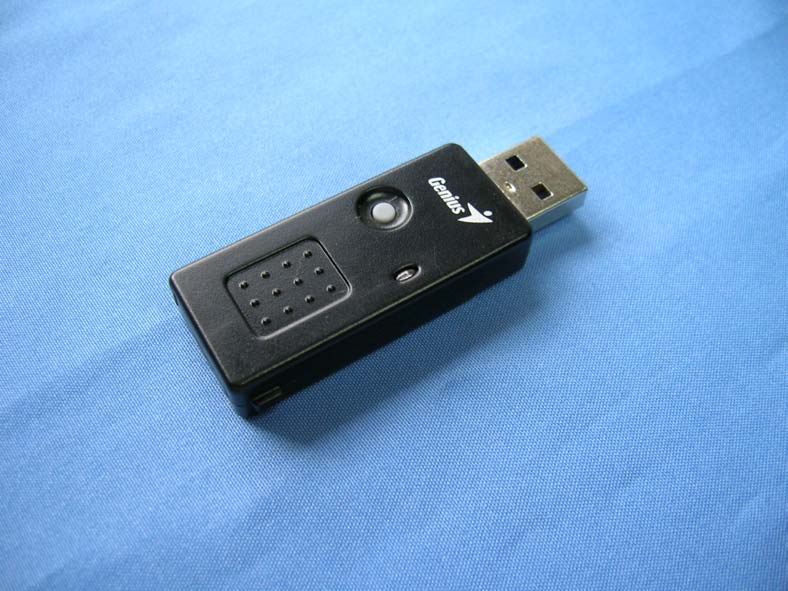

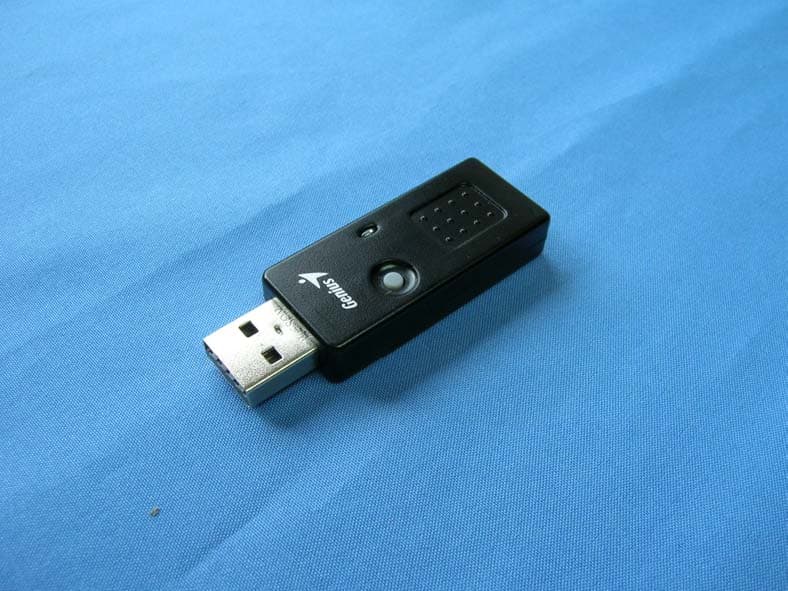

Report No：074L150-RFUSP07V01-B Page: 43 of 47 Version:1.0 Attachement ¾ EUT Photograph (1) EUT Photo (2) EUT Photo

ID Label/Location Info

FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below. Ergo 825 Laser Model No.: GM-070007/R F F C C C C I I D D : : FSUGMZHZ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan

Internal Photos

Report No：074L150-RFUSP07V01-B Page: 44 of 47 Version:1.0 (3) EUT Photo (4) EUT Photo Report No：074L150-RFUSP07V01-B Page: 45 of 47 Version:1.0 (5) EUT Photo Report No：074L150-RFUSP07V01-B Page: 46 of 47 Version:1.0 (6) EUT Photo Report No：074L150-RFUSP07V01-B Page: 47 of 47 Version:1.0 (7) EUT Photo

Operational Description

Report No：074L150-RFUSP07V01-B Page: 5 of 47 Version:1.0 1.2. Operational Description The EUT is 2.4GHz Wireless Dongle. The operation frequency is from 2400 MHz to 2483.5MHz with GFSK modulation. The signal will be transmitted through 2.4 GHz RF signal from the Printed on PCB antenna from EUT to receiver. DC 5V shall be provided for EUT operation.

Test Report

Report No：074L150-RFUSP07V01-B Page: 1 of 47 Version:1.0 Test Report Product Name：Ergo 825 Laser Model No. ：GM-070007/R FCC ID. ：FSUGMZHZ Applicant ：KYE SYSTEMS CORP. (Genius) Address ：No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C. Date of Receipt：2007/04/14 Issued Date ：2007/05/16 Report No. ：074L150-RFUSP07V01-B The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：074L150-RFUSP07V01-B Page: 2 of 47 Version:1.0 Test Report Certification Issued Date : 2007/05/16 Report No. : 074L150-RFUSP07V01-B Product Name ： Ergo 825 Laser Applicant ： KYE SYSTEMS CORP. (Genius) Address ： No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C. Manufacturer ： KYE SYSTEMS CORP. (Genius) Model No. ： GM-070007/R FCC ID. ： FSUGMZHZ Rated Voltage : AC 120 V / 60 Hz EUT Voltage : DC 5V (Power by PC) Trade Name ： Genius Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.249: 2006 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By ： ( Carol Tsai ) Tested By ： (Sheena Huang ) Approved By ： ( Roy Wan ) Report No：074L150-RFUSP07V01-B Page: 3 of 47 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information ..................................................................................................... 4 1.1. EUT Description ............................................................................................................. 4 1.2. Operational Description .................................................................................................. 5 1.3. Test Mode .......................................................................................................................6 1.4. Tested System Details .................................................................................................... 7 1.5. Configuration of tested System ...................................................................................... 7 1.6. EUT Exercise Software .................................................................................................. 8 1.7. Test Facility..................................................................................................................... 9 2. Conducted Emission.................................................................................................. 10 2.1. Test Equipment............................................................................................................. 10 2.2. Test Setup .................................................................................................................... 10 2.3. Limits ............................................................................................................................ 11 2.4. Test Procedure ............................................................................................................. 11 2.5. Test Specification.......................................................................................................... 11 2.6. Uncertainty ................................................................................................................... 11 2.7. Test Result....................................................................................................................12 2.8. Test Photo .................................................................................................................... 16 3. Radiated Emission ..................................................................................................... 17 3.1. Test Equipment............................................................................................................. 17 3.2. Test Setup .................................................................................................................... 17 3.3. Limits ............................................................................................................................ 18 3.4. Test Procedure ............................................................................................................. 19 3.5. Test Specification.......................................................................................................... 19 3.6. Uncertainty ................................................................................................................... 19 3.7. Test Result....................................................................................................................20 3.8. Test Photo .................................................................................................................... 34 4. Band Edge................................................................................................................... 36 4.1. Test Equipment............................................................................................................. 36 4.2. Test Setup .................................................................................................................... 37 4.3. Limits ............................................................................................................................ 38 4.4. Test Procedure ............................................................................................................. 38 4.5. Test Specification.......................................................................................................... 38 4.6. Uncertainty ................................................................................................................... 38 4.7. Test Result....................................................................................................................39 Attachement ..............................…
