FSUGMZI2ERGOMEDIA 823 LASER

ENGLISH 1 Hardware Installation 1. Install two AA batteries each into the mouse and keyboard. 2. Plug in the USB receiver to a USB port of your PC. 3. Plug the Mic in & Speaker out connector to your PC. 4. Turn on your PC. Software Installation 1. Place your CD driver in your PC drive for software installation. 2. Follow the instruction on the screen to finish the software installation. 3. For “HELP with the Genius driver, click on the icon found on the right hand side of the screen. Replace Batteries 1. If the keyboard does not work properly, then the batteries have lost their charge, so please replace them. 2. If the mouse’s battery power is low, the power indicator will brighten when you are moving the mouse. Warning: Do not mix or use different types of batteries at the same time. ID Channel Setting The channel ID is factory preset. The green LED (data transmission indicator) will be lit constantly when the wireless device is in normal operation. In case your wireless devices do not work, please reset the ID channel by: ENGLISH 2 1. Press the connect button on the receiver and the LED will be blinking for connection first; then, press the connect button of the wireless mouse. 2. Because wireless keyboard and mouse use different RF protocol, after your mouse is connected, you need to press the receiver connect button again, then press the keyboard connect button to finish the wireless keyboard and mouse connect procedure. Warning (Trouble shooting) 1. In case the wireless device was not connected when you set the ID channel setting, check if you have installed the batteries with the positive (+) and negative (-) ends in the correct position, then repeat the ID channel setting again. 2. For optimum performance, make sure that the distance between the wireless device and the dongle receiver does not exceed 10M. 3. For Windows Media Player Ver 11.0, you need to click on “play” to start playing music first after the software installation due to Microsoft system presets. Programming and selection 1. Only Word/ Excel/ Power Point/ Photo Gallery/ File Search/Messenger/Messenger Status/Web cam/Internet/Internet Search/Refresh/Stop/Blog/Add to my favorite/My Favorite/Mail/ My computer/Zoom in & out/Scrolling buttons are capable of being programmable. 2. To re-program for other media programs, software installation is required. 3. Media Player key allows you to choose from various playing programs. 4. Messenger key allows you to choose from Windows Messenger/MSN Messenger/Skype/ICQ when installed. ENGLISH 3 Remark 1. These buttons will not work unless the driver has been installed: Scrolling buttons/ left and right scrolling function/Zoom in & out/Messenger/Messenger status/Web cam/Photo Gallery/File Search/Blog/Add to my favorite/Word/Excel/Power Point. Mouse Factory Setting 1. Left Button: Provides traditional mouse functions such as click, double click and drag. 2. 4D Horizontal browsing to the left 3. Magic Roller/Middle button: Scroll the button to surf the Internet and Windows documents. 4. Turbo roller button: Provides quick roller up. 5. Right button: Provides traditional mouse click function 6. 4D Horizontal browsing to the right 7. Turbo roller button: Provides quick roller down. 8. Flip 3D button: Provides fast access to all opened windows in one easy view. 9. Power indicator: If your battery power is low, the LED will brighten when you are moving the mouse. Adjust dpi resolution Press left and right button together for three seconds, the resolution will switch from 1600 to 800 dpi. Press both buttons again for three seconds and it will revert to 1600 dpi. The LED flash is shorter for 800 dpi. (The default resolution is 1600 dpi). ENGLISH 4 Keyboard hot key definition NO Hot Key Description 01 Copy Activate copy function 02 Cut Activate cut function 03 Save Activate save function 04 Print Activate print function 05 Word Access to Word file 06 Excel Access to Excel file 07 Power Point Access to Power Point file 08 MCE Access to Media Center Start menu (MCE function works in Windows XP MCE Edition/ Vista Home Premium/ Vista Ultimate ONLY) 09 Photo gallery Open Photo Gallery folder 10 File search Search for a file or folder 11 Media Player Activate Media Player 12 Play/Pause Play/Pause music or video sources 13 Previous Track Back to Previous track 14 Volume Up Increase volume 15 Volume Down Decrease volume 16 Next Track Go to next track 17 Mute Toggle off /on 18 Stop Stop play of audio/video sources 19 Messenger Open Messenger icon 20 Messenger Status Go to Messenger’s status 21 Webcam Connect Messenger’s Internet Webcam 22 Internet Open browser in Netscape or IE 23 Search Open Internet Explorer search panel 24 Refresh Update the information on an active Internet page ENGLISH 5 25 Stop Stop loading or refresh a web page 26 My Blog Activate MSN space or setup blog web site by users 27 Add to my favorite Add a web site to Internet Explorer favorite panel 28 My Favorite Open Internet Explorer favorite panel 29 Mail Active a default email program 30 My computer Open My computer path 31 Lock Activate the security lock function 32 Page up Rolling up the activated page 33 Scrolling Button Open activated applications 34 Page Down Rolling down the activated page 35 Zoom In Enlarge the ratio of office document or pictures 36 Zoom Out Decrease the ratio of office document or pictures ENGLISH 6 Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below:
Different battery types and surrounding temperatures may affect the battery performance.
Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance.
If you are using a new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) it might affect the period of time you can use this device. Th…

Text truncated - open the document above for the full version.

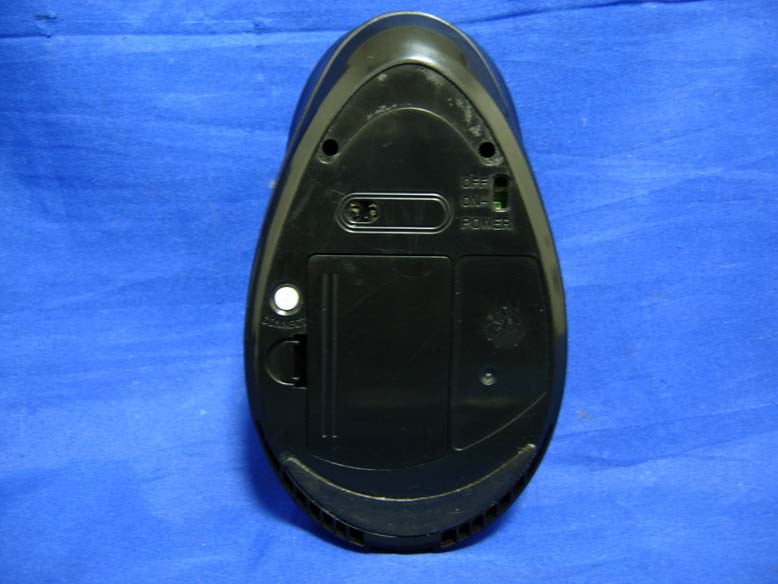

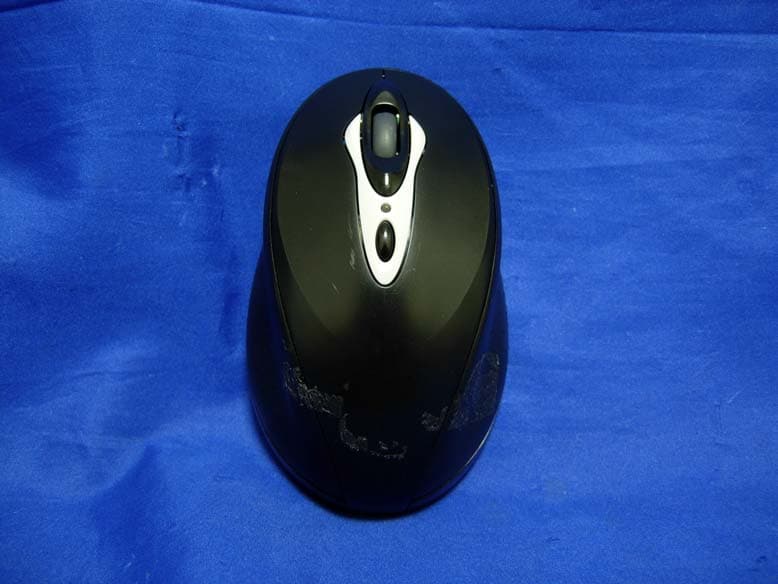

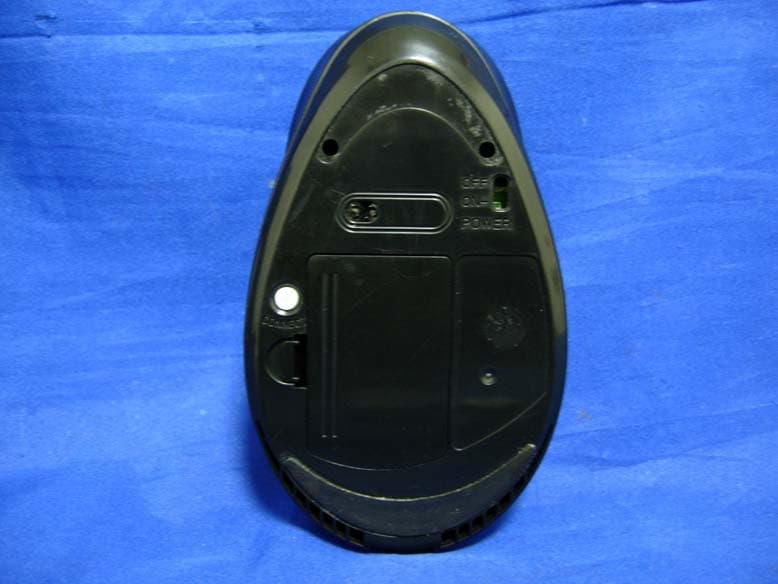

Report No.: 077259R-RFUSP07V01 Page : 1 of 5 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

KYE SYSTEMS CORP. (Genius) FCC ID.: FSUGMZI2 No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C..Tel : 886-2-2995-6645#3399 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No. 077259R-RFUSP07V01 Page: 5 of 27 Version:1.0 1.2. Operational Description The EUT is 2.4GHz Wireless Mouse built-in 2.4GHz transceiver. The operation frequency is from 2402 MHz to 2480MHz with GFSK modulation. The signal will be transmitted through 2.4 GHz RF signal from the Printed on PCB antenna from EUT to receiver. DC 3V shall be provided for EUT operation.

Report No. 077259R-RFUSP07V01 Page: 1 of 26 Version:1.0 Test Report Product Name ErgoMedia 823 Laser Model No. GK-070007/T FCC ID FSUGMZI2 Applicant KYE SYSTEMS CORP. (Genius) Address No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C. Date of Receipt July 18, 2007 Issued Date Aug. 07, 2007 Report No. 077259R-RFUSP07V01 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 077259R-RFUSP07V01 Page: 2 of 26 Version:1.0 Test Report Certification Issued Date: Aug. 07, 2007 Report No.: 077259R-RFUSP07V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name ErgoMedia 823 Laser Applicant KYE SYSTEMS CORP. (Genius) Address No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C. Manufacturer KYE SYSTEMS CORP. (Genius) Model No. GK-070007/T Rated Voltage AC 120V/60Hz Working Voltage DC 3V(Power by battery) Trade Name Genius Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2006 ANSI C63.4: 2003 Test Result Complied Documented By : (Engineering Adm. Specialist / Genie Chang ) Tested By : ( Engineer /Molin Huang ) Approved By : ( President / Gene Chang ) 0914 Report No. 077259R-RFUSP07V01 Page: 3 of 26 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of Test System ........................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Radiated Emission .......................................................................................................................8 2.1. Test Equipment..............................................................................................................................8 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Radiated Emission................................................................................................11 3. Band Edge ..................................................................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................19 3.4. Test Procedure .............................................................................................................................19 3.5. Uncertainty ..................................................................................................................................19 3.6. Test Result of Band Edge ............................................................................................................20 4. EMI Reduction Method During Compliance Testing ............................................................24 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 077259R-RFUSP07V01 Page: 4 of 26 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name ErgoMedia 823 Laser Trade Name Genius Model No. GK-070007/T FCC ID FSUGMZI2 Frequency Range 2402~2480MHz Channel Control Manual Channel Separation 3MHz Antenna Gain -3dBi Channel Number 16 Type of Modulation GFSK Antenna Type Soldered on PCB Frequency of Each Channel Working Frequency of Each Channel Channel Frequency Channel FrequencyChannel Frequency Channel Frequency Channel 00 2402MHz Channel 01 2405MHz Channel 02 2408MHz Channel 03 2411MHz Channel 04 2425MHz Channel 05 2428MHz Channel 06 2431MHz Channel 07 2434MHz Channel 08 2448MHz Channel 09 2451MHz Channel 10 2454MHz Channel 11 2457MHz Channel 12 2471MHz Channel 13 2474MHz Channel 14 2477MHz Channel 15 2480MHz Note: 1. The EUT is a ErgoMedia 823 Laser with a built-in 2.4GHz transceiver. 2. Regarding to the operation frequency, the lowest, middle and highest frequency are selected to perform the test. 3. Lowest and highest data rates are tested in each mode. Only worst case is shown in the report. 4. These tests are con…

Text truncated - open the document above for the full version.

Report No.: 077259R-RFUSP01V02 Page : 1 of 2 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No.: 077259R-RFUSP01V02 Page : 2 of 2 Version:1.0 Front View of Radiated Test (Horn) Front View of Radiated Test (Horn)
