ENGLISH 1 Hardware Installation 1. Install AA battery in the mouse. 2. Plug in the USB receiver to a USB port of your PC. 3. Turn on your PC. Software Installation You can download the software from www.geniusnet.com. Go to Service & Support and select “Drivers”. In Product Line, select “Keyboard & Mouse combination”, then go to “Select Model” and select “KB 600”. Then select the OS you are using. Click on the file name to start the download. Once you have downloaded the driver to your PC, click on the file name to start the software installation. Just follow the instructions shown on the screen to complete the installation. Important Notice 1. Default hotkeys operate immediately when using Windows XP or above. 2. When the mouse is in sleep mode (power saving mode), press any button on the mouse to wake it up. ID Channel Setting The channel buttons are factory preset. The green LED, the data transmissions indicator on the receiver will be lit when the keyboard or mouse is in normal operation. If the keyboard / mouse do not work then you have to reset the ID channel setting. Please press the connect button on the receiver first and press the connect buttons under the mouse and keyboard within 20 seconds. “Warning (Trouble shooting) ENGLISH 2 1. The wireless desktop set provides 256 ID codes, and it selects the ID # for your wireless devices. You can only set up one wireless desktop at a time. If you have another 27Mhz wireless desktop set within 10 square meters, there may be interference between the wireless devices. 2. Although the mouse has been granted eye safety certification, it is strongly suggested that direct eye contact with the laser lens be avoided. 3. To use MSN and Lock function, the software must be installed. 4. To re-program other media programs, software installation is required. Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Right Button: Provides traditional mouse click function 3. Magic-Roller: Scroll the button to surf the Internet and Windows documents. Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: „ Different battery types and surrounding temperatures may affect the battery performance. „ Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance. „ If you are using a new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) it might affect the period of time you can use this device. Therefore, to maximize their performance and lifetime, we ENGLISH 3 recommend that you fully charge the batteries and discharge them for at least one complete cycle before use. „ The battery may feel warm when using the wireless device for an extended period of time or using the flash continuously. This is normal and not a malfunction. „ The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction. „ If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion. „ Always keep the terminals in a clean state. „ Never use manganese batteries. „ Risk of explosion if battery is replaced by an incorrect type. „ Dispose of used batteries according to the instructions. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.

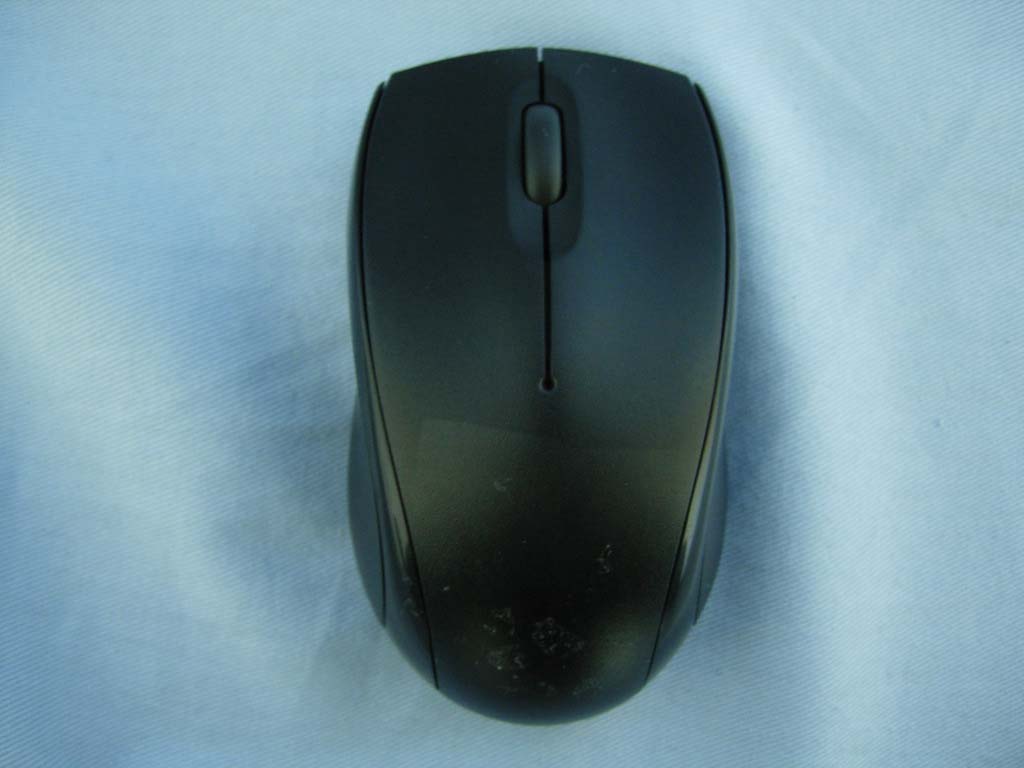

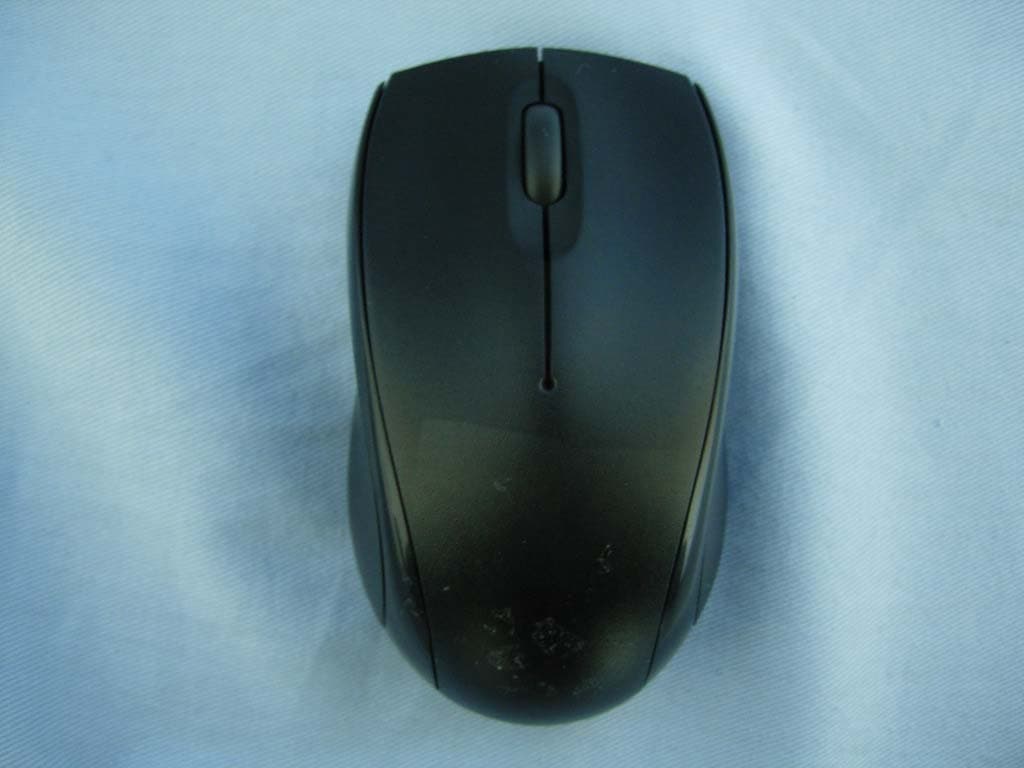

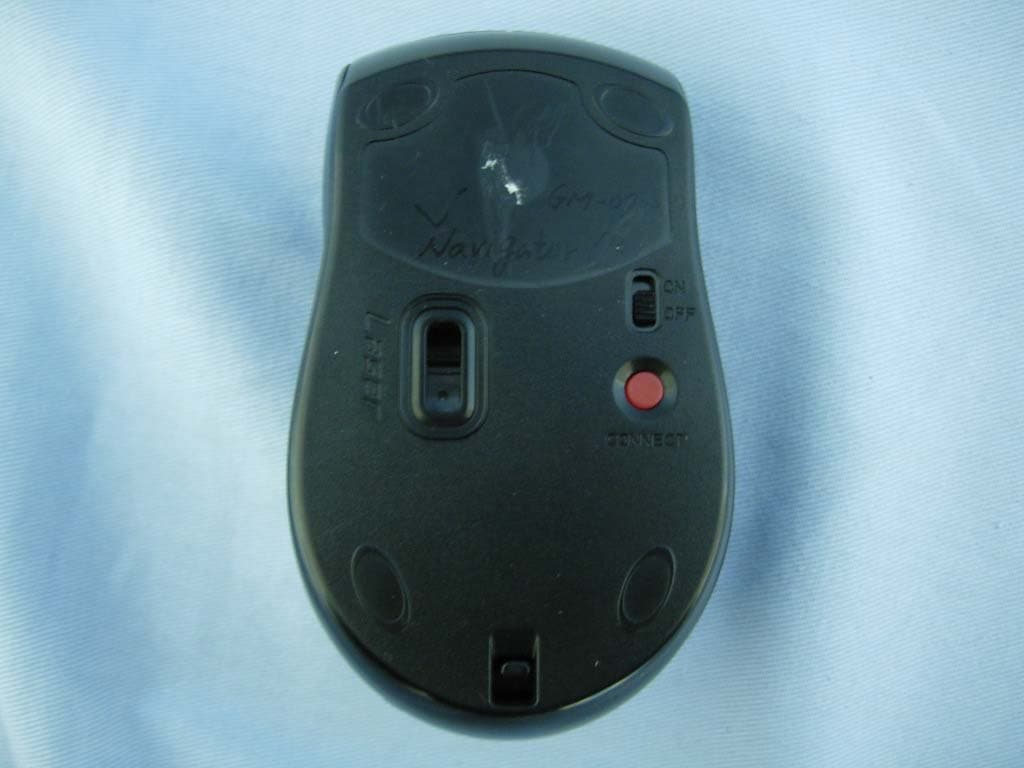

Report No.: 07C344R-RFUSP03V01 Page : 1 of 7 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

KYE SYSTEMS CORP. (Genius) FCC ID.: FSUGMZI6 No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C..Tel : 886-2-2995-6645#3399 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Report No.: 07C344R-RFUSP03V01 Page : 2 of 7 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 07C344R-RFUSP03V01 Page : 3 of 7 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 07C344R-RFUSP03V01 Page : 4 of 7 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 07C344R-RFUSP03V01 Page : 5 of 7 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 07C344R-RFUSP03V01 Page : 6 of 7 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 07C344R-RFUSP03V01 Page : 7 of 7 Version:1.0 (13) EUT Photo

Report No. 07C344R-RFUSP03V01 Page : 5 of 23 Version:1.0 1.2. Operational Description The EUT is a Navigator 700 Laser (Mouse) used in household and office PC system. The number of the channels is 1 in 27.045MHz. The device adopts FSK modulation. The loop antenna provides diversity function to improve the transmitting function.

Report No. 07C344R-RFUSP03V01 Page : 1 of 23 Version:1.0 Test Report Product Name Navigator 700 Laser Model No. GM-070017/T FCC ID. FSUGMZI6 Applicant KYE SYSTEMS CORP. (Genius) Address No.492 Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan. R.O.C. Date of Receipt Dec. 24 2007 Issued Date Jan. 10, 2008 Report No. 07C344R-RFUSP03V01 The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 07C344R-RFUSP03V01 Page : 2 of 23 Version:1.0 Test Report Certification Test Date: Jan. 10, 2008 Report No.: 07C344R-RFUSP03V01 Product Name Navigator 700 Laser Applicant KYE SYSTEMS CORP. (Genius) Address No.492 Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan. R.O.C. Manufacturer KYE SYSTEMS CORP. (Genius) Model No. GM-070017/T FCC ID. FSUGMZI6 Rated Voltage AC 120V/60Hz EUT Working Voltage DC 1.5V Trade Name Genius Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2007 ANSI C63.4: 2003 CISPR 22: 2005 Test Result Complied The Test Results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Adm. Specialist / Genie Chang ) Tested By : ( Assistant Engineer / Johnson Liao ) Approved By : ( Deputy Manager / Vincent Lin) Report No. 07C344R-RFUSP03V01 Page : 3 of 23 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION.......................................................................................................4 1.1. EUT Description..........................................................................................................................4 1.2. Operational Description.............................................................................................................5 1.3. Test System Details....................................................................................................................6 1.4. Configuration of Test System....................................................................................................6 1.5. EUT Exercise Software..............................................................................................................6 1.6. Test Facility..................................................................................................................................7 2. Conducted Emission...............................................................................................................8 2.1. Test Equipment...........................................................................................................................8 2.2. Test Setup....................................................................................................................................8 2.3. Limits.............................................................................................................................................8 2.4. Test Procedure............................................................................................................................9 2.5. Uncertainty...................................................................................................................................9 2.6. Test Data of Conducted Emission............................................................................................9 3. Radiated Emission.................................................................................................................10 3.1. Test Equipment.........................................................................................................................10 3.2. Test Setup..................................................................................................................................10 3.3. Limits...........................................................................................................................................11 3.4. Test Procedure..........................................................................................................................12 3.5. Uncertainty.................................................................................................................................12 3.6. Test Data of Radiated Emission.............................................................................................13 4. Band Edge................................................................................................................................18 4.1. Test Equipment.........................................................................................................................18 4.2. Test Setup..................................................................................................................................18 4.3. Limit............................................................................................................................................19 4.4. Test Procedure..........................................................................................................................19 4.5. Test Result of Band Edge........................................................................................................20 5. EMI Reduction Method During Compliance Testing.....................................................21 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 07C344R-RFUSP03V01 Page : 4 of 23 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name Navigator 700 Laser Trade Name Genius FCC ID. FSUGMZI6 Model No. GM-070017/T EUT Working Voltage DC 1.5V Frequency Range 27.045MHz Type of Modulation FSK Type of antenna Loop Antenna Number…

Text truncated - open the document above for the full version.

Report No.: 07C344R-RFUSP03V01 Page : 1 of 2 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No.: 07C344R-RFUSP03V01 Page : 2 of 2 Version:1.0 Front View of Radiated Test (Loop) Back View of Radiated Test (Loop)
