FSUGMZIBTraveler T925 Laser

KYE SYSTEMS CORP.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Apr 13, 2008
Application Purpose: Original Equipment
Date of Application: Apr 12, 2008
Equipment Note: Traveler T925 Laser
Frequency Range: 2402.00000000 - 2480.00000000
Company: KYE SYSTEMS CORP.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ENGLISH 1 Hardware Installation 1. You can connect the receiver to a USB port of a PC. 2. Install two AA batteries in the mouse. 3. Turn on your computer. The mouse can now work. Software Installation 1. Make sure the mouse is connected to the computer. 2. Put the CD driver into the CD drive. 3. Follow the instructions on the screen to finish the software installation. Warning: (Troubleshooting) 1. Please do not use wireless laser mouse on a desk, which is made of glass or mirror. 2. The wireless laser mouse automatically selects the channel for your mouse. 3. If you feel the mouse does not move smooth as usual, please check the battery indicator on the mouse. If the batteries have lost their charge, replace them. Remember do not put the batteries in the wrong direction. Note：Class 1 Laser Product. Passed eye-safety regulation.(IEC 60825-1) ENGLISH 2 Button Assignments 1. Press the side button as indicated and gently slide your finger over the crystal sensing area of the OptoWheel to activate the turbo scroll function and release the side button to disable. 2. Left Button: Provides traditional mouse functions such as click, double click and drag. 3. 8 way scroll function or Middle button: Gently slide your finger over the OptoWheel to scroll in eight different directions to surf the Internet and Windows documents or press the OptoWheel down to activate the middle button function. Flip 3D button: Provides fast access to all opened windows in one easy view. 4. Right button: Provides traditional mouse click function Note: Adjust dpi resolution Press left and right button together for three seconds, the resolution will switch from 1600 to 800 dpi. Press both buttons again for three seconds and it will revert to 1600 dpi. The LED flash is shorter for 800 dpi. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.

External Photos

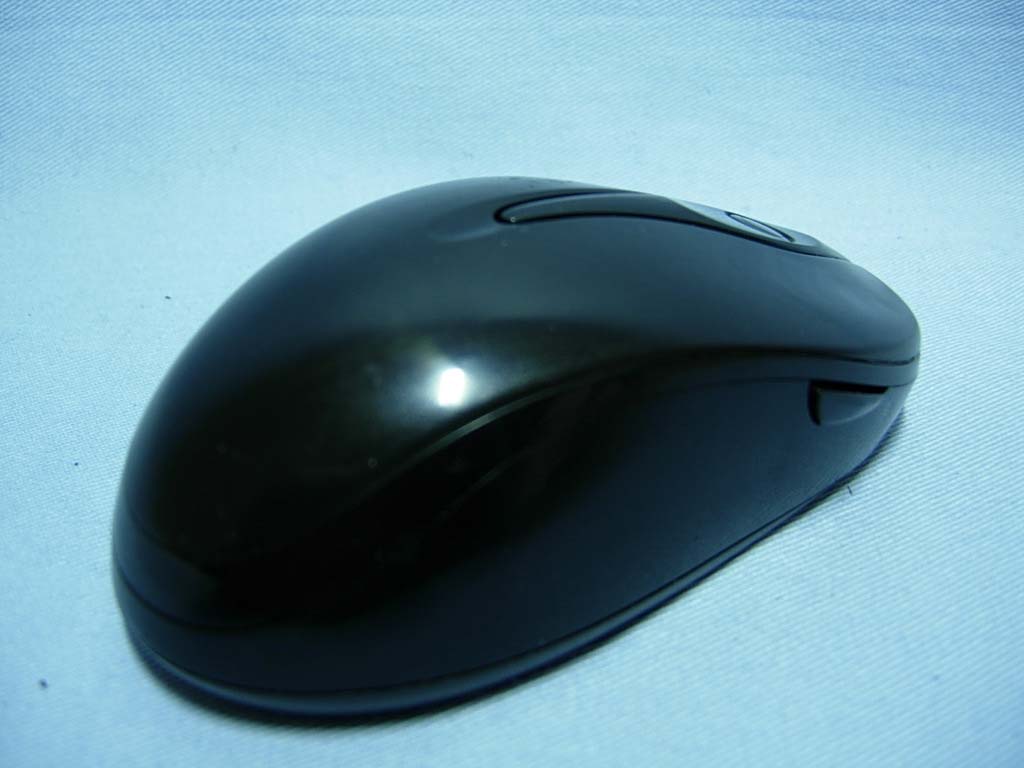

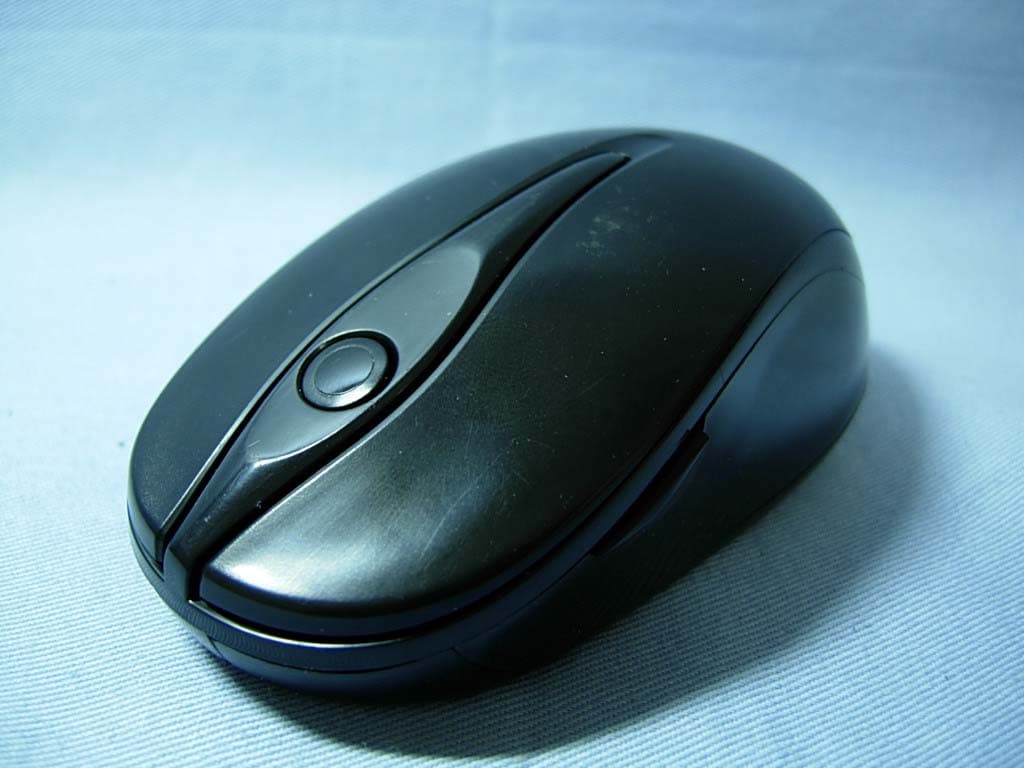

Report No.: 082058R-RFUSP07V01 Page : 1 of 9 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

ID Label/Location Info

KYE SYSTEMS CORP. (Genius) FCC ID.: FSUGMZIB No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C..Tel : 886-2-2995-6645#3399 FCC ID Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below.

Internal Photos

Report No.: 082058R-RFUSP07V01 Page : 2 of 9 Version:1.0 (3) EUT Photo (4) EUT Photo Report No.: 082058R-RFUSP07V01 Page : 3 of 9 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 082058R-RFUSP07V01 Page : 4 of 9 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 082058R-RFUSP07V01 Page : 5 of 9 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 082058R-RFUSP07V01 Page : 6 of 9 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 082058R-RFUSP07V01 Page : 7 of 9 Version:1.0 (13) EUT Photo (14) EUT Photo RF Antenna Report No.: 082058R-RFUSP07V01 Page : 8 of 9 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 082058R-RFUSP07V01 Page : 9 of 9 Version:1.0 (17) EUT Photo (18) EUT Photo

Operational Description

Report No. 082058R-RFUSP07V01 Page: 5 of 26 Version:1.0 1.2. Operational Description The EUT is 2.4GHz Wireless Mouse built-in 2.4GHz transceiver. The operation frequency is from 2402 MHz to 2480MHz with GFSK modulation. The signal will be transmitted through 2.4 GHz RF signal from the Printed on PCB antenna. DC 3V shall be provided for EUT operation.

Test Report

Report No. 082058R-RFUSP07V01 Page: 1 of 26 Version:1.0 Test Report Product Name Traveler T925 Laser Model No. GM-070013/T FCC ID FSUGMZIB Applicant KYE SYSTEMS CORP. (Genius) Address No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C. Date of Receipt Jan. 31 , 2008 Issued Date Mar. 17, 2008 Report No. 082058R-RFUSP07V01 Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 082058R-RFUSP07V01 Page: 2 of 26 Version:1.0 Test Report Certification Issued Date: Mar. 17, 2008 Report No.: 082058R-RFUSP07V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name Traveler T925 Laser Applicant KYE SYSTEMS CORP. (Genius) Address No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R. O. C. Manufacturer KYE SYSTEMS CORP. (Genius) Model No. GM-070013/T Rated Voltage DC 3V(Power by battery) Working Voltage DC 3V(Power by battery) Trade Name Genius Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2007 ANSI C63.4: 2003 Test Result Complied Documented By : ( Adm. Specialist / Leven Huang) Tested By : ( Engineer / Molin Huang) Approved By : ( Deputy Manager / Vincent Lin) Report No. 082058R-RFUSP07V01 Page: 3 of 26 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of Test System ........................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Radiated Emission .......................................................................................................................8 2.1. Test Equipment..............................................................................................................................8 2.2. Test Setup ......................................................................................................................................9 2.3. Limits ............................................................................................................................................9 2.4. Test Procedure .............................................................................................................................10 2.5. Uncertainty ..................................................................................................................................10 2.6. Test Result of Radiated Emission................................................................................................11 3. Band Edge ..................................................................................................................................18 3.1. Test Equipment............................................................................................................................18 3.2. Test Setup ....................................................................................................................................18 3.3. Limits ..........................................................................................................................................19 3.4. Test Procedure .............................................................................................................................19 3.5. Uncertainty ..................................................................................................................................19 3.6. Test Result of Band Edge ............................................................................................................20 4. EMI Reduction Method During Compliance Testing ............................................................24 Attachment 1: EUT Test Photographs Attachment 2: EUT Detailed Photographs Report No. 082058R-RFUSP07V01 Page: 4 of 26 Version:1.0 1. GENERAL INFORMATION 1.1. EUT Description Product Name Traveler T925 Laser Trade Name Genius Model No. GM-070013/T FCC ID FSUGMZIB Frequency Range 2402~2480MHz Channel Control Auto Channel Separation 1MHz Antenna Gain -3dBi Channel Number 79 Type of Modulation GFSK Antenna Type Printed on PCB Frequency of Each Channel Channel Frequency Channel FrequencyChannel FrequencyChannel Frequency Channel 01: 2402 MHz Channel 21: 2422 MHzChannel 41:2442 MHzChannel 61: 2462 MHz Channel 02: 2403 MHz Channel 22: 2423 MHzChannel 42:2443 MHzChannel 62: 2463 MHz Channel 03: 2404 MHz Channel 23: 2424 MHzChannel 43:2444 MHzChannel 63: 2464 MHz Channel 04: 2405 MHz Channel 24: 2425 MHzChannel 44:2445 MHzChannel 64: 2465 MHz Channel 05: 2406 MHz Channel 25: 2426 MHzChannel 45:2446 MHzChannel 65: 2466 MHz Channel 06: 2407 MHz Channel 26: 2427 MHzChannel 46:2447 MHzChannel 66: 2467 MHz Channel 07: 2408 MHz Channel 27: 2428 MHzChannel 47:2448 MHzChannel 67: 2468 MHz Channel 08: 2409 MHz Channel 28: 2429 MHzChannel 48:2449 MHzChannel 68: 2469…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: 082058R-RFUSP07V01 Page : 1 of 2 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Radiated Test Back View of Radiated Test Report No.: 082058R-RFUSP07V01 Page : 2 of 2 Version:1.0 Front View of Radiated Test (Horn) Front View of Radiated Test (Horn)
