FSUGMZJ7Ring Mouse

English 1 Hardware Installation Note: Supports Windows 7/Vista/XP. 1. Connect the pico receiver to a USB port of a PC or notebook. 2. Make sure that you have turned on the power switch. Software Installation 1. Put the CD into the CD-ROM. 2. Follow the instructions on the screen to finish the software installation. 3. After installation, you’ll find the ioMedia icon in the taskbar. ioMedia Software ioMedia provides a fast setting for six scene modes. In each scene mode, each button has a different function when you select it. Each feature is described on the next page. English 2 i. Device Selection ii. Scene Mode: Web Browsing, Music, Movie, Photo, Presentation and eBook iii. Product Photo iv. Button definition in each scene mode v. Set: Save the setting. (※) Exit: Exit from ioMedia. OK: Save the setting and exit from ioMedia. (※) ※ ※※ ※ Note: (1). After you select each mode, the button function will not change immediately. You can still move the cursor and execute the left and right button. (2). Press
and  button together (as shown below) to execute the mode you have selected. Press them together again to return to Mouse Mode. (3). Press
, and  button together to return to Mouse Mode and open the ioMedia UI. (4). When you change the mode each time, the taskbar will show in the message bar to remind you. Ring Mouse Function 1. Mouse Mode
OptoWheel Touch Control Area Slide your thumb in the OptoWheel touch control area for in-air cursor movement. Left Button Press OptoWheel touch control area to execute the click function. Press Left button for three seconds to turn on Click Lock function. This lets you drag an object when holding down the mouse button. To release, click the left button again.  Middle Button Provides traditional middle button function, like auto-panning when the thumb is on the OptoWheel touch control area.  Right Button Provides traditional right button functions. English 3 2. Scene Mode
Web Browsing
OptoWheel Touch Control Area (Cursor Mode) Press OptoWheel touch control area to execute the Click function. Or slide your thumb in the OptoWheel touch control area for in-air cursor movement. Scroll Up & Down (Scrolling Mode) Scroll up and down by using your thumb after you press the Function key.  Function Key Press Function key to enter scrolling mode and press again to return to cursor mode.  Right Button Provides traditional right button functions. Note: This mode※ ※※ ※ works in Internet Explorer 6 or above.
Music
Pause/Play Button Press OptoWheel touch control area to Pause/Play when playing music. Volume Up & Down Scroll up using your thumb to increase the Volume. Scroll down using your thumb to decrease the Volume.  Previous Song Press this button to play Previous Song.  Next Song Press this button to play next Song. ※ ※※ ※ Note: This mode works in Windows Media Player 9 or above.
Movie
Pause/Play Button Press OptoWheel touch control area to Pause/Play when playing a movie. Volume Up & Down Scroll up using your thumb to increase the Volume. Scroll down using your thumb to decrease the Volume.  Rewind Press this button to rewind the movie.  Fast Forward Press this button to fast forward the movie. ※ ※※ ※ Note: This mode works in Windows Media Player 9 or above.. English 4
Zoon in & out Scroll up using the thumb to enlarge an area of the photo. Scroll down using the thumb to Zoom out.  Previous Photo Press this button to see the previous photo.  Next Photo Press this button to see the next photo. ※ ※※ ※ Note: This mode works in Windows Picture and Fax Viewer.
Presentation
Black Screen Press OptoWheel touch control area for Black Screen during a presentation. Page Up & Down Scroll up using the thumb for Page Up. Scroll down using the thumb for Page Down.  ESC Press this button to exit from the presentation.  Play Press this button to play the presentation. ※ ※※ ※ Note: This mode works in Microsoft Office PowerPoint.
eBook
OptoWheel Touch Control Area Press OptoWheel touch control area to execute the Click function. Or slide your thumb in the OptoWheel touch control area for in-air cursor movement.  Previous Page Press this button to return to previous page.  Next Page Press this button to go to next page. ※ ※※ ※ Note: This mode works in Adobe Reader. Using Ring Mouse in Scene Mode For example: Movie Mode 1. Open the ioMedia software. 2. Select “Movie” mode. 3. Open the movie clip in Windows Media Player. 4. Press
and  button together to execute the movie mode. If you wan to return to default. function, press theses buttons together again. 5. In Movie mode, each button will have a new function; refer to “Scene Mode”. English 5 Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3))

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 KYE Systems Corp. Live No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan Tel. No.: +886-2-2995 6645 Fax No.: +886-2-2995 6649 Aug. 25, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, KYE Systems Corp. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Ergo 9000, GM-100010/T Ring Mouse, GM-090028/T Ring Mouse Dongle, GM-090028/R We affirm that between SIEMIC and KYE Systems Corp. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Ming Huang Lee Tel. No.: +886-2-2995 6645 KYE Systems Corp. No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 KYE Systems Corp. Live No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan Tel. No.: +886-2-2995 6645 Fax No.: +886-2-2995 6649 Aug. 25, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: FSUGMZJ7 We hereby request confidential treatment of information accompanying this application as outlined below: Schematics –(GM-090028T) Schematic.pdf Block diagram - (GM-090028T) Block Diagram.pdf Operational description -(GM-090028T) OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ming Huang Lee Tel. No.: +886-2-2995 6645 KYE Systems Corp. No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan

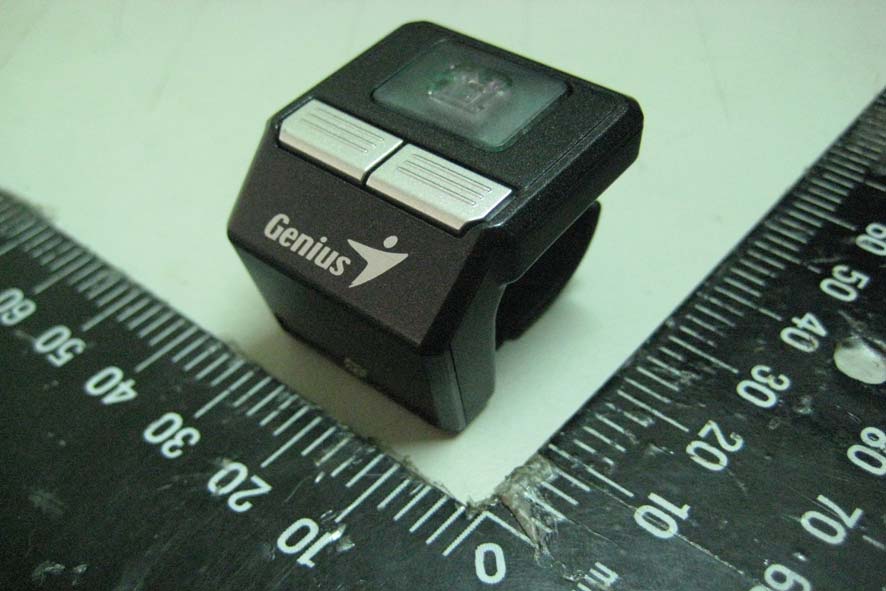

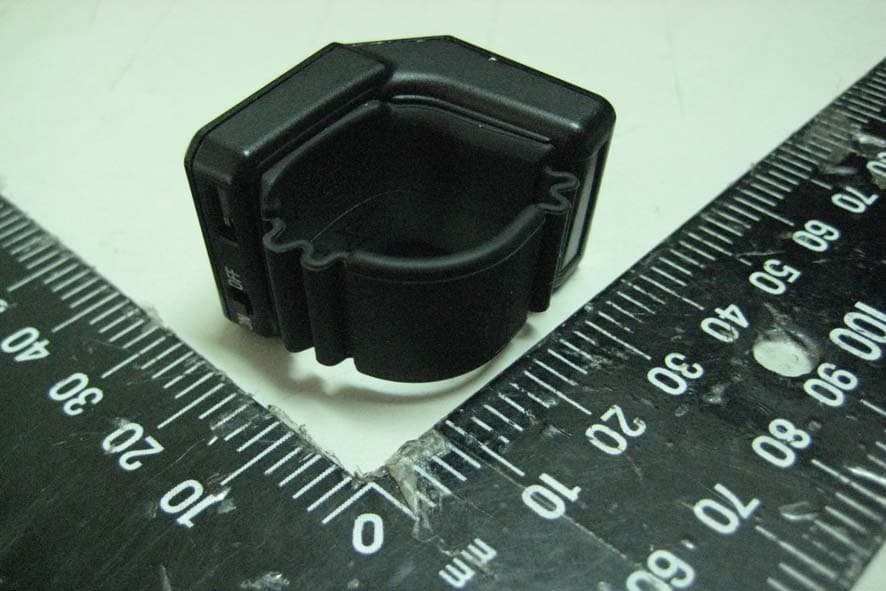

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : 072901 PHOTO OF EUT PHOTO OF EUT : 1 of 4 Front View of EUT 1 Rear View of EUT 1
