FSUGMZJBMINI NAVIGATOR 900

English 1 Mini Navigator 900 User Manual Model No.: GM-100007/T English 2 Hardware Installation Note: Supports Windows 7/Vista/XP 1. You can connect the receiver to a USB port of a PC. 2. Install two AAA batteries in the mouse. 3. Make sure that you have switched on the power switch underneath the mouse. Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. 4. If you feel the mouse does not move smooth as usual, it is possible the batteries have lost their charge so you need to replace them. Remember to put the batteries in the correct direction. Factory Settings 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions. English 3 Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3))

Confidentiality Requiring Letter Applicant Name: KYE Systems Corp. Address: No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan R.O.C. Date: May/ 13/ 2010 To: Federal Communications Commission Authorization and Evaluation Division FCCID: FSUGMZJB Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Applicant as outlined below: 1. Schematics............................................. (GM-10007/T) Schem 2. Block Diagram......................................... (GM-10007/T) Blk Dia 3. Operational Description.............................. (GM-10007/T) Op Des The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understood that pursuant to rule 0.457, disclosure of this Applicant and all accompanying documentation will not be made before the date of ths Grant for this application. Sincerely, Ming Huang Lee(Typed) ___________________________________________________

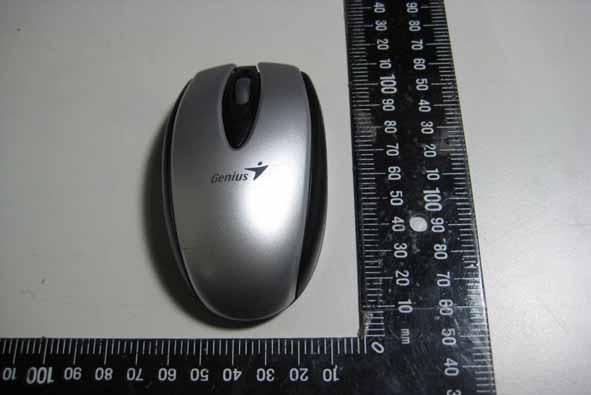

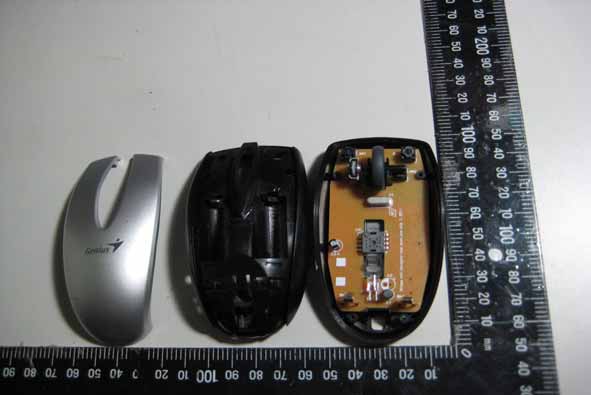

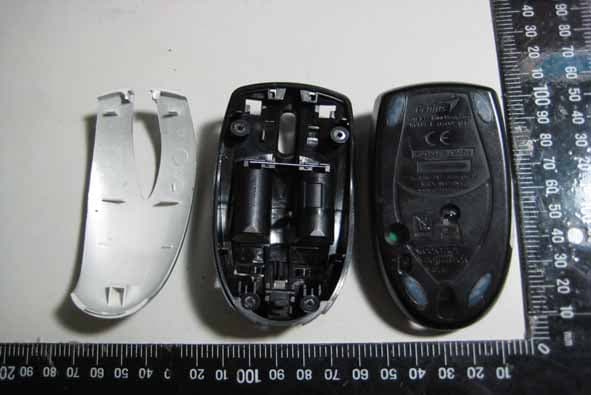

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : E0442201 PHOTO OF EUT PHOTO OF EUT : 1 of 3 Front View of EUT 1 Rear View of EUT 1 Global Certification Corp. Report No. : E0442201 PHOTO OF EUT PHOTO OF EUT : 2 of 3 Inside View of EUT 1 Inside View of EUT 1-1 Global Certification Corp. Report No. : E0442201 PHOTO OF EUT PHOTO OF EUT : 3 of 3 Component Side of Main Board 1 Solder Side of Main Board 1

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : E0442201 PHOTO OF EUT PHOTO OF EUT : 1 of 3 Front View of EUT 1 Rear View of EUT 1 Global Certification Corp. Report No. : E0442201 PHOTO OF EUT PHOTO OF EUT : 2 of 3 Inside View of EUT 1 Inside View of EUT 1-1 Global Certification Corp. Report No. : E0442201 PHOTO OF EUT PHOTO OF EUT : 3 of 3 Component Side of Main Board 1 Solder Side of Main Board 1

Global Certification Corp. Date of Issue: May.03.,2010 Report No:F042201 Page1/29 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Product Name: Mini Navigator 900 Model : GM-10007/T Trade Name: Genius Issued to KYE SYSTEMS CORP. No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Issued by Global Certification Corp. EMI Test Site Sansia Lab NO.34-3,Zihhe Rd.,Sansia Township,Taipei County 237, Taiwan ,R.O.C. EMC Test Site Sijhih office and Lab No. 146. Sec.2. Siangjhang Rd. Sijhih City. Taipei County 221, Taiwan(R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: May.03.,2010 Report No:F042201 Page2/29 TABLE OF CONTENTS ----------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES----------------------------------------------------------------------------------------------- 4 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 5 2.1 GENERAL TEST PROCEDURES --------------------------------------------------------------------------------------------------- 5 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ----------------------------------------------------------------- 5 2.3 DESCRIPTION OF TEST MODES -------------------------------------------------------------------------------------------------- 6 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------------- 7 3. TEST AND MEASUREMENT EQUIPMENT ----------------------------------------------------------------------------------- 9 3.1 CALIBRATION----------------------------------------------------------------------------------------------------------------------- 9 3.2 EQUIPMENT-------------------------------------------------------------------------------------------------------------------------- 9 4. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL/ HARMONICS) ----------------------------------------------10 4.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------10 4.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------10 4.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------10 4.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------10 5. SECTION 15.205 REQUIREMENTS (BAND EDGE)-------------------------------------------------------------------------19 5.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------19 5.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------19 5.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------20 5.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------20 6. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION) -------------------------------------------24 6.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------24 6.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------25 6.3 TEST PROCEDURE-----------------------------------------------------------------------------------------------------------------26 6.4 RESULT: PASSED ----------------------------------------------------------------------------------------------------------------26 6.5 TEST DATA: ------------------------------------------------------------------------------------------------------------------------27 7. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS) ----------------------------------29 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 3 PHOTOS OF EUT Global Certification Corp. Date of Issue: May.03.,2010 Report No:F042201 Page3/29 1. GENERAL INFORMATION Applicant :KYE SYSTEMS CORP. Address :No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Manufacturer :KYE SYSTEMS CORP. Address :No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. EUT :Mini Navigator 900 Model Name :GM-100007/T Model Differences :N/A Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart C and the measurement procedures were according to ANSI C63.4-2003. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC part 15 subpart C Receipt Date : 04/22/2010 Final Test Date : 05/02/2010 Taipei, Taiwan May.03 , 2010 Alex Chou / Manager (Place) (Date) (Signature) Designation Number: TW1030 Global Certification Corp. Date of Issue: May.03.,2010 Report No:F042201 Page4/29 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT Name : Mini Navigator Model Number : GM-100007/T FCC ID : FSUGMZJB Input Voltage : 3Vdc Power From Inside Outside Adaptor BATTERY AC Power Source DC Power Source Support Unit PC Operate Frequency : Refer to the channel list as described below Modulation Technique : GFSK Nu…

Text truncated - open the document above for the full version.

Global Certification Corp. Appendix 1 PHOTOS OF TEST CONFIGURATION Global Certification Corp. Report No. : F042201 Appendix 1 : 1 of 1
