English 1 Ergo 9000 User Manual Model No.: GM-100010/T English 2 Hardware Installation Note: Supports Windows 7/Vista/XP 1. You can connect the receiver to a USB port of a PC. 2. Install two AAA batteries in the mouse. 3. Make sure that you have switched on the power switch underneath the mouse. Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. 4. If you feel the mouse does not move smooth as usual, it is possible the batteries have lost their charge so you need to replace them. Remember to put the batteries in the correct direction. Factory Settings 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions. English 3 Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3))

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Aug. 25, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, KYE Systems Corp. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Ergo 9000, GM-100010/T Ring Mouse, GM-090028/T Ring Mouse Dongle, GM-090028/R We affirm that between SIEMIC and KYE Systems Corp. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Ming Huang Lee Tel. No.: +886-2-2995 6645 KYE Systems Corp. No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 KYE Systems Corp. Live No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan Tel. No.: +886-2-2995 6645 Fax No.: +886-2-2995 6649 Aug. 25, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: FSUGMZJC We hereby request confidential treatment of information accompanying this application as outlined below: Schematics –(GM-100010T) Schematic.pdf Block diagram - (GM-100010T) Block Diagram.pdf Operational description - (GM-100010T) OpDes.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ming Huang Lee Tel. No.: +886-2-2995 6645 KYE Systems Corp. No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, Taiwan

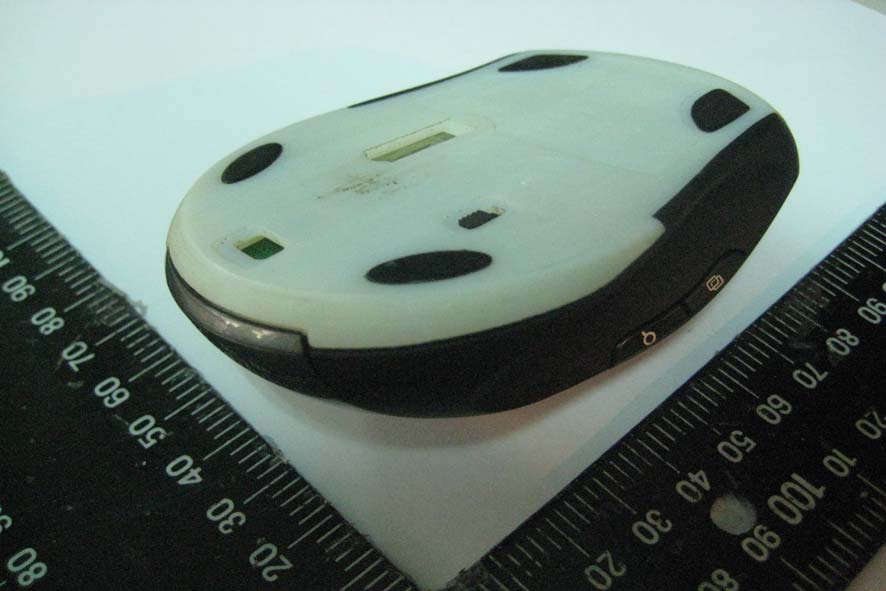

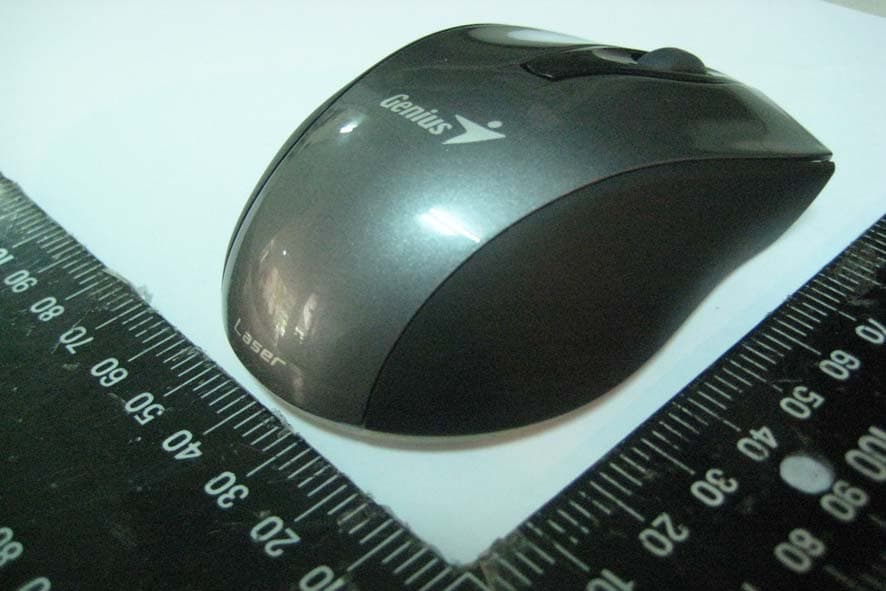

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : 072001 PHOTO OF EUT PHOTO OF EUT : 1 of 3 Front View of EUT 1 Rear View of EUT 1

Label location

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : 072001 PHOTO OF EUT PHOTO OF EUT : 2 of 3 Inside View of EUT 1 Inside View of EUT 1-1 Global Certification Corp. Report No. : 072001 PHOTO OF EUT PHOTO OF EUT : 3 of 3 Component Side of Main Board 1 Solder Side of Main Board 1

Global Certification Corp. Date of Issue: JULY.26.,2010 Report No:F072001 Page1/29 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Product Name: Ergo 9000 Wireless Mouse Model : GM-100010/T Trade Name: Genius Issued to KYE SYSTEMS CORP. No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Issued by Global Certification Corp. EMI Test Site Sansia Lab NO.34-3,Zihhe Rd.,Sansia Township,Taipei County 237, Taiwan ,R.O.C. EMC Test Site Sijhih office and Lab No. 146. Sec.2. Siangjhang Rd. Sijhih City. Taipei County 221, Taiwan(R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: JULY.26.,2010 Report No:F072001 Page2/29 TABLE OF CONTENTS ----------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES --------------------------------------------------------------------------------------------------- 4 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 5 2.1 GENERAL TEST PROCEDURES ------------------------------------------------------------------------------------------------------- 5 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS -------------------------------------------------------------------- 5 2.3 DESCRIPTION OF TEST MODES ------------------------------------------------------------------------------------------------------ 6 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS -------------------------------------------------------------------------------- 7 3. TEST AND MEASUREMENT EQUIPMENT ------------------------------------------------------------------------------------ 9 3.1 CALIBRATION ---------------------------------------------------------------------------------------------------------------------------- 9 3.2 EQUIPMENT ------------------------------------------------------------------------------------------------------------------------------ 9 4. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL/ HARMONICS) ----------------------------------------------- 10 4.1 TEST SETUP----------------------------------------------------------------------------------------------------------------------------- 10 4.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 10 4.3 RESULT: PASSED ------------------------------------------------------------------------------------------------------------------- 10 4.4 TEST DATA: ---------------------------------------------------------------------------------------------------------------------------- 10 5. SECTION 15.205 REQUIREMENTS (BAND EDGE) ------------------------------------------------------------------------- 19 5.1 TEST SETUP----------------------------------------------------------------------------------------------------------------------------- 19 5.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 19 5.3 RESULT: PASSED ------------------------------------------------------------------------------------------------------------------- 20 5.4 TEST DATA: ---------------------------------------------------------------------------------------------------------------------------- 20 6. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION) -------------------------------------------- 24 6.1 TEST SETUP----------------------------------------------------------------------------------------------------------------------------- 24 6.2 LIMIT ------------------------------------------------------------------------------------------------------------------------------------ 25 6.3 TEST PROCEDURE --------------------------------------------------------------------------------------------------------------------- 26 6.4 RESULT: PASSED --------------------------------------------------------------------------------------------------------------------- 26 6.5 TEST DATA: ---------------------------------------------------------------------------------------------------------------------------- 27 7. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS) ----------------------------------- 29 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 3 PHOTOS OF EUT Global Certification Corp. Date of Issue: JULY.26.,2010 Report No:F072001 Page3/29 1. GENERAL INFORMATION Applicant : KYE SYSTEMS CORP. Address : No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Manufacturer : KYE SYSTEMS CORP. Address : No.492,Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. EUT : Ergo 9000 Wireless Mouse Model Name : GM-100010/T Model Differences : N/A Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart C and the measurement procedures were according to ANSI C63.4-2003. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC part 15 subpart C Receipt Date : 07/20/2010 Final Test Date : 07/26/2010 Taipei, Taiwan July.26 , 2010 Alex Chou / Manager (Place) (Date) (Signature) Designation Number: TW1030 Global Certification Corp. Date of Issue: JULY.26.,2010 Report No:F072001 Page4/29 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT Name : Ergo 9000 Wireless Mouse Model Number : GM-100010/T FCC ID : FSUGMZJC Input Voltage : 1.5Vdc Power From
