FSUGMZJLTRAVELER 6000(GM-100016/T)

English 1 Hardware Installation Note: Supports Windows 7/Vista/XP 1. You can connect the receiver to a USB port of a PC. 2. Install one AAA battery in the mouse. 3. Make sure that you have switched on the power switch underneath the mouse. Factory Settings 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions. Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. 4. If you feel the mouse does not move smooth as usual, it is possible the batteries have lost their charge so you need to replace them. Remember to put the batteries in the correct direction. English 2 FCC ID: FSUGMZJL FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

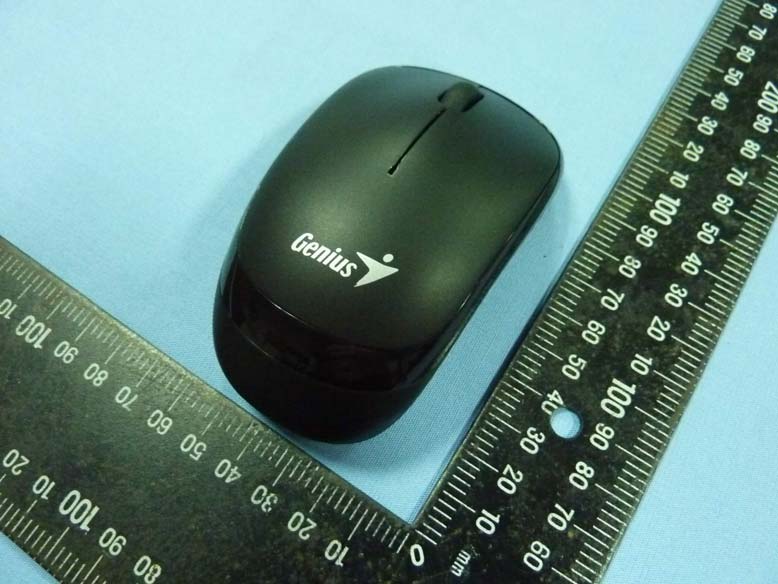

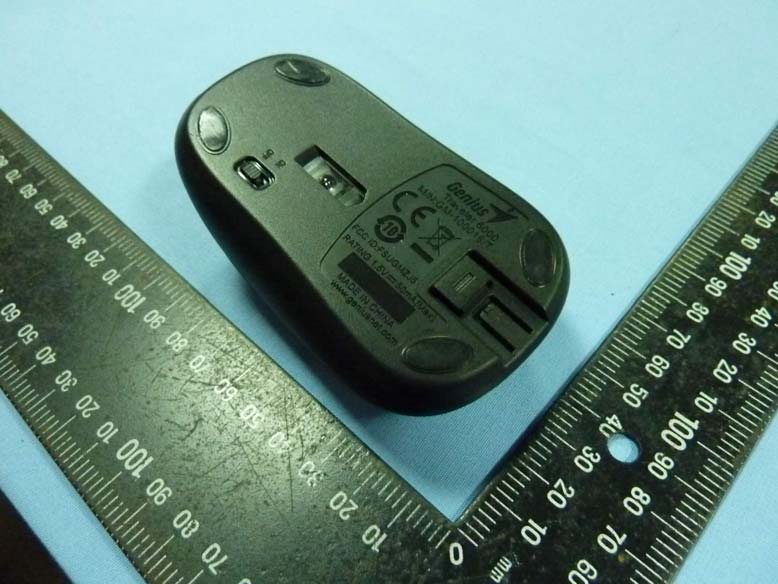

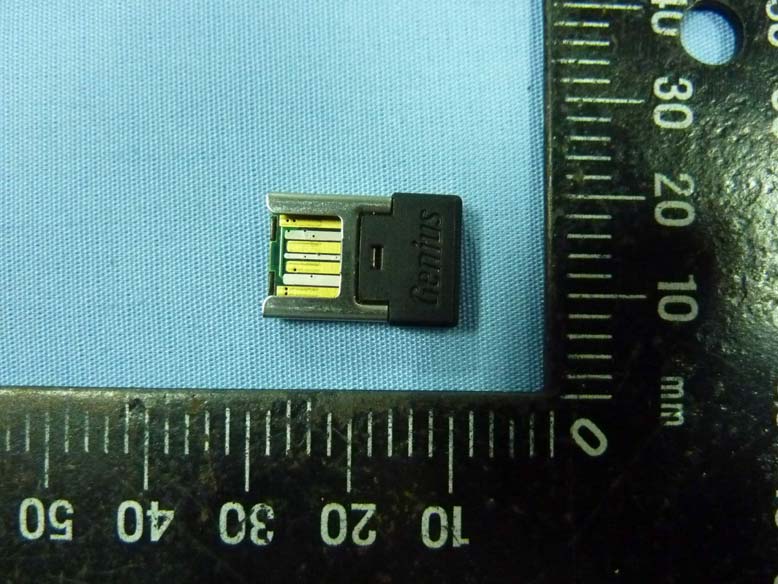

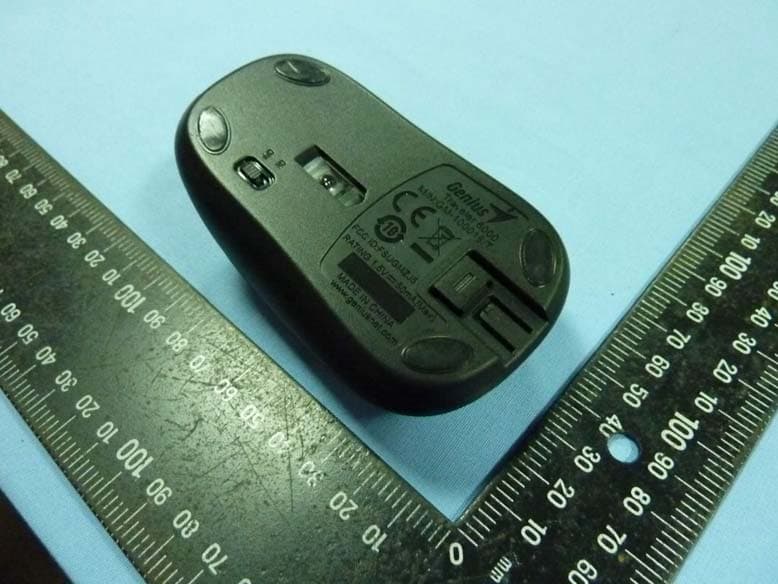

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT (TX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PHOTOS OF EUT (RX)

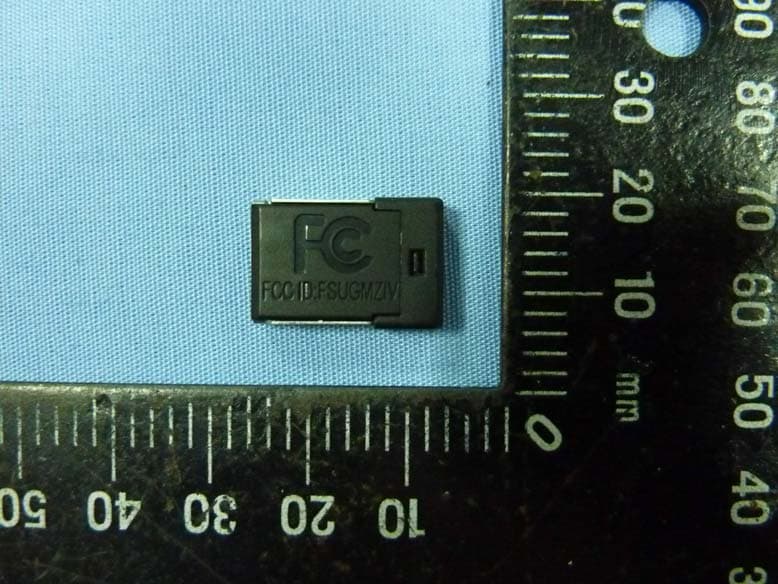

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID : FSUGMZJL

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TOP INSIDE (TX) Case Inside (TX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PCB (TX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TOP INSIDE (RX) Case Inside (RX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PCB (RX)

FCC ID: FSUGMZJL Operational Description of the equipment Hardware Installation 1. You can connect the receiver to a USB port of a PC 2. Install two AA batteries in the mouse. 3. Turn on your computer. The mouse will now work. 1. Product Name： Traveler 6000 Model： GM-100016/T Brand： Genius 2. Power Source： ■ DC 1.5 V, 50 mA; 3. Frequency Band： 2.4GHz ~ 2.4835GHz Carrier Frequency： 2.402 ~ 2.480 GHz 4. Number of Channel： 16 5. RF Output Power (ERP or EIRP) ： TX: 91.9 dBuV/m ; RX: 58.9 dBuV/[email protected] 6. Modulation Type： GFSK 7. Mode of operation (duplex, simplex, half duplex) ： simplex 8. Antenna Type： PCB Printed 9. Antenna gain： 1.86 dBi 10. Operating Temperature Range： -20~50 °C 11. Channel bandwidth ： 1 MHZ

TECHNOLOGICAL SPEC. 1. Product Name： Traveler 6000 Model： GM-100016/T Brand： Genius 2. Power Source： ■ DC 1.5 V, 50 mA; □ AC V, A 3. Frequency Band： 2.4GHz ~ 2.4835GHz Carrier Frequency： 2.402 ~ 2.480 GHz 4. Number of Channel： 16 5. Channel Spacing： 6. RF Output Power (ERP or EIRP) ： TX: 91.9 dBuV/m ; RX: 58.9 dBuV/[email protected] 7. I.F.： MHz; L.O.： MHz 8. Modulation Type： GFSK 9. Duty Cycle： % 10. Mode of operation (duplex, simplex, half duplex) ： simplex 11. Bit Rate of Transmission： 12. Antenna Type： PCB Printed 13. Antenna gain： 1.86 dBi 14. Operating Temperature Range： -20~50 °C 15. Channel bandwidth ： 1 MHZ
