FSUGMZJTTRAVELER 6010(GM-060021/C)

English Hardware Installation Note: Supports Windows 7/Vista/XP 1. You can connect the receiver to a USB port of a PC. 2. Install one AA battery in the mouse as instructed. 3. Make sure that you have switched on the power switch underneath the mouse. Factory Settings 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions. Note: Download the programmable driver from Genius website at www.geniusnet.com Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. 4. If you feel the mouse does not move smooth as usual, it is possible the batteries have lost their charge so you need to replace them. Remember to put the batteries in the correct direction. English FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. IC statementThis Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID: FSUGMZJT

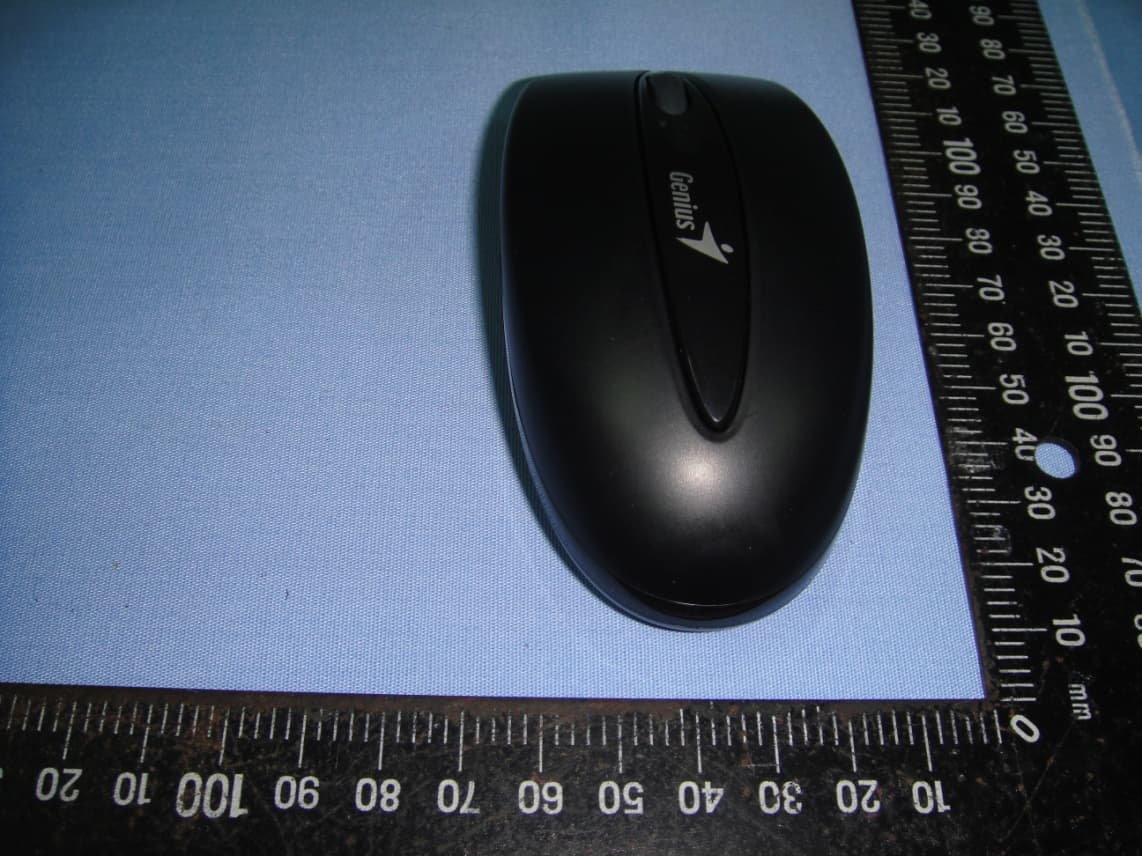

Photo of EUT TX:

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. TOP INSIDE Case Inside Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. PCB Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Case

TECHNOLOGICAL SPEC. Product Name: Traveler 6010 Model： GM-060021/C Brand: Genius Power Source： ■DC 1.5 V, A; □ AC V, A 1. Frequency Band： 2.4GHz ~ 2.4835GHz Carrier Frequency： 2.404GHz ~ 2.480GHz 2. Number of Channel： 20 3. Channel Spacing： 4MHz 4. RF Output Power (ERP or EIRP) ： 87.5dBuV/m 5. I. F.： MHz; L.O.： MHz 6. Modulation Type： GFSK 7. Duty Cycle： 0.1125 % 8. Mode of operation (duplex, simplex) ： Simplex 9. Bit Rate of Transmission： 10. Antenna Type： PCB Printed Antenna 11. Antenna gain： -3 dBi 12. Operating Temperature Range： - 20~50 °C 13. Channel bandwidth ： 1MHz

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A11072603 Report No.:FCCA11072603 FCC ID : FSUGMZJT Page: 1 of 30 Date: Sep. 06, 2011 FMNG-059.10 REPORT Product Name: Traveler 6010 Model No.: GM-060021/C Applicant: KYE SYSTEMS CORP. No. 492, Sec. 5, Chung Hsin Rd., San Chung, New Taipei City, 24160, Taiwan, R.O.C. Date of Receipt: Apr. 21, 2011 Finished date of Test: Jun. 21, 2011 Applicable Standards: 47 CFR Part 15, Subpart C 47 CFR Part 15, Subpart B ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Te s ted By : , Date: Approved By : (Jeff Lo) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A11072603 Report No.:FCCA11072603 FCC ID : FSUGMZJT Page: 2 of 30 Date: Sep. 06, 2011 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT ................................................... 3 1.1 DOCUMENT POLICY ........................................................................................... 3 1.2 TEST STATEMENT .............................................................................................. 3 1.3 EUT MODIFICATION ............................................................................................ 3 2. DESCRIPTION OF EUT AND TEST MODE ......................................................... 4 2.1 GENERAL DESCRIPTION OF EUT ..................................................................... 4 2.2 DESCRIPTION OF EUT INTERNAL DEVICE ...................................................... 4 2.3 EUT OPERATING CONDITION ............................................................................ 4 2.4 DESCRIPTION OF TEST MODE.......................................................................... 5 2.5 DESCRIPTION OF SUPPORT UNIT .................................................................... 5 3. DESCRIPTION OF APPLIED STANDARDS ......................................................... 6 4 . TECHNICAL CHARACTERISTICS TEST ............................................................ 7 4.1 BANDEDGE TEST ............................................................................................... 7 4.1.1 LIMIT ................................................................................................................. 7 4.1.2 TEST EQUIPMENT ........................................................................................... 7 4.1.3 TEST SETUP ..................................................................................................... 8 4.1.4 TEST PROCEDURE .......................................................................................... 8 4.1.5 TEST RESULT ................................................................................................... 9 4.2 RADIATED EMISSION TEST ............................................................................. 10 4.2.1 LIMIT ............................................................................................................... 10 4.2.2 TEST EQUIPMENT ......................................................................................... 11 4.2.3 TEST SET-UP .................................................................................................. 12 4.2.4 TEST PROCEDURE ........................................................................................ 13 4.2.5 TEST RESULT ................................................................................................. 14 5. ANTENNA APPLICATION ................................................................................... 27 5.1 ANTENNA REQUIREMENT ............................................................................... 27 5.2 RESULT .............................................................................................................. 27 6. PHOTOS OF TESTING ...................................................................................... 28 7. TERMS OF ABBREVIATION .............................................................................. 30 Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A11072603 Report No.:FCCA11072603 FCC ID : FSUGMZJT Page: 3 of 30 Date: Sep. 06, 2011 FMNG-059.10 REPORT 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source, 1.5Vdc of AA3 battery (TX) and AC power source, 120 VAC/60 Hz for PC (RX, from USB port ), was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan TEST REPORT Reference No.: A11072603 Report No.:FCCA11072603 FCC ID : FSUGMZJT Page: 4 of 30 Date: Sep. 06, 2011 FMNG-059.10 REPORT 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Traveler 6010 MODEL NO. GM-060021/C POWER SUPPLY DC power source of TX from AA3 battery : 1.5Vdc AC power source of PC for RX applied USB port : AC 120V/60Hz CABLE NA FREQUENCY BAND 2.400GHz ~ 2.4835GHz CARRIER FREQUENCY 2.404GHz ~ 2.480GHz CHANNEL SPACING 4MHz NUMBER OF CHANNEL 20 RATED RF OUTPUT POWER 87.5dBuV/m MODULATION TYPE GFSK MODE OF OPERATION Simplex ANTENNA TYPE PCB Printed Antenna ANTENNA GAIN -3 dBi OPERATING TEMPERATURE RANGE -20 ~ 50 ̊C NOTE : For more detailed information, plea…
