English 1 User Manual Model No.: GM-090008/C English 2 Please see the following instructions before using the product: 1. Model GM-090008/C is a Micro Dongle for built-in with end system. 2. Product can be operating at the maximum 40 degree C ambient temperature. 3. Do not use this apparatus near water. 4. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 5. Only use attachments/accessories specified by the manufacturer 6. Unplug this apparatus during lightning storms or when unused for long periods of time. English 3 Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3)) Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful English 4 interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

DOC Letter Aug. 18, 2011 Federal Communications Commission Authorization and Evaluation Division Dear Regulatory Authority, We, the undersigned, hereby declare that FCC Part 15B Declaration of Conformity procedures will be applied to the digital device portion of the following product: Product: Micro Dongle Model: GM-090008/C FCC Part 15B DoC report number: F180303 This Device complies with Part 15B DoC of the FCC rules, operation is subject to the following two conditions. This device may not cause harmful interference and, This device must accept any interference received, Including interference that may cause undesired operation TEST LABORATORY Global Certification Corp. No. 146, Shiang Charng Rd., Sec. 2, Hsi Chih, Taipei Hsien 221, Taiwan, R.O.C. Accredited Lab. Assigned under FCC number: TW1030 Sincerely,

Request for Confidentiality To: Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: FSUGMZJU Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Block diagram - FSUGMZJU Block Diagram.pdf z Operational description - FSUGMZJU Operation Description.pdf z Schematic Diagram- FSUGMZJU Schematic.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ming Huang Lee

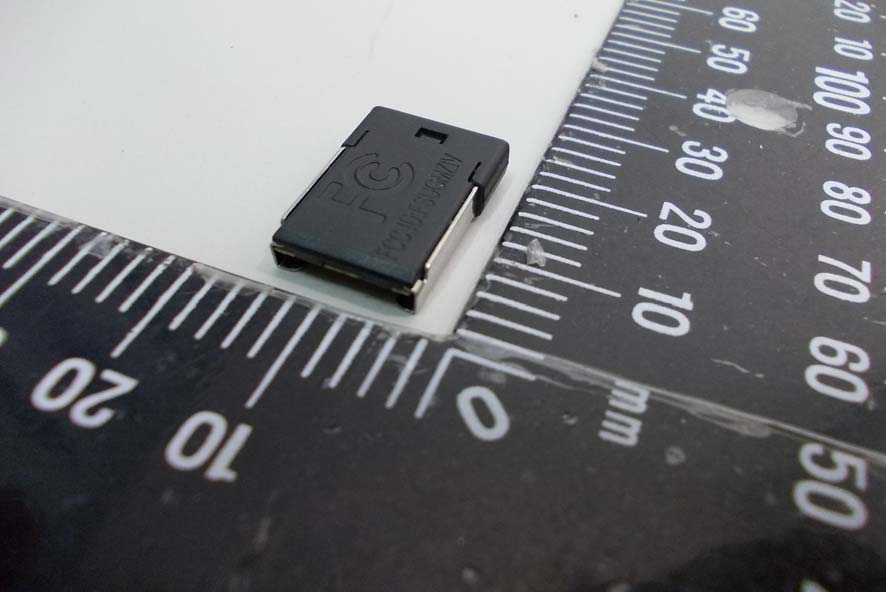

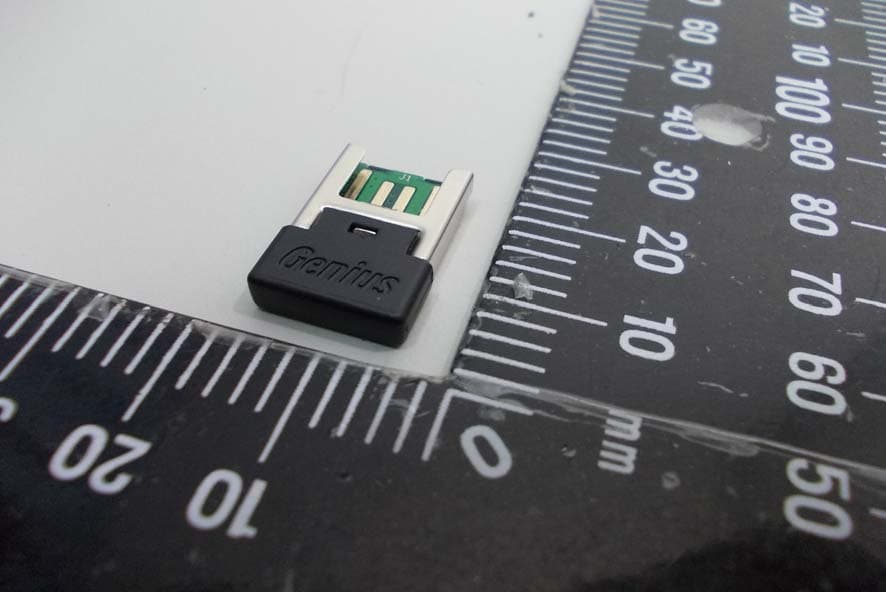

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : E180303 PHOTO OF EUT PHOTO OF EUT : 1 of 3 Front View of EUT 1 Rear View of EUT 1

Label location

Global Certification Corp. Report No. : E180303 PHOTO OF EUT PHOTO OF EUT : 2 of 3 Inside View of EUT Global Certification Corp. Report No. : E180303 PHOTO OF EUT PHOTO OF EUT : 3 of 3 Component Side of Main Board 1 Solder Side of Main Board 1

Global Certification Corp. Date of Issue: Aug 11,2010 Report No:F180303 Page1/31 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Product Name: Micro Dongle Model : GM-090008/C Trade Name: Genius Issued to KYE SYSTEMS CORP. No.492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) Issued by Global Certification Corp. EMC Test Site Xizhi Office and Lab No.146, Sec. 2, Xiangzhang Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: Aug 11,2010 Report No:F180303 Page2/31 TABLE OF CONTENTS ----------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES----------------------------------------------------------------------------------------------- 4 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 5 2.1 GENERAL TEST PROCEDURES --------------------------------------------------------------------------------------------------- 5 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ----------------------------------------------------------------- 5 2.3 DESCRIPTION OF TEST MODES -------------------------------------------------------------------------------------------------- 6 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------------- 6 3. TEST AND MEASUREMENT EQUIPMENT ----------------------------------------------------------------------------------- 8 3.1 CALIBRATION----------------------------------------------------------------------------------------------------------------------- 8 3.2 EQUIPMENT-------------------------------------------------------------------------------------------------------------------------- 8 4. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL/ HARMONICS) ----------------------------------------------- 9 4.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------- 9 4.2 LIMIT--------------------------------------------------------------------------------------------------------------------------------9 4.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------- 9 4.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------10 5. SECTION 15.205 REQUIREMENTS (BAND EDGE)-------------------------------------------------------------------------18 5.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------18 5.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------18 5.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------19 5.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------19 6. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION) -------------------------------------------23 6.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------23 6.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------24 6.3 TEST PROCEDURE-----------------------------------------------------------------------------------------------------------------25 6.4 RESULT: PASSED ----------------------------------------------------------------------------------------------------------------25 6.5 TEST DATA: ------------------------------------------------------------------------------------------------------------------------26 7. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS) ----------------------------------28 7.1 TEST SET-UP (PLEASE REFER TO APPENDIX 1) ---------------------------------------------------------------------------------28 7.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------28 7.3 TEST PROCEDURE-----------------------------------------------------------------------------------------------------------------28 7.4 TEST SPECIFICATION--------------------------------------------------------------------------------------------------------------29 7.5 RESULT: PASSED --------------------------------------------------------------------------------------------------------------29 7.6 TEST DATA: ------------------------------------------------------------------------------------------------------------------------30 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 3 PHOTOS OF EUT Global Certification Corp. Date of Issue: Aug 11,2010 Report No:F180303 Page3/31 1. GENERAL INFORMATION Applicant :KYE SYSTEMS CORP. Address :No.492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) Manufacturer :KYE SYSTEMS CORP. Address :No.492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) EUT : Micro Dongle Model Name :GM-090008/C Model Differences :N/A Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart C and the measurement procedures were according to ANSI C63.4-2003. The said equipmen…
