FSUGMZJWTRAVELER 9000

ENGLISH 1 Hardware Installation 1. Install one AAA battery into the mouse and two AAA into the keyboard. 2. Plug in your USB receiver to a USB port of your PC. ID Channel Setting and connection: Follow these steps: 1. The Pico dongle is stored inside of the mouse, plug it into a USB port and wait about 5-10 seconds. 2. Press the connect button on the mouse first, then the keyboard. 3. The connection will be executed and the kit will be ready for use. Replace Batteries If the mouse or keyboard does not work properly, then the batteries have lost their charge, so you need to replace them. Warning: do not mix or use different types of batteries at the same time. “Warning (Trouble shooting) 1. In case the wireless device was not connected when you set the ID channel setting, check if you have installed the batteries with the positive (+) and negative (-) polarity in the correct position, then repeat the ID channel setting again. ENGLISH 2 2. For optimum performance, please make sure that the distance between the wireless device and the micro dongle receiver does not exceed 10M. Keyboard hotkeys and Fn-Keys definition: Fn Function keys: + Turn down the volume. + Turn up the volume. + Remove the sound. + Go back to the previous track + Play and pause the audio or video sources. + Stop play of audio or video CD. ENGLISH 3 + Skip to the next track + Active Windows Media Player + Open browser in Netscape or IE. + Open mail folder. Mouse Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Scroll the button to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below:  Different battery types and surrounding temperatures may affect the battery performance.  Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance.  If you are using a new rechargeable battery or rechargeable battery that has not been used for an extended period of time (batteries that pass the expiry date are exceptions) it might affect the period of time you can use this device. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use.  The battery may feel warm when using the wireless device for an extended period of time or using the flash continuously. This is normal and not a malfunction. ENGLISH 4  The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction.  If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion.  Always keep the terminals in a clean state.  Never use manganese batteries.  Risk of explosion if battery is replaced by an incorrect type.  Dispose of used batteries according to the instructions. ENGLISH 5 Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3))

DOC Letter Aug. 18, 2011 Federal Communications Commission Authorization and Evaluation Division Dear Regulatory Authority, We, the undersigned, hereby declare that FCC Part 15B Declaration of Conformity procedures will be applied to the digital device portion of the following product: Product: Traveler 9000 Model: GM-100017/C FCC Part 15B DoC report number: F9D2105-06 This Device complies with Part 15B DoC of the FCC rules, operation is subject to the following two conditions. This device may not cause harmful interference and, This device must accept any interference received, Including interference that may cause undesired operation TEST LABORATORY Global Certification Corp. No. 146, Shiang Charng Rd., Sec. 2, Hsi Chih, Taipei Hsien 221, Taiwan, R.O.C. Accredited Lab. Assigned under FCC number: TW1030 Sincerely,

Request for Confidentiality To: Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: FSUGMZJW Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: z Block diagram - FSUGMZJW Block Diagram.pdf z Operational description - FSUGMZJW Operation Description.pdf z Schematic Diagram- FSUGMZJW Schematic.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Ming Huang Lee

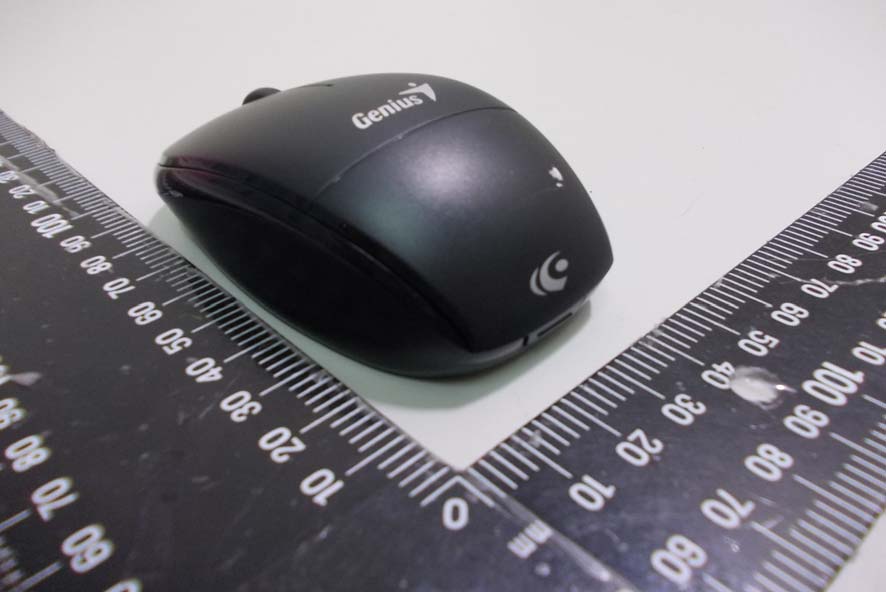

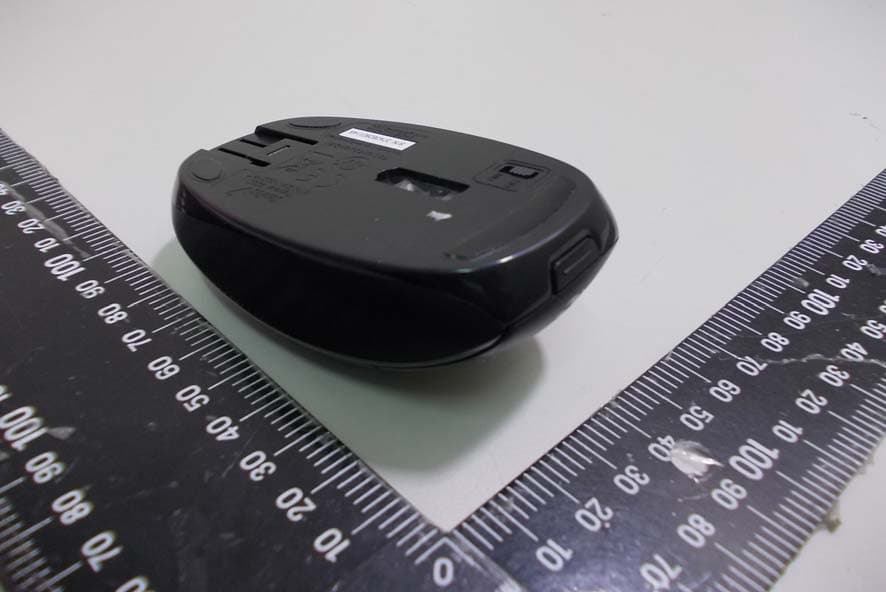

Global Certification Corp. PHOTO OF EUT PHOTOS OF EUT Global Certification Corp. Report No. : E9D2105-06 PHOTO OF EUT PHOTO OF EUT : 1 of 3 Front View of EUT 1 Rear View of EUT 1

Label location

Global Certification Corp. Report No. : E9D2105-06 PHOTO OF EUT PHOTO OF EUT : 2 of 3 Inside View of EUT Global Certification Corp. Report No. : E9D2105-06 PHOTO OF EUT PHOTO OF EUT : 3 of 3 Component Side of Main Board 1 Solder Side of Main Board 1

Global Certification Corp. Date of Issue: Aug. 10, 2011 Report No:F9D2105-06 Page1/29 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Product Name: Traveler 9000 Model : GM-100017/C Trade Name: Genius Issued to KYE SYSTEMS CORP. No.492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) Issued by Global Certification Corp. EMC Test Site Xizhi office and Lab No.146, Sec. 2, Xiangzhang Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: Aug. 10, 2011 Report No:F9D2105-06 Page2/29 TABLE OF CONTENTS ----------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES----------------------------------------------------------------------------------------------- 4 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------- 5 2.1 GENERAL TEST PROCEDURES --------------------------------------------------------------------------------------------------- 5 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ----------------------------------------------------------------- 6 2.3 DESCRIPTION OF TEST MODES -------------------------------------------------------------------------------------------------- 6 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------------- 7 3. TEST AND MEASUREMENT EQUIPMENT ----------------------------------------------------------------------------------- 9 3.1 CALIBRATION----------------------------------------------------------------------------------------------------------------------- 9 3.2 EQUIPMENT-------------------------------------------------------------------------------------------------------------------------- 9 4. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL/ HARMONICS) ----------------------------------------------10 4.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------10 4.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------10 4.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------10 4.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------10 5. SECTION 15.205 REQUIREMENTS (BAND EDGE)-------------------------------------------------------------------------19 5.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------19 5.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------19 5.3 RESULT: PASSED --------------------------------------------------------------------------------------------------------------20 5.4 TEST DATA: ------------------------------------------------------------------------------------------------------------------------20 6. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION) -------------------------------------------24 6.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------24 6.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------25 6.3 TEST PROCEDURE-----------------------------------------------------------------------------------------------------------------26 6.4 RESULT: PASSED ----------------------------------------------------------------------------------------------------------------26 6.5 TEST DATA: ------------------------------------------------------------------------------------------------------------------------27 7. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS) ----------------------------------29 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 3 PHOTOS OF EUT Global Certification Corp. Date of Issue: Aug. 10, 2011 Report No:F9D2105-06 Page3/29 1. GENERAL INFORMATION Applicant :KYE SYSTEMS CORP. Address :No.492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) Manufacturer :KYE SYSTEMS CORP. Address :No.492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) EUT : Traveler 9000 Model Name :GM-100017/C Model Differences :N/A Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart C and the measurement procedures were according to ANSI C63.4-2003. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC part 15 subpart C Receipt Date : 12/21/2009 Final Test Date : 08/10/2011 Taipei, Taiwan Aug.10 , 2011 Alex Chou / Manager (Place) (Date) (Signature) Designation Number: TW1030 Global Certification Corp. Date of Issue: Aug. 10, 2011 Report No:F9D2105-06 Page4/29 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT Name : Traveler 9000 Model Number : GM-100017/C FCC ID : FSUGMZJW Input Voltage : 1.5Vdc Power From Inside Outside Adaptor BATTERY AC Power Source DC Power Source Support Unit PC Operate Frequency : Refer to the channel list as described below Modulation Technique : GFSK Number of Channels : 79 Channel spacing : N/A  1 M Hz Ope…

Text truncated - open the document above for the full version.

Global Certification Corp. Appendix 1 PHOTOS OF TEST CONFIGURATION Global Certification Corp. Report No. : F9D2105-06 Appendix 1 : 1 of 1
