FSUGMZK5WIRELESS RING POINTER(GO-120002/T)

English - 1 - Getting Started: 1. Before you can use this device, it needs to be charged, so connect the micro USB cable to Ring Pointer and any USB port on your PC. It takes approximately two hours to fully charge. 2. Connect the pico receiver to a USB port of a PC or notebook. 3. Make sure that you have turned on the power switch. Button definitions: Button Name Button/Switch Function P1 Previous Page P2 F5 (Play) /ESC P3 Next Page P4 Laser Pointer Other Blank Screen P5 Power Function On-Off (Power On/Off; press for 3 seconds) LED indicator 1. Charging status a. Charging: LED always ON b. Fully charged: LED turns off 2. Low battery -flashing light (low speed) Presenter Mode Button Definition P1: Press P1 to return to previous PowerPoint page. P2: Press P2 to play the PowerPoint file and press again to exit the file. P3: Press P3 to go to next PowerPoint page. P4: Press P4 for laser pointer function P5: Press P5 for blank screen or power on-off function: press for three seconds to change function. ※ Note: This mode works in Microsoft Office PowerPoint. Battery Low indicator When the power level is low, the Blue LED below the touch panel will flash to remind you that you need to recharge Ring Pointer as soon as possible English - 2 - l FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. IC statement: This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID: FSUGMZK5

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. Port

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Sample of FCC Label FCC ID：FSUGMZK5 FCC ID:FSUGMZK5

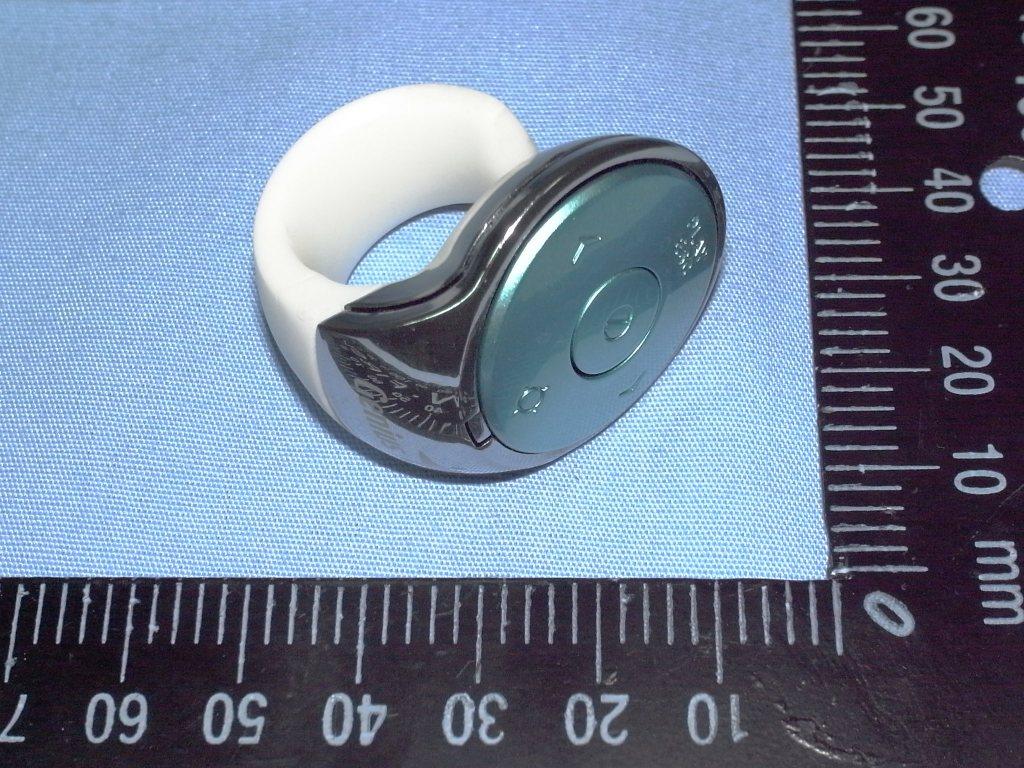

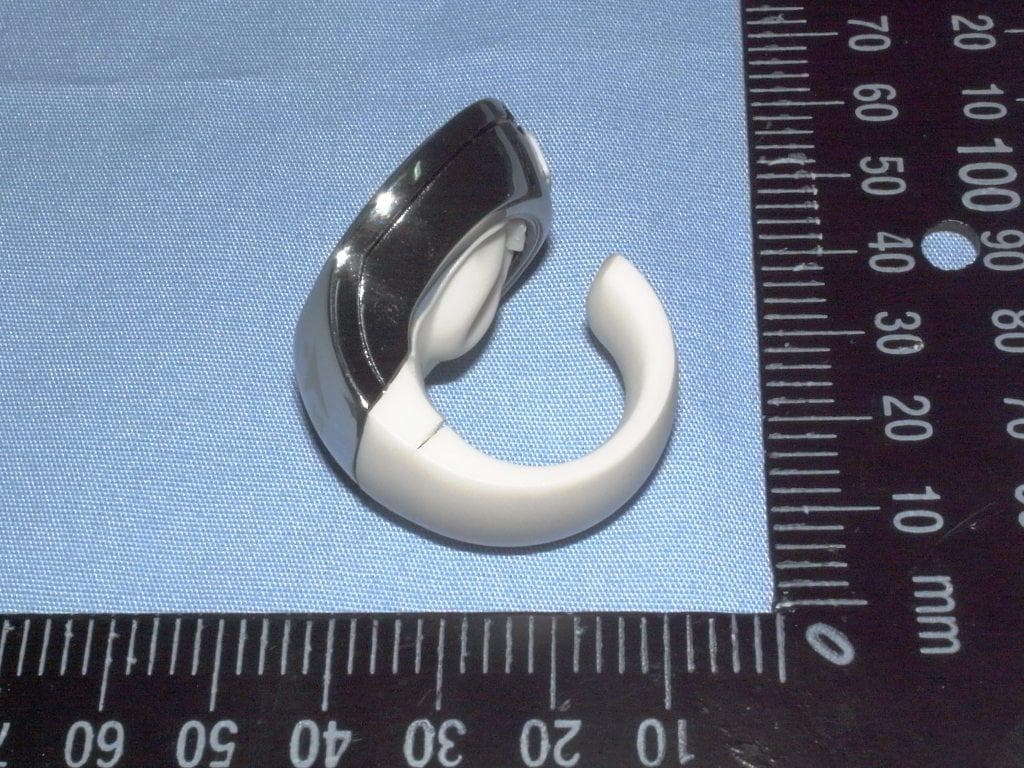

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. TOP inside (TX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. PCB (TX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. CASE (TX) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. BATTERY (TX)

TECHNOLOGICAL SPEC. 1. Product Name： Ring Pointer Model： GO-120002/T 2. Power Source： ■ DC 3.7 V, 100 mA; □ AC V, A 3. Frequency Band： 2.4 GHz ~ 2.4835 GHz Carrier Frequency： 2.402 GHz ~ 2.478 GHz 4. Number of Channel： 20 5. Channel Spacing： 6. RF Output Power (ERP or EIRP) ： 93.52 dBuV/m W 7. I.F.： MHz; L.O.： MHz 8. Modulation Type： GFSK 9. Duty Cycle： % 10. Mode of operation (duplex, simplex, half duplex) ： Duplex 11. Bit Rate of Transmission： 12. Antenna Type： Chip Antenna 13. Antenna gain： 3 dBi 14. Operating Temperature Range： -20 ~ 50 °C 15. Channel bandwidth ： MHz

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12071603 Report No.:FCCA12071603 FCC ID : FSUGMZK5 Page: 1 of 46 Date: Aug. 24, 2012 FMNG-059.10 REPORT Product Name: Ring Pointer Model No.: GO-120002/T Applicant: KYE SYSTEMS CORP. (Genius) No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) Date of Receipt: Jul. 16, 2012 Finished date of Test: Aug. 20, 2012 Applicable Standards: 47 CFR Part 15, Subpart C 47 CFR Part 15, Subpart B ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Richard Lin) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12071603 Report No.:FCCA12071603 FCC ID : FSUGMZK5 Page: 2 of 46 Date: Aug. 24, 2012 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT...................................................3 1.1 DOCUMENT POLICY.........................................................................................3 1.2 TEST STATEMENT............................................................................................3 1.3 EUT MODIFICATION..........................................................................................3 2. DESCRIPTION OF EUT AND TEST MODE.........................................................4 2.1 GENERAL DESCRIPTION OF EUT...................................................................4 2.2 USED CHANNEL AND FREQUENCY TABLE....................................................4 2.3 DESCRIPTION OF EUT INTERNAL DEVICE....................................................5 2.4 EUT OPERATING CONDITION..........................................................................5 2.5 DESCRIPTION OF TEST MODE........................................................................5 2.6 DESCRIPTION OF SUPPORT UNIT..................................................................6 3. DESCRIPTION OF APPLIED STANDARDS.........................................................7 3.1 SUMMARY OF TEST RESULTS........................................................................7 4. TECHNICAL CHARACTERISTICS TEST.............................................................8 4.1 BAND EDGE TEST.............................................................................................8 4.1.1 LIMIT................................................................................................................8 4.1.2 TEST EQUIPMENT.........................................................................................9 4.1.3 TEST SETUP.................................................................................................10 4.1.4 TEST PROCEDURE......................................................................................11 4.1.5 EUT OPERATING CONDITION.....................................................................11 4.1.6 TEST RESULT...............................................................................................12 4.2 CONDUCTED EMISSION TEST......................................................................16 4.2.1 LIMIT..............................................................................................................16 4.2.2 TEST EQUIPMENT.......................................................................................16 4.2.3 TEST SETUP.................................................................................................17 4.2.4 TEST PROCEDURE......................................................................................17 4.2.5 TEST RESULT...............................................................................................18 4.3 RADIATED EMISSION TEST...........................................................................20 4.3.1 LIMIT..............................................................................................................20 4.3.2 TEST EQUIPMENT.......................................................................................21 4.3.3 TEST SET-UP................................................................................................22 4.3.4 TEST PROCEDURE......................................................................................24 4.3.5 TEST RESULT...............................................................................................25 5. ANTENNA APPLICATION...................................................................................41 5.1 ANTENNA REQUIREMENT.............................................................................41 5.2 RESULT............................................................................................................41 6. PHOTOS OF TESTING......................................................................................42 7. TERMS OF ABBREVIATION..............................................................................46 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12071603 Report No.:FCCA12071603 FCC ID : FSUGMZK5 Page: 3 of 46 Date: Aug. 24, 2012 FMNG-059.10 REPORT 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. PHOTOS OF TESTING - Conducted test (Charge) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. - Radiated test (below 30M , TX & Standby) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. - Radiated test (below 1G , TX & Standby) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. - Radiated test (above 1G , TX & Standby)
