FSUGMZKGWIRELESS MICRO TRAVELER 6000 (GM-120029/T)

English 1 User Manual Introduction Before use this product, please read carefully the manual and use the product correctly. Once you have read the manual, please keep it in a safe place and you can consult it when necessary. Characteristics ∑ 2.4GHz laser notebook mouse with anti-interference ∑ Pico USB dongle receiver: saves space and storage is quick and easy Installation Hardware Installation 1. You can connect the receiver to a USB port of a PC. 2. Install one AAA battery in the mouse. Product Description Sku: 56586 Vendor part number: 31030041109 Brand: ativa Electrical Characteristic English 2 3. Turn on your computer. The mouse can now work. Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. 4. If you feel the mouse does not move smooth as usual, it is possible the batteries have lost their charge so you need to English 3 replace them. Remember to put the batteries in the correct direction. Factory Settings 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions English 4 FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1. Reorient the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. IC statement: This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID: FSUGMZKG

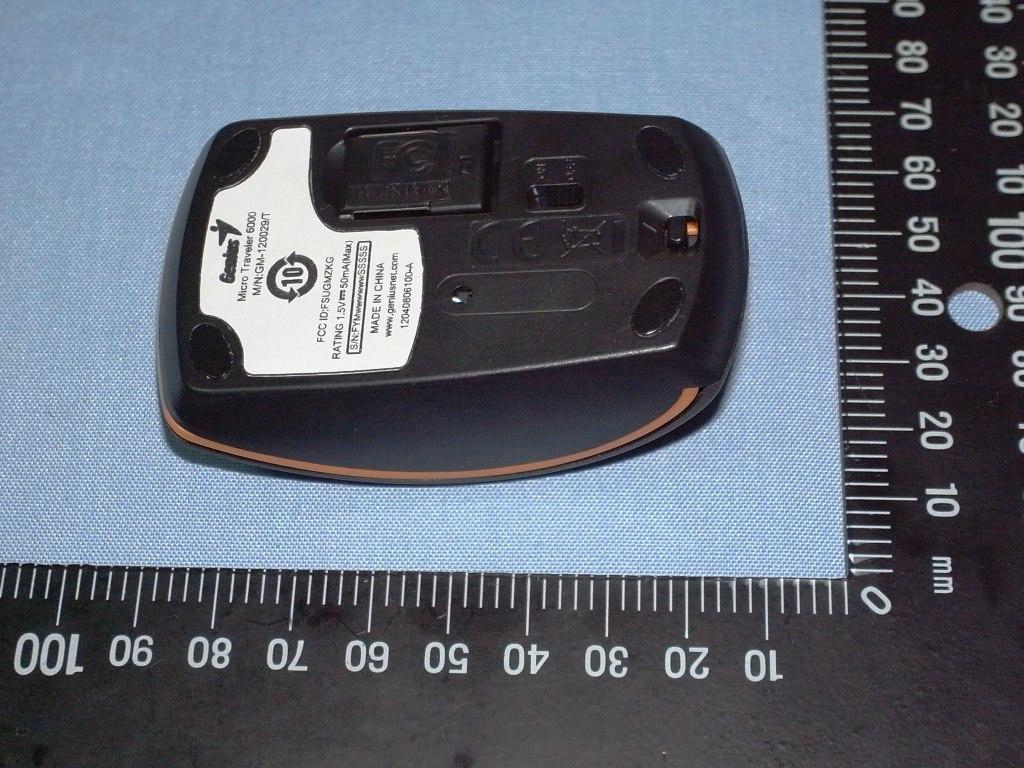

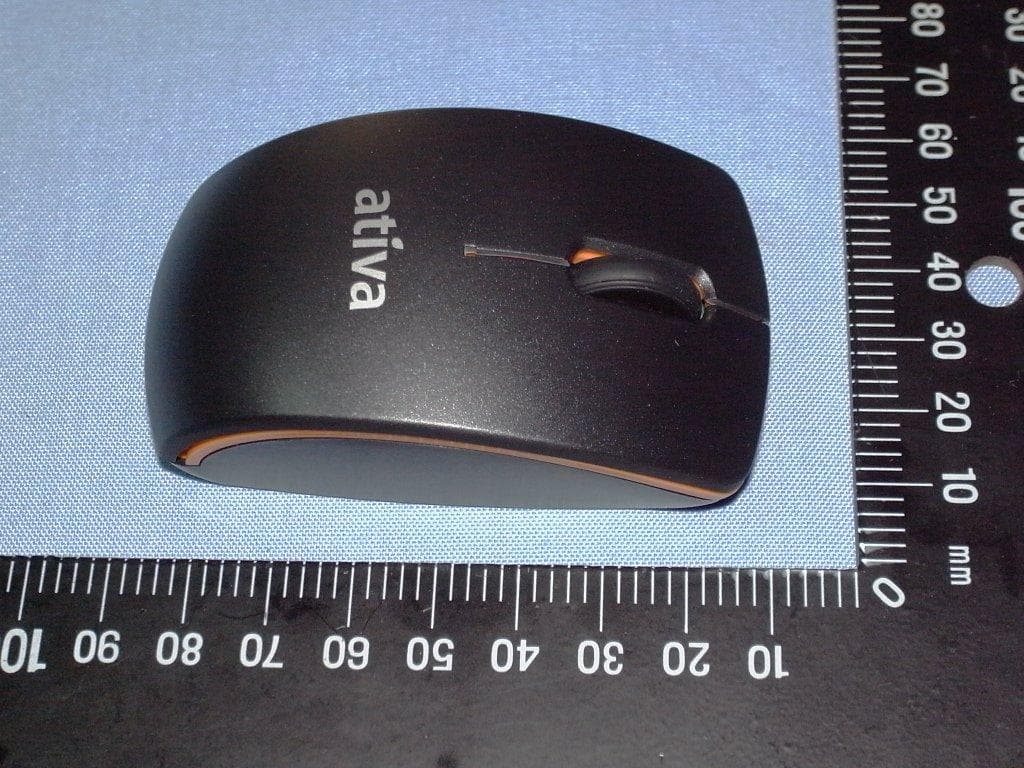

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. PHOTOS OF EUT

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. TOP inside Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. PCB Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. CASE

TECHNOLOGICAL SPEC. 1. Product Name： Micro Traveler 6000 Model： GM-120029/T 2. Power Source： ■ DC 1.5 V, 50 mA; □ AC V, A 3. Frequency Band： 2.4 GHz ~ 2.4835 GHz Carrier Frequency： 2.404 GHz ~ 2.480 GHz 4. Number of Channel： 20 5. Channel Spacing： 6. RF Output Power (ERP or EIRP) ： 86.55 dBuV/m W 7. I.F.： MHz; L.O.： MHz 8. Modulation Type： GFSK 9. Duty Cycle： % 10. Mode of operation (duplex, simplex, half duplex) ： Duplex 11. Bit Rate of Transmission： 12. Antenna Type： PCB Printed 13. Antenna gain： -4.52 dBi 14. Operating Temperature Range： -20 ~ 50 °C 15. Channel bandwidth ： MHz

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12102405 Report No.:FCCA12102405 FCC ID : FSUGMZKG Page: 1 of 38 Date: Nov. 06, 2012 FMNG-059.10 REPORT Product Name: Micro Traveler 6000 Model No.: GM-120029/T Applicant: KYE SYSTEMS CORP. (Genius) No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) Date of Receipt: Oct. 24, 2012 Finished date of Test: Oct. 27, 2012 Applicable Standards: 47 CFR Part 15, Subpart C 47 CFR Part 15, Subpart B ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Richard Lin) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12102405 Report No.:FCCA12102405 FCC ID : FSUGMZKG Page: 2 of 38 Date: Nov. 06, 2012 FMNG-059.10 REPORT Revisions History Report No. Issue Date Revisions FCCA12102405 Nov. 06, 2012 Initial issue FCCA12102405 Nov. 07, 2012 Update 4.2.2 DUE DATE OF CAL. & CAL. CENTER Remove 4.2.5 below 30M test result Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12102405 Report No.:FCCA12102405 FCC ID : FSUGMZKG Page: 3 of 38 Date: Nov. 06, 2012 FMNG-059.10 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT...................................................4 1.1 DOCUMENT POLICY.........................................................................................4 1.2 TEST STATEMENT............................................................................................4 1.3 EUT MODIFICATION..........................................................................................4 2. DESCRIPTION OF EUT AND TEST MODE.........................................................5 2.1 GENERAL DESCRIPTION OF EUT...................................................................5 2.2 USED CHANNEL AND FREQUENCY TABLE....................................................5 2.3 DESCRIPTION OF EUT INTERNAL DEVICE....................................................6 2.4 EUT OPERATING CONDITION..........................................................................6 2.5 DESCRIPTION OF TEST MODE........................................................................6 2.6 DESCRIPTION OF SUPPORT UNIT..................................................................7 3. DESCRIPTION OF APPLIED STANDARDS.........................................................8 3.1 SUMMARY OF TEST RESULTS........................................................................8 4. TECHNICAL CHARACTERISTICS TEST.............................................................9 4.1 BAND EDGE TEST.............................................................................................9 4.1.1 LIMIT................................................................................................................9 4.1.2 TEST EQUIPMENT.......................................................................................10 4.1.3 TEST SETUP.................................................................................................11 4.1.4 TEST PROCEDURE......................................................................................12 4.1.5 EUT OPERATING CONDITION.....................................................................12 4.1.6 TEST RESULT...............................................................................................13 4.2 RADIATED EMISSION TEST...........................................................................17 4.2.1 LIMIT..............................................................................................................17 4.2.2 TEST EQUIPMENT.......................................................................................18 4.2.3 TEST SET-UP................................................................................................19 4.2.4 TEST PROCEDURE......................................................................................20 4.2.5 TEST RESULT...............................................................................................21 5. ANTENNA APPLICATION...................................................................................34 5.1 ANTENNA REQUIREMENT.............................................................................34 5.2 RESULT............................................................................................................34 6. PHOTOS OF TESTING......................................................................................35 7. TERMS OF ABBREVIATION..............................................................................38 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A12102405 Report No.:FCCA12102405 FCC ID : FSUGMZKG Page: 4 of 38 Date: Nov. 06, 2012 FMNG-059.10 REPORT 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source, 1.5Vdc of AAA battery (Tx) and AC 120V/60Hz for PC (Rx, from USB port ), was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab.…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. PHOTOS OF TESTING - Radiated test (below 30M , TX & Standby) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. - Radiated test (below 1G , TX & Standby) Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan Taiwan, R.O.C. - Radiated test (above 1G , TX & Standby)
