FSUGMZKIPenSketch T609A

Tablet User Manual For Mac OS X 10.4 or above ENGLISH 1 I. General Information 1. Overview Welcome to the world of tablet and digital pen! You will be able to discover how easy it is to control your MAC using a wireless digital pen instead of a mouse. The function of the digital pen is able to draw a line very thin, thick, and light or dark (called pressure sensitivity). You also can write, sign, annotate documents, and draw, sketch or paint as easily as you would on normal paper and simulate the functions like a pencil, marker, brush, or watercolor pen by using commercial software packages such as Adobe® PhotoShop™, Corel® Painter™ and Paint Shop™. With the new touch function, you are able to use gestures with fingertips to explore and navigate easily to flip, zoom in/zoom out and move to manage your tasks among several applications in Windows 7/8 and Mac X 10.5 and above version. Touch Functions After installing the device driver, you are able to use your fingertip(s) with different gestures to work. Check the touch section for more details. 2. Pen Tablet Functions After installing the device driver, your pen tablet features has the following functions: 1. Direct pointing – You can move the cursor to any location on the screen by hovering the digital pen tip over the tablet’s surface. 2. Three-button mouse commands - Your pen tablet provides all the functions of a three- button mouse by using its pen tip and two buttons. 3. Pressure sensitivity – This feature allows you to emulate various brushes and pencils and you can press down on the pen tip harder, lighter, stronger or thicker, and you will get different types of pencil lines. 3. System Requirements  Mac OS X 10.4 (does not support touch function)  MAC OS X 10.5~10.8  USB port  DVD-ROM drive 4. Driver installation 4.1. Insert the DVD into the CD/DVD-ROM drive, and wait until you see the Genius Tablet driver shown on the screen, and then double click on the setup icon as shown below: ENGLISH 2  4.2: Follow the on-screen instructions for driver installation. 4.3: Insert the user name and password to proceed. 4.4: After completing the driver installation, restart your MAC. ENGLISH 3 5. Hardware Installation Connect the tablet USB interface to your MAC after you have finished the driver installation and restarted the system: Install the driver first before plugging the tablet into your MAC. 6. Verifying Hardware and Driver Functions Follow these steps to verify the tablet is installed properly: The LED light on the tablet is the main indicator for hardware operation and depending on your pen tablet model may be located at a different place than shown in the above diagram. This LED normally stays off, and will only turn on or off in response to various conditions. Watch the status of the LED on the tablet as you go through these test steps: 6.1. Tap on any surface with the tip of the pen, or press the left button of the mouse, to “wake it up” if it has gone into standby mode. A built-in power saving function may have forced the pen or mouse into standby mode if either of them has not used for a period of time. 6.2. As soon as the pen tablet activates, the LED will be light briefly, and will then go and stay off again. 6.3. When the tablet detects the presence of the digital pen or mouse, the LED will stay on. This happens either when the pen tip is hovering or is placed in the tablet working area. 6.4. When you press a button on the pen barrel, or click a mouse button, the LED will light. 6.5. Hovering and moving the pen or the mouse in the working area will cause the cursor on the screen to move accordingly. ENGLISH 4 6.6. When you put your fingertip(s) on the working area of tablet, the LED will stay on. The tablet will automatically detect your fingertip(s) or the digital pen, you can only use one method while working. The digital pen is set as the priority input tool when the gesture function is enabled. 7. Usage Tips 7.1. Wake up the digital mouse from standby mode If the digital mouse does not react after you do not use it for a while, press the left button to “wake” it up from the standby mode. 7.2. Tapping before you use the digital pen Before you use the digital pen, or after not using it for several minutes, tap the pen on any surface of the tablet to “wake” it up from the standby mode. 7.3. Double tapping When you double tap with the digital pen (equivalent to a double click with a mouse), try to keep the pen tip away from the tablet’s surface, or at least try to lift the pen tip as fast as possible before the second tap. 7.4. Storing the digital pen To store the pen, make sure the pen tip does not touch anything, and especially do not let the pen stand in a cup or penholder with the tip down. Even though the possibility is low, pressing the pen tip will still cause a constant drain on the pen’s battery. Place the pen in a penholder, or turn the pen tip pointing upward or horizontally with the pen tip free of any pressure by other objects. 7.5. Scrolling function of digital pen The digital pen has the same function as a mouse for scrolling pages. Press the first button of the digital pen (same function as the middle button of the mouse) over the tablet’s working area. 7.6. Using a pen without an ordinary mouse You may install the digital pen, digital mouse, and normal mouse in your computer at the same time and you can also remove them to different computer as well. However, only one device will be able to work at the same time. ღ ღ Do not use more than two devices at the same time in case the screen cursor is jittering or not moving. II. Pen Tablet configuration 1. PenTablet Setting 1. 1. Click˰Finder˱→˰GO˱Menu→˰Applications˱→˰Genius˱ ENGLISH 5 1.3. Click ˰ioCentre˱, then you are able to see the Info tab show on the screen, you are ready to edit and setup the functions. 1.2. Double Click the˰Genius˱folder, and you will find the folder ˰ioTablet˱inside. ENGLISH 6 You can also try the following path for setting: 1.4: Fi…

Text truncated - open the document above for the full version.

Tablet User Manual For Windows 8/7/Vista/XP ENGLISH 1 *The driver may already be updated to a newer version before/after packaging. If your installation screen does not match the contents of this manual, you may need to download the driver, just refer to your software screen after installation. * To ensure your tablet operates with maximum and smooth performance, plug the USB connector to your PC/Notebook USB port instead of a USB Hub or other exterior USB port device. I. General Information 1. Overview Welcome to the world of tablet and digital pen! You are able to discover how easy to control your personal computer by using a wireless digital pen to instead of a mouse. The function of the digital pen is able to draw a line very thin, thick, light or dark (called pressure sensitivity). You also can write, sign, annotate documents, and draw, sketch or paint as easily as you would on normal paper and simulate the functions like a pencil, marker, brush, or watercolor pen by using commercial software packages such as Adobe® PhotoShop™, Corel® Painter™ and Paint Shop™. If MSN Messenger 8.5 or newer is installed, you can create and send digital handwritings and hand drawn pictures, making communication much more fun and entertaining. With the new touch function, you are able to use gestures with fingertips to explore and navigate easily to flip, zoom in/zoom out and move to manage your tasks among several applications in Windows 7/8 and Mac X 10.5 and above version. Note: If you cannot enable the handwriting mode in MSN Messenger, download the relevant handwriting component from Microsoft's website. Touch Functions No need to install the device driver in Windows 8/7, you are able to use your fingertip(s) with different gestures to work. Check the touch section for more details. 2. Pen Tablet Functions After installing the device driver, your pen tablet features has the following functions: 1. Direct pointing – You can move the cursor to any location on the screen by hovering the digital pen tip over the tablet’s surface. 2. Three-button mouse commands - Your pen tablet provides all the functions of a three- button mouse by using its pen tip and two buttons. 3. Pen scrolling – You can scroll documents and Web pages by pressing the middle button of the digital pen over the tablet’s working area. 4. Pressure sensitivity – This feature allows you to emulate various brushes and pencils and you can press down on the pen tip harder, lighter, stronger or thicker, and you will get different types of pencil lines. ENGLISH 2 3. System Requirements  Optical DVD drive  USB Port  Win Vista (SP1 or higher) / Win XP (SP2 or higher) (does not support touch function)  Win8 / Win7 4. Driver Installation For Microsoft Windows 8, 7, Vista, and XP: 1. Insert the CD into the CD-ROM drive, and wait for the main installation screen to appear. 2. The main installation screen should appear automatically, or you can manually start the installation by opening ᇻ ᇻMy Computerᇼ ►ᇻCD/DVD Romᇼ► then click on the ᇻSetupᇼprogram. When installing the driver, follow the installation instructions on screen and press the “Enter” key. After the installation has been completed, reboot the computer. 5. Hardware Installation Connect the tablet to the USB interface of the PC after the driver installation is finished and you have restarted Window s: After you connect a pen tablet into the PC, you will see a small tablet icon () appear in the system tray, which is normally at the lower right corner of the screen. Install the driver first before you plug the tablet into your PC. 6. Verifying Hardware and Driver Functions Follow these steps to verify the tablet is installed properly: The LED indicator on the graphic tablet indicates the status of operation. It may be located at a different place than shown in the above diagram. This LED normally stays off, and will only turn on or off in response to various conditions. Watch the state of the LED on the tablet as you go through these test steps: 1. When you put your fingertip(s) on the working area of tablet, the LED will stay on. The tablet will automatically detect your fingertip(s) or the digital pen, you can only use one method while working. The digital pen is set as the priority input tool when the gesture function is enabled. 2. Tap on any surface with the tip of the pen, or press the left button of the mouse, to “wake it up” if it has gone into standby mode. A built-in power saving function may have forced the pen or mouse into the standby mode if either of them has not been used for a period of time. 3. As soon as the pen tablet itself activates, the LED will be light briefly, and will then go and stay off again. ENGLISH 3 4. When the tablet detects the presence of the digital pen or mouse, the LED will stay on. This happens either when pen tip is placed within the working area or hovering above the tablet. 5. When you press a button on the pen barrel, or click on a mouse button, the LED will be light up. 6. Hovering and moving the pen or the mouse in the working area will cause the cursor on the screen to move accordingly. Note: After the tablet’s device driver has been properly installed, a small tablet icon ( ) will appear in the system tray, which is normally at the lower right corner of the screen. 7. Usage Tips 7.1 Wake up the digital mouse from the standby mode If the digital mouse does not react after you do not use it for a while, press the left button to “wake” it up from the standby mode. 7.2 Tapping before you use the digital pen Before you use the digital pen, or after not using it for several minutes, tap the pen on any surface of the tablet to “wake” it up from the standby mode. 7.3 Double tapping When you double tap the digital pen (equivalent to a double click with a mouse), try to keep the pen tip away from the tablet’s surface, or at least try to lift the pen tip as fast as possible before the second tap. 7.4 Storing the digital pen To store the pen, make sure…

Text truncated - open the document above for the full version.

KYE SYSTEMS CORP. No.492, Chongxin Rd., Sanchong Dist., New Taipei City, 24160, Taiwan, (R.O.C.) Date: 10 December 2012 BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, KYE SYSTEMS CORP., hereby authorize Compliance Certification Services Inc./ David Wang to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on 10 Feb. 2013. Sincerely, Company Officer: Telephone Number: Email:

KYE SYSTEMS CORP. No.492, Chongxin Rd., Sanchong Dist., New Taipei City, 24160, Taiwan, (R.O.C.) Date: 10 December 2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: FSUGMZKI Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, KYE SYSTEMS CORP. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Name/Title: Company Name: KYE SYSTEMS CORP. Address: No.492, Chongxin Rd., Sanchong Dist., New Taipei City, 24160, Taiwan, (R.O.C.) TEL: +882-2-29956645 FAX: +882-2-29955302 Email:

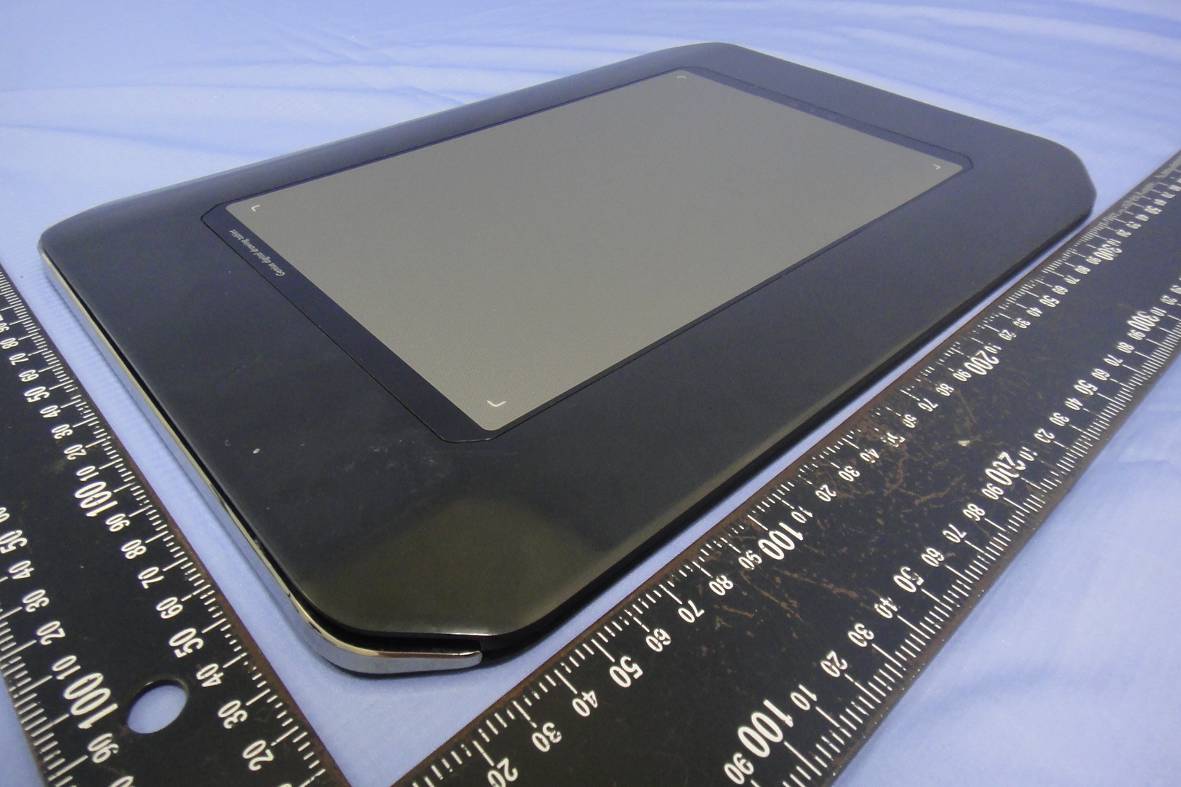

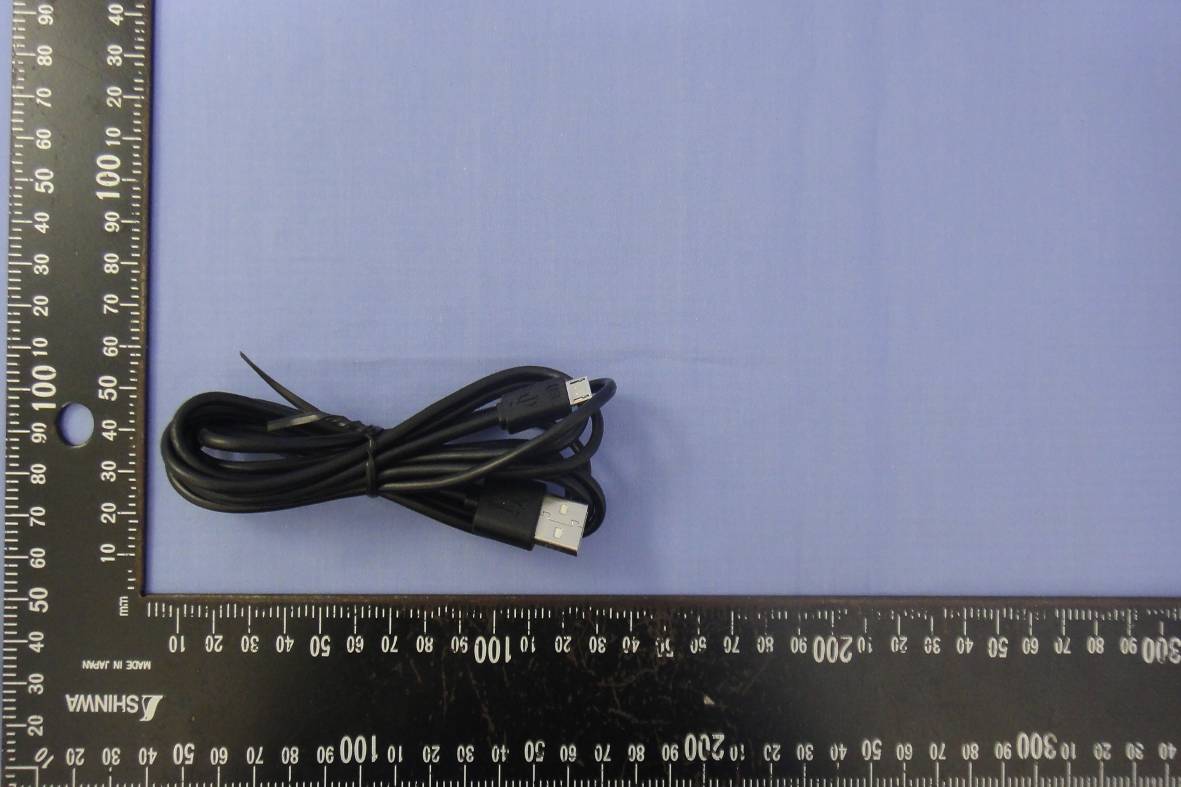

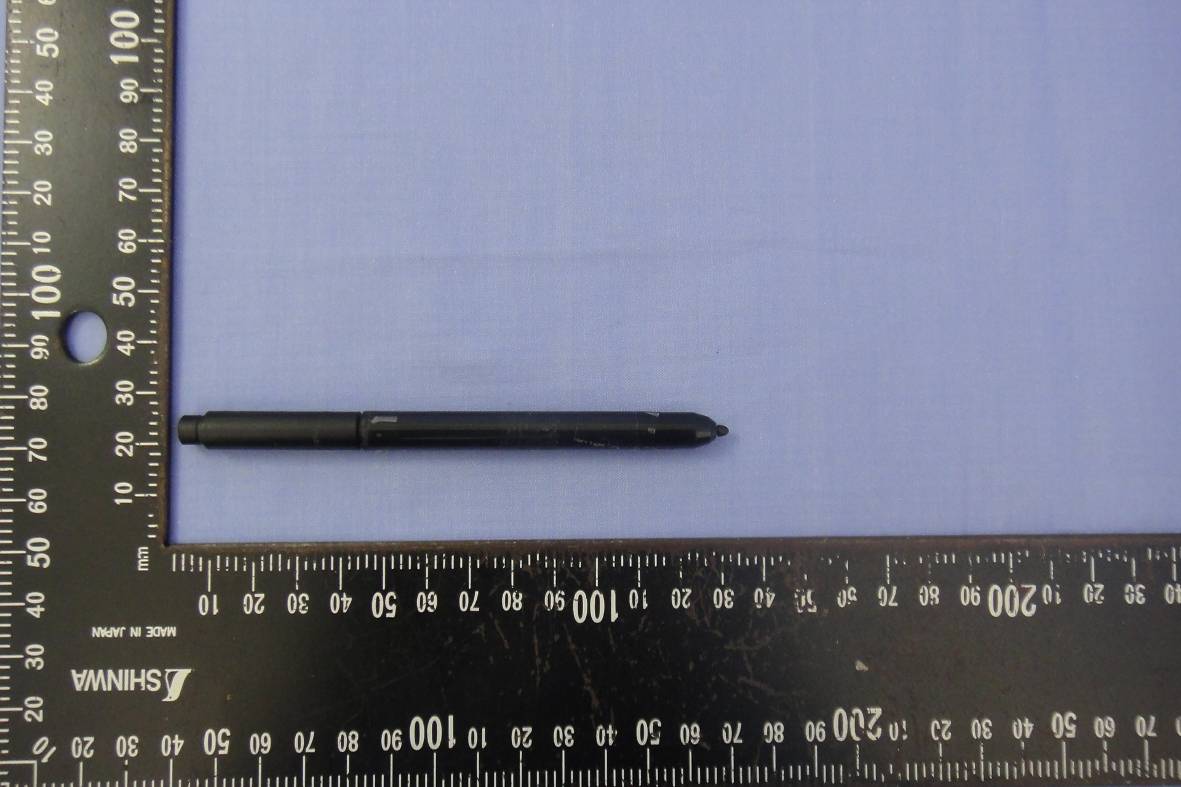

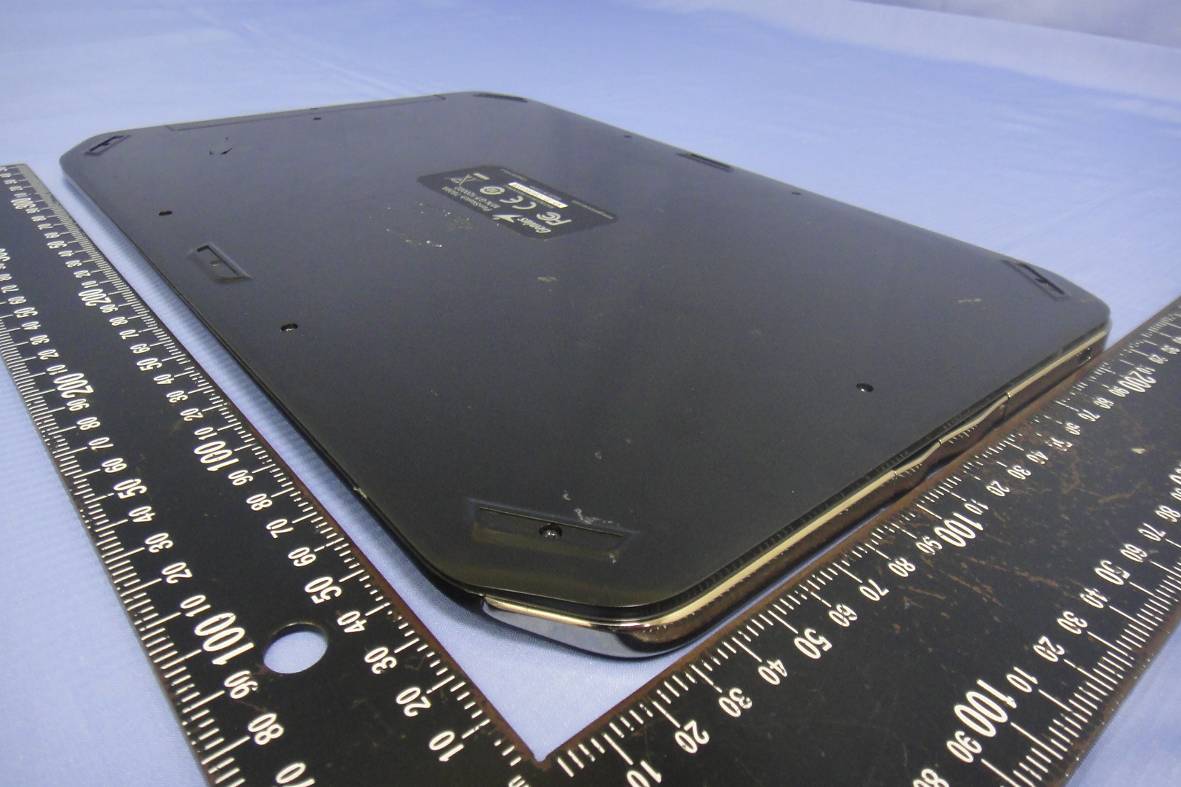

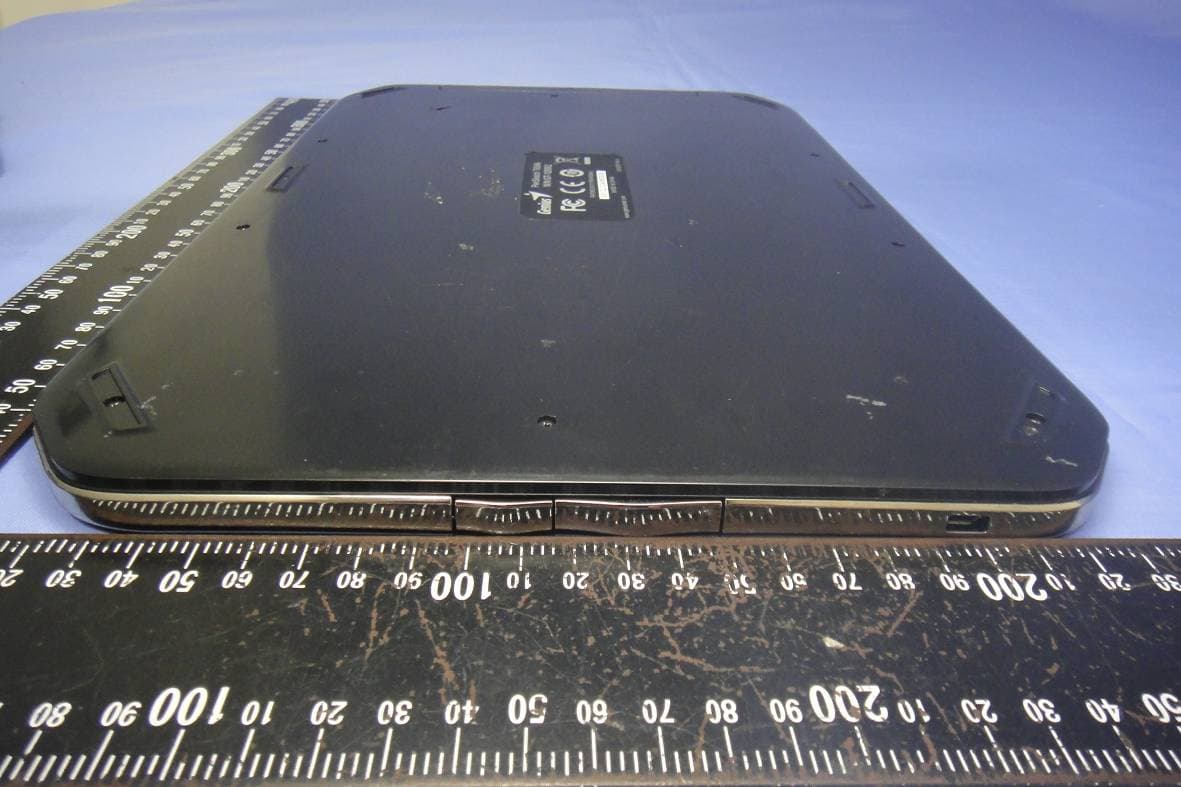

Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 1 Total Page: 9 Rev.00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 2 Rev.00 Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 3 Rev.00 Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 4 Rev.00

Label Sample & Location

Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 5 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 6 Rev.00 Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 7 Rev.00 Module Loop Antenna Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 8 Rev.00 Compliance Certification Services Inc. Report No.: T121029D04 Date of Issue: December 7, 2012 A1 - 9 Rev.00

Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 23 Rev.00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For PenSketch T609A Model: GT-120002 Trade Name: Genius Issued to KYE SYSTEMS CORP. No.492, Chongxin Rd., Sanchong Dist., New Taipei City, 24160, Taiwan, (R.O.C.) Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: December 10, 2012 Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 2 Rev.00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 December 10, 2012 Initial Issue ALL Eunice Shen Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 3 Rev.00 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION............................................................................................. 4 2 EUT DESCRIPTION .................................................................................................................... 5 3 TEST METHODOLOGY ............................................................................................................. 6 3.1. EUT CONFIGURATION....................................................................................................... 6 3.2. EUT EXERCISE .................................................................................................................... 6 3.3. GENERAL TEST PROCEDURES ........................................................................................ 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.......................................... 7 3.5. DESCRIPTION OF TEST MODES ...................................................................................... 7 4 INSTRUMENT CALIBRATION................................................................................................. 8 4.1. MEASURING INSTRUMENT CALIBRATION.................................................................. 8 4.2. MEASUREMENT EQUIPMENT USED .............................................................................. 8 4.3. MEASUREMENT UNCERTAINTY .................................................................................... 9 5 FACILITIES AND ACCREDITATIONS ................................................................................. 10 5.1. FACILITIES......................................................................................................................... 10 5.2. EQUIPMENT ....................................................................................................................... 10 5.3. TABLE OF ACCREDITATIONS AND LISTINGS ........................................................... 11 6 SETUP OF EQUIPMENT UNDER TEST ................................................................................ 12 6.1. SETUP CONFIGURATION OF EUT ................................................................................. 12 6.2. SUPPORT EQUIPMENT .................................................................................................... 12 7 FCC PART 15.209 REQUIREMENTS...................................................................................... 13 7.1. RADIATED EMISSIONS ................................................................................................... 13 7.2. POWERLINE CONDUCTED EMISSIONS ....................................................................... 18 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 21 Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 4 Rev.00 1 TEST RESULT CERTIFICATION Applicant: KYE SYSTEMS CORP. No.492, Chongxin Rd., Sanchong Dist., New Taipei City, 24160, Taiwan, (R.O.C.) Equipment Under Test: PenSketch T609A Tr a d e N a m e : Genius Model: GT-120002 Date of Test: December 3 ~ 7, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2009 and the energy emitted by the sample tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Miller Lee Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 5 Rev.00 2 EUT DESCRIPTION Product PenSketch T609A Trade Name Genius Model Number GT-120002 Model Discrepancy N/A Received Date October 29, 2012 Power Supply Powered from host device via USB Cable. Frequency Range 960kHz +/- 10kHz Antenna Specification Loop Antenna Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: FSUGMZKI filing to comply with Section 15.209 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 6 Rev.00 3 TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 Part 2, 15.207, 15.209. 3.1. EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 21 Rev.00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 30MHz Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 22 Rev.00 Above 30MHz ~ 1GHz Compliance Certification Services Inc. FCC ID: FSUGMZKI Report No.: T121029D04-RP1 Page 23 Rev.00 Powerline Conducted Emissions Setup Photos
