FSUGMZKKWireless Touch Pad

KYE SYSTEMS CORP.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Dec 09, 2012
Application Purpose: Original Equipment
Date of Application: Dec 09, 2012
Equipment Note: Wireless Touch Pad
Frequency Range: 2403.00000000 - 2479.00000000
Company: KYE SYSTEMS CORP.
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

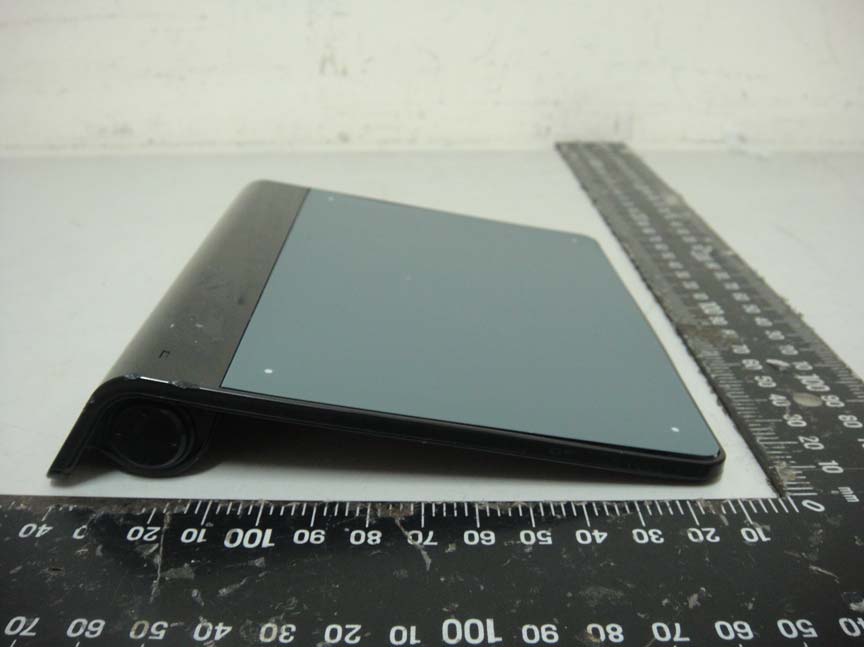

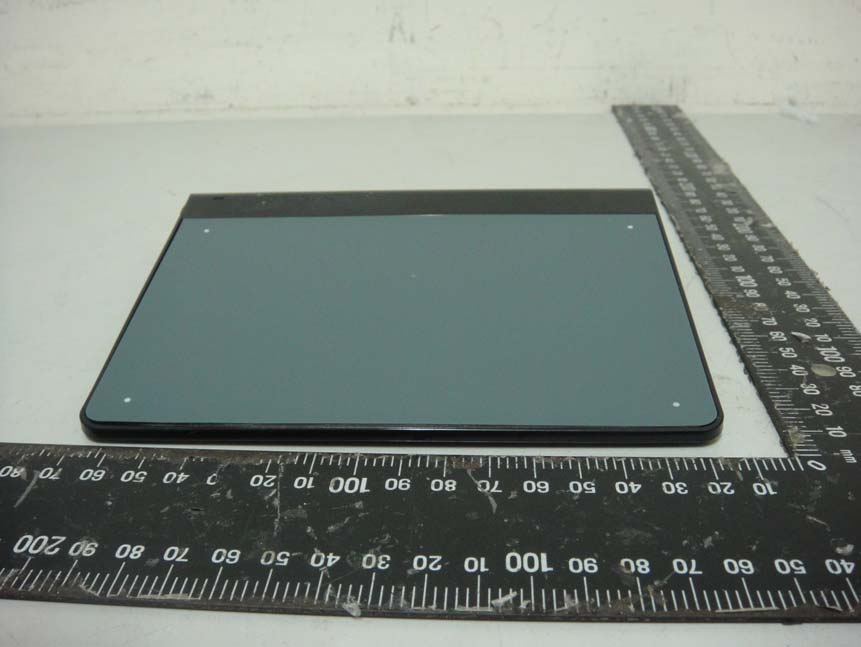

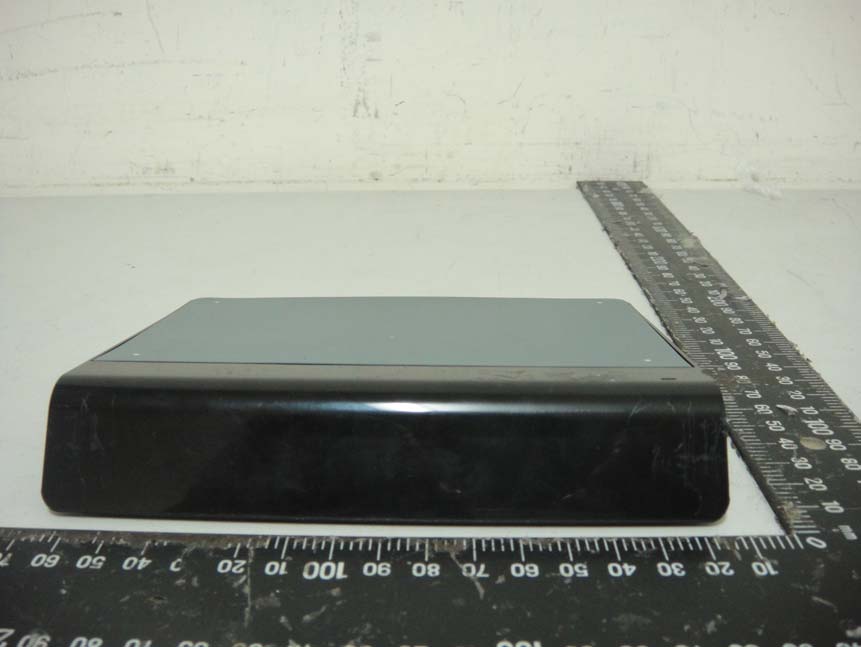

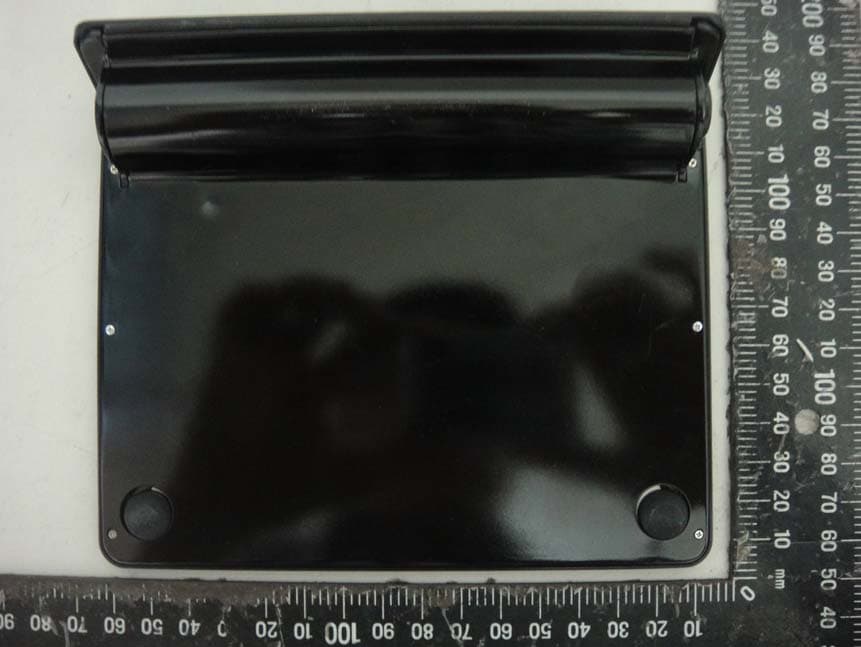

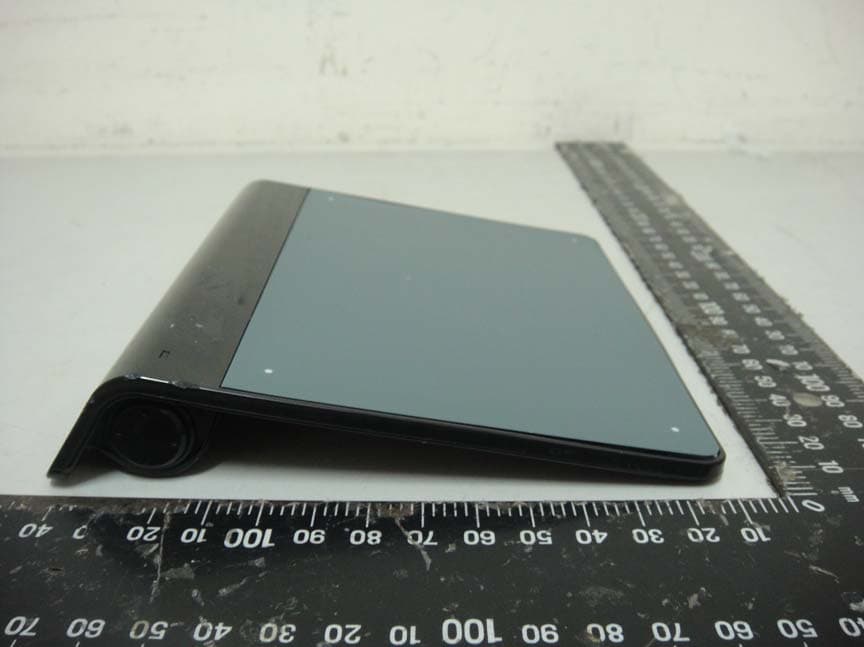

Global Certification Corp. PHOTOS OF EUT Report No: F2O3101 01 EUT 02 Left side of EUT Report No: F2O3101 03 Right side of EUT 04 Front view of EUT Report No: F2O3101 05 Front view of EUT 06 Rear view of EUT

Internal Photos

Global Certification Corp. PHOTOS OF EUT Report No: F2O3101 01 Front view of EUT 02 Rear view of EUT Report No: F2O3101 03 Inside 04 Front view of PCB Report No: F2O3101 05 Rear view of PCB 06 Front view of PCB Report No: F2O3101 07 Rear view of PCB 08 Front view of Dongle

Test Report

Global Certification Corp. Date of Issue: Nov. 20,2012 Report No: F2O3101 Page1/26 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Product Name: Wireless Touch Pad Model : GT-120005 Trade Name: Genius Issued to KYE SYSTEMS CORP. No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan, R.O.C. Issued by Global Certification Corp. EMC Test Site Xizhi office and Lab No.146, Sec. 2, Xiangzhang Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: Nov. 20,2012 Report No: F2O3101 Page2/26 TABLE OF CONTENTS ---------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION-------------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES----------------------------------------------------------------------------------------- 4 2. TEST METHODOLOGY------------------------------------------------------------------------------------------------------------ 5 2.1 GENERAL TEST PROCEDURES--------------------------------------------------------------------------------------------- 5 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS----------------------------------------------------------- 6 2.3 DESCRIPTION OF TEST MODES-------------------------------------------------------------------------------------------- 6 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS----------------------------------------------------------------------- 7 3. TEST AND MEASUREMENT EQUIPMENT----------------------------------------------------------------------------------- 8 3.1 CALIBRATION----------------------------------------------------------------------------------------------------------------------- 8 3.2 EQUIPMENT------------------------------------------------------------------------------------------------------------------------- 8 4. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL / HARMONICS)---------------------------------------------- 9 4.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------- 9 4.2 LIMIT--------------------------------------------------------------------------------------------------------------------------------9 4.3 RESULT---------------------------------------------------------------------------------------------------------------------------- 9 4.4 TEST DATA------------------------------------------------------------------------------------------------------------------------ 10 5. SECTION 15.205 REQUIREMENTS (BAND EDGE)------------------------------------------------------------------------ 18 5.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------ 18 5.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------18 5.3 RESULT--------------------------------------------------------------------------------------------------------------------------- 18 5.4 TEST DATA------------------------------------------------------------------------------------------------------------------------ 19 6. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION)------------------------------------------- 23 6.1 TEST SETUP------------------------------------------------------------------------------------------------------------------------ 23 6.2 LIMIT-------------------------------------------------------------------------------------------------------------------------------24 6.3 TEST PROCEDURE----------------------------------------------------------------------------------------------------------------- 24 6.4 RESULT---------------------------------------------------------------------------------------------------------------------------- 24 6.5 TEST DATA------------------------------------------------------------------------------------------------------------------------ 25 7. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS)---------------------------------- 26 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 2 PHOTOS OF EUT Global Certification Corp. Date of Issue: Nov. 20,2012 Report No: F2O3101 Page3/26 1. GENERAL INFORMATION Applicant : KYE SYSTEMS CORP. Address : No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160,, Taiwan, R.O.C. Manufacturer : KYE SYSTEMS CORP. Address : No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan, R.O.C. EUT : Wireless Touch Pad Model No. : GT-120005 Model Differences : N/A Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart C and the measurement procedures were according to ANSI C63.4-2003. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC part 15 subpart C Receipt Date : Oct. 31, 2012 Issue Date : Nov. 21, 2012 New Taipei City, Taiwan Nov. 21, 2012 Jason Yeh / Vice Manager (Place) (Date) (Signature) Designation Number: TW1069 Global Certification Corp. Date of Issue: Nov. 20,2012 Report No: F2O3101 Page4/26 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT Name : Wireless Touch Pad Model Number : GT-120005 FCC ID : FSUGMZKK Input Voltage : 3Vdc Power From : ;Inside Outside Adapter ;Battery AC Power Source DC Power Source Support Unit PC Operate Frequency : Refer to the channel list as described below Modulation Technique : GFSK Number of Channels : 86 Channel spacing : N/A ; 1 MHz Operating M…

Text truncated - open the document above for the full version.

Test Setup Photos

Global Certification Corp. Appendix 1 PHOTOS OF TEST CONFIGURATION Report No: F2O3101 03 966 Highest Channel 04 966 Lowest Channel
