FSUGMZKM2.4 GHz Wireless Receiver

English 1 Hardware Installation 1. You can connect the receiver to a USB port of a PC. 2. Install one AA battery in the mouse as instructed. 3. Make sure that you have switched on the power switch underneath the mouse. Factory Settings 1. Left Button: Provides traditional mouse functions like click double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions. Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. 4. If you feel the mouse does not move smooth as usual, it is possible the batteries have lost their charge so you need to replace them. Remember to put the batteries in the correct direction. Federal Communications Commission (FCC) Notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notice English - 1 3 F ujitsu Technology Solut ions 31

Confidentiality Letter Date: _ January 5, 2013 Subject: Confidentiality Request for FCC ID: FSUGMZKM and IC ID: Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC/IC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Part List/Tune-Up Procedure Short Term Permanent Schematics Short Term Permanent User’s Manual KYE SYSTEMS CORP._ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TUV Rheinland in the event information regarding the product or the product is made available to the public. TUV Rheinland will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Sincerely, By: __________________________ _ Lee _ (Signature/Manager) (Print name)

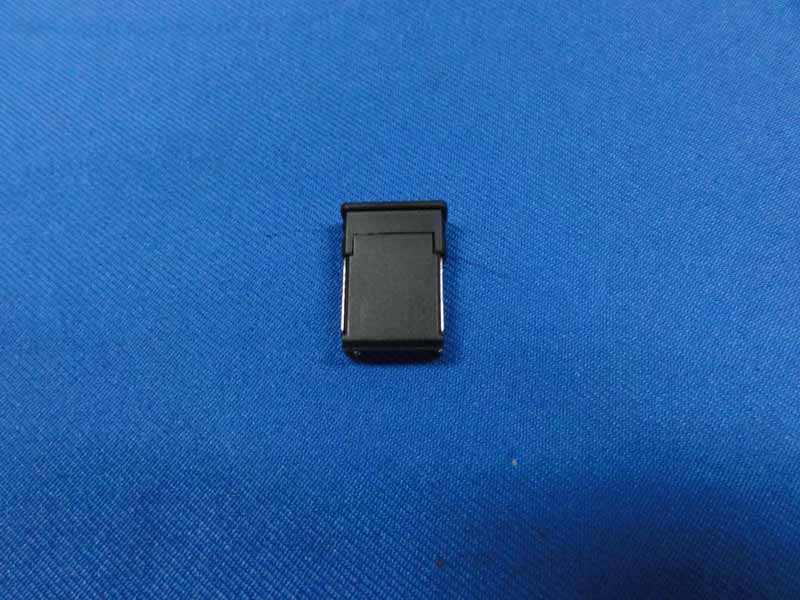

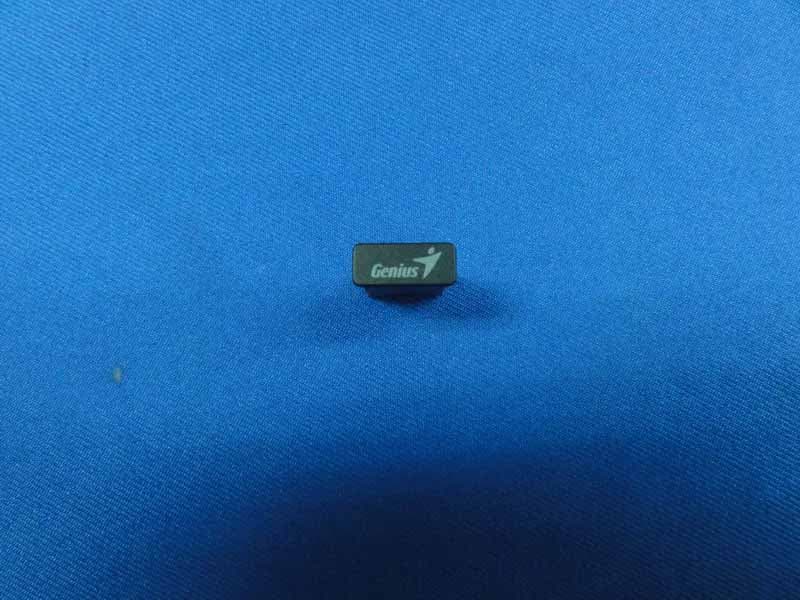

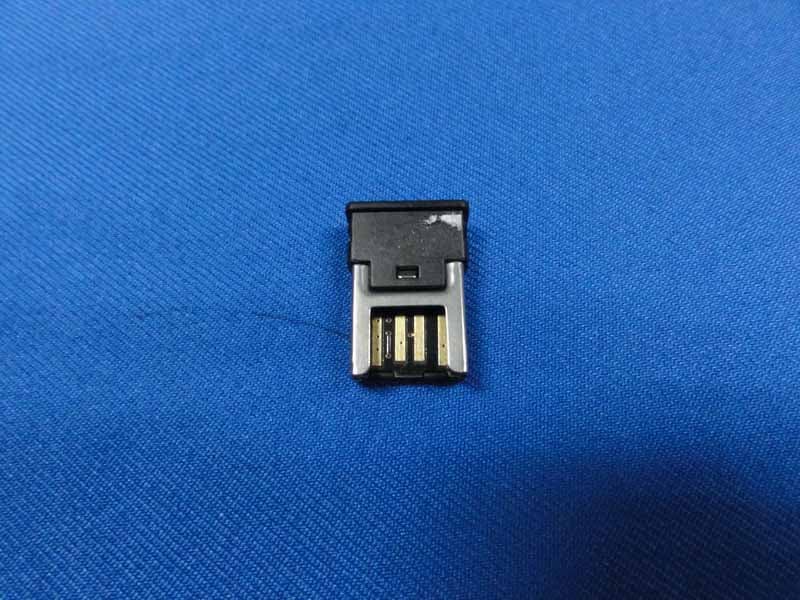

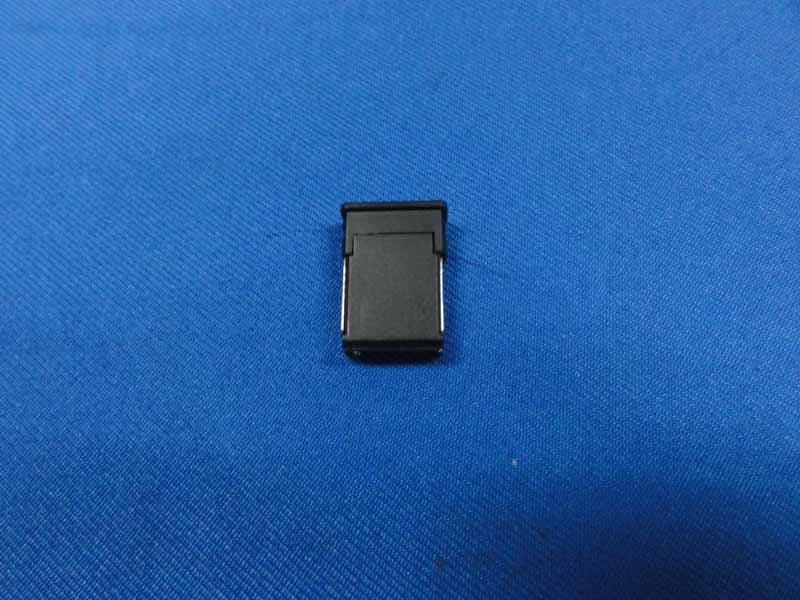

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 12-1 12. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 12-2 Figure 3 General Appearance of the EUT

FCC ID: FSUGMZKM 10mm 4mm

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 12-1 12. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 12-2 Figure 3 General Appearance of the EUT

GM-120020/R 2.4G Wireless Receiver BOM Listing 1/1 IDVALUEREFUNITREMARK 1 Resistance 2 RFT0402-510JTR11 3 RFT0402-222JTR31 4 RFT0402-103JTR51 5 CR0402-20K±5%R41 6 RFT0402-684JTR21 7 Capacitance 8 0402CG1R0C500NTC31 9 0402CG150J500NTC7.C82 100402B152K500NTC121 110402B104K100NTC1.C42 120402F105Z100NTC6.C13.C143 13 Inductance 14VHF100505H2N2STL11 15 Crystal 16 G-SMD3225A-12.000MHz-4PAD/10pF Y11 17 IC 18 CG7591AS U21 19 CYRF8935A-4X14C U31 20 PCB 21RG12V1110.8MM 22 Machinery 23RG11 Upper CoverRG11-SG1 24RG11 bottom CoverRG11-XG1 24USB BNC Connector PlugsRG11/Plating Nickel1 All Components are RoHS Compliant.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 8-1 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is<10mW=10dBm, i.e.0.009346mW<10mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01:General RF Exposure Guide.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of KYE SYSTEMS CORP. 2.4GHz Wireless Receiver Model Number: GM-120020/R FCC ID: FSUGMZKM Prepared for : KYE SYSTEMS CORP. No.492, Sec.5 Chongxin Rd., Sanchong Dist., New Taiper City 2416, Taiwan (R.O.C) Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12181 Date of Test ： Dec.25~27, 2012 Date of Report ： Jan.09, 2013 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. EUT Configuration and operation conditions for test.......................................................... 2-2 2.4. Test Facility ......................................................................................................................... 2-3 2.5. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-1 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Conducted Disturbance at Mains Terminals Test Results.................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-1 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.249 .............................................. 4-2 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-3 5. 20 DB BANDWIDTH TEST ........................................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Results .......................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-2 7. ANTENNA REQUIREMENT ........................................................................................ 7-1 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE.............................................. 8-1 9. TEST SOFTWARE.......................................................................................................... 9-1 10. DEVIATION TO TEST SPECIFICATIONS.............................................................. 10-1 11. PHOTOGRAPH OF TEST ........................................................................................... 11-1 11.1. Photos of Radiated Emission Test (30-1000MHz) ............................................................ 11-1 12. PHOTOGRAPH OF EUT ............................................................................................. 12-1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 1-1 1. SUMMARY…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 11-1 11. PHOTOGRAPH OF TEST 11.1. Photos of Radiated Emission Test (30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:FSUGMZKM page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12279 11-2 (At Anechoic 3m Chamber Test 1GHz –6GHz)
