FSUGMZKZ2.4GHz Wireless Mouse

English 1 Getting Started: 1. Before you can use this device, it needs to be charged, so connect the micro USB cable to Micro Traveler 9000R and any USB port on your PC. It takes approximately two until three hours to fully charge. 2. In charging mode, the LED light will be on and will turn off when charged. 3. Connect the USB receiver to any USB port on your PC. 4. Make sure that you have switched on the power switch underneath the mouse. Note: If the LED is flashing, you need to recharge the mouse immediately. Mouse Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions. 4. LED indicator: Indicates device Starting/Charging/Battery low - Starting: LED lights up for three seconds to initiate. - Charging: LED light is ON. - Fully charged: LED light is OFF. - Battery low: LED will flash at a slow speed to indicate low battery power. Note: Download the programmable driver from our website: www.geniusnet.com Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. 4. If you feel the mouse does not move smooth as usual, you need to recharge the mouse immediately. English 2 Note: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. (15.21) This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.(15.19(a)(3)) FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Date: Jul. 25, 2013 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: FSUGMZKZ, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name and Model Name of the specified radio equipment: Genius / GM-130005/S FCC ID: FSUGMZKZ Product Name: Micro Traveler 9000R Regards, Signature ___________________________________ Name/Title: P. C. Lee / Engineer Company Name: KYE Systems Corp. TEL: +886-2-2995 6645 FAX: +886-2-2995 6649

Request for Confidentiality To: Federal Communications Commission Authorization and Evaluation Division Subject: Confidentiality Request regarding application for certification of FCC ID: FSUGMZKZ Dear Madam or Sir: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below:  Block diagram –FSUGMZKZ Block Diagram.pdf  Operational description - FSUGMZKZ Operation Description.pdf  Schematic Diagram- FSUGMZKZ Schematic Diagram.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, P. C. Lee

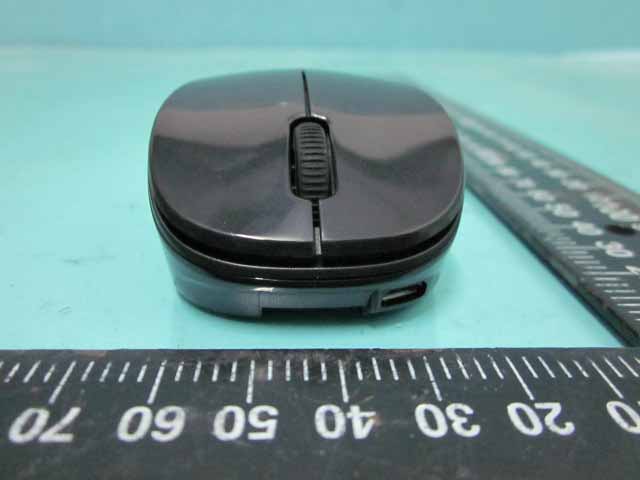

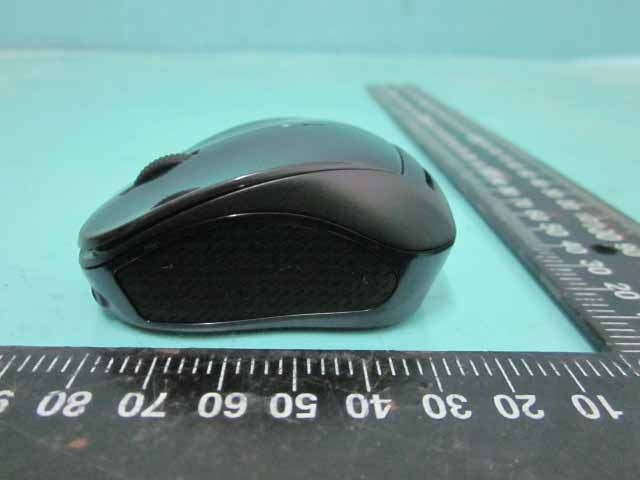

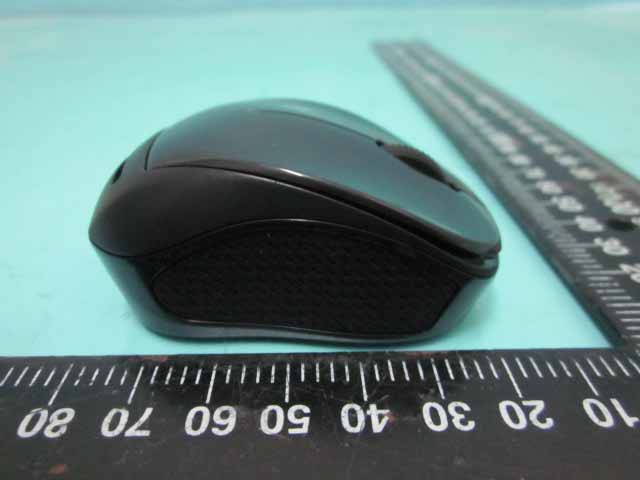

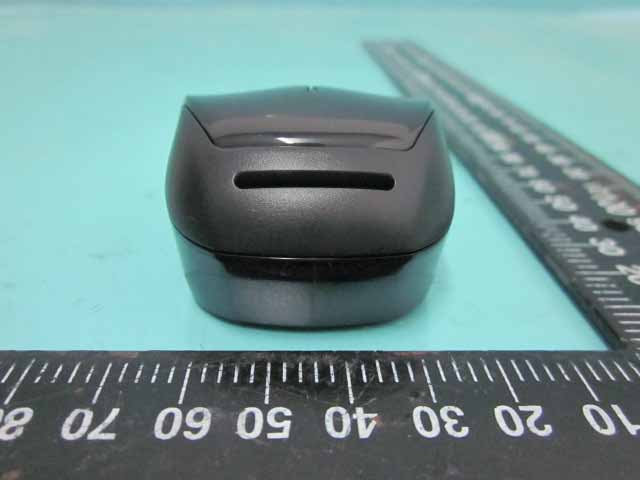

ETC Report No. : 13-06-RBF-013 Sheet 1 of 6 Sheets FCC ID. : FSUGMZKS CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No. : 13-06-RBF-013 Sheet 2 of 6 Sheets FCC ID. : FSUGMZKS CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 13-06-RBF-013 Sheet 3 of 6 Sheets FCC ID. : FSUGMZKS CONSTRUCTED PHOTOS of EUT 5. 6.

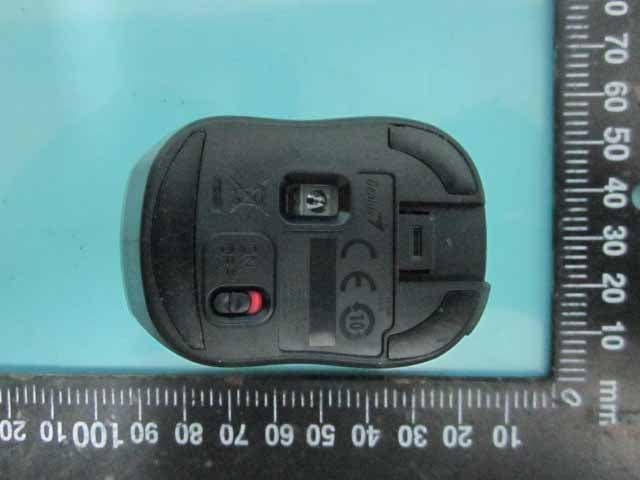

Label location

ETC Report No. : 13-06-RBF-013 Sheet 4 of 6 Sheets FCC ID. : FSUGMZKS CONSTRUCTED PHOTOS of EUT 7. 8. USB Cable ETC Report No. : 13-06-RBF-013 Sheet 5 of 6 Sheets FCC ID. : FSUGMZKS CONSTRUCTED PHOTOS of EUT 9. battery 10. ETC Report No. : 13-06-RBF-013 Sheet 6 of 6 Sheets FCC ID. : FSUGMZKS CONSTRUCTED PHOTOS of EUT 11.

I FCC Part 15 EMI TEST REPORT of E.U.T. : Micro Traveler 9000R MODEL : GM-130005/S FCC ID. : FSUGMZKZ Frequency Range : 2402MHz~2480MHz for APPLICANT : KYE SYSTEMS CORP. ADDRESS : No.492, Sec.5, Chung Hsin Rd., San Chung Dist., New Taipei City, 24160, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. TEL : (02)26023052 FAX: (02)26010910 http // www.etc.org.tw; e-mail [email protected] Report Number : 13-06-RBF-013 . ETC Report No. : 13-06-RBF-013 FCC ID. : FSUGMZKZ II TEST REPORT CERTIFICATION Applicant : KYE SYSTEMS CORP. No.492, Sec.5, Chung Hsin Rd., San Chung Dist., New Taipei City, 24160, Taiwan, R.O.C. Manufacturer : KYE SYSTEMS CORP. No.492, Sec.5, Chung Hsin Rd., San Chung Dist., New Taipei City, 24160, Taiwan, R.O.C. Description of EUT a) Type of EUT : Micro Traveler 9000R b) Trade Name : Genius c) Model No. : GM-130005/S d) Power Supply : DC 3.7V f) Frequency Range : 2402MHz~2480MHz; Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission Pass Band Edge Requirement Pass ETC Report No. : 13-06-RBF-013 FCC ID. : FSUGMZKZ III Date Test Item Received : Jun. 13, 2013 Date Test Campaign Completed : Jun. 30, 2013 Date of Issue : Jul. 16, 2013 Test Engineer : ( Jiapeng Chen, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 13-06-RBF-013 FCC ID. : FSUGMZKZ IV Table of Contents Page Cover Page........................................................................................................I TEST REPORT CERTIFICATION...........................................................................II Table of Contents............................................................................................... 1 GENERAL INFORMATION ...................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE ..................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION ......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT.............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 RF Portion ......................................................................................................................................... 11 4.4.2 Other Emissions ................................................................................................................................. 17 4.5 Field Strength Calculation ......................................................................................................... 19 4.6 Photos of Radiation Measuring Setup........................................................................................ 20 5 CONDUCTED EMISSION MEASUREMENT ....................................................................... 21 5.1 Standard Applicable ................................................................................................................... 21 5.2 Measurement Procedure............................................................................................................. 21 5.3 Conducted Emission Data ............…

Text truncated - open the document above for the full version.

ETC Report No. : 13-06-RBF-013 Sheet 20 of 31 Sheets FCC ID. : FSUGMZKS 4.6 Photos of Radiation Measuring Setup ETC Report No. : 13-06-RBF-013 Sheet 26 of 31 Sheets FCC ID. : FSUGMZKS 5.6 Photos of Conduction Measuring Setup
