FSUGMZL4Wireless Mouse

English 1 Product name: DX-7100 Model names: GM-130027/S Hardware Installation 1. You can connect the receiver to a USB port of a PC. 2. Install one AA battery in the mouse as instructed. 3. Make sure that you have switched on the power switch underneath the mouse. Factory Settings 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Press the “Magic-Roller” to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click functions. Note: Download the programmable driver from Genius website at www.geniusnet.com Warning: (Troubleshooting) 1. Do not use the wireless optical/laser mouse on a desk which is made of glass or mirror. 2. The connection of the wireless device is factory preset, so when you plug the USB receiver into any USB port, the connection between the micro receiver and the mouse will be established automatically. 3. In case your PC did not install the hardware successfully, remove the micro receiver from the USB port and go Human Interface Devices under Device Manager to remove the mouse then plug in the micro receiver to a USB port again. English 2 4. If you feel the mouse does not move smooth as usual, it is possible the batteries have lost their charge so you need to replace them. Remember to put the batteries in the correct direction. FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limit s for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

P.C. Lee KYE SYSTEMS CORP. No.492, Sec.5, Chongxin Rd., Sanchong Dist., New Taipei City, Taiwan Date: Mar. 05, 2014 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: FSUGMZL4 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, KYE Systems Corp. hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: KYE SYSTEMS CORP. Telephone Number: + 886-2-2995-6645 Email: [email protected]

Report No:411001 01 Front View Of EUT 02 Rear View Of EUT Appendix 3:1/6 Report No:411001 03 Left View Of EUT 04 Right View Of EUT Appendix 3:2/6 Report No:411001 05 Top View Of EUT 06 Bottom View Of EUT Appendix 3:3/6

FCC LABEL

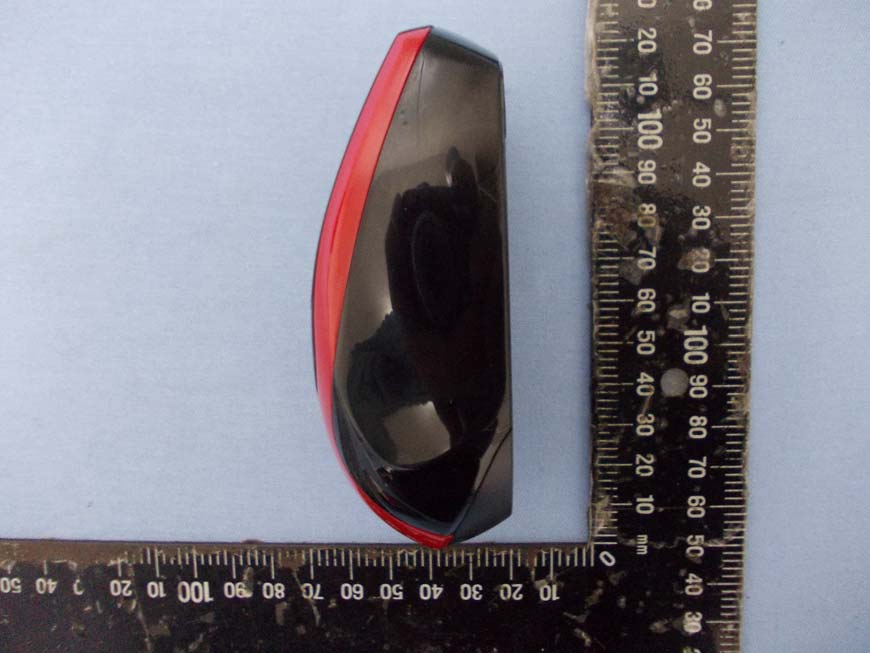

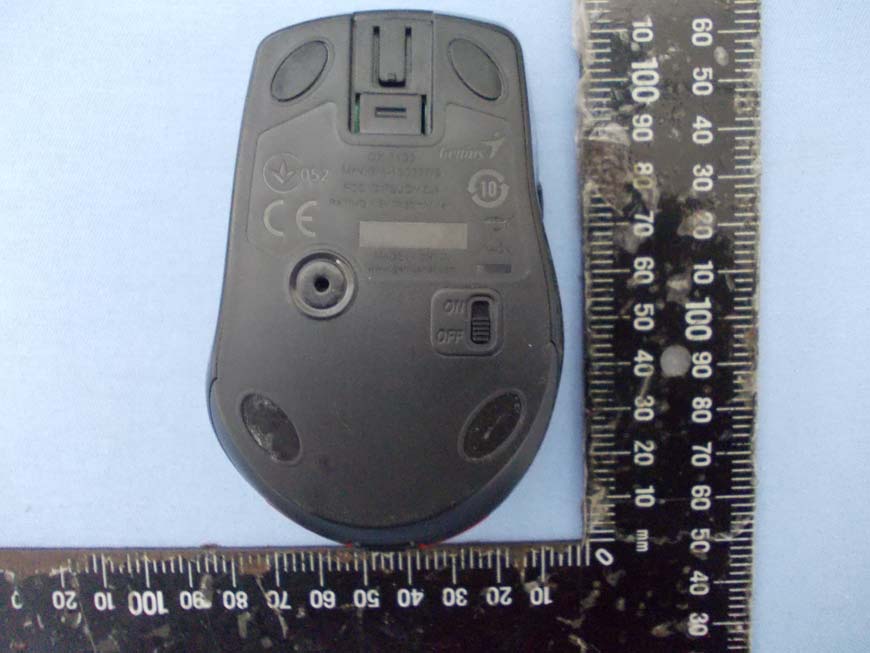

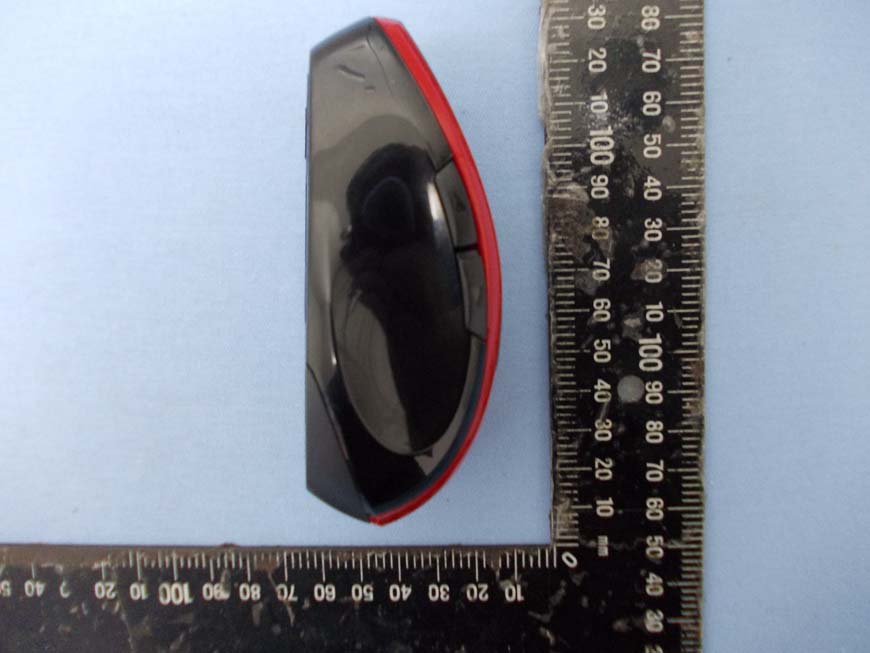

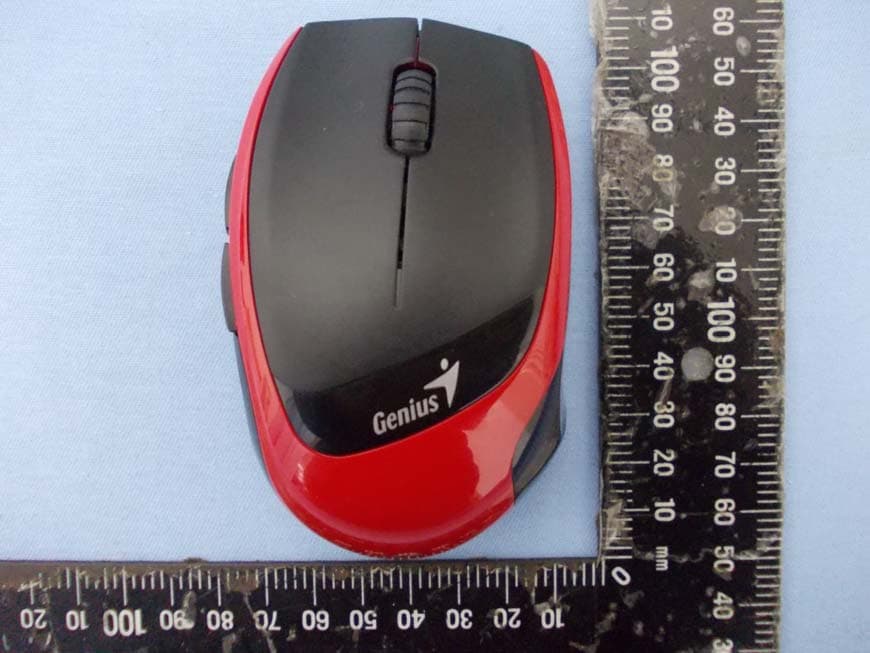

Global Certification Corp. PHOTOS OF EUT Report No:411001 01 Front View Of EUT 02 Rear View Of EUT Appendix 3:1/7 Report No:411001 03 Left View Of EUT 04 Right View Of EUT Appendix 3:2/7 Report No:411001 05 Top View Of EUT 06 Bottom View Of EUT Appendix 3:3/7 Report No:411001 07 Inside 08 Front view of PCB Appendix 3:4/7 Report No:411001 09 Rear view of PCB 10 Front view of Dongle Appendix 3:5/7 Report No:411001 11 Rear view of Dongle 12 Front view of PCB 1 Appendix 3:6/7 Report No:411001 13 Rear view of PCB 1 Appendix 3:7/7

Global Certification Corp. Date of Issue: Feb. 27, 2014 Report No: F411001 Page1/29 FCC 47 CFR PART 15 SUBPART C TEST REPORT FOR Product Name: DX-7100 Model : GM-130027/S Trade Name: Genius Issued to KYE SYSTEMS CORP. No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan, R.O.C. Issued by Global Certification Corp. No.146, Sec. 2, Xiangzhang Rd., Xizhi Dist., New Taipei City 221, Taiwan (R.O.C.) Note: This test refers exclusively to the test presented test model and sample. This report shall not be reproduced except in full, without the written approval of Global Certification Corporation. This document may be altered or revised by Global Certification Corporation. Personnel only, and shall be noted in the revision section of the document. Global Certification Corp. Date of Issue: Feb. 27, 2014 Report No: F411001 Page2/29 TABLE OF CONTENTS ---------------------------------------------------------------------------------------------------- 2 1. GENERAL INFORMATION -------------------------------------------------------------------------------------------------------- 3 1.1 DESCRIPTION OF THE TESTED SAMPLES ------------------------------------------------------------------------------ 4 2. TEST METHODOLOGY ------------------------------------------------------------------------------------------------------------ 6 2.1 GENERAL TEST PROCEDURES --------------------------------------------------------------------------------------------- 6 2.2 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ---------------------------------------------------------- 7 2.3 DESCRIPTION OF TEST MODES -------------------------------------------------------------------------------------------- 7 2.4 DESCRIPTION OF THE SUPPORT EQUIPMENTS ----------------------------------------------------------------------- 8 3. TEST AND MEASUREMENT EQUIPMENT ----------------------------------------------------------------------------------- 9 3.1 CALIBRATION------------------------------------------------------------------------------------------------------------------- 9 3.2 EQUIPMENT --------------------------------------------------------------------------------------------------------------------- 9 4. SECTION 15.249 REQUIREMENTS (FUNDAMENTAL / HARMONICS) --------------------------------------------- 10 4.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 10 4.2 LIMIT ----------------------------------------------------------------------------------------------------------------------------- 10 4.3 RESULT -------------------------------------------------------------------------------------------------------------------------- 10 4.4 TEST DATA ---------------------------------------------------------------------------------------------------------------------- 11 5. SECTION 15.205 REQUIREMENTS (BAND EDGE) ------------------------------------------------------------------------ 20 5.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 20 5.2 LIMIT ----------------------------------------------------------------------------------------------------------------------------- 20 5.3 RESULT -------------------------------------------------------------------------------------------------------------------------- 20 5.4 TEST DATA ---------------------------------------------------------------------------------------------------------------------- 21 6. SECTION 15.209 REQUIREMENTS (GENERAL RADIATED EMISSION) ------------------------------------------- 26 6.1 TEST SETUP --------------------------------------------------------------------------------------------------------------------- 26 6.2 LIMIT ----------------------------------------------------------------------------------------------------------------------------- 27 6.3 TEST PROCEDURE ------------------------------------------------------------------------------------------------------------ 27 6.4 RESULT -------------------------------------------------------------------------------------------------------------------------- 27 6.5 TEST DATA ---------------------------------------------------------------------------------------------------------------------- 28 7. SECTION 15.207 REQUIREMENTS (POWERLINE CONDUCTED EMISSIONS) ---------------------------------- 29 APPENDIX 1 PHOTOS OF TEST CONFIGURATION APPENDIX 2 TEST DATA PHOTOS OF EUT Global Certification Corp. Date of Issue: Feb. 27, 2014 Report No: F411001 Page3/29 1. GENERAL INFORMATION Applicant : KYE SYSTEMS CORP. Address : No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160,, Taiwan, R.O.C. Manufacturer : Dongguan Kunying Computer Products Co., Ltd Address : Baodun Industrial District, Houjie Town, Dongguan City, Guangdong Province, 523961 China EUT : DX-7100 Model No. : GM-130027/S Model Differences : N/A Is here with confirmed to comply with the requirements set out in the FCC Rules and Regulations Part 15 Subpart C and the measurement procedures were according to ANSI C63.4-2009. The said equipment in the configuration described in this report shows the maximum emission levels emanating from equipment are within the compliance requirements. FCC Part 15 Subpart C Receipt Date : Jan. 10, 2014 Issue Date : Feb. 27, 2014 New Taipei City, Taiwan Feb. 27, 2014 Adam Chou, Manager (Place) (Date) (Signature) Designation Number: TW1069 Global Certification Corp. Date of Issue: Feb. 27, 2014 Report No: F411001 Page4/29 1.1 DESCRIPTION OF THE TESTED SAMPLES EUT Name : DX-7100 Model Number : GM-130027/S FCC ID : FSUGMZL4 Input Voltage : 1.5Vdc (1x"AAA" battery) Power From : ;Inside †Outside †Adapter ;Battery †AC Power Source †DC Power Source †Support Unit PC Operate Frequency : Refer to the channel list as described below Modulation Technique : GFSK Number of Channels : 61 Channel spaci ng : 1 MHz Operating Mode : Duplex Bit Rate of Transm…

Text truncated - open the document above for the full version.

Global Certification Corp. Appendix 1 PHOTOS OF TEST CONFIGURATION Report No:411001 01 RE Lowest Channel 02 RE Highest Channel Appendix 1:1/1
