English 1 How to use the Presenter: 1.Insert two AAA batteries in the Media Pointer. 2.Plug the receiver unit into any USB port. I D identification The Media Pointer ID has been factory preset. The 2.4GHz DSSS technology works up to 15 meters and has a anti-interference function. M edia Pointer features: 1.T he mini receiver can be stored inside the Media Pointer for easy storage. Button Functions: 1.F5/ESC: Start Presention / Exit full screen 2.Blank Screen 3.Previous Page 4.Next Page 5.Laser Beam FCC C ompliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two condi tions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reo rient the receiving antenna. 2. Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. 2 English

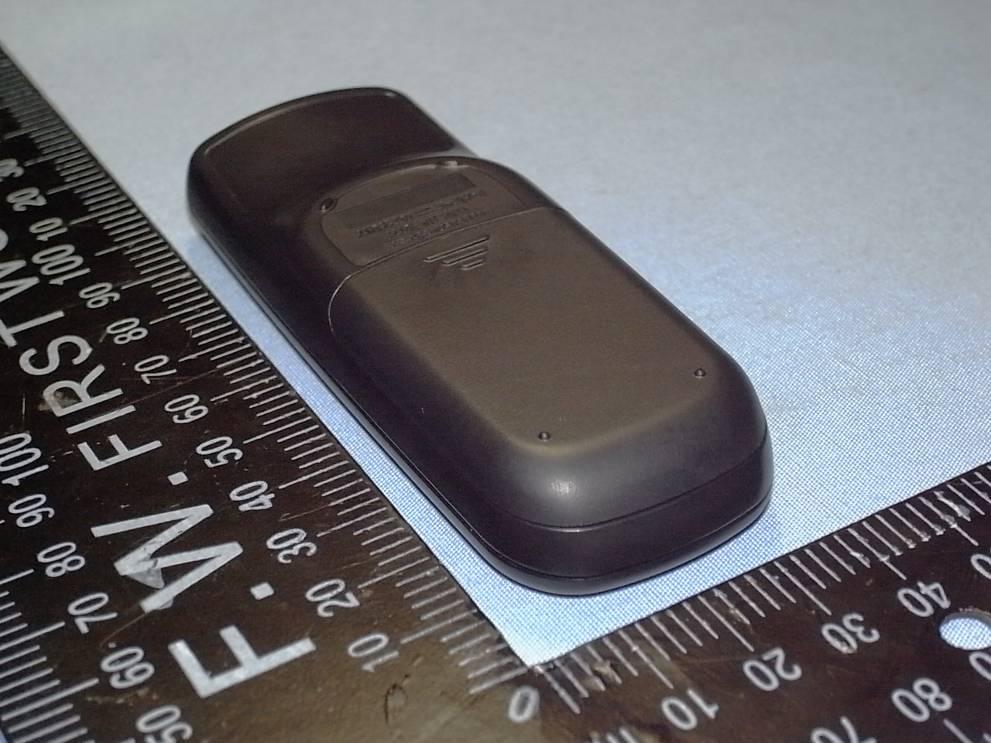

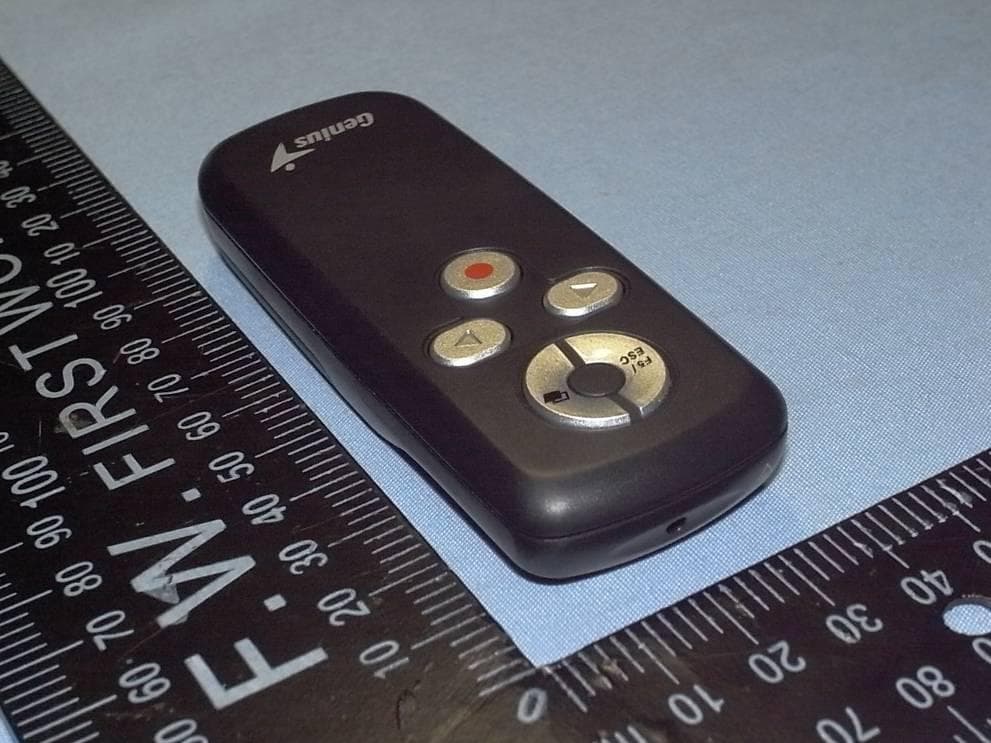

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - External

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) FCC ID：FSUGMZL8 FCC ID：FSUGMZL8

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - Internal TOP Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PCB RF Antenna Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) IC Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) CASE

TECHNOLOGICAL SPEC. 1. Product Name： Media Pointer 100 Model： GM-090012-V2 2. Power Source： ■ DC 3 V, 30 mA 3. Frequency Band： 2.400 GHz ~ 2.4835 GHz Carrier Frequency： 2.402 GHz ~ 2.480 GHz 4. Number of Channel： 16 5. RF Output Power： 91.46 dBuV/m@2402 MHz (0.028 mW) 6. Modulation Type： GFSK 7. Mode of operation (duplex, simplex, half duplex) ： Duplex 8. Antenna Type： Chip Antenna 9. Antenna gain： 3 dBi 10. Operating Temperature Range： -20 ~ 55 °C

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A14043001 Report No.:FCCA14043001 FCC ID : FSUGMZL8 Page: 1 of 48 Date: May. 19, 2014 FMNG-059.11 REPORT Product Name: Media Pointer 100 Model No.: GM-090012-V2 Applicant: KYE SYSTEMS CORP. (Genius) No. 492, Sec. 5, Chongxin Rd., Sanchong Dist., New Taipei City 24160, Taiwan (R.O.C.) Date of Receipt: Apr. 30, 2014 Finished date of Test: May. 14, 2014 Applicable Standards: 47 CFR Part 15, Subpart C, 15.249 ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Richard Lin) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A14043001 Report No.:FCCA14043001 FCC ID : FSUGMZL8 Page: 2 of 48 Date: May. 19, 2014 Revisions History Report No. Issue Date Revisions FCCA14043001 May. 19, 2014 Initial issue Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A14043001 Report No.:FCCA14043001 FCC ID : FSUGMZL8 Page: 3 of 48 Date: May. 19, 2014 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT...................................................4 1.1 DOCUMENT POLICY.....................................................................................4 1.2 TEST STATEMENT.........................................................................................4 1.3 EUT MODIFICATION......................................................................................4 2. DESCRIPTION OF EUT AND TEST MODE.........................................................5 2.1 GENERAL DESCRIPTION OF EUT................................................................5 2.2 USED CHANNEL AND FREQUENCY TABLE.................................................5 2.3 DESCRIPTION OF EUT INTERNAL DEVICE.................................................5 2.4 EUT OPERATING CONDITION......................................................................6 2.5 DESCRIPTION OF TEST MODE....................................................................6 2.6 DESCRIPTION OF SUPPORT UNIT..............................................................7 3. DESCRIPTION OF APPLIED STANDARDS.........................................................8 3.1 SUMMARY OF TEST RESULTS.....................................................................8 4. TECHNICAL CHARACTERISTICS TEST.............................................................9 4.1 BAND EDGE TEST.........................................................................................9 4.1.1 TEST EQUIPMENT..................................................................................9 4.1.2 TEST SETUP..........................................................................................10 4.1.3 TEST PROCEDURE...............................................................................11 4.1.4 EUT OPERATING CONDITION..............................................................11 4.1.5 TEST RESULT........................................................................................12 4.2 20DB OCCUPIED BANDWIDTH TEST.........................................................18 4.2.1 LIMIT......................................................................................................18 4.2.2 TEST EQUIPMENT................................................................................18 4.2.3 TEST SET-UP.........................................................................................18 4.2.4 EUT OPERATING CONDITION.............................................................18 4.2.5 TEST RESULT........................................................................................19 4.3 RADIATED EMISSION TEST........................................................................21 4.3.1 LIMIT......................................................................................................21 4.3.2 TEST EQUIPMENT................................................................................22 4.3.3 TEST SET-UP.........................................................................................23 4.3.4 TEST PROCEDURE...............................................................................24 4.3.5 TEST RESULT........................................................................................25 5. ANTENNA APPLICATION...................................................................................41 5.1 ANTENNA REQUIREMENT..........................................................................41 5.2 RESULT........................................................................................................41 5.3 DESCRIPTION OF RF EXPOSURE.............................................................41 6. PHOTOS OF TESTING......................................................................................42 7. TERMS OF ABBREVIATION..............................................................................48 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A14043001 Report No.:FCCA14043001 FCC ID : FSUGMZL8 Page: 4 of 48 Date: May. 19, 2014 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT…
