FSUKM001Optical Mouse

 ▼ Introduction Congratulations on your purchase of a rocketfish 27MHz Wireless Optical Mouse. This ergonomically designed mouse uses a radio frequency (RF) link that enables you to use the mouse anywhere within distance of its receiver. No line-of-sight between the mouse and its receiver is required. In addition to this user’s guide this package contains: • Mouse • USB receiver • 2 AAA batteries • Carrying pouch ▼ System Requirements Hardware • PC with a Pentium ® processor or the equivalent • USB interface Operating System • Windows ® 98SE/Me/2000/XP and Mac ▼ Connecting the Mouse Receiver To connect the mouse receiver: 1. Plug the USB receiver into an available USB port on your computer. 2. Your computer’s operating system identifies the receiver and begins installing the default driver. 3. Follow any on-screen procedures to complete the default driver installation. English 2 ▼ Using the mouse Install the batteries a. Press the battery releasing button to open battery cover. b. Insert batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery housing. c. Put on the battery cover. English + _ _ +  ▼ Establishing a communications link The mouse has 256 identification codes that allow the mouse and its receiver to operate without interference from other radio frequency devices. After your computer detects the USB receiver and the driver is installed, you must establish a communications link between the mouse and its receiver BEFORE you can use the mouse. To do this, follow the instructions below: 1. Press and release the link button located on the receiver.The receiver’s status light blinks when the receiver is activated. 2. Press and release the link button, located on the bottom of the mouse, and you are now ready to use the mouse. ▼ Mouse Power Management a. Push back the lock of dongle holder. b. Pull the dongle holder till the end to power off c. Insert receiver to the dongle holder while travelling. d. The mouse will go into “sleep mode” after 7 minutes of idling status. To awake the mouse, just move or click any key of the mouse. e. While power is running out, the LED light will turn to RED with blinking light. English Link Button a b c Link Button  ▼ Operating hints For optimal performance and RF reception: • Place the receiver at least 8 inches (20 cm) away from all electrical devices, such as your monitor, speakers or external storage devices. If necessary, use the extension cable to keep the receiver away from the computer. Plug the receiver into the extension cable, and the extension cable to the computer. • Avoid using the mouse on a metal surface. Metals, such as iron, aluminum or copper, shield the radio frequency transmission and may slow down the mouse’s response time or cause the mouse to fail temporarily. • The mouse will enter a suspend mode at the same time your computer does. To activate the mouse, simply move or click the mouse. • If your computer has a metal case that contains aluminum or magnesium, use the mouse to the side. The display panel may interfere with the radio frequency signal if you use the mouse directly in front of the computer. • Never use the mouse on a glass or mirrored surface as these surfaces will cause the mouse to fail temporarily. • To maximize battery life, use the mouse on a white, or light colored surface. Dark surfaces cause the mouse’s light emitter diode (LED) light to glow brighter, which causes the battery to discharge more rapidly. ▼ Comfortable usage Research suggests that physical discomfort and injury to nerves, tendons, and muscles may be related to repetitive motion, an improperly set up work area, incorrect body posture, and poor work habits. To reduce the risk of injury, follow these precautions: • Stand, stretch, and move around several times every hour. • Switch hands while performing tasks. Use shortcut keys to avoid repetitive or awkward mouse movements. • Relax your shoulders and keep your elbows at your sides. Adjust the keyboard’s position so that you don’t have to stretch to reach it. • Adjust your position so that you don’t have to bend your wrists to type; avoid placing your wrists on a sharp edge. • If you feel discomfort or numbness in your hands, wrists, arms, shoulders, neck, or back while typing, consult a qualified medical professional. English 5 English ▼ Specifications Interface RadioFrequency WorkingDistance WorkingPrinciple CMOSSensor Resolution TrackingSpeed Buttons Wheel PowerSwitch Battery Dimensions Warranty OperatingVoltage OperatigCurrent USBLowSpeedDeviceHIDClass 27MHz Morethan80cm OpticalCMOSsensor AgilentADNS-5030 Opticalresolution1000cpi 14ips 2buttonsplusrollerbutton 1scrollingwheel Yes 1.5VAAAsizex2PCs W54.6mmxH36mmxL105mm 1year 1.6V~5V 26mAorlower Interface RadioFrequency Dimensions Warranty OperatingVoltage OperatigCurrent USBLowSpeedDeviceHIDClass 27MHz W20mmxH10mmxL710mm 1year 5V(PoweredbytheUSBPort) Below15mA RFOptical Recevier 6 English ▼ Troubleshooting What do I do if the mouse does not work? • Make sure that the polarity of the batteries is correct. The positive (+) and negative (-) ends of each battery must match the positive (+) and negative (-) connections in the battery housing. • Check that the receiver’s USB connector is firmly attached to the USB port on your computer. • Verify that the device drivers are installed. • Make sure you have established a radio link between the mouse and its receiver. When I use the mouse, other wireless devices work more slowly or fail temporarily – what should I do? The mouse may cause interference with any cordless, radio-based device that operates at 27 MHz, such as a telephone, baby monitor, or toy. To reduce interference, move the mouse’s receiver and the base unit of the affected device as far away from each other as possible. What do I do if the response time of the mouse is slow or the mouse intermittently stops working? • Increase the distance between the mouse’s r…

Text truncated - open the document above for the full version.

Date: July 10, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

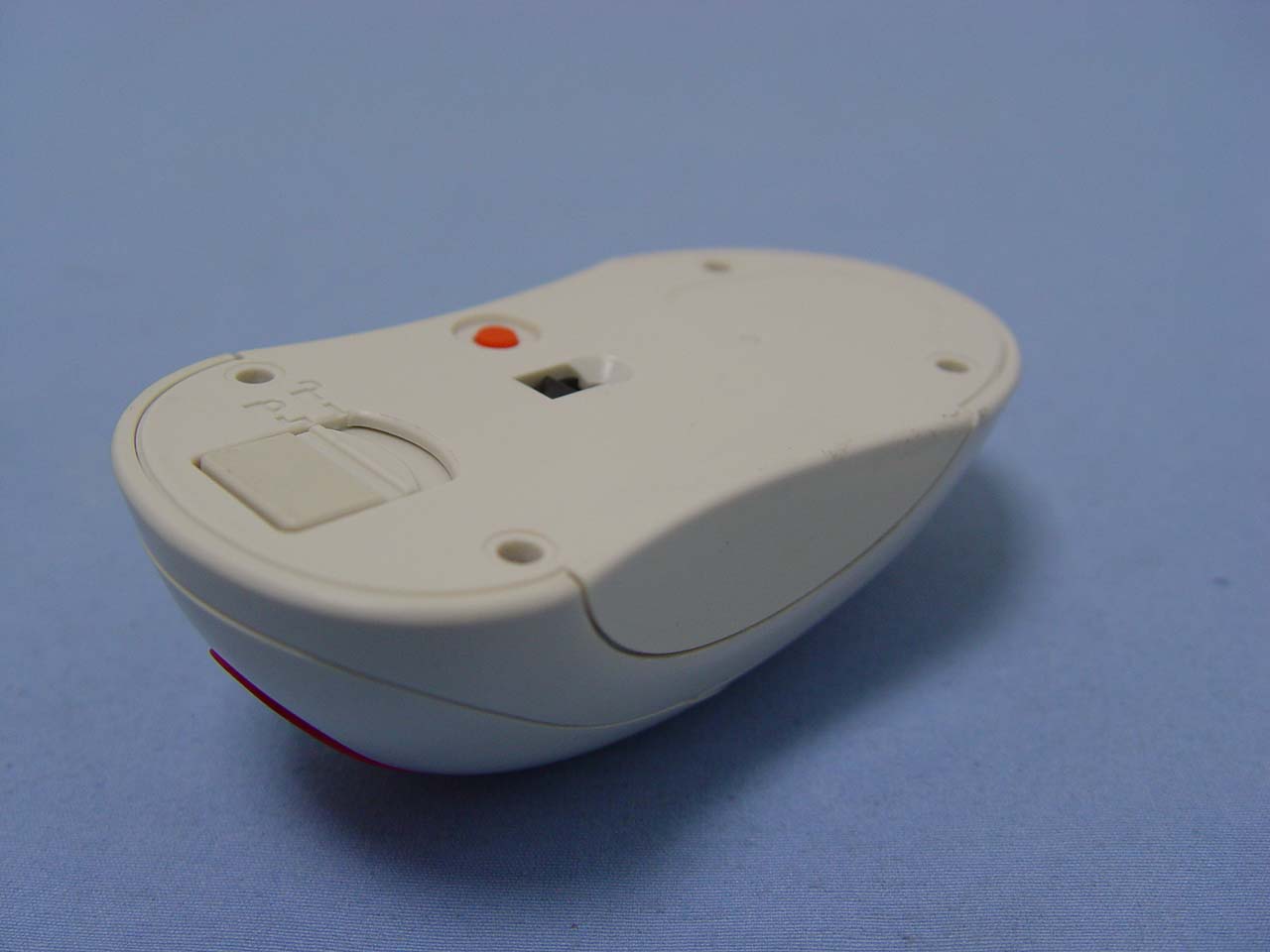

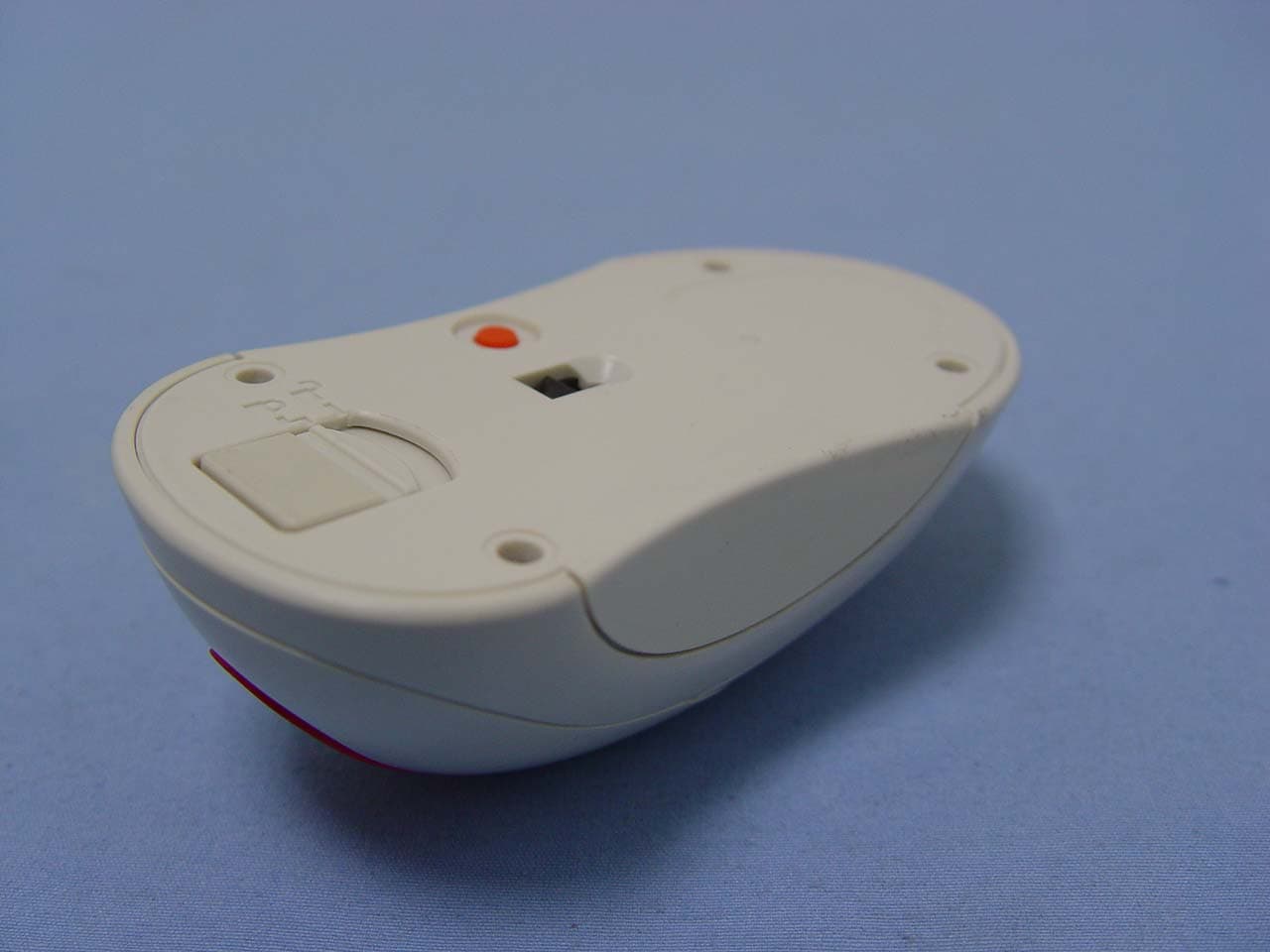

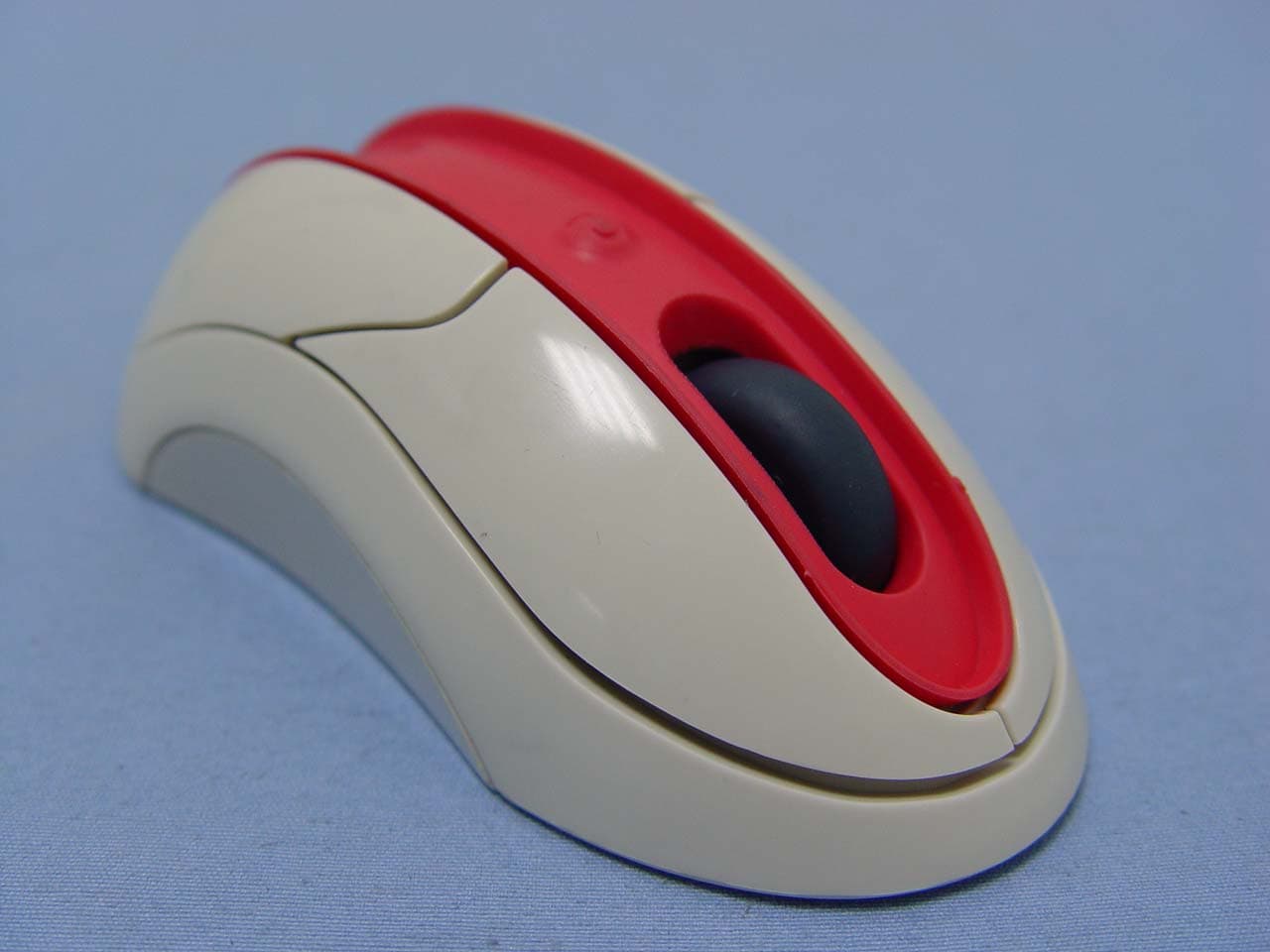

Compliance Certification Services Inc. Report No: 60706004 Date of Issue: July 13, 2006 Page 1 Total Page: 5 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

RS 2006/07/06 李文珍 2006/07/06 陳文政/Jeff 莊鑫淼/Lear 2006/07/06 李文珍 2006/07/06 A CAP-00 RF-WTRMS 33.00 30.00 RS,FCC,ROCKETFISH,RF-WTRMS 12042039200 Canada 310 8 FCC ID:FSUKM001

Compliance Certification Services Inc. Report No: 60706004 Date of Issue: July 13, 2006 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60706004 Date of Issue: July 13, 2006 Page 3 Rev.00 Compliance Certification Services Inc. Report No: 60706004 Date of Issue: July 13, 2006 Page 4 Rev.00 Compliance Certification Services Inc. Report No: 60706004 Date of Issue: July 13, 2006 Page 5 Rev.00

Compliance Certification Services Inc. Report No: 60706004-RP1 FCC ID: FSUKM001 Date of Issue: July 13, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 22 Rev. 00 FCC 47 CFR PART 15 SUBPART C & INDUSTRY CANADA RSS-310 TEST REPORT For Optical Mouse Model: RF-WTRMS Trade Name: KYE, rocketfish Issued to KYE SYSTEMS CORP. No.492,Sec.5,Chung Hsin Rd.,San Chung, Taipei Hsien,241,Taiwan,R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No: 60706004-RP1 FCC ID: FSUKM001 Date of Issue: July 13, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT .................................................................................................... 10 7. FCC PART 15.227 REQUIREMENTS...................................................................................... 11 7.1 20 DB BANDWIDTH .......................................................................................................... 11 7.2 99% BANDWIDTH................................................................................................................. 13 7.3 RADIATED EMISSIONS........................................................................................................... 15 7.4 POWERLINE CONDUCTED EMISSIONS.................................................................................... 19 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 22 Compliance Certification Services Inc. Report No: 60706004-RP1 FCC ID: FSUKM001 Date of Issue: July 13, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Optical Mouse Trade Name KYE, rocketfish Model Number RF-WTRMS Model Difference N/A Power Supply Powered by AAA batteries × 2 (Rating: 2 × 1.5Vdc) Frequency Range 27.045 MHz Modulation Technique FSK Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: FSUKM001 filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: 60706004-RP1 FCC ID: FSUKM001 Date of Issue: July 13, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4, FCC 47 CFR 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.227, IC RSS-310, IC RSS-Gen and IC RSS-212. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane according to the requirements in Section 13.1.4.1 of ANSI C63.4. Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied from 1m to 4m to find out the highest emission. And also, each emission was to be maximized by changing the polarization of rece…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: 60706004-RP1 FCC ID: FSUKM001 Date of Issue: July 13, 2006 Page 22 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
