FSUKM007STYLISH 2.4GHz Wireless Dongle

STYLISH 2.4GHz Wireless Dongle SCM-4800 3. 2.1. 4. 5. 6. 1. Mouse Appearance: Mouse Body: 1. Right Key 2. Wheel Key 3. Left Key 4. Upper Cover Lock 5. RF Linking Button 6. Power Switch Dongle Body: 1. RF Linking Button Set Up Process prior to Manually Use: 1. Un-Lock Battery Cover: 1-1. Un-Lock the Cover Lock of the Mouse Bottom-Cover 1-2. Lift-up the Top-Cover 1-3. Install 2*AAA Batteries 2. Get the Power-Switch Button moved to “ON” mode, and then Dongle will be jumped out 3. Get the Dongle plugged into the USB port 4. Press the Linking Button of the Dongle 5. Then, press the Linking Button of the Mouse bottom for connection For Power saving, please get your Mouse into sleep mode following by below steps: 1. Get your Mouse inactivity for 5 minutes, then Mouse is switched into sleep-mode automatically for saving the battery-power. 2. To wake up the Mouse by clicking either the right or left button-key, or shaking Mouse body. Product Spec. ResolutionOptical 1,000dpi Dimension94.15 57.8 32.13 mm Weight84.5 g USB PortUSB1.1 Power SpecDV/ 5.0V +-0.5%, 100mA (Maximally) Wa r n i n g 1. If Mouse Cursor is still, please press the Dongle “binding button” to get the Mouse re-started. 2. Make sure only the Alkaline Battery in AAA is used. 3. Make sure your Batteries are positioned correctly against the +/- electrode directions. 4. Make sure your Battery power is enough to drive to Mouse, and please do not mix with your Battery with other different types. 5. Batteries should be moved out once your device is long term non-used. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Date: 2007/09/26 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

September 26, 2007 Federal Communications Commission Authorization and Evaluation Division FCC ID: FSUKM007 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11563ab6df8feced&ww=1131&cvap=6&qt=&zx=asl9hcjmmz3 KYE SYSTEMS CORP., FCC ID: FSUKM007, Assessment NO.: AN07T7227, Notice#1 Inbox Reply from "[email protected]" <[email protected]> hide details Oct 2 (18 hours ago) to Gloria Huang <[email protected]> cc [email protected], "amanda.wu" <[email protected]> date Oct 2, 2007 4:09 PM subject KYE SYSTEMS CORP., FCC ID: FSUKM007, Assessment NO.: AN07T7227, Notice#1 Dear Gloria, The review of this application is complete. There is one question that needs to be answered. Q1: The test photos show the device evaluated only in a host with vertical USB slot. The test report states this is worst case. Please briefly describe the process used to evaluate radiated emissions for the case of a host computer with a horizontal USB slot. Best regards, Tim Dwyer CCS Technical Reviewer The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Reply Reply to all Forward Invite [email protected] to Gmail Reply from application <[email protected]> hide details 10:21 pm (11 hours ago) to [email protected] cc "application.2007" <[email protected]> date Oct 2, 2007 10:21 PM subject Re:KYE SYSTEMS CORP., FCC ID: FSUKM007, Assessment NO.: AN07T7227, Notice#1 Dear Tim, Please see my reply, thank you. Best Regards, Amanda <tim.dwyer@ccsemc. com> 2007/10/03 04:09 AM "Gloria Huang" <[email protected]> <[email protected]>, "amanda.wu" <[email protected]> KYE SYSTEMS CORP., FCC ID: FSUKM007, Assessment NO.: AN07T7227, Notice#1 Dear Gloria, The review of this application is complete. There is one question that needs to http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...1563ab6df8feced&ww=1131&cvap=6&qt=&zx=asl9hcjmmz3 (1 of 2)10/3/2007 10:15:23 AM http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv&search=inbox&th=11563ab6df8feced&ww=1131&cvap=6&qt=&zx=asl9hcjmmz3 be answered. Q1: The test photos show the device evaluated only in a host with vertical USB slot. The test report states this is worst case. Please briefly describe the process used to evaluate radiated emissions for the case of a host computer with a horizontal USB slot. Ans: The test report had been revised, please see page 6. - Show quoted text - SCM-4800 Test Report Revised 1002.pdf 744K View as HTML Download http://mail.google.com/mail/?ik=2a69a1bf8a&view=cv...1563ab6df8feced&ww=1131&cvap=6&qt=&zx=asl9hcjmmz3 (2 of 2)10/3/2007 10:15:23 AM

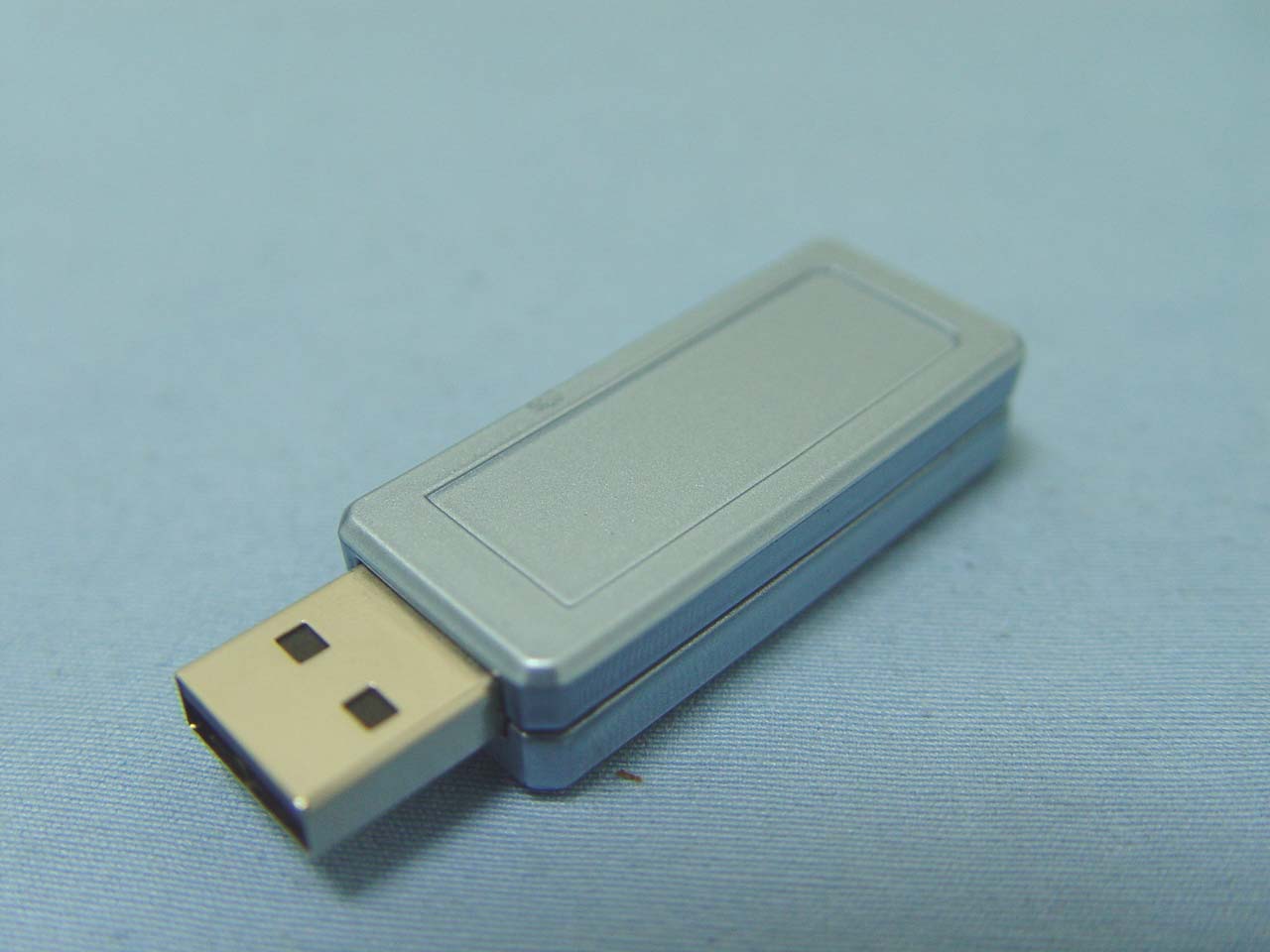

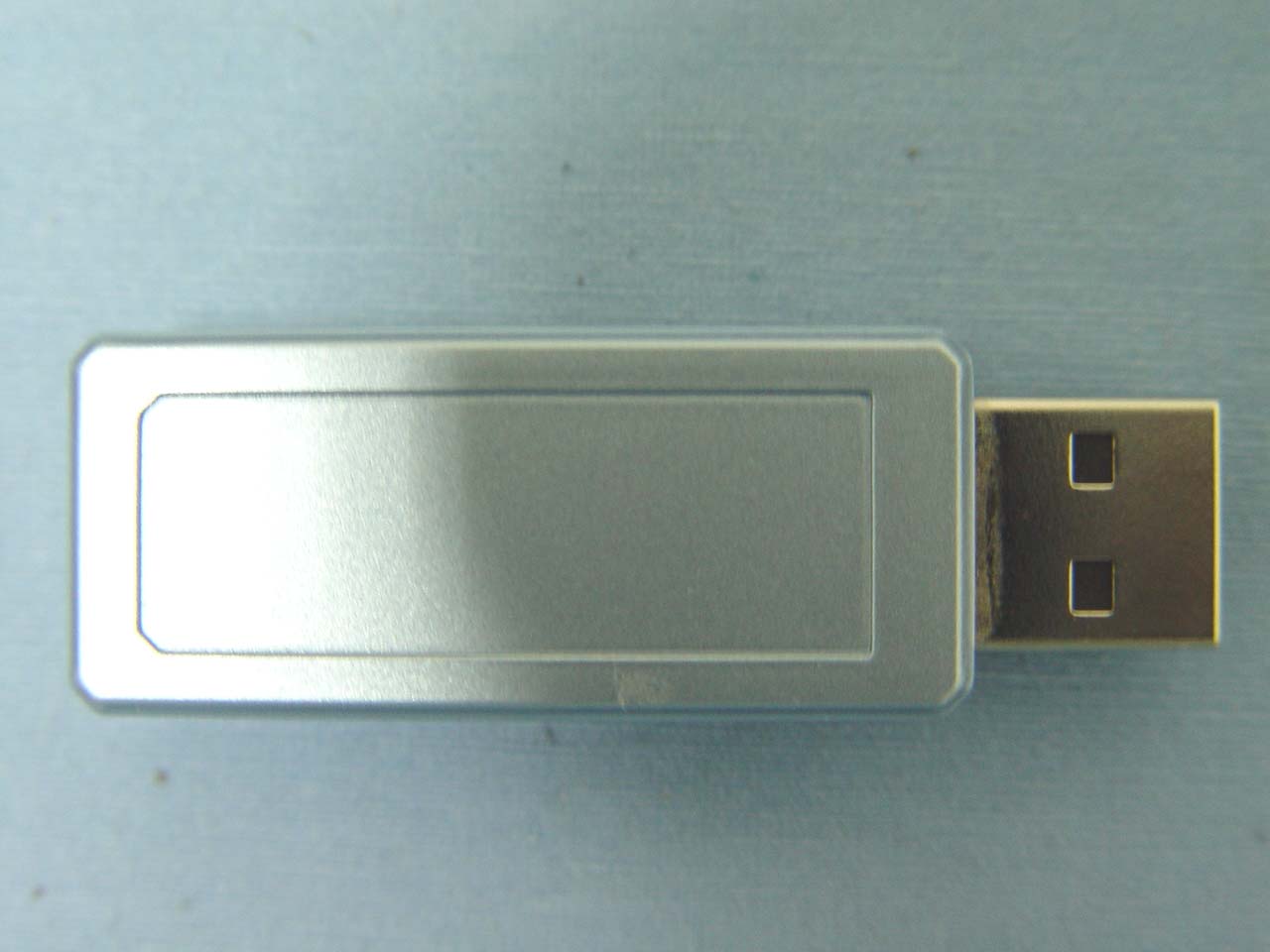

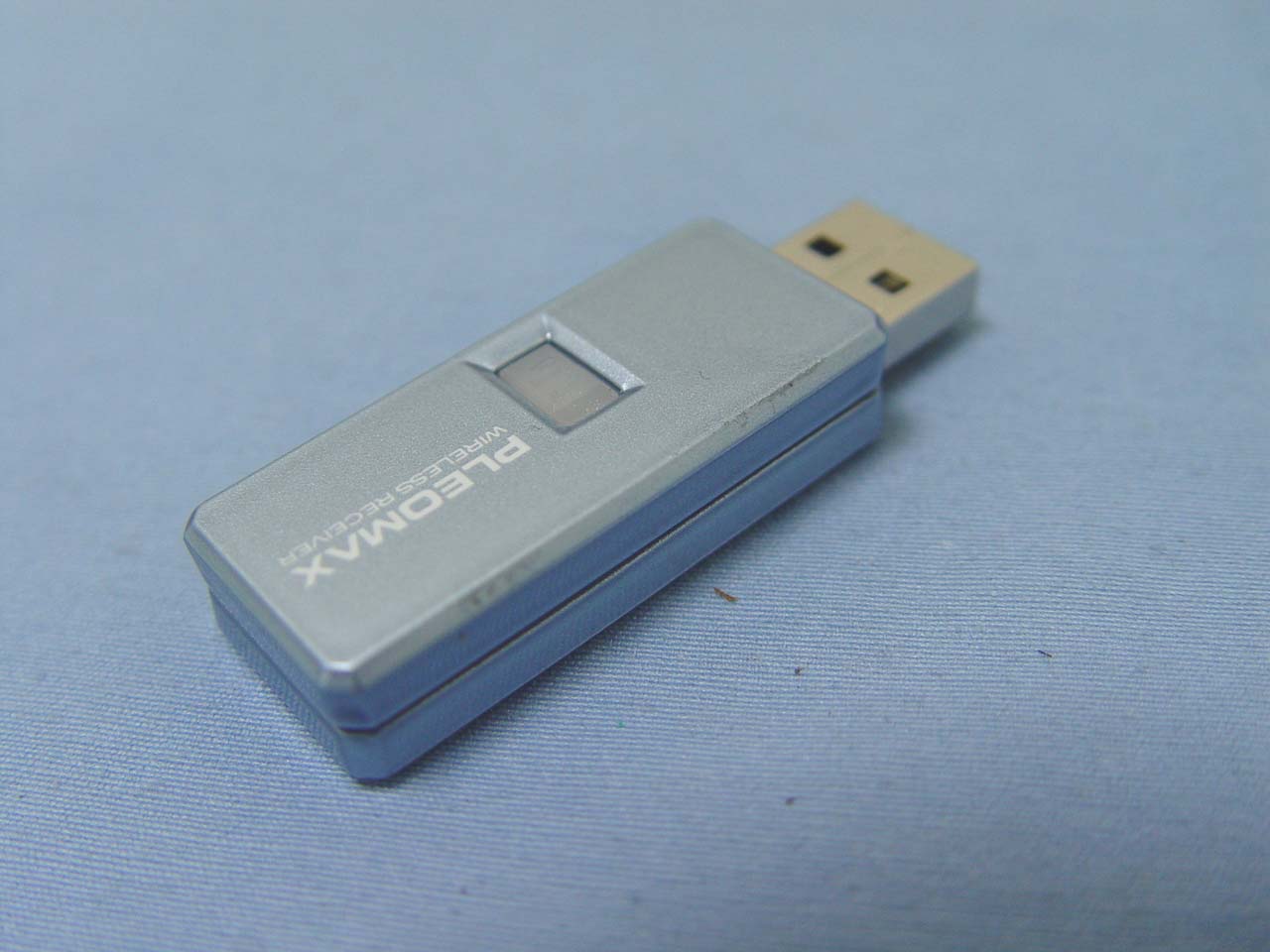

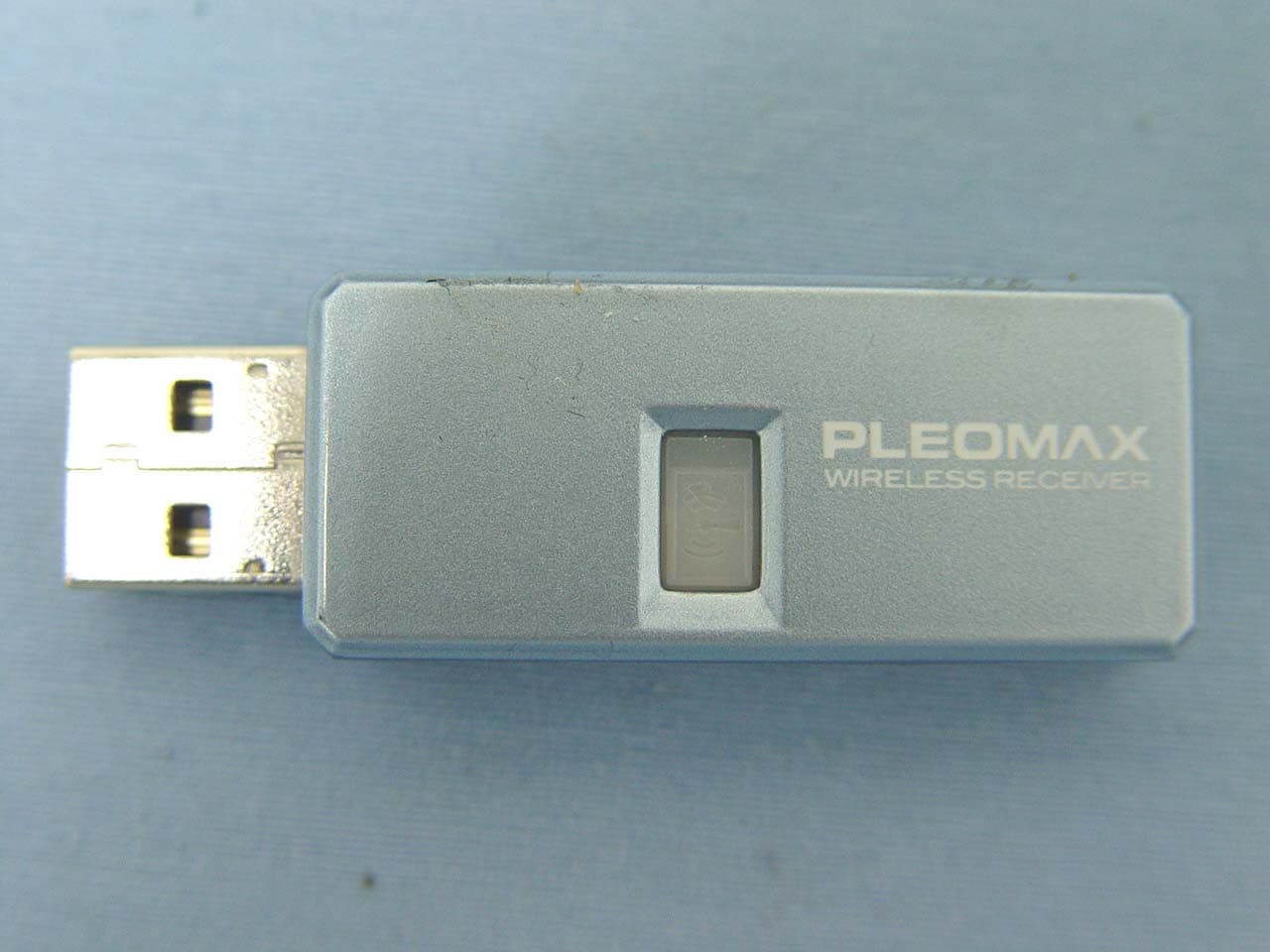

Compliance Certification Services Inc. Report No.: 70829005 Date of Issue: September 20, 2007 Page 1 Total Page: 4 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70829005 Date of Issue: September 20, 2007 Page 2 Rev.00

RS 2007/09/21 陳芳陳燕鳳 李建德 RS,FCC,N11,SCM 4800,SAMSUNG,RX 12040238200 3 4 5 6 7. RESTRICTED SUBSTANCE SPEC REFERENCE TO:DKC-QCD-S-095 8. 陳芳 2007/09/10 CAP-00 A 2007/09/21 2007/09/21 A 50#消銀龍＋霧P 1:1 2:1 1 2 公差：-0.2mm XXXXX X XXXXXXX C48 G NU S M A S : S (M/N:SCM-4800) 年份（07代表2007年) 流水號(000001~999999) 月份(E代表五月份，EX：A,B,C,D...） XXXXXXXXXXXX X : - R a ti ng5 V 100 mA -- - FCC ID: FSUKM007 XXXXXXXXXXXX X : - R a ti ng5 V 100 mA -- - FCC ID: FSUKM007

Compliance Certification Services Inc. Report No.: 70829005 Date of Issue: September 20, 2007 Page 3 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70829005 Date of Issue: September 20, 2007 Page 4 Rev.00

2402-X-DONGLE-E Antenna spec ================================= Antenna type : PCB Antenna Peak Gain : -2.23dBi CCS WUGU Antenna Pattern Job No.:2402-X-DONGLE-E Date:2007/9/13 Time:下午 05:45 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2402 Polarization : E Plane Max gain(dBi):-3.94 Min gain(dBi):-35.52 Avg gain(dBi):-9.30 2402-X-DONGLE-E CCS WUGU Antenna Pattern Job No.:2402-X-DONGLE-H Date:2007/9/13 Time:下午 05:46 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2402 Polarization : H Plane Max gain(dBi):-9.10 Min gain(dBi):-23.21 Avg gain(dBi):-12.17 2402-X-DONGLE-E CCS WUGU Antenna Pattern Job No.:2441-X-DONGLE-E Date:2007/9/13 Time:下午 05:54 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2441 Polarization : E Plane Max gain(dBi):-3.68 Min gain(dBi):-45.95 Avg gain(dBi):-9.10 2402-X-DONGLE-E CCS WUGU Antenna Pattern Job No.:2441-X-DONGLE-H Date:2007/9/13 Time:下午 05:48 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2441 Polarization : H Plane Max gain(dBi):-8.19 Min gain(dBi):-26.93 Avg gain(dBi):-11.35 2402-X-DONGLE-E CCS WUGU Antenna Pattern Job No.:2480-X-DONGLE-E Date:2007/9/13 Time:下午 05:55 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2480 Polarization : E Plane Max gain(dBi):-2.23 Min gain(dBi):-27.73 Avg gain(dBi):-8.66 2402-X-DONGLE-E CCS WUGU Antenna Pattern Job No.:2480-X-DONGLE-H Date:2007/9/13 Time:下午 05:57 Temp.(°C)/Hum.(%):25°C/80% Tested b y: Center freq.(MHz): 2480 Polarization : H Plane Max gain(dBi):-7.28 Min gain(dBi):-23.93 Avg gain(dBi):-10.60

Compliance Certification Services Inc. Report No.: 70829005-RP1 FCC ID: FSUKM007 Date of Issue: September 20, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 26 Rev. 00 FCC 47 CFR PART 15 Subpart C TEST REPORT For STYLISH 2.4GHz Wireless Dongle Trade Name / Model Number: PLEOMAX / SCM-4800, KYE / N11 Issued to KYE SYSTEMS CORP. No.492, Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70829005-RP1 FCC ID: FSUKM007 Date of Issue: September 20, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION................................................................................................................. 5 3.2 EUT EXERCISE............................................................................................................................. 5 3.3 GENERAL TEST PROCEDURES...................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS................................................. 6 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 6 4. INSTRUMENT CALIBRATION.................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED.................................................................................. 7 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 8 5.1 FACILITIES .. ................................................................................................................................ 8 5.2 EQUIPMENT................................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS................................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST.................................................................................... 10 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 10 6.2 SUPPORT EQUIPMENT ........................................................................................................ 10 7. FCC PART 15.249 REQUIREMENTS......................................................................................... 11 7.1 20 DB BANDWIDTH ............................................................................................................. 11 7.2 BAND EDGES MEASUREMENT ......................................................................................... 13 7.3 SPURIOUS EMISSION ..........................................................................................................18 7.4 POWERLINE CONDUCTED EMISSIONS........................................................................... 25 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................ 26 Compliance Certification Services Inc. Report No.: 70829005-RP1 FCC ID: FSUKM007 Date of Issue: September 20, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: KYE SYSTEMS CORP. No.492, Sec.5, Chung Hsin Rd., San Chung, Taipei Hsien, 24160, Taiwan, R.O.C. Equipment Under Test: STYLISH 2.4GHz Wireless Dongle Trade Name / Model Number: PLEOMAX / SCM-4800, KYE / N11 Date of Test: September 7 ~ 14, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.107, 15.109,15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Rex Lai Amanda Wu Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 70829005-RP1 FCC ID: FSUKM007 Date of Issue: September 20, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product STYLISH 2.4GHz Wireless Dongle Trade Name / Model Number PLEOMAX / SCM-4800, KYE / N11 Model Discrepancy All the specification and layout are identical except they come with different model numbers for marketing purposes. Power Supply Powered from host device. Frequency Spacing 2402 ~ 2480 MHz Frequency Number GFSK Number of Channels 79 Channels Antenna Gain -2.23 dBi Antenna Designation PCB Antenna Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: FSUKM007 …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70829005-RP1 FCC ID: FSUKM007 Date of Issue: September 20, 2007 Page 26 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos
