FSUKM014Dongle

Page 1/1

昆盈企業股份有限公司 KYE SYSTEMS CORP. No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 241, Taiwan, R.O.C. Tel: 866-2-29956645 Fax: 866-2-29956649 Date: September 2, 2009 FCC ID: FSUKM014 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Scotte Tsou/ EMC&Safety Engineer KYE SYSTEMS CORP. Tel: +886-2-2995-6645 Fax: +886-2-2995-5302 E-mail: [email protected]

昆盈企業股份有限公司 KYE SYSTEMS CORP. No. 492, Sec. 5, Chung Hsin Rd., San Chung, Taipei Hsien, 241, Taiwan, R.O.C. Tel: 866-2-29956645 Fax: 866-2-29956649 AGENCY AUTHORIZATION LETTER Date: September 2, 2009 To whom it may concern: We, the undersigned, KYE SYSTEMS CORP., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) to act on our behalf in all matters relating to all processes required in the FCC Part 15C. Any and all acts carried out by BV CPS Taoyuan Branch on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Scotte Tsou/ EMC&Safety Engineer KYE SYSTEMS CORP. Tel: +886-2-2995-6645 Fax: +886-2-2995-5302 E-mail: [email protected]

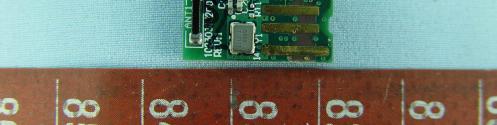

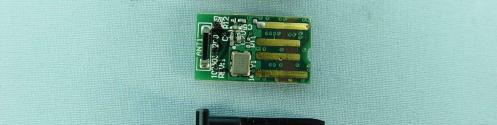

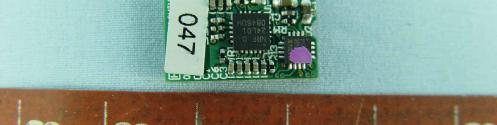

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID .: FSUKM014 Label Location

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

FCC ID: FSUKM014 Report No.: RF980825L06 Operational Description The transmitter of the EUT (Dongle) is powered from 5Vdc from host equipment. The antenna is chip antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.

Report No.: RF980825L06 1 Report Format Version 3.0.0 FCC TEST REPORT REPORT NO. :RF980825L06 MODEL NO. :MOC-250D RECEIVED :Aug. 25, 2009 TESTED :Aug. 27 ~ Aug. 31, 2009 ISSUED :Sep. 07, 2009 APPLICANT : KYE SYSTEMS CORP. ADDRESS : NO. 492, SEC. 5, CHUNG HSIN RD., SAN CHUNG, TAIPEI HSIEN, 241, TAIWAN, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 28 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF980825L06 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION .........................................................................................................3 2. SUMMARY OF TEST RESULTS .................................................................................4 2.1 MEASUREMENT UNCERTAINTY ..............................................................................4 3. GENERAL INFORMATION..........................................................................................5 3.1 GENERAL DESCRIPTION OF EUT............................................................................5 3.2 DESCRIPTION OF TEST MODES..............................................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST .........................................................6 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................8 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................9 4. TEST TYPES AND RESULTS ...................................................................................10 4.1 RADIATED EMISSION MEASUREMENT .................................................................10 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................................10 4.1.2 TEST INSTRUMENTS .............................................................................................. 11 4.1.3 TEST PROCEDURES ...............................................................................................12 4.1.4 DEVIATION FROM TEST STANDARD .....................................................................12 4.1.5 TEST SETUP ............................................................................................................13 4.1.6 EUT OPERATING CONDITIONS ..............................................................................13 4.1.7 TEST RESULTS ........................................................................................................14 4.2 CONDUCTED EMISSION MEASUREMENT ............................................................18 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................................18 4.2.2 TEST INSTRUMENTS ..............................................................................................18 4.2.3 TEST PROCEDURES ...............................................................................................19 4.2.4 DEVIATION FROM TEST STANDARD .....................................................................19 4.2.5 TEST SETUP ............................................................................................................20 4.2.6 EUT OPERATING CONDITIONS ..............................................................................20 4.2.7 TEST RESULTS ........................................................................................................21 4.3 BAND EDGES MEASUREMENT ..............................................................................23 4.3.1 LIMITS OF BAND EDGES MEASUREMENT ...........................................................23 4.3.2 TEST INSTRUMENTS ..............................................................................................23 4.3.3 TEST PROCEDURE .................................................................................................23 4.3.4 DEVIATION FROM TEST STANDARD .....................................................................23 4.3.5 EUT OPERATING CONDITION ................................................................................23 4.3.6 TEST RESULTS ........................................................................................................24 5. PHOTOGRAPHS OF THE TEST CONFIGURATION................................................26 6. INFORMATION ON THE TESTING LABORATORIES ..............................................27 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................................................28 Report No.: RF980825L06 3 Report Format Version 3.0.0 1. CERTIFICATION PRODUCT: Dongle MODEL NO.: MOC-250D BRAND: SAMSUNG (refer to item 3.1 for more details) APPLICANT: KYE SYSTEMS CORP. TESTED: Aug. 27 ~ Aug. 31, 2009 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 The above equipment (model: MOC-250D) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE :Sep, 07, 2009 Joanna Wang / Senior Specialist TE…

Text truncated - open the document above for the full version.

Report No.: FD980825L06 1 Report Format Version 3.0.0 FCC DoC TEST REPORT REPORT NO. : FD980825L06 MODEL NO. : MOC-250D RECEIVED : Aug. 25, 2009 TESTED : Aug. 26 ~ Sep. 02, 2009 ISSUED : Sep. 07, 2009 APPLICANT : KYE SYSTEMS CORP. ADDRESS : NO. 492, SEC. 5, CHUNG HSIN RD., SAN CHUNG, TAIPEI HSIEN, 241, TAIWAN, R.O.C. ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien 244, Taiwan, R.O.C. TEST LOCATION : No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 27 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: FD980825L06 2 Report Format Version 3.0.0 Table of Contents 1. CERTIFICATION.........................................................................................................3 2. SUMMARY OF TEST RESULTS.................................................................................4 2.1 MEASUREMENT UNCERTAINTY...............................................................................4 3. GENERAL INFORMATION..........................................................................................5 3.1 GENERAL DESCRIPTION OF EUT............................................................................5 3.2 DESCRIPTION OF TEST MODES..............................................................................6 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST..........................................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL...............................8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS..............................................9 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................................10 4. TEST TYPES AND RESULTS...................................................................................11 4.1 RADIATED EMISSION MEASUREMENT..................................................................11 4.1.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................................11 4.1.2 TEST INSTRUMENTS...............................................................................................12 4.1.3 TEST PROCEDURES...............................................................................................14 4.1.4 DEVIATION FROM TEST STANDARD......................................................................14 4.1.5 TEST SETUP............................................................................................................15 4.1.6 EUT OPERATING CONDITIONS..............................................................................15 4.1.7 TEST RESULTS........................................................................................................16 4.2 CONDUCTED EMISSION MEASUREMENT.............................................................20 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT...........................................20 4.2.2 TEST INSTRUMENTS...............................................................................................20 4.2.3 TEST PROCEDURES...............................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD......................................................................21 4.2.5 TEST SETUP............................................................................................................22 4.2.6 EUT OPERATING CONDITIONS..............................................................................22 4.2.7 TEST RESULTS........................................................................................................23 5. PHOTOGRAPHS OF THE TEST CONFIGURATION.................................................25 6. INFORMATION ON THE TESTING LABORATORIES...............................................26 7. APPENDIX A - MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB.......................................................................................27 Report No.: FD980825L06 3 Report Format Version 3.0.0 1. CERTIFICATION PRODUCT: Dongle MODEL NO.: MOC-250D BRAND: SAMSUNG (refer to item 3.1 for more details) APPLICANT: KYE SYSTEMS CORP. TESTED: Aug. 26 ~ Sep. 02, 2009 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart B, Class B ANSI C63.4-2003 The above equipment (model: MOC-250D) have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE : Sep, 07, 2009 Joanna Wang / Senior Specialist TECHNICAL ACCEPTANCE : , DATE : Sep. 07, 2009 Responsible for RF Long Chen / Senior Engineer APPROVED BY : , DATE : Sep. 07, 2009 Gary Chang / Assistant Manager Report No.: FD980825L06 4 Report Format Version 3.0.0 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: STANDARD SECTION TEST TYPE RESULT REMARKS Conducted Emission PASS Meet the requirement of limit. Minimum passing margin is -12.27dB at 0.173MHz. FCC Part 15, Subpart B, Class B Radiated Emissions PASS Meet the requirement of limit. Minimum passing margin is -10.52dB at 819.22MHz. 2.1 MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT as specified in CISPR 16-4-2: MEASUREMENT FREQUENCY UNCERTAINTY Conducted em…

Text truncated - open the document above for the full version.
