FVO-S14Cooleye

Cooleye 1、Preparation Type Name Quantity Mini USB cable 1 Opto‐electrical writing pen 1 Hardware Cooleye 1 Software named SmartPointer4.3.4.10 1 Software Dbgview.exe 1 2、Connect device Use one Mini USB cable to connect USB port of PC and the mini USB port of the device. 3、operate device 3.1 run SmartPointer software (see 3.1.1), it’ll show a green icon in the taskbar tray icon (see 3.1.2) Figure 3.1.1 Figure 3.1.2 3.2 Run the Dbgview.exe software, use your hand to press the pen point while the light pen is straight toward the equipment lens. When the pen emits infrared light, there’ll be some related data output, which indicates that equipment is working properly. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. April 5, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description：Cooleye Model name：S14 We affirm that between SIEMIC and Nanjing Magon Opto-electrical Science and Technology Co.,Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, signature ： Name : Ellin Zhang Title: Research and Development Manager Company Name: Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. Address: West side,Floor2,Building E13,No.388,Yingtian Street,Qinhuai District,Nanjing,China Email: [email protected] Telephone: 86-025-52214977

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. April 5, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: FVO-S14 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, signature ： Name : Ellin Zhang Title: Research and Development Manager Company Name: Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. Address: West side,Floor2,Building E13,No.388,Yingtian Street,Qinhuai District,Nanjing,China Email: [email protected] Telephone: 86-025-52214977

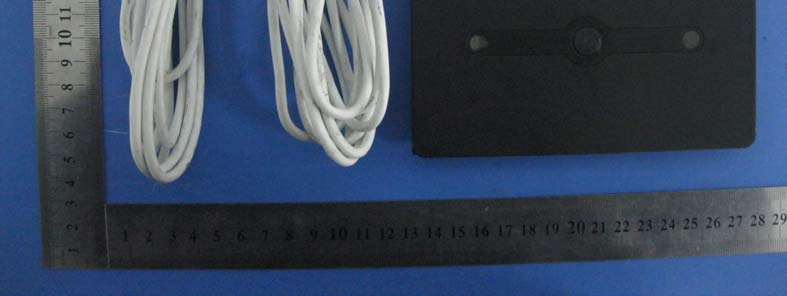

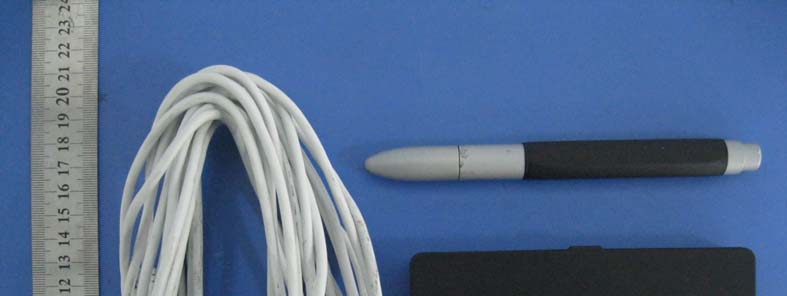

Annex B. EUT External Photo Photo #1 EUT-Front View Photo #2 EUT-Rear View Photo #3 EUT-Side View Photo #4 EUT-Side View

FCC ID: FVO-S14 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Location

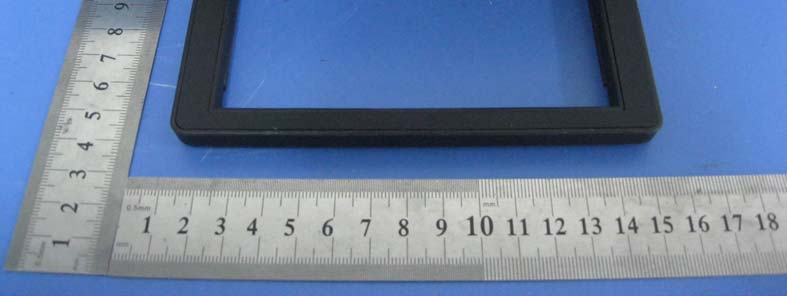

Annex B. EUT Internal Photo Photo #1 EUT-Uncovered View Photo #2 Front of View- PCB Motherboard Photo #3 Rear of View- PCB Motherboard Photo #4 Front of View- Infrared Pen

Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. Cooleye Main Model: S14 Serial Model: N/A April 1, 2012 Report No.: 12020271-FCC-E (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: William Long Compliance Engineer Alex Liu Technical Manager This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: EMC Test Report for Cooleye Main Model: S14 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12020271-FCC-E Issue Date: April 1, 2012 Page: 2 of 26 www.siemic.com.cn Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets . Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety Japan VCCI, JATE, TELEC, RFTEMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety Accreditations for Product Certifications Country/Region Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom Hong Kong OFTA (US002) RF , Telecom Title: EMC Test Report for Cooleye Main Model: S14 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12020271-FCC-E Issue Date: April 1, 2012 Page: 3 of 26 www.siemic.com.cn This page has been left blank intentionally. Title: EMC Test Report for Cooleye Main Model: S14 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12020271-FCC-E Issue Date: April 1, 2012 Page: 4 of 26 www.siemic.com.cn CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ..........................................................................................5 2 TECHNICAL DETAILS .........................................................................................................................................6 3 MODIFICATION.....................................................................................................................................................7 4 TEST SUMMARY....................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................9 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................15 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ...........................................................................................20 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT................................................................................21 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PART LIST ............................................25 ANNEX E. DECLARATION OF SIMILARITY ........................................................................................................26 Title: EMC Test Report for Cooleye Main Model: S14 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12020271-FCC-E Issue Date: April 1, 2012 Page: 5 of 26 www.siemic.com.cn 1 EXECUTIVE SUMMARY & EUT INFORMATION The purpose of this test programme was to demonstrate compliance of the Nanjing Magon Opto-electrical Science and Technology Co.,Ltd., Cooleye and model: S14 against the current Stipulated Standards. The Cooleye has demonstrated compliance with the FCC Part 15 Subpart B Class B: 2011. EUT Information EUT Description : Cooleye Main Model : S14 Serial Model : N/A Input Power : 140mA≦I≦170mA 4.6V≦U≦5.2V Classification Per Stipulated Test Standard : FCC Part 15 Subpart B Class B: 2011 Title: EMC Test Report for Cooleye Main Model: S14 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12020271-FCC-E Issue Date: April 1, 2012 Page: 6 of 26 www.siemic.com.cn 2 TECHNICAL DETAILS Purpose Compliance testing of Cooleye with stipulated standard Applicant / Client Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. West side,Floor2,Building E13,No.388,Yingtian Street,Qinhuai District,Nanjing,China Manufacturer Nanjing Magon Opto-electrical Science and Technology Co.,Ltd. West side,Floor2,Building E13,No.388,Yingtian Street,Qinhuai District,Nanjing,China Laboratory performing the tests SIEMIC Nanjing (China) Laboratories NO.2-1,Longcang Dadao, Yuhua Economic Development Zone, Nanjing, China Tel:+86(25)86730128/86730129 Fax:+86(25)86730127 Email:[email protected] Test report reference number 12020271-FCC-E Date EUT received March 27, 2012 Standard applied FCC Part 15 Subpart B Class B: 2011 Dates of test March 28, 2012 No of Units #1 Equipment Category Class B Emission Product Trade Name N/A RF Operating Frequency (ies) N/A Number of Channels N/A Clock/Oscillator Frequency (ies) 12 MHz Modulation N/A FCC ID FVO-S14 Title: EMC Test Report for Cooleye Main Model: S14 Serial Model: N/A To: FCC Part 15 Subpart B Class B: 2011 Report No: 12020271-FCC-E Issue Date: April 1, 2012…

Text truncated - open the document above for the full version.

Annex B. Test Setup Photo Conducted Emissions Test Setup - Front View Conducted Emissions Test Setup - Side View Radiated Emissions Test Setup- Front View Radiated Emissions Test Setup- Rear View
