Re: Certification for Micromet Transmitter Model: CF5 FCC ID: FWYCF5 USER'S MANUAL INFORMATION (PRELIMINARY) The User's Manual is in preparation. The following material will be contained in the manual: FCC ID: FWYCF5 This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met.

Re: Certification for Micromet Transmitter Model: CF5 FCC ID: FWYCF5 POWER OF ATTORNEY A letter granting Valdis V. Liepa the Power of Attorney is on file and can be provided when so requested. Re: Certification for Micromet Transmitter Model: CF5 FCC ID: FWYCF5 REQUEST FOR CONFIDENTIALITY Pursuant to 47 CRF 0.459, Micromet requests that a part of the subject application be held confidential. This comprises Exhibits (5) Schematics (10) Parts List (Part of Exhibit only) Micromet has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. If there are any questions regarding this request, please contact me at the above address or call 734-483-4211, fax 734-647-2106 or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist University of Michigan June 30, 2005 Re: Certification for Micromet Transmitter Model: CF5 FCC ID: FWYCF5 STATEMENT OF MODIFICATIONS During pretesting, significant spurious emissions were observed in the 4.5 – 6.0 GHz band. The source of these emissions was determined to be the Rubidium clock reference block. Shielding and absorber were added to the Rubidium clock module to bring these emissions into compliance. The DUT was then fully tested. Photographs of the modifications are provided in the Internal Photos exhibit. (Also see Section 3.1 of the attached Test Report). _____________________ Valdis V. Liepa Research Scientist Re: Certification for Micromet Transmitter Model: CF5 FCC ID: FWYCF5 GENERAL PRODUCT INFORMATION The device, for which certification is pursued, has been designed by: Micromet Corporation 325 E. Eisenhower Ann Arbor, MI 48108 Carl Augustien Tel: (231) 885-1466 It will be manufactured by: Micromet Corporation 325 E. Eisenhower Ann Arbor, MI 48108 Richard Lindemann Tel: (734) 429-4095

June 30, 2005 Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Micromet Transmitter Model: CF5 FCC ID: FWYCF5 Please find enclosed application materials for certification of Micromet CF5 Transmitter. We tested it and found it to comply with FCC Part 15.245. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

June 30, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: FWYCF5 Please find enclosed application materials for certification of Micromet CF5 10.525 GHz Doppler Radar Transmitter. Note: 1) portions of this submittal are filed Confidential 2) a list of the modifications made is provided in Attestations. If there are any questions regarding the application or testing performed, please contact me at the above address or call 734-483-4211, fax 734-647-2106, or e-mail [email protected]. Sincerely, Valdis V. Liepa Research Scientist

Micromet Corporation CF5 FCC ID Label FCC ID: FWYCF5 MICROMET CORPORATION 3800 N. 13 RD. Mesick, MI 49668 Model: CF5 RADAR This device complies with Part 15 of the FCC Rules. Operation of the device is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may be received, including interference that may cause undesired operation. DUT (back) 2

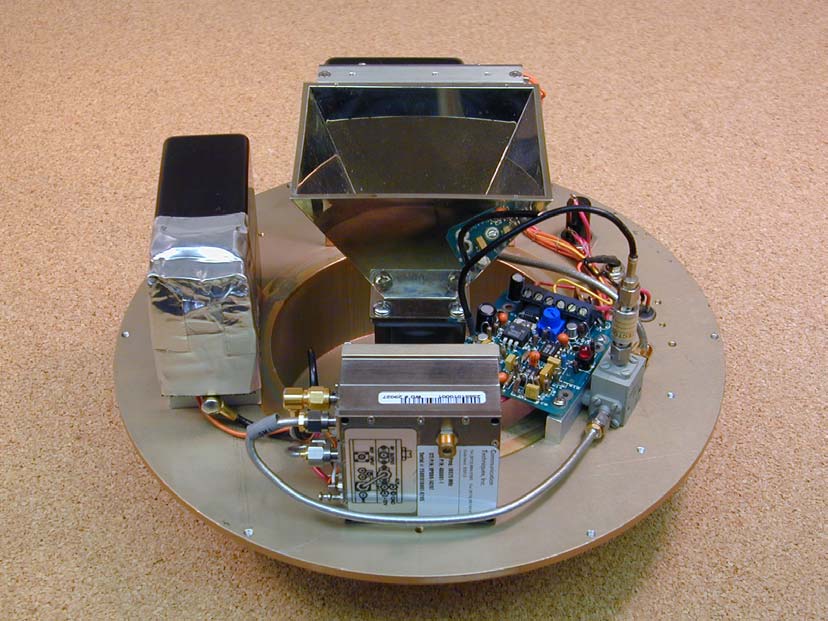

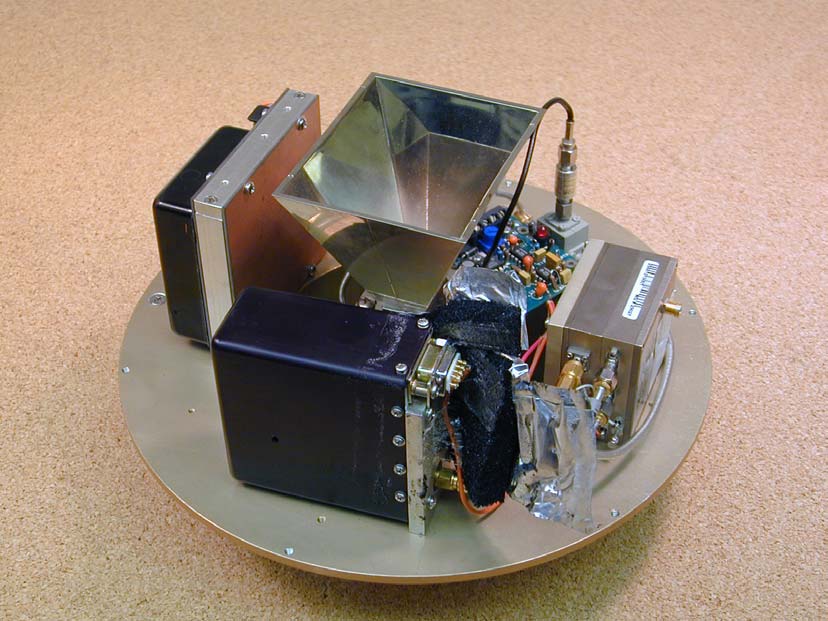

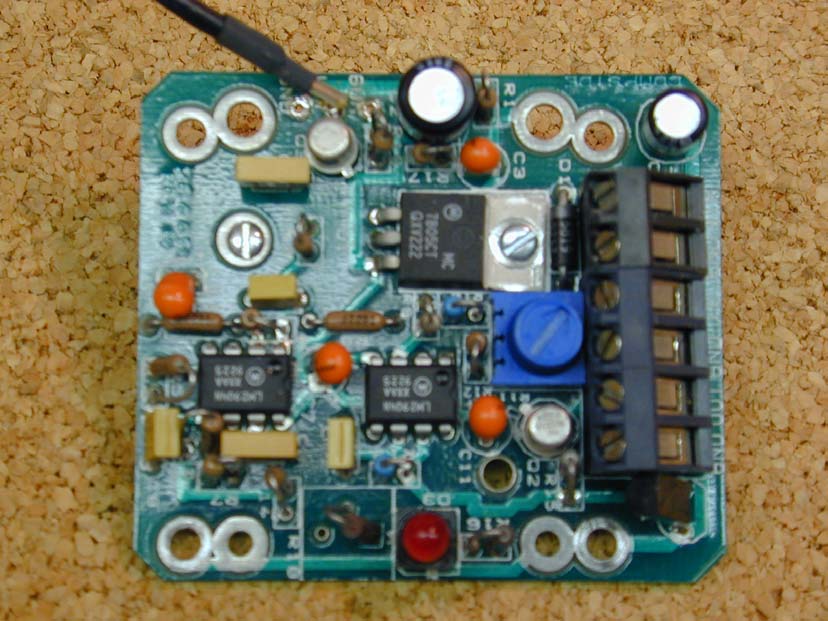

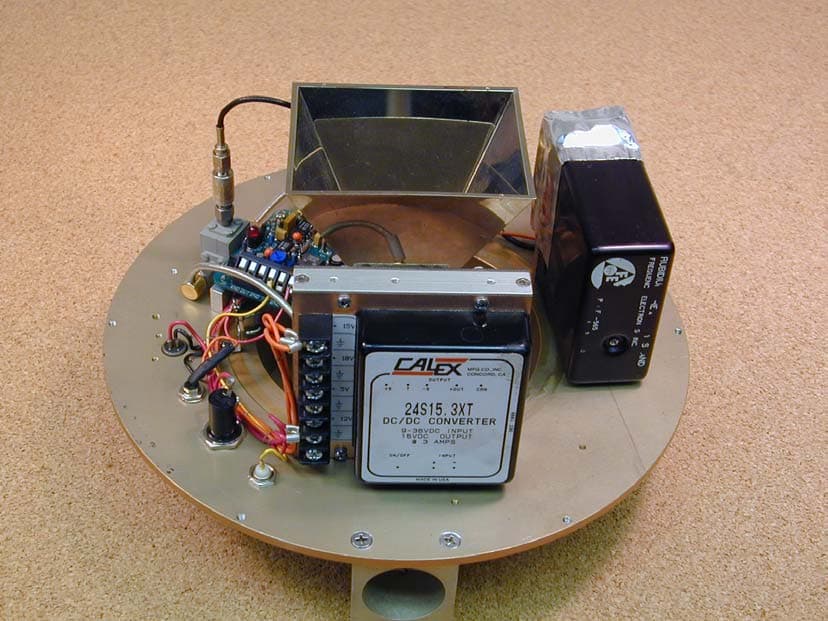

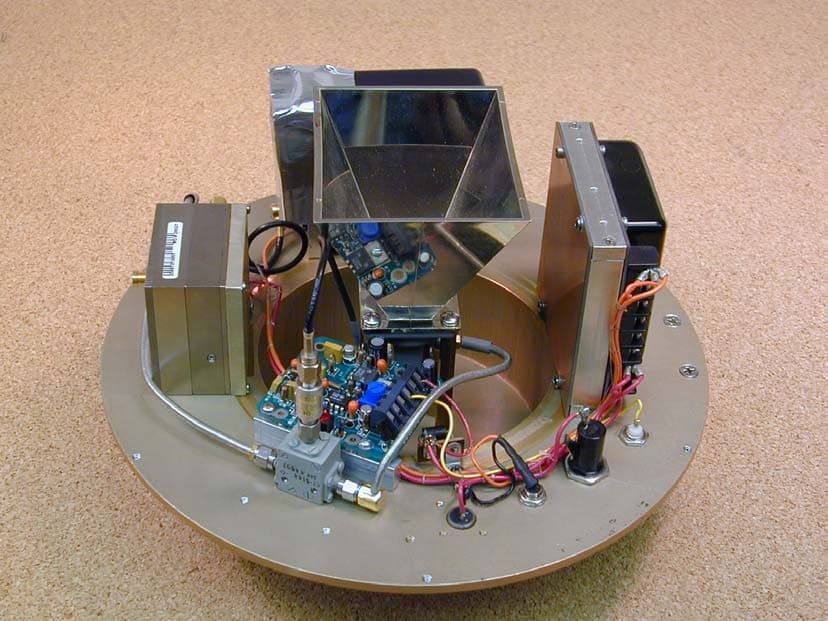

DUT with Radome Removed (top) DUT with Radome Removed (side 1) DUT with Radome Removed (side 2) DUT with Radome Removed (side 3) DUT with Radome Removed (side 4) Atomic Clock Shielding Revealed - absorber and aluminum shielding used DC Converter Block (close-up) Local Oscillator / RF Source Block (close-up) Rubidium Clock Module (close-up) Power Divider and RF Diode Detector (close-up) PCB Signal Processing Board (top) PCB Signal Processing Board (bottom)

6/30/2005 University of Michigan Willow Run Test Report #: 415031-254 Page 6 of 12 6.6 Effect of Supply Voltage Variation (FCC 15.31(e)) Figures 6.4 and 6.5. The DUT is designed to operate on 13.8 VDC, originating from a 12 V battery. The relative radiated emissions and frequency were recorded at the "fundamental" (10.525 GHz) as the supply voltage was varied from 7 to 18 VDC. The relative frequency drift was also measured and is reported.. Current at 12.0 VDC was 1.2 A. Potential Health Hazard EM Radiation Level The minimum separation distance calculated following FCC OET Bulletin 65 is calculated as follows, where S is power density, EIRP(dBm) = E 3 (dBμV/m) – 95.2 dB( mW/(μV/m) ) EIRP = 120.8 (dBμV/m) - 95.2 dB( mW/(μV/m) ) = 25.6 dBm ERP = EIRP – 2.15 = 25.6 – 2.15 = 23.45 dBm = 221.3 mW = 0.22 W Thus, the power density at 20 cm becomes S(mW/cm 2 ) = EIRP(mW)/(4π R(cm) 2 ) = 0.072 mW/cm 2 NOTE: (1) Under no circumstances is the ERP of this device greater than 3W, as required by 2.1091 and the FCC mm-wave accepted test procedures. 6.8 Sample Field Computations FUNDAMENTAL Refer to: (a) Table 6.1 ; line 1; p. 7. (b) Section 6.2; Figure 6.1, peak power measurement; p. 9. (c) Table 4.1; limit; p. 3; limit 128 dB(μV/m) (d) Section 6.2; peak-to-(power)average ratio, p. 5; (0.0 dB) The approach is to follow standard equations for computing field strength, see equations and conversion factors in Section 5.2.3, p. 4 of the report. To compute the field strength we use: E 3 dB(μV/m) = 107 + Pr + Ka - Kg + Ke = 107 – 15.7 + 29.5 + 0 + 0.0 = 120.8 dB(μV/m) The limit is 128 dB(μV/m) .

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, MI 48109-2122 Tel: (734) 764-0500 Measured Radio Frequency Emissions From Micromet X-band Doppler Radar High Performance Field Disturbance Sensor Model CF5 Report No. 415031-254 June 29, 2005 Copyright © 2005 For: Micromet Corporation 3800 N. 13 Rd. Mesik, MI 49668 Contact: Carl Argustien [email protected] Tel: (231) 885-1466 PO: Verbal Tests supervised by: Measurements made by: Report approved by: _____________________ Valdis V. Liepa Valdis V. Liepa Research Scientist Summary Tests for compliance with FCC Regulations, according to Part 15.245 were performed on Micromet CF5 Doppler Radar. In testing completed March 15, 2005, the device tested met the emission limits at the fundamental by 7.1 dB, at the harmonics by 2.1 dB, at spurious by 17.2 dB, and digital emissions meet the FCC Class A limit by 9.9 dB. For RF Health Hazard, the maximum RF field at a 20 cm distance was calculated to be 0.072 mW/cm 2 . The DUT is designed for operation on a 12 VDC battery, and as such conducted emissions are not subject to regulation. 6/30/2005 University of Michigan Willow Run Test Report #: 415031-254 Page 2 of 12 1. Introduction Micromet CF5 Doppler Radar was tested for compliance with FCC Regulations, Part 15, adopted under Docket 87-389, April 18, 1989. The tests were performed at the University of Michigan Radiation Laboratory Willow Run Test Range following the procedures described in ANSI C63.4-2003 "Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz.” The Site description and attenuation characteristics of the Open Site facility are on file with FCC Laboratory, Columbia, Maryland (FCC Reg. No: 91050) and with Industry Canada, Ottawa, ON (File Ref. No: IC 2057). 2. Test Equipment Used The pertinent test equipment commonly used in our facility for measurements is listed in Table 2.1 below. The middle column identifies the specific equipment used in these tests. Table 2.1. Test Equipment. Test Instrument Eqpt. Used Manufacturer/Model Spectrum Analyzer (0.1-1500 MHz) Hewlett-Packard, 182T/8558B Spectrum Analyzer (9kHz-22GHz) Hewlett-Packard 8592L, SN: 3710A00856 Spectrum Analyzer (9kHz-26GHz) X Hewlett-Packard 8593E, SN: 3412A01131 Spectrum Analyzer (9kHz-26GHz) Hewlett-Packard 8563E, SN: 3310A01174 Spectrum Analyzer (9kHz-40GHz) X Hewlett-Packard 8564E, SN: 3745A01031 Power Meter Hewlett-Packard, 432A Power Meter Anritsu, ML4803A/MP Harmonic Mixer (40-60 GHz) X Hewlett-Packard 11970U, SN: 2332A00500 Harmonic Mixer (60-90 GHz) X Pacific Millimeter Prod., VN, SN: 47 Harmonic Mixer (75-110 GHz) X Hewlett-Packard 11970W, SN: 2521A00179 Harmonic Mixer (140-220 GHz) Pacific Millimeter Prod., GMA, SN: 26 X-band horn (8.2- 12.4 GHz) Narda 640 X-band horn (8.2- 12.4 GHz) X Scientific Atlanta , 12-8.2, SN: 730 K-band horn (18-26.5 GHz) X FXR, Inc., K638KF Ka-band horn (26.5-40 GHz) X FXR, Inc., U638A U-band horn (40-60 GHz) X Custom Microwave, HO19 V-band horn (60-90 GHz) X Custom Microwave, HO12 W-band horn (75-110 GHz) X Custom Microwave, HO10 G-band horn (140-220 GHz) Custom Microwave, HO5R Bicone Antenna (30-250 MHz) X University of Michigan, RLBC-1 Bicone Antenna (200-1000 MHz) X University of Michigan, RLBC-2 Dipole Antenna Set (30-1000 MHz) University of Michigan, RLDP-1,-2,-3 Dipole Antenna Set (30-1000 MHz) EMCO 2131C, SN: 992 Active Rod Antenna (30 Hz-50 MHz) EMCO 3301B, SN: 3223 Active Loop Antenna (30 Hz-50 MHz) EMCO 6502, SN:2855 Ridge-horn Antenna (300-5000 MHz) X University of Michigan Amplifier (5-1000 MHz) Avantek, A11-1, A25-1S Amplifier (5-4500 MHz) X Avantek Amplifier (4.5-13 GHz) X Avantek, AFT-12665 Amplifier (6-16 GHz) X Trek LISN (50 μH) University of Michigan Signal Generator (0.1-2060 MHz) Hewlett-Packard, 8657B Signal Generator (0.01-20 GHz) X Hewlett-Packard, 8550B / 83592A 6/30/2005 University of Michigan Willow Run Test Report #: 415031-254 Page 3 of 12 3. Configuration and Identification of Device Under Test The Device Under Test (DUT) is a 10.525 GHz Doppler Radar. The radar obtains very low phase noise and high stability by phase locking to a 5 MHz Rubidium Frequency Standard (Atomic Clock) with a frequency stability of one part in 10x10^-10. It is used to measure very small changes in the speed of a vehicle approaching or moving away from the radar. The size of the DUT is 35 (W) x 35(H) x 20(D) cm with a single connector on the backside. Nominal operating voltage is 13.8 VDC; for testing this was supplied by a laboratory style power supply. The DUT was manufactured by Micromet Corporation, 3800 N. 13 Rd., Mesick, MI 49668. It is identified as: Micromet Doppler Radar Model(s): CF5 S/N: 003 FCC ID: FWYCF5 3.1 Changes made to the DUT During pretesting, significant spurious emissions were observed in the 4.5 – 6.0 GHz band. The source of these emissions was determined to be the Rubidium clock reference block. Shielding was added to the Rubidium clock module to bring these emissions into compliance. The DUT was then fully tested. Photographs of the modifications are provided in the Internal Photos exhibit. 4. Emission Limits 4.1 Radiated Emission Limits The DUT tested falls under the category of an Intentional Radiator, subject to Section 15.245 and all other sections referred to therein. The applicable critical testing frequencies with corresponding emission limits are given in Tables 4.1 and 4.2. Table 4.1. Radiated Emission Limits (Ref. FCC 15.205, 15.209, 15.245) --Transmitter. Fundamental Frequency Fundamental Ave. E lim (3m) Harmonics Ave.E lim (3m) Spurious** Ave.E lim (3m) Application (MHz) (mV/m) dB(μV/m) (mV/m) dB(μV/m) (mV/m) dB(μV/m) 10500-10550 2500 128 25.0* 88.0* Indoor/Door 10500-10550 2500 128 7.5 77.5 50 dB below Fund. or 15.209 Other * 2nd and 3rd harmonics only ** Other than fundamental and harmonics, 50 dB down from fundamental or 15.209 limits. 6/30/2005 University of Michigan Willow Run Test R…

Text truncated - open the document above for the full version.

DUT on OATS DUT on OATS (close-up) DUT (indoor Testing) DUT close-up (Indoor Testing)
